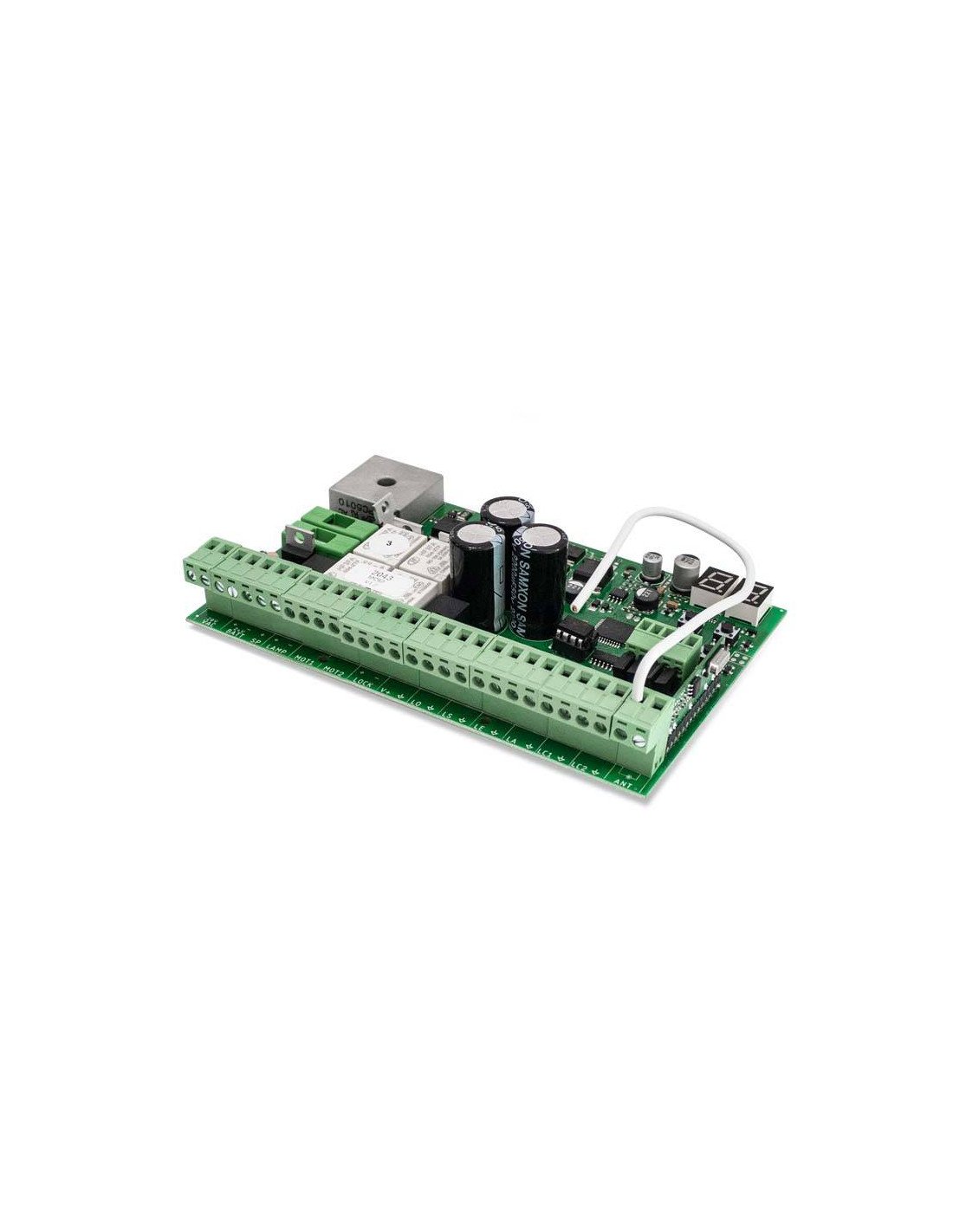

Central Motorline MC62 developed to work with 1 or 2 24Vdc motors, with maximum power of 120W each. It also includes the following characteristics:

• Technology that does not allow switching to heat up Stress detection
• Uniformity of menus
• Protection against reversal of battery polarity
• Output for RGB flashing lamp or door status
• Possibility to delete a specific command from memory
• Tickets for 2 sets of photocells with different functions, such as 2 sec reversal, stop or reversal, opening button, closing button, pedestrian, rotary button (open and close)
• Function follow me – lock order 5 seconds after the security device detects the passage of an object/user
• Possibility to adjust courtesy light time
• Regulation of door opening and closing delay
• Total maneuver counter

Outer box not included.

TECHNICAL CHARACTERISTICS

MANUAL

Instruction manual Motorline MC62
