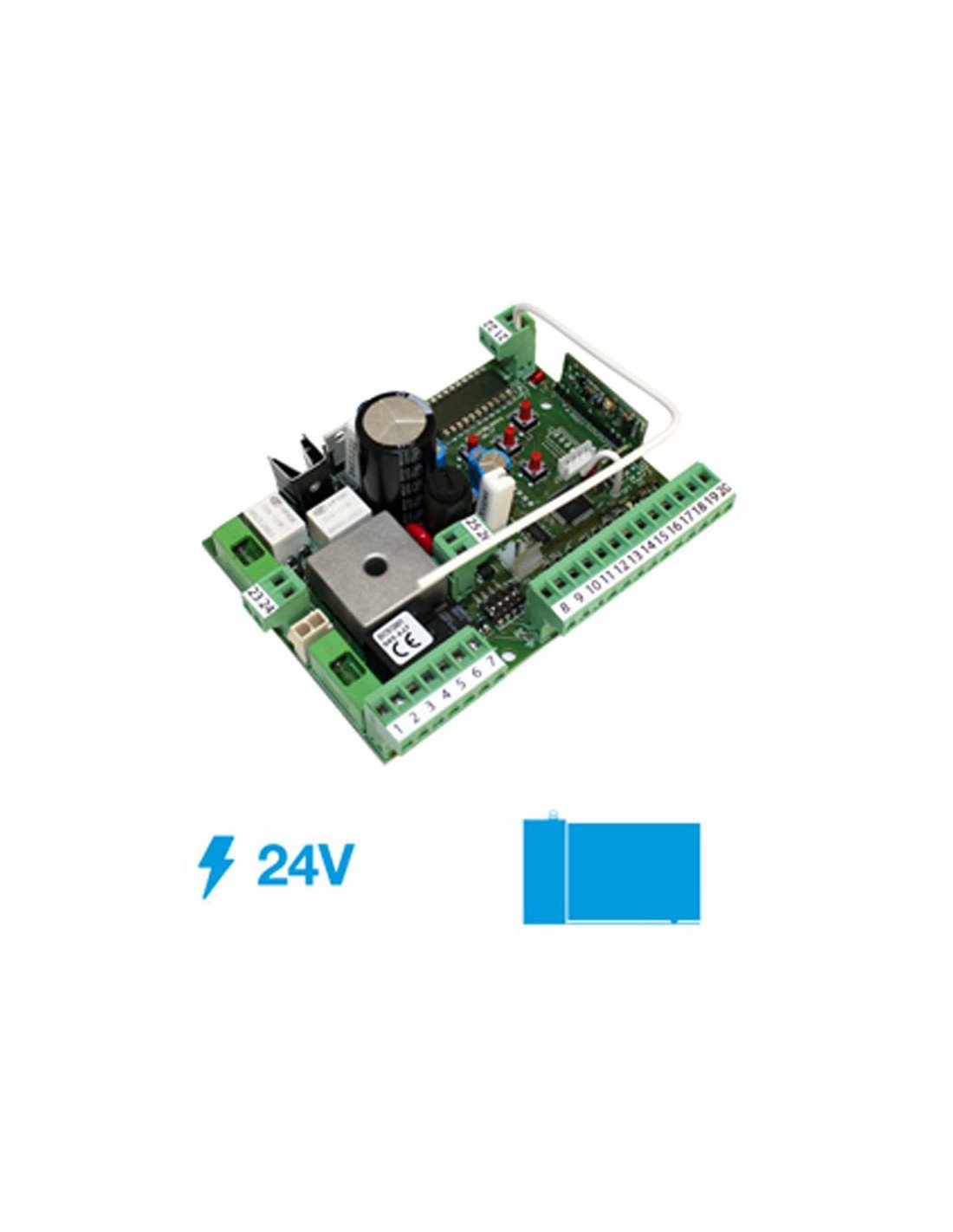

Control panel for sliding doors and barriers with 1 motor 24Vdc. What. Selection of functions through a display. With obstacle detection and device self-diagnosis. Control panel with control of a transmitter via display. Includes TCT transformer.

Main features:

• Central control of a transmitter via display.

• Removable memory and terminal rack.

• Electronic torque regulation.

• Learning up to 1000 remote controls.

• Selection of functions by display.

• Self-learning of the route.

• Differentiable deceleration at opening and closing.

• Regulated obstacle lifting.

• Automatic diagnosis of safety devices.

• State indication led tickets.

• Radio receiver module.

Tickets: button opens, button closes, button step by step, pedestrian button, stop button, 2 photocells, safety band, end of race opening and closing.

Exit: on-board flash circuit 230 VAC card, courtesy light and power supply accessories 24 Vdc.

Dimensions: (mm) W x D x H = 90 x 125 x 45 SK

MANUAL

Instruction manual for the BIOS1 24
