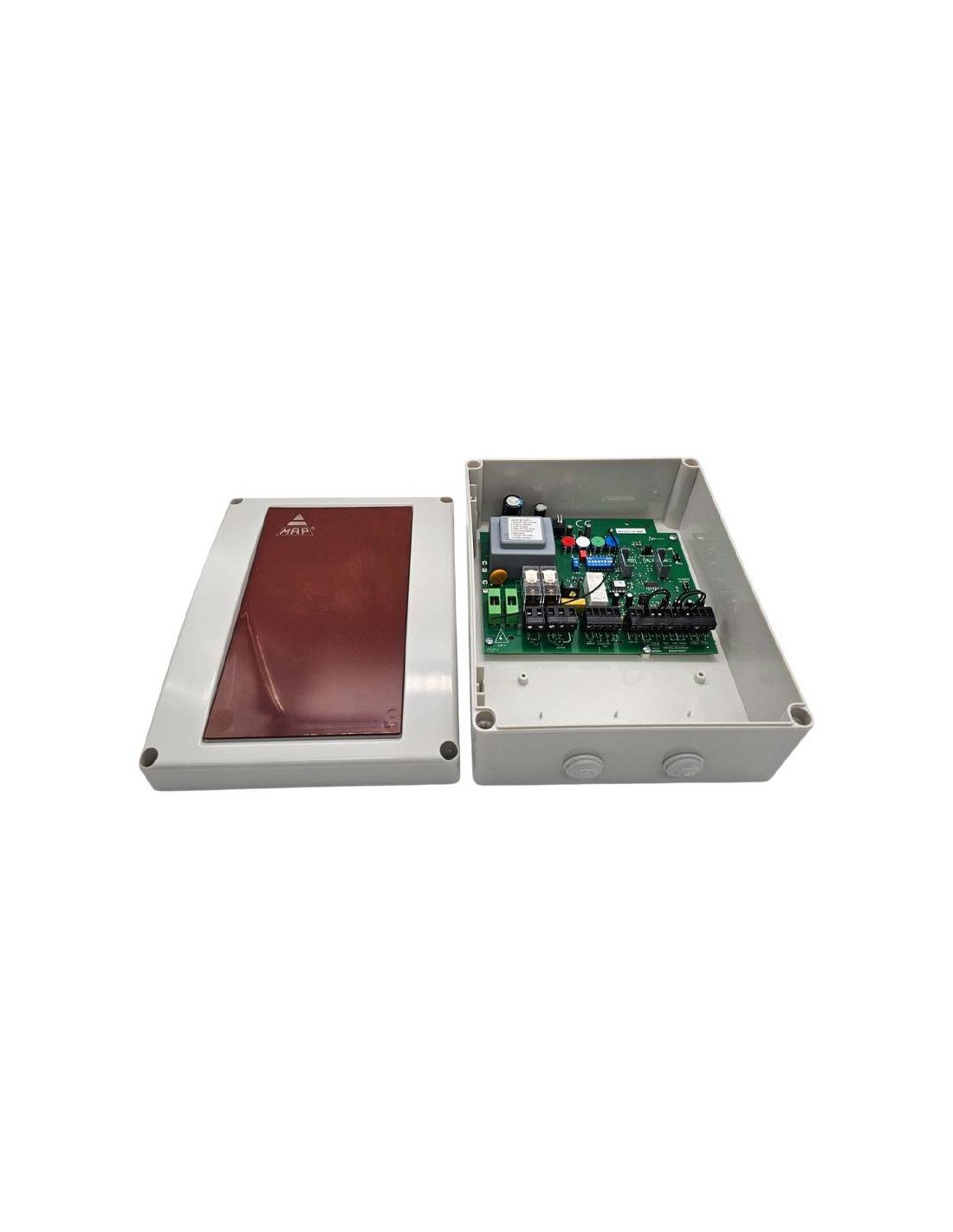

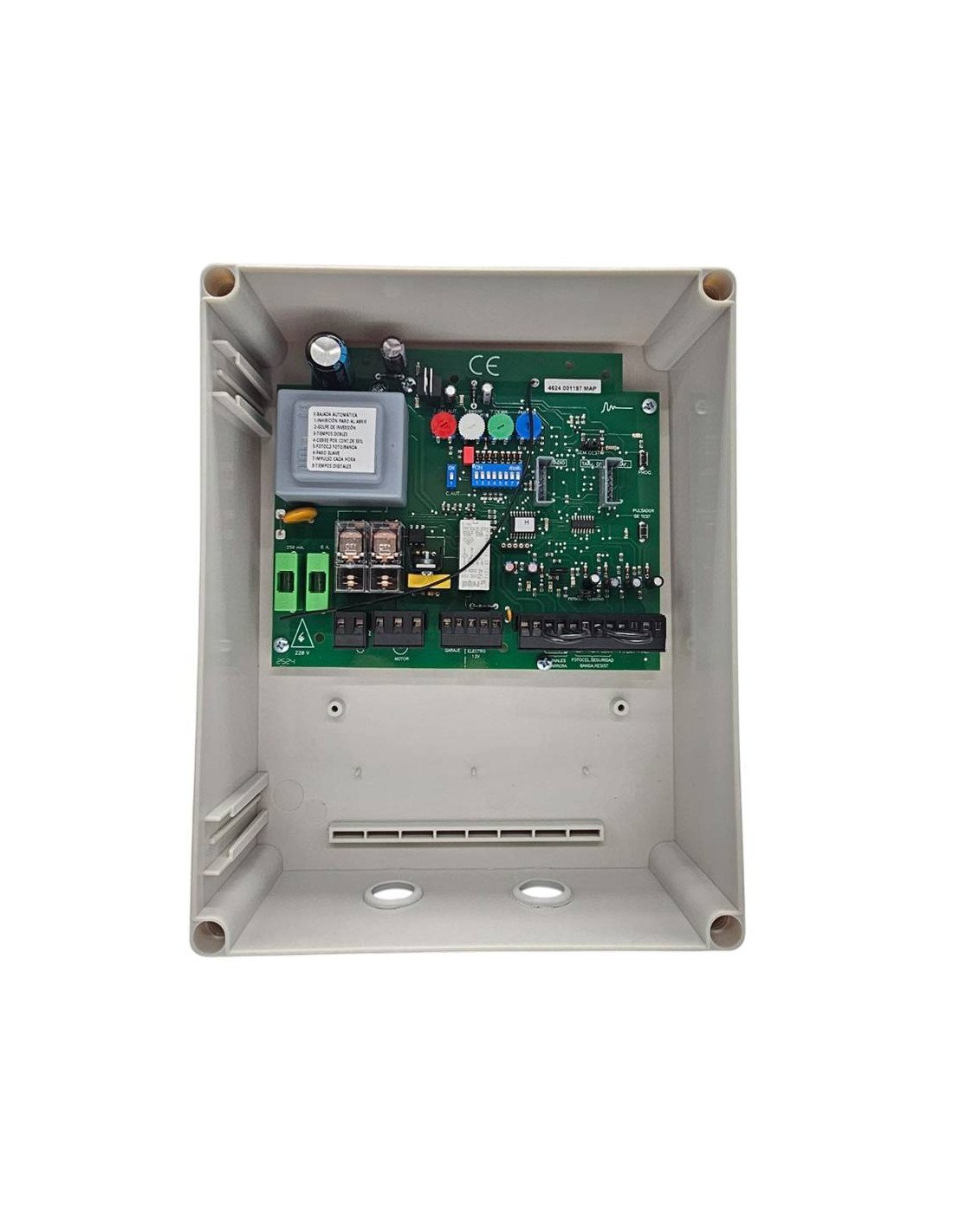

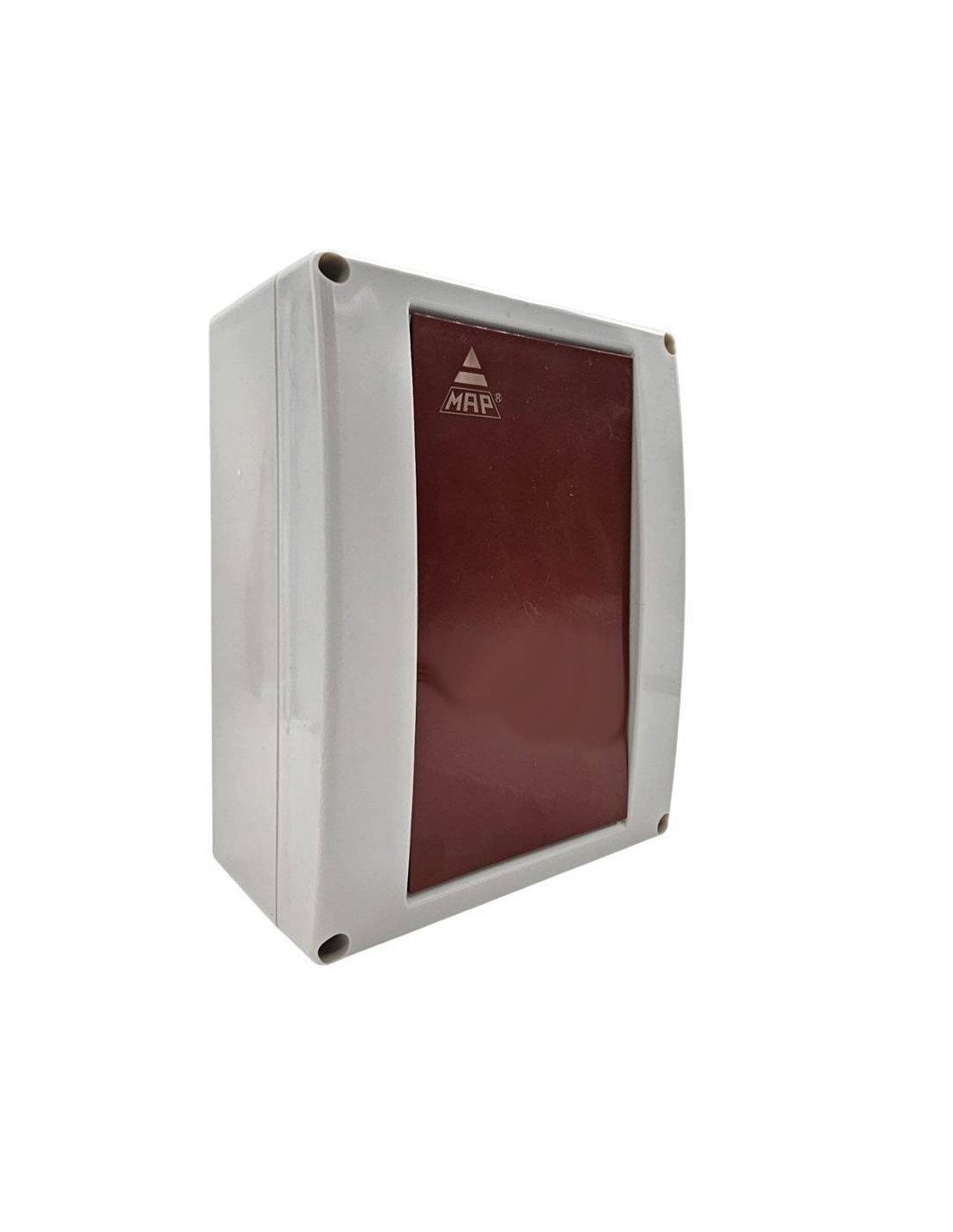

Electronic control panel EMFA CRFEM with force regulation for electromechanical + hydraulics.

Support for 6-pin plug-in receiver cards (not included), but can be included from product accessories.

CHARACTERISTICS

• Single-phase with zero-voltage relay switching.
• Inputs with light indication.
• Output for 12v electro-lock activation.
• Contact garage light.
• Optional card with flashing and garage light or green and red traffic lights.
• It has 2 independent "Safety" inputs, one for a photocell that acts during the closing of the door and another that can be connected to a photocell or a "Pneumatic Belt" with resistive contact.
• The box has an output for photocell testing. It can be used in the case of mounting photocells with test input or transmitter-receiver photocells.
• We have a pedestrian push-button opener entrance.
• Digital programming of times and potentiometers.
• Plug-in terminals.
• Radio card connector.
• Electro-lock 12v DC.
• 12v AC and DC output.
• 8K2 security entrance.
• Contact: security, opening and closing.
• Force regulation.
• Soft stop final opening and closing.
• Automatic closing.
• Reciprocating, pedestrian push-button.
• Limit switch, opening and closing.

SPECIFICATIONS

MANUAL

CRFEM Instruction Manual EMFA
