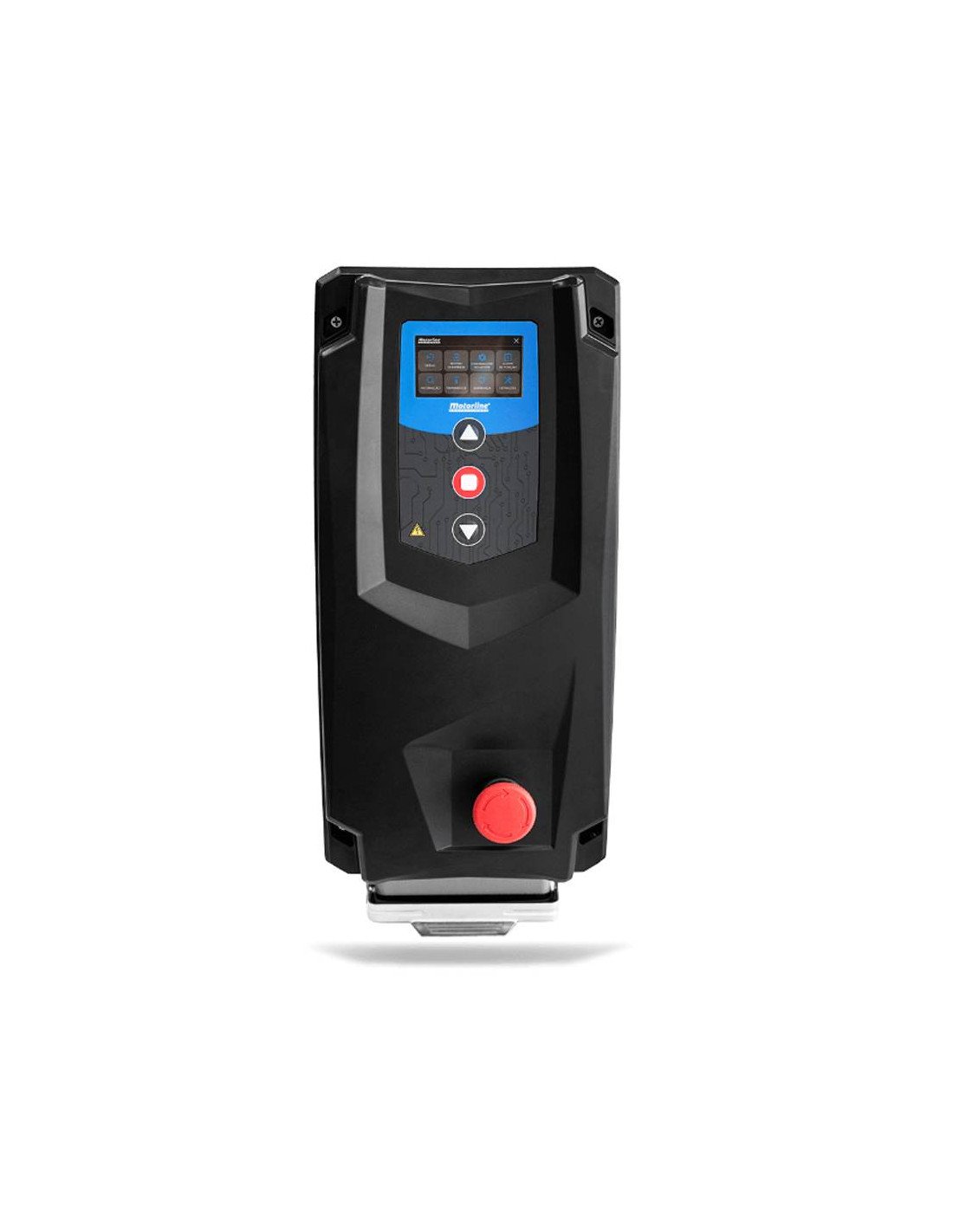

Motorline MC415 Electronic Central with Built-in Inverter

The MC415 electronic power plant with built-in investor has been specially designed for Automate quick, sectional and sliding doors.

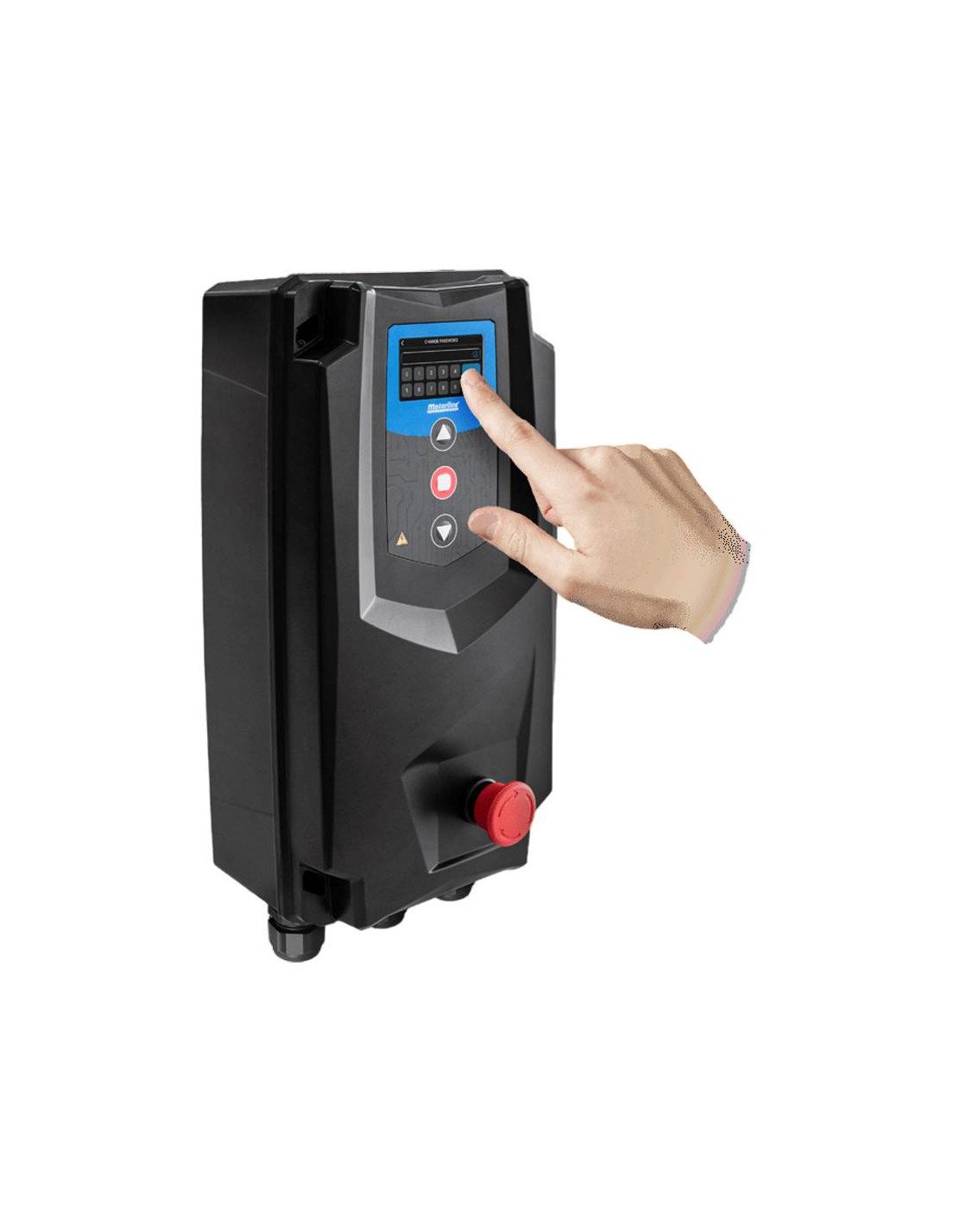

Combine functionality with a Intuitive Touch Interface that simplifies the configuration, diagnosis and monitoring of the system.

✓ Interactive touch screen

✓ Compatible with the Mconnect Link

✓ Compatible with wireless security systems (MMR15)

✓ Outdoor buttons to climb, download and stop

Models available

• Mc415-cars: Central for fast doors
• Mc415-a: Central for sectional doors
• Mc415-St: Central for Sliding Engine Stark

Technical characteristics

Safety and practicality

End of Race and Encoders

The Central admits different methods of travel detection: Two racetime (opening / closing with working time) or four racetime (stop and start of deceleration).

For greater precision, encoders can be used:

Absolute: It allows an immediate adjustment without the need for manual readjustments;

Quadrature: Replace the work time for the impulse count.

Input for braking resistance

Input dedicated to the connection of a braking resistor, which allows to dissipate the regenerated energy during the deceleration of motors with high inertia.

This protection avoids the tension increase in the bus (bus), guaranteeing the safe and stable operation of the investor.

Multifunctional outputs

Configurable outputs for signaling the state of the gate, error indication, flashing lamp control or electrofreno, among other functions. They allow to provide real-time feedback on the system and activate external devices, being essential in applications that require monitoring, signaling or integration with auxiliary systems.

Compatible with the MConnect Link

Management and remote control of the plant, facilitating remote configurations and maintenance.

Remote access via Wi-Fi: Real-time monitoring of the central performance, quick detection of problems and implementation of solutions;

Ease of configuration: Configure all the parameters of the center intuitively and agile;

Consult detailed history of actions: Allows you to record the movements of the doors, offering a useful history to help in system optimization;

Remote control: Control of the door from anywhere in the world without the need for external accessories.

Compatibility with several modules

The MC415 electronic power plant is fully compatible with the communication module Mm415com-rs485, which allows us to expand functionalities and integrate more advanced control systems, especially in installations with multiple doors or interconnected power plants.

The connection of this module enables functions such as:

➜ Interlock function: Block the movement of other doors simultaneously

➜ Master / Slave Function: Allows you to control a second central simultaneous from the main unit

When connecting the module Mm90-RGB, It is possible to feed the LEDs externally or internally. When it is fed externally, a greater power can be supplied to LEDs, up to 20 W in each of the outputs.

Compliance Denorms of Safety

Compatible with European standards at 12453 and EN 12445, the MC415 plant guarantees safe and reliable operation for all users.

With a built-in inverter and interactive touch screen, it allows precise control and continuous monitoring of all safety devices - such as photocells, sensitive edges and obstacle detection systems - ensuring immediate response to any anomaly in the system.

* Compliance with standards depends on the correct installation of these complementary devices.
