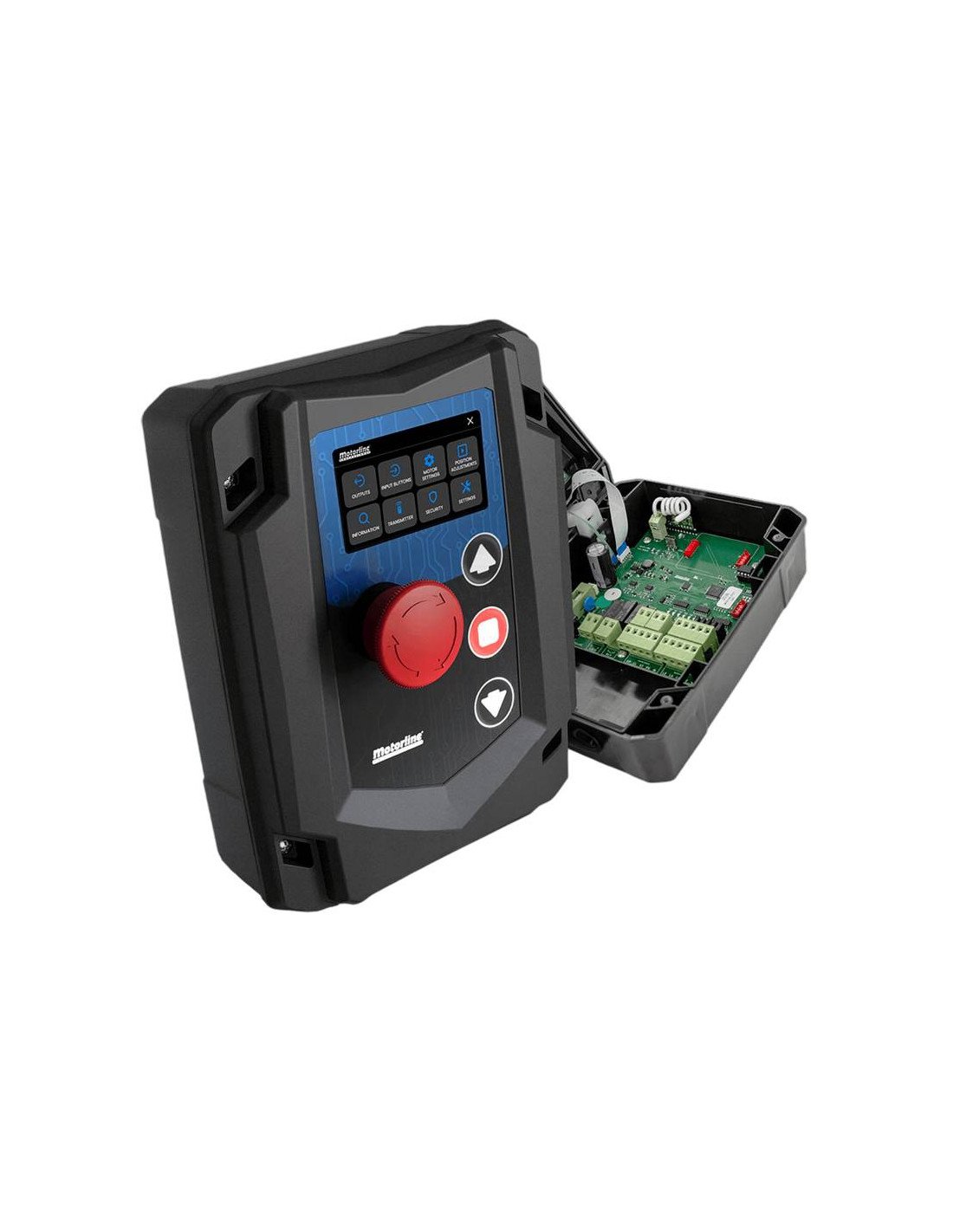

Motorline MC93-300 | Electronic Central for Control of Sectional Doors

Name: Motorline MC93-300 | Electronic Central for Control of Sectional Doors
Brand: Motorline
SKU: MC93-300
Price: 118 EUR
Availability: InStock

Reference MC93-300

€118.00

VAT excluded

142,78 €

Tax incl.

Electronic Motorline Mc93-300 control for sectional gates, equipped with Interactive touch screen To make configurations, diagnostics and monitor the system.

The control plant Communicates with the engine through an RJ45 cable, which provides 24VDC and integrates two RS485 communications for engine management.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Motorline Mc93-300

Electronic control center for sectional gates, equipped with Interactive touch screen To make configurations, diagnostics and monitor the system.

The control plant Communicates with the engine through an RJ45 cable, which provides 24VDC and integrates two RS485 communications for engine management.

System structure:

• Control Central: Designed to be installed at an accessible place, it allows you to easily program, make adjustments and connect the peripherals. This central operates with a safe tension of 24VDC, preventing short circuits and electrocutions

• Power Central: Integrated in the motor, controls the movement of the door and energy management, available in versions for engines

36V (with backup battery holder and loading and unloading) and 310V

Main features:

• Error registration: stores the historic error occurred, with date and time, facilitating diagnostics

• Date and time setting: Synchronization via mobile

• Remote connection: Configuration of the central and firmware update via MConnect Link (Wi-Fi)

• Compatibility with MR15: Integrates wireless security systems via radio, such as the MX14 emitter

• Radio receiver: Frequency of 433.92 MHz, up to 200 commands (100 total + 100 pedestrian)

• Security Inputs: Compatible with photocells, 8K2 and OSE systems

• Various outputs: for door status, programmable relay and accessories (24VDC 8W)

• Absolute encoder: precision in position control

• Travel Programming: Manually performed

Technical data (MC93-300)

Description	Value
Food of the power station:	12vdc
Exit for flashing lamp:	12Vdc \| 4.8W max.
Output for auxiliary accessories:	12Vdc \| 4.8W max.
Exit for Disp. Safety and keypad:	12vdc
Exit for Electronement:	12Vdc \| 1.2a
Operating temperature:	-25 ° C A + 55 ° C
Integrated radio receiver:	433,92 MHz
Compatible commands:	12Bits or Rolling Code
Maximum memory capacity:	100 (total opening) - 100 (pedestrian opening)
FUSE F1:	2A \| 12v
Touch screen for gate programming and visualization of States:	Yes
Error registration:	Stores the error history with date and time, enabling diagnostics
Date and time setting:	Synchronization through the mobile phone
Remote connection:	Configuration of the central and firmware update through MConnect Link (Wi-Fi)
Compatibility with MMR15:	Integrates wireless security systems via radio, for example, with the MX14 transmitter
Security entries:	Compatible with photocells, 8k2 and OSE systems
Various outputs:	For the state of the gate, programmable relay and accessories (12VDC \| 8W)
Absolute encoder:	Accuracy in position control
