Maneuvering Beninca Brainy24 24V for 1 or 2 engines with integrated receiver

Name: Maneuvering Beninca Brainy24 24V for 1 or 2 engines with integrated receiver
Brand: Beninca
SKU: 9176224
Price: 269 EUR
Availability: InStock

Reference 9176224

€269.00

VAT excluded

325,49 €

Tax incl.

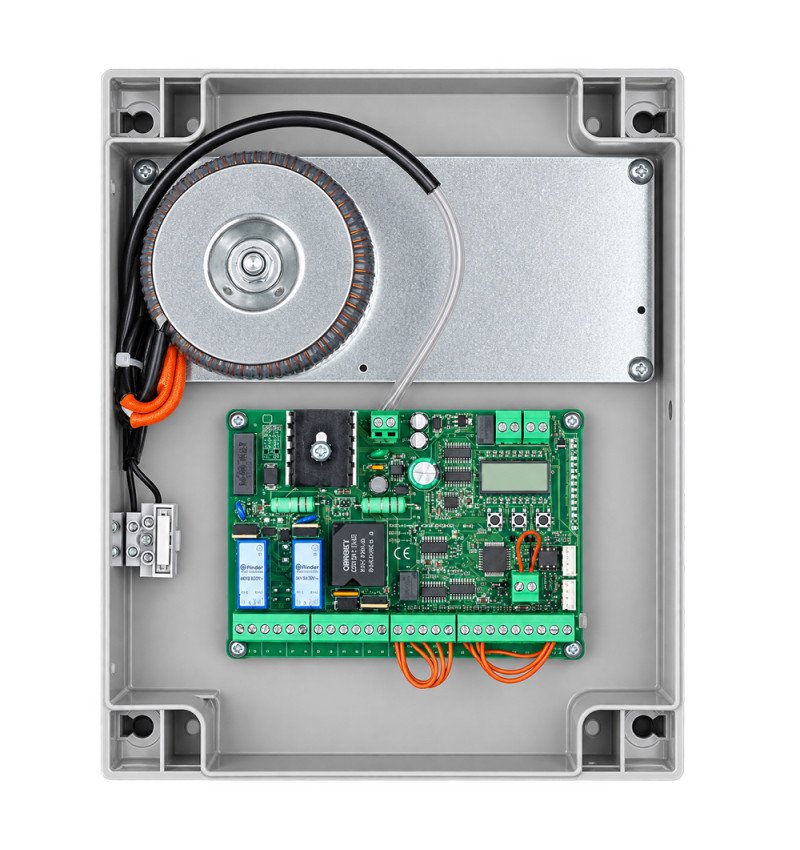

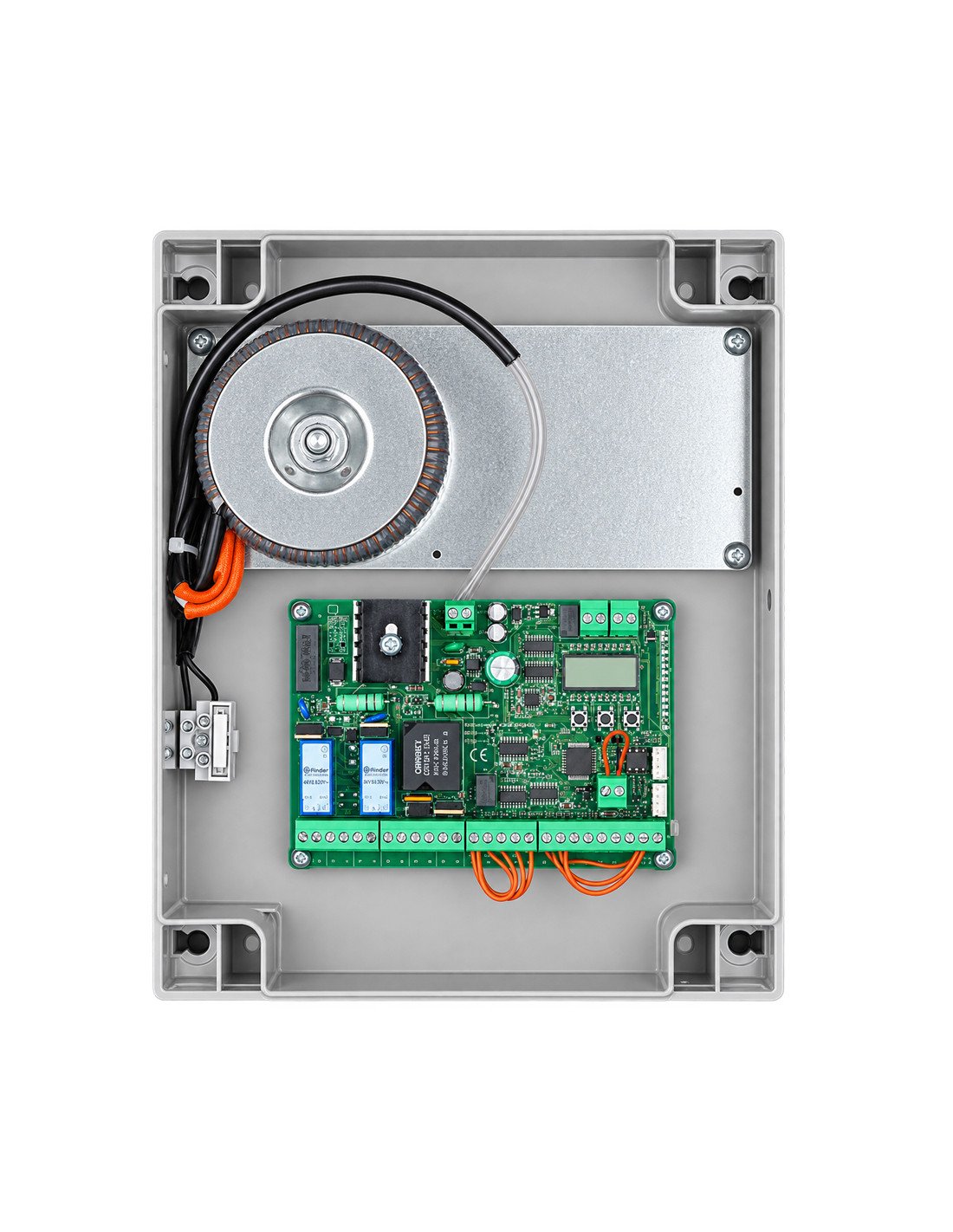

Beninca Brainy24, reference 9176224, it is an electronic control center designed to control 1 or 2 Motors of 24 VDC In automations for swing doors, subsequent sliding doors and industrial doors of up to 2 sheets.

Has Integrated LCD screen, encoder, Electronic force regulation, independent slowdines and different entries for safety devices.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Maneuvering Beninca Brainy24 24V for 1 or 2 engines

Has Integrated LCD screen, encoder, Electronic force regulation, independent slowdines and different entries for safety devices.

Beninca Brainy24 - Reference 9176224

Electronic 1 or 2 Motors of 24 VDC, with maximum power of 120 W + 120 W.

Incorporates Radio receiver 433,92 MHz, so it is not necessary to install a receiver Beninca Additional to use compatible controls.

24V central with integrated radio receiver

The Brainy24 Incorporates a radio a radio a series 433,92 MHz able to memorize up 64 codes.

The receiver allows working with different coding systems Beninca:

Advanced Rolling Code (ARC).
Rolling code.
Fixed code.

Main advantages of the Beninca Brainy24

Control of 1 or 2 Motors of 24 VDC.
Maximum power of engines 120 W + 120 W.
Radio 433,92 MHz receiver integrated.
Memory 64 transmitters.
LCD screen To facilitate programming.
Engine management equipped with encoder.
Anti-explashing security by amperometric detection.
Autoajuste of the operating parameters.
Independent electronic regulation of each engine pair.
Independent slowdowns in opening and closing.
Entry safety band N.C. U 8k2.
Independent entries for photocells and career end.

Technical characteristics Beninca Brainy24

Model	Beninca Brainy24
Reference	9176224
Food of the plant	230 VAC - 50/60 Hz
Food of the engines	24 VDC
Number of engines	1 or 2
Maximum power motors	120 W + 120 W
Radio receiver	Integrated
Frequency	433,92 MHz
Receiving capacity	64 codes
Tags	Arc, Rolling Code and Fixed Code
Screen	Integrated LCD
Encoder management	Yes
Autoajuste	Yes

Encoder management and obstacle detection

The central Brainy24 It is ready to manage engines Beninca equipped with encoder, allowing the movement of automation more accurately.

It also has a system of Anti-explashing safety by amperometric detection, electronically regulating the torque of each engine independently.

Compatible with engines Beninca of 24 VDC with Encoder

Brainy24 is especially indicated for automation Beninca of 24 VDC equipped with Encoder, like the Beninca Bob2124e, as long as the power and characteristics of the engine are compatible with the plant.

Tickets for security devices

The Central has different entries that allow to integrate the main usual security devices into an automation:

Independent entries for race of each engine.
Entrance opening.
Entrance close.
Entrance pedestrian opening.
Tickets for photocells in opening / closing and closing.
Entry sensible band N.C. U 8k2.

Auxiliary outputs

The Brainy24 It also has different auxiliary outputs to complete the installation:

Output 12 VDC electric lock.
Exit for flashing lamp.
Output for open door indicator.
Configurable output for service light.
Second radio channel.
Photocell test function.

Programming via LCD screen

The integrated LCD screen allows access to operating parameters and make the necessary settings more easily.

Among its functions are the self-adjustment, independent regulation of force, slowing, maneuver counter, notice of maintenance and possibility of establishing a Protection password To prevent unauthorized modifications.

Common applications

Swing doors of 1 or 2 sheets.
Sliding doors opposed.
Industrial book doors up to 2 leaves.
Automation Beninca with engines 24 VDC.

What does this product include?

The product corresponds to:

1 maneuver box Beninca Brainy24, reference 9176224.
Radio receiver 433.92 MHz integrated.

Before replacing an existing plant

Before acquiring the Beninca Brainy24 as a replacement picture we recommend checking the Engine model, tension, power, encoder, race enders and installed accessories.

In case of doubt, you can send us photographs from the central and the label of the installed engines to check compatibility.
