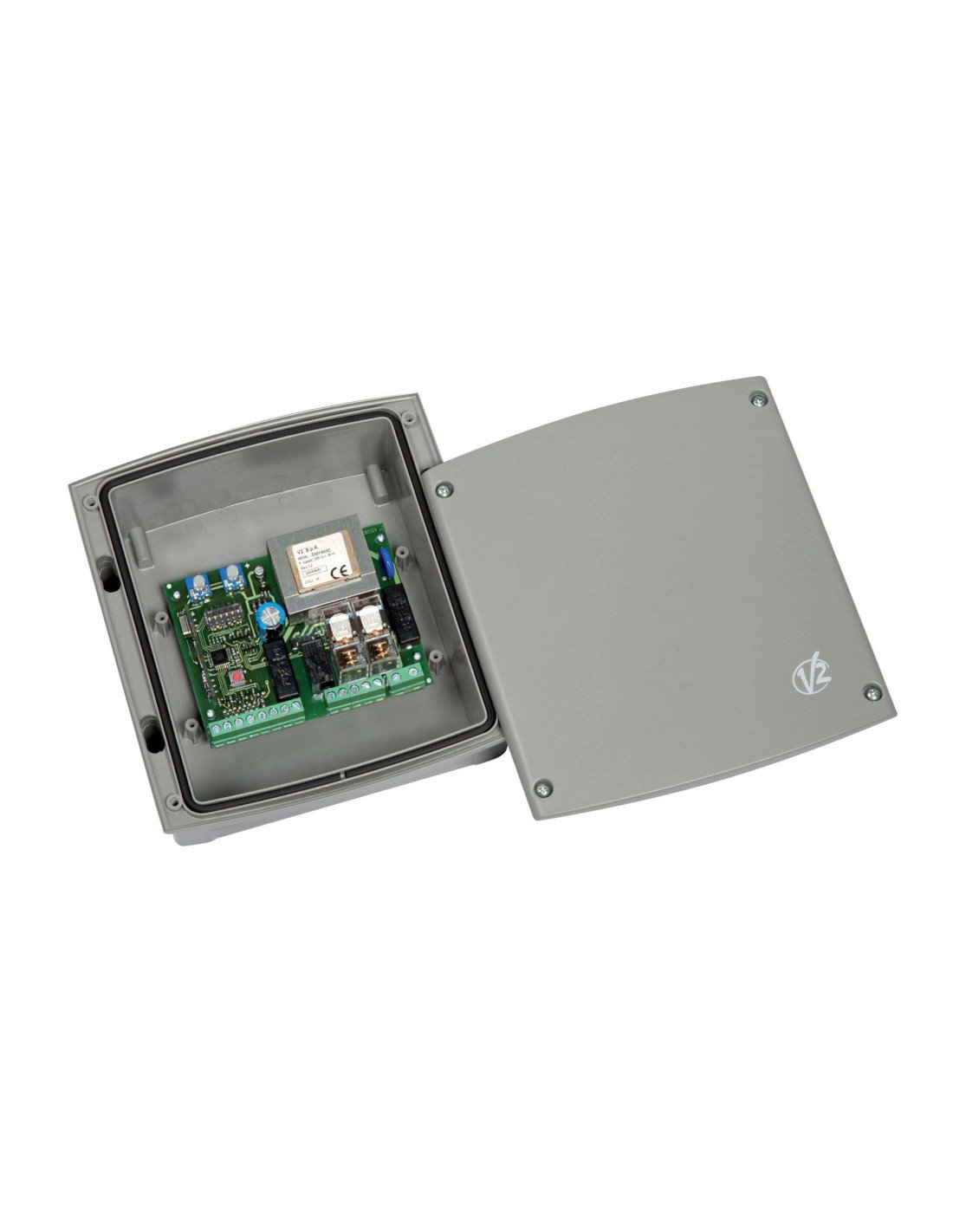

Table of manoeuvres V2 EASY-BASIC an analogue 230V with built-in receiver for roller shutters.

TECHNICAL CHARACTERISTICS

• Power supply: 230 / 50 V / Hz
• Maximum engine load: 1100 W
• Maximum load of accessories at 24 VAC: 3 W
• Operating temperature: -20 ÷ +60 °C
• Size: 170 x 185 x 70 mm
• Weight: 800 g
• Protection degree: IP55

FUNCTIONS

• Control and programming by potentiometer and dip switch

• Power supply for a 230V single-phase motor

• Built-in 433.92 MHz radio receiver

• Operating with Personal Pass or Royal series

• Ability to memorize 30 different codes (Personal Pass)

• Start, stop/safety lane entrances

• 1 input for photocells

• Start control and courtesy light from emitter

• 230V output for traffic light or courtesy light

• Input status display by LED

MANUALS

Instruction manual V2 EASY-BASIC
