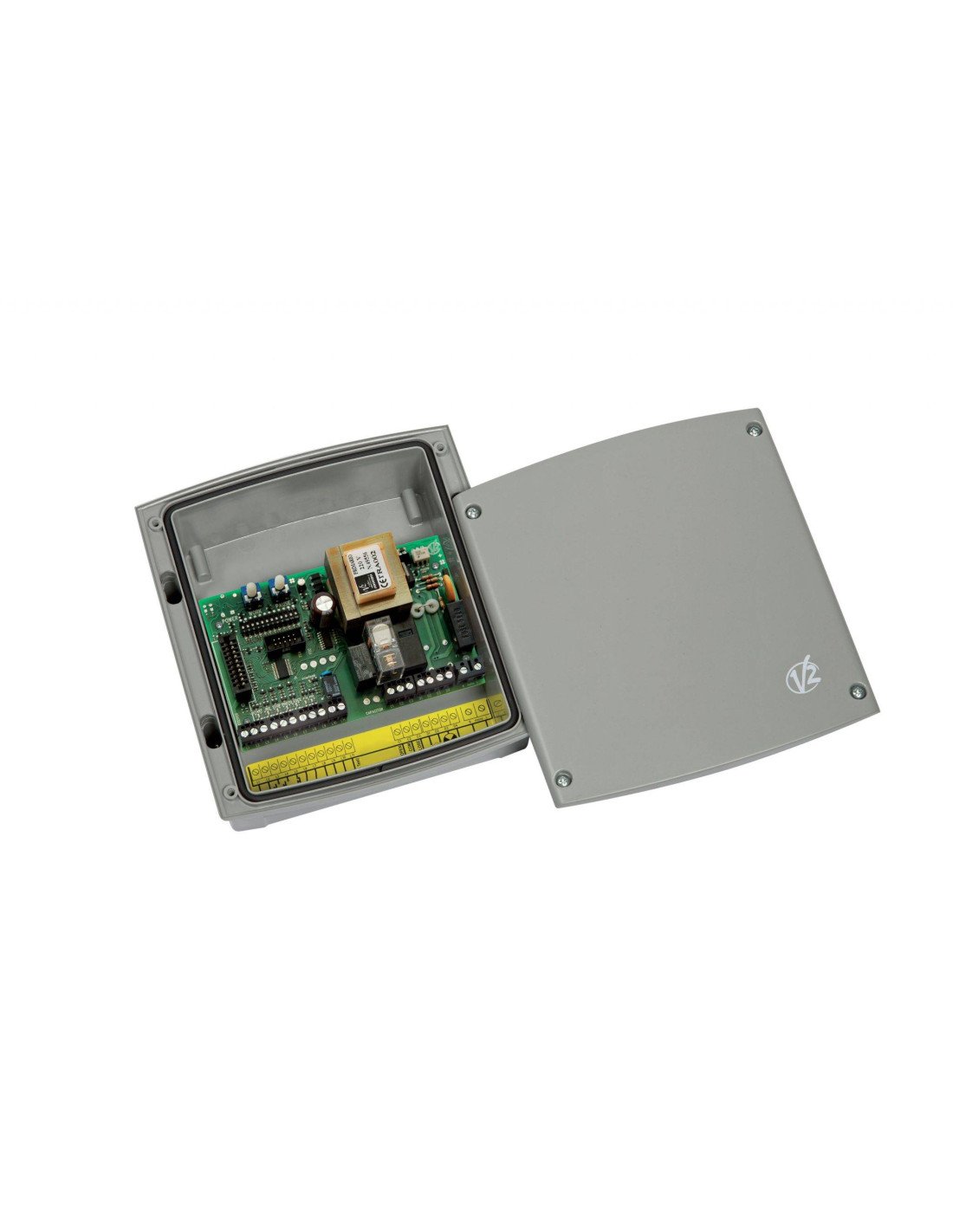

Table of manoeuvres V2 EASY2 230V analogue for roller blinds with courtesy light and automatic closure.

TECHNICAL CHARACTERISTICS

• Power supply: 230 - 50 V / Hz
• Maximum engine load: 700 W
• Maximum load of accessories at 24 VAC: 3 W
• Operating temperature: -20 ÷ +60 °C
• Size: 170 x 185 x 70 mm
• Weight: 800 g
• Protection degree: IP55

FUNCTIONS

• Control and programming by potentiometer and dip switch

• Power supply for a 230V single-phase motor

• Connector for the MR2 modular radio receiver

• Entrance, exit and exit tickets

• Management for ascent, stop, descent and courtesy light by radio

• 1 input for photocells with self-test function

• 1 input for mechanical or conductive rubber safety belts with self-test function

• Output for 230V intermittent signalling lamp

• Outlet for courtesy light (also with issuer)

• Test of safety devices before each opening

• Input status display by LED

MANUALS

Instruction manual V2 EASY2
