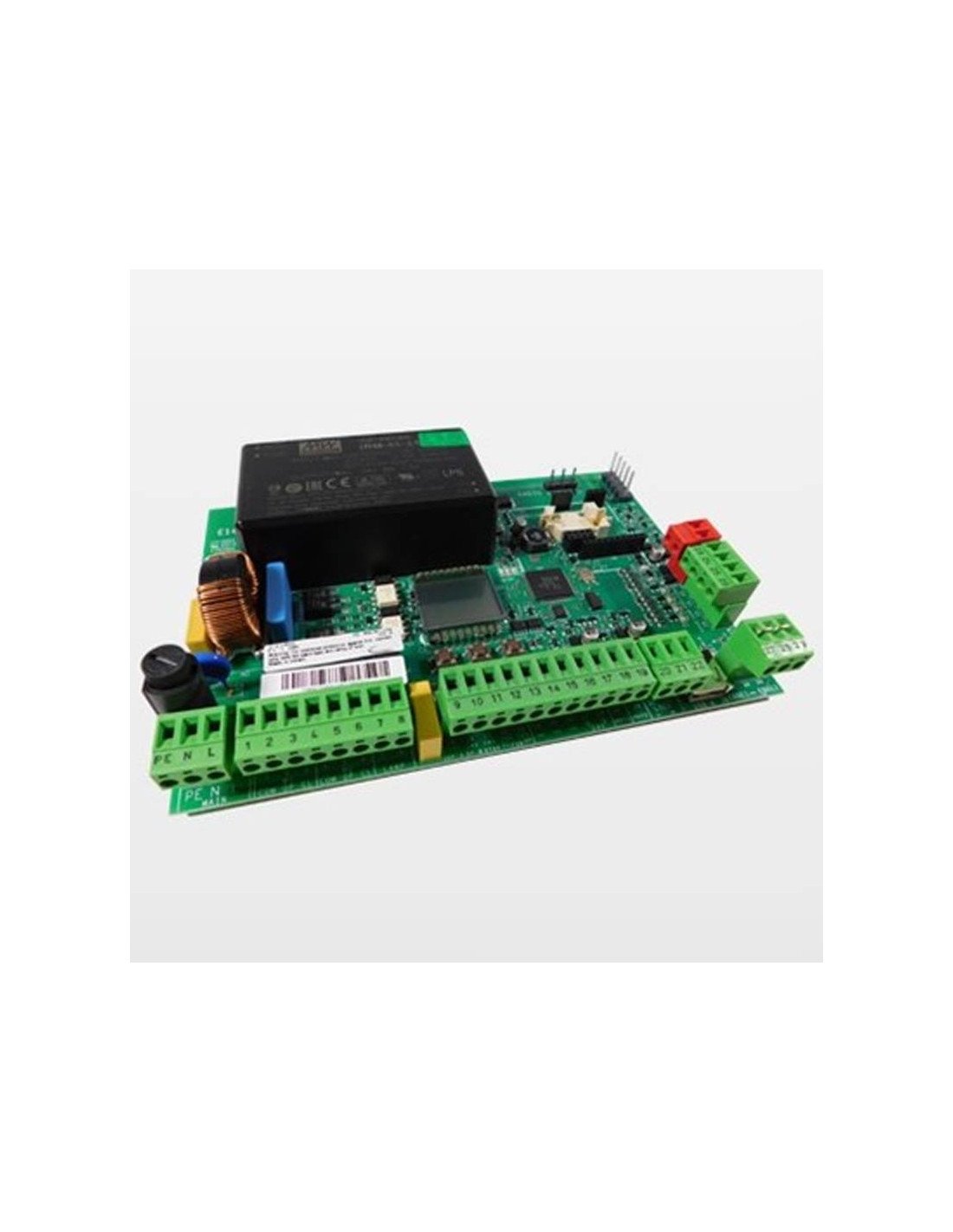

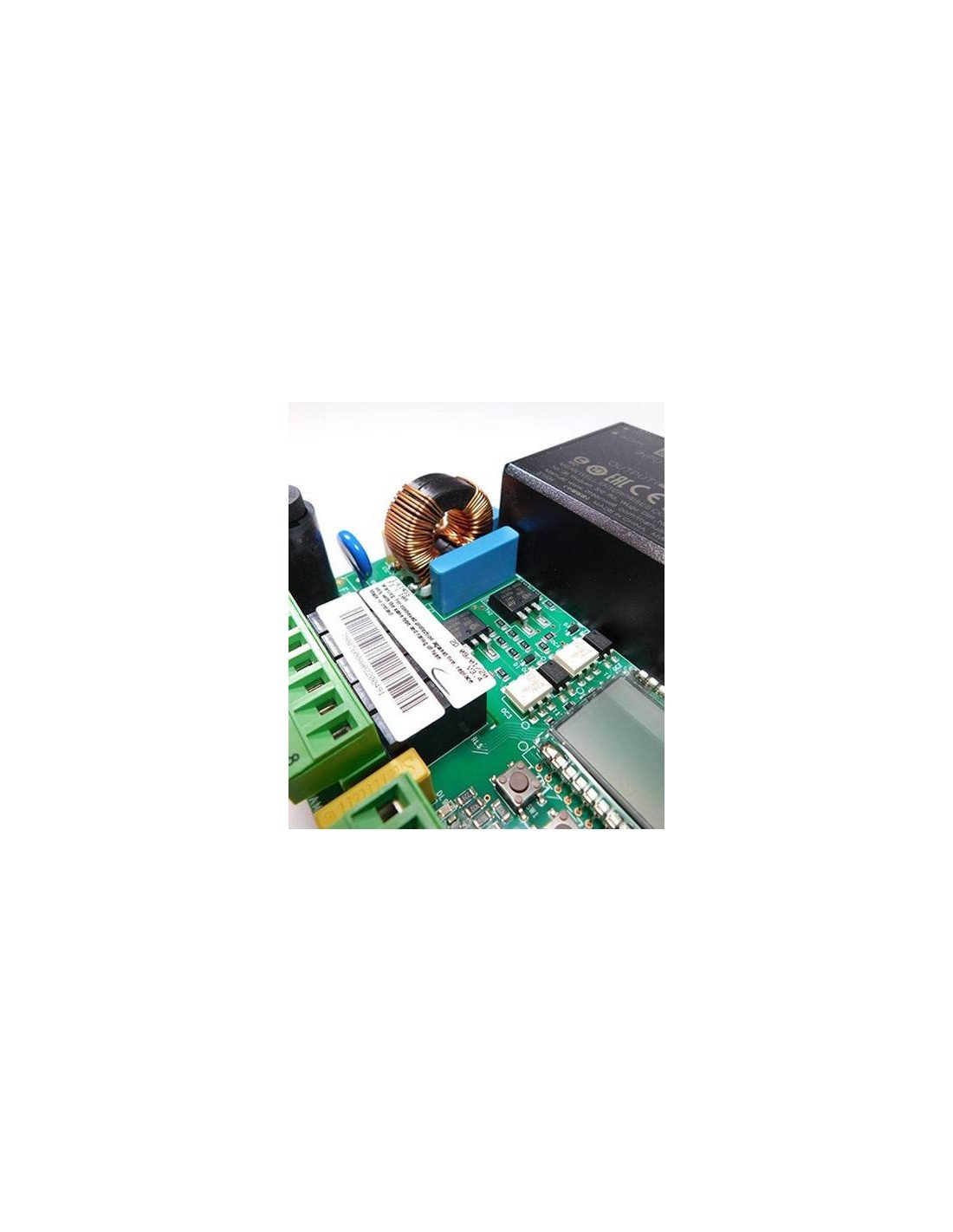

E145S FAAC electronic card for 1 or 2 leaf swing doors and 230V sliding motors.

SPECIFICATIONS

• Model E145S
• Power supply switching from 90V~ to 260V~ 50/60 Hz
• Max. power 4W Standby, <2W con función sleep (Programable con PC/MAC)
• Max. motor power 800W
• Max. load accessories 500mA 24V - 500mA BUS 2-easy
• Max. load Electric lock FAAC lock (12V~ - 24V ) - no FAAC 24V -500mA
• Programming LCD display and pushbutton, via PC/MAC USB-B connection or with X-COM module
• Status Signage LCD & LED Display
• Terminal strip inputs Open/open pedestrian leaf/stop/BUS 2-easy/Opening safety/Closing safety/
• Power + Ground/Opening & Closing Limit Switch/8K2 N.C. Bands
• Terminal strip outputs Flasher/motor/Power supply accessories 24V /2 Programmable OUTPUT
• (default: spy lamp and fail-safe)/2 electric locks
• XF 433/868 Module Quick Connector for OMNIDEC Decoder, Connector for Decoder/minidec/RP, USB-A, X-COM
• Ambient operating temperature -20°C +55°C

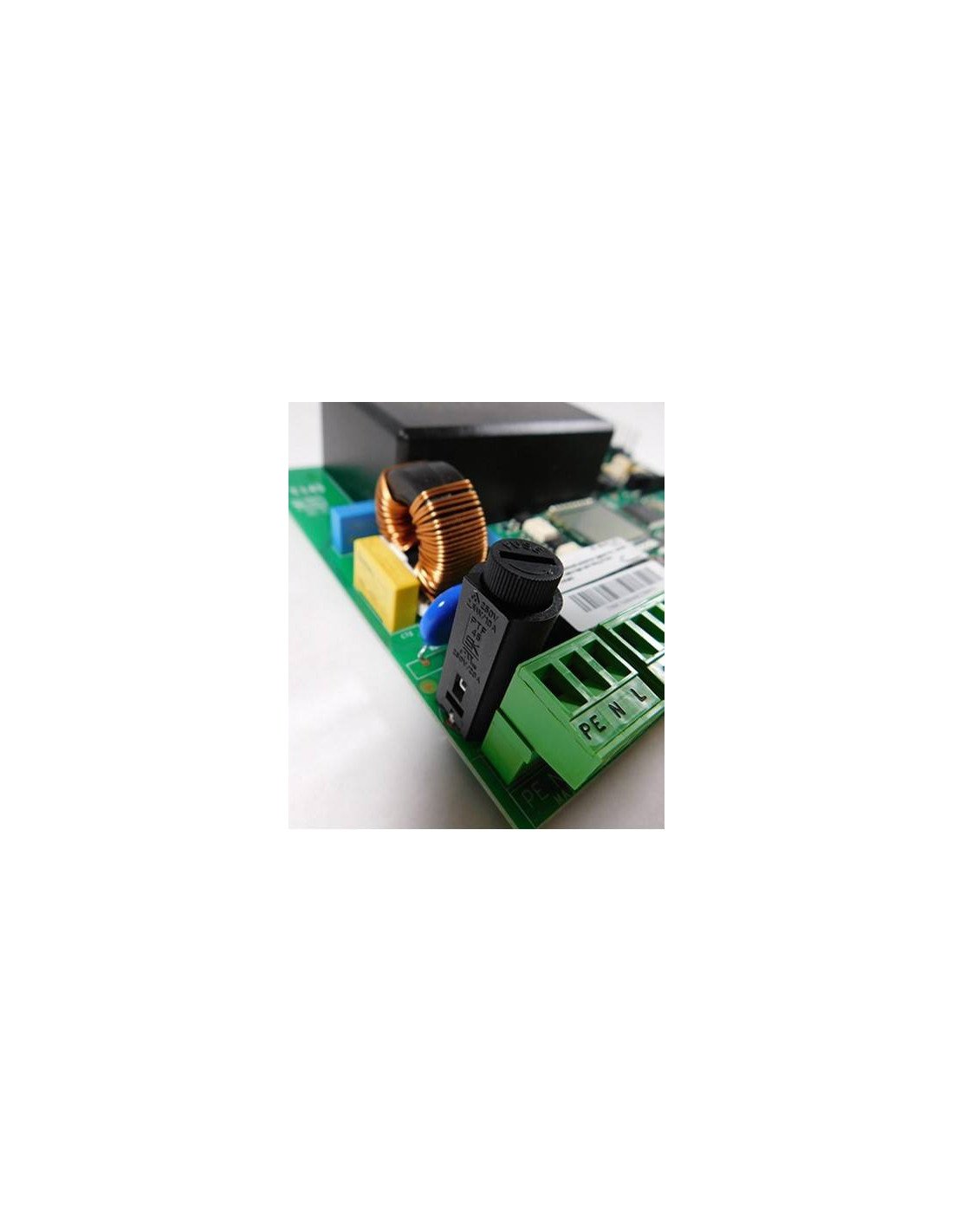

• Protection Fuses 1 (10A)

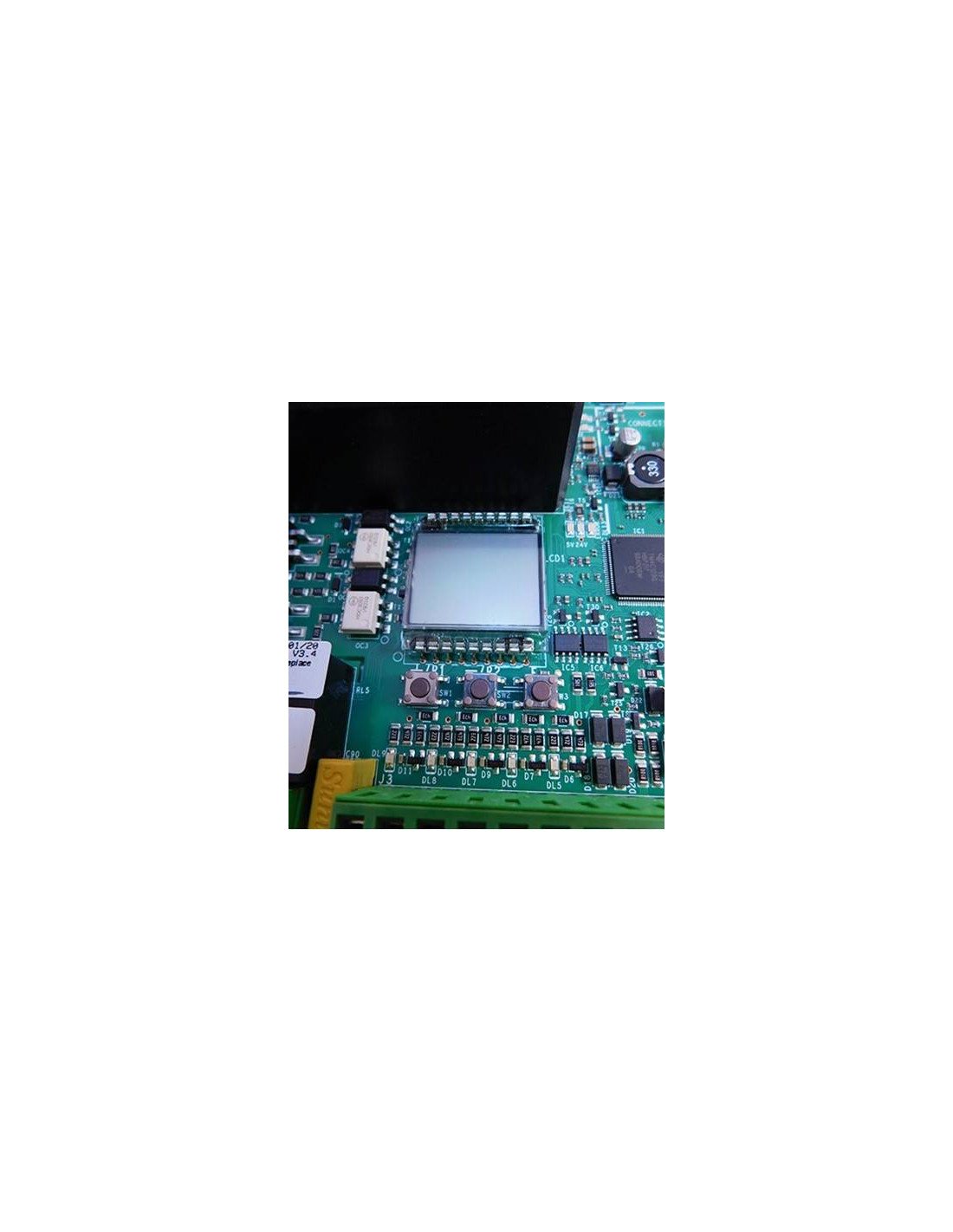

FUNCTIONS (PROGRAMMING VIA DISPLAY AND PUSHBUTTONS)

Base Programming

• Selectable engine type (hinged, sliding, swinging-sliding mixed)
• Operating Logic
• Semi-automatic / Semi-automatic stepper / Automatic safety / Automatic with reversing
• Paused / Automatic stepper / Automatic stepper safety /Automatic / Automatic 1 /
• Automatic with timer function / Semi-automatic B / Mixed (AP per pulse/CH per Man present)/
• Man Present C /Custom (PC/MAC)
• Independently programmable pause times at full or partial opening (0 to 9 min 50 sec)
• Number of Engines Selectable
• Thrust force Adjustable in 50 levels for each motor independently
• Selectable encoder use
• Limit switches Limit switch operation in opening and closing, selectable independently
• Programmable Closing Blade Delay Time (0 to 1 min 30 sec)
• Selectable BUS 2-Easy device introduction
• Drive motors 1 and 2 (independently)
• Working Time Learning
• Simple self-study (max. 4 min and 10 sec).
• Self-learning of working time and deceleration of manoeuvres in a single complete cycle of
• work
• With absolute encoder, SAFEcoder learns the opening/closing/deceleration position

Advanced Programming

• Maximum Signal Strength Selectable
• Reversing stroke and water hammer selectable independently (facilitates the engagement of the electric lock)
• Blade Delay at Selectable Opening
• Programmable Sheet 1 Deceleration (percentage of total stroke) (from 0% to 99%)
• Programmable Sheet 2 Deceleration (percentage of total stroke) (from 0% to 99%)
• Display of the number of codes programmed by OMNIDEC through the XF Module

Pre-Flash

• Photocell in closure Selectable operation
• Selectable ADMAP Function
• Programmable anti-crush sensitivity with ENCODER present (10 levels)
• Departure angle calculation Selectable with ENCODER present
• Additional working time Selectable (without ENCODER or limit switches)
• Programming OUT 1 & OUT 2 Selectable independently (17 for each)
• Selectable cycle counter (update of a "countdown" - programming max. 99,000 cycles)
• Selectable maintenance request (when the programmed number of cycles is reached, the system triggers a pre-flash
• 8 sec. before each opening)

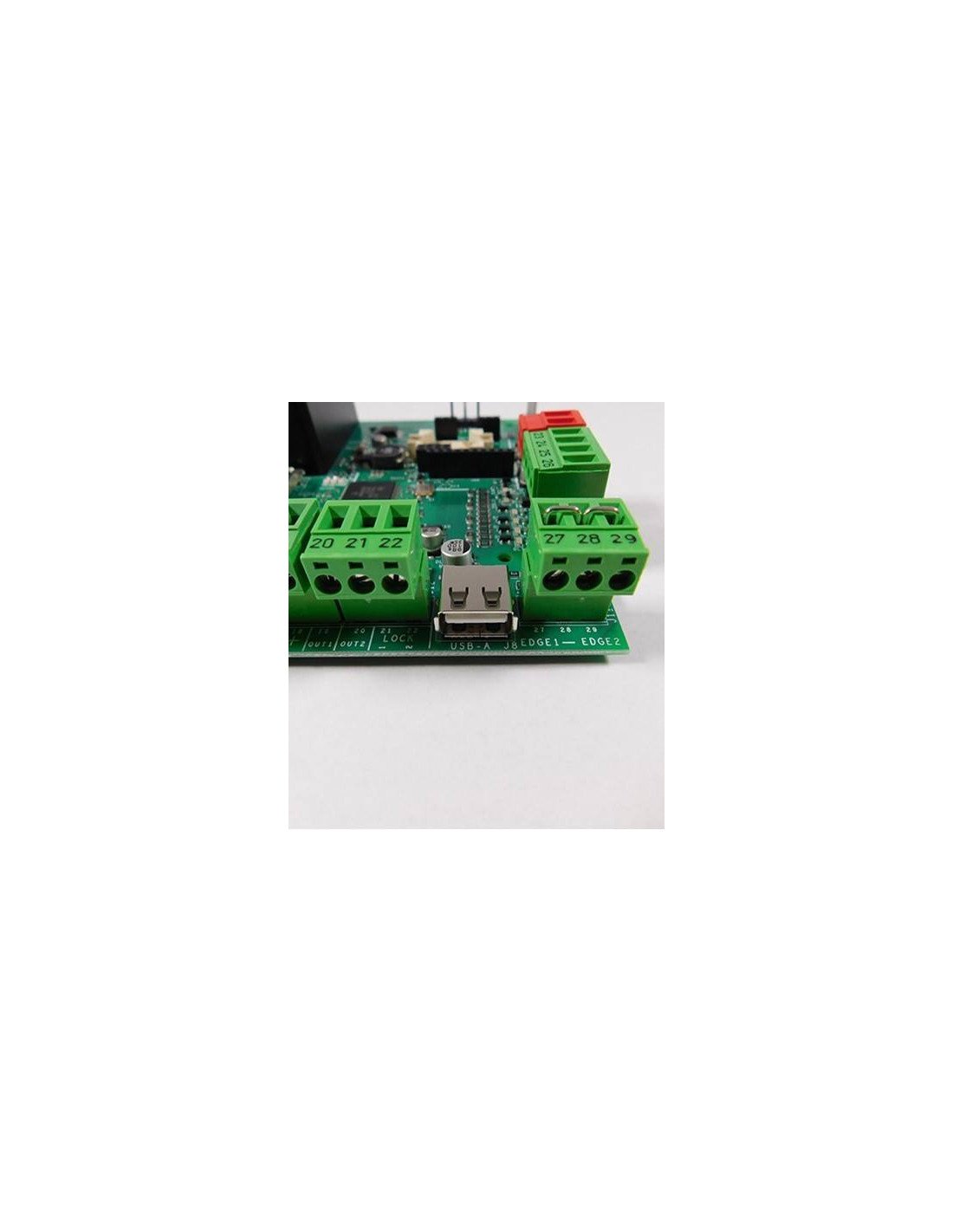

Management via USB-A

• Selectable Card Software Update
• Card Configuration Update Selectable
• Update Selectable Timer Setting
• Radio Code Update Selectable
• Download Selectable Card Configuration
• Download Selectable Card Timer
• Download Radio Codes Selectable
