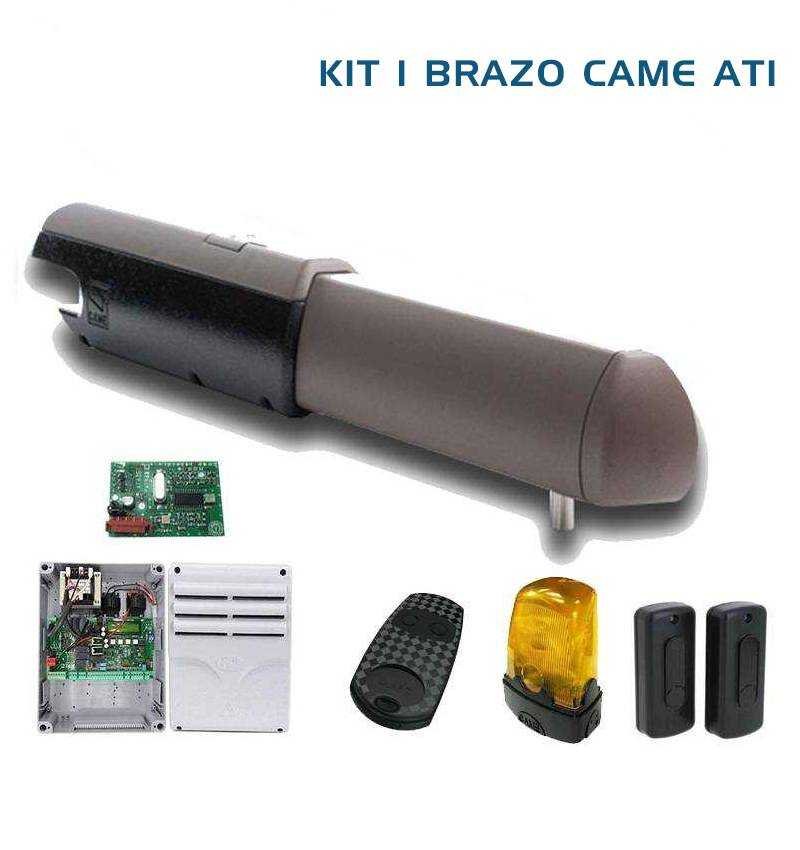

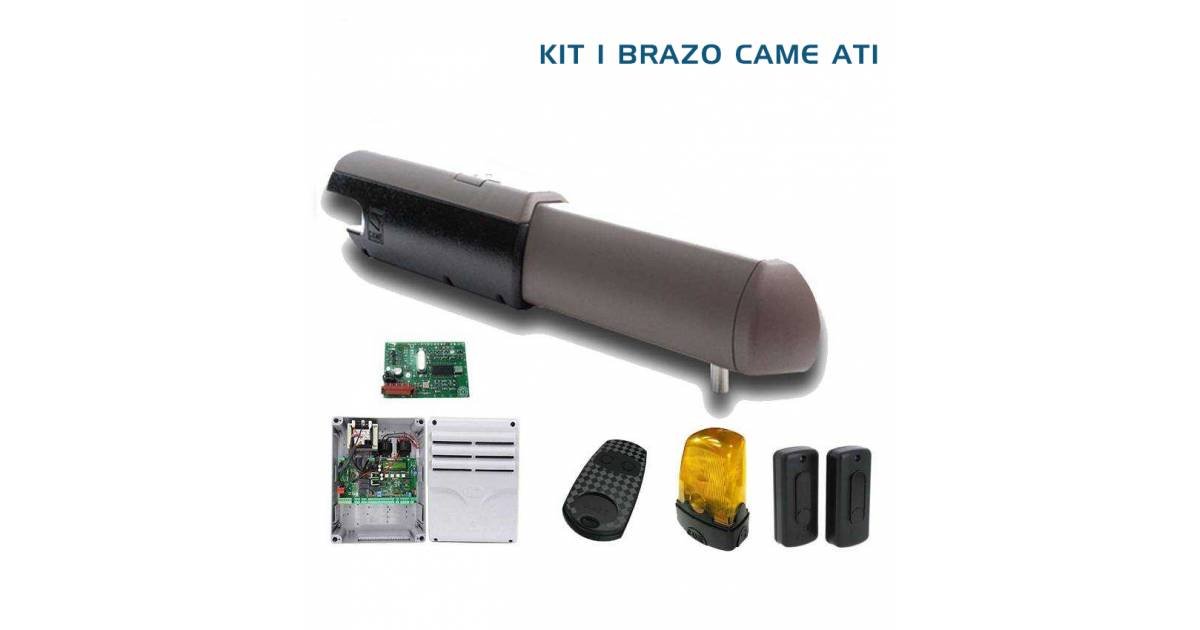

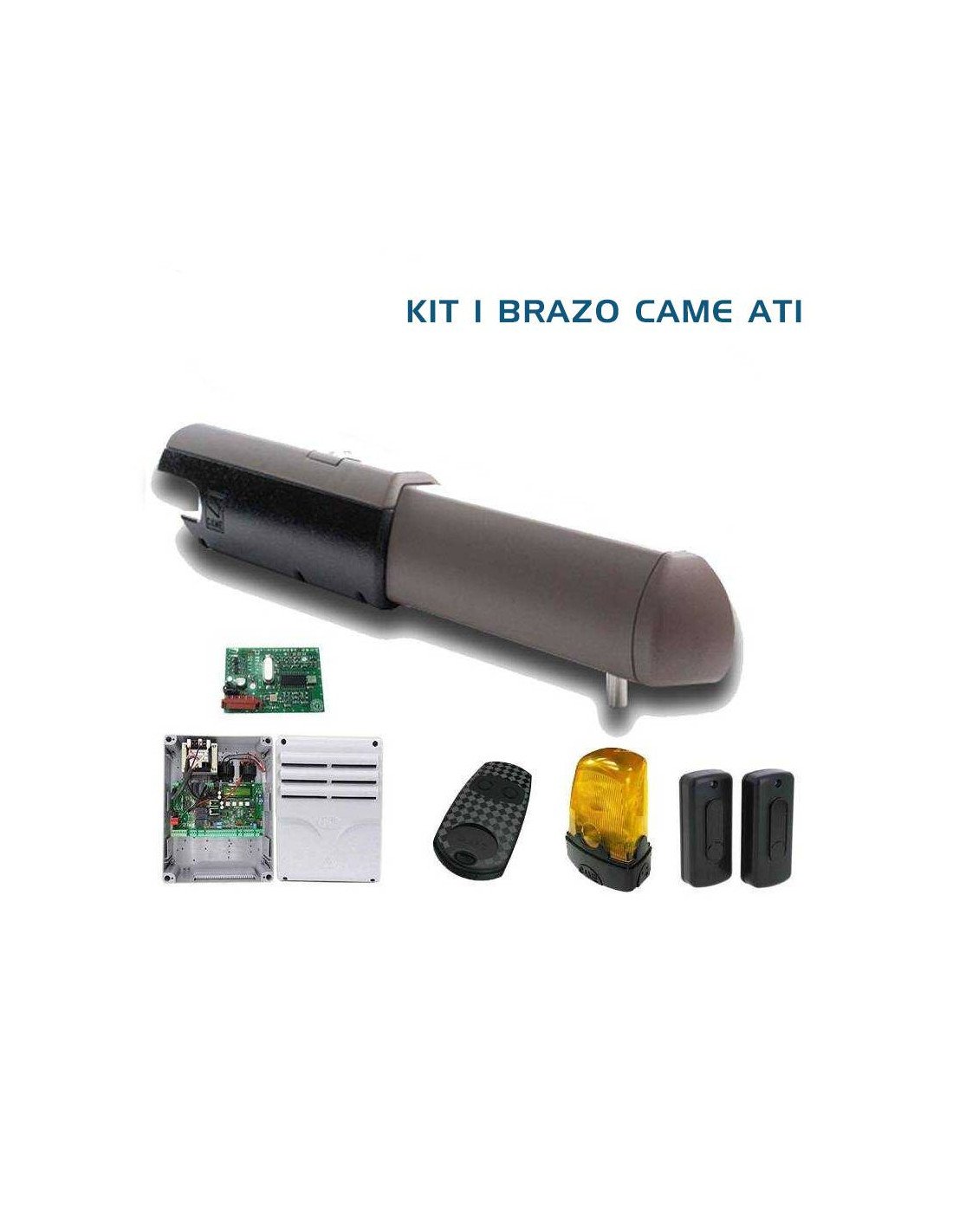

Motor kit CAME Electromechanical ATI 230VAC irreversible Designed to motorize swing doors up to 3m.

Ideal solution for facilities of residential and community-type enclosures.

Endless screw always protected thanks to the dedicated cover.

The kit contains

■ 1 pc 001a3000a: A3000A irreversible gearmotor for swing cancers up to 3 m per sheet, with opening and closing race micro-switches

■ 1 pc 002za3p: Multifunctional control panel for two-leaf cancelas, with management of the race endings and speed regulation

■ 1 pc 001af43s: AF43S Plug-type radiofrequency card 433 MHz

■ 1 pc 001top-432ee: Top-432e Multi-user Bicyano issuer with self-learning function.

■ 1 pc 001dir10: Couple of surface photocells of 12-24 V AC - DC. Scope: 10 m

■ 1 pc 001kled: Indicator flashing light with LED

■ 1 pc 119rv826: Indications plate

Technical characteristics

• Motor feed: 230VAC
• Absorption max.: 1,2a
• Power: 150W
• Opening time (90 °) = 19 seconds
• Operating temperature (Cº): from -20 to +55
• Transmission relationship: 1/36
• Push: 400 ÷ 3000N
• Flashing / operation: 50%
• Capacitor: 10μF
• Degree: IP44
• Weight: 10 kg

Measures

Manual

Manual CAME ATI
