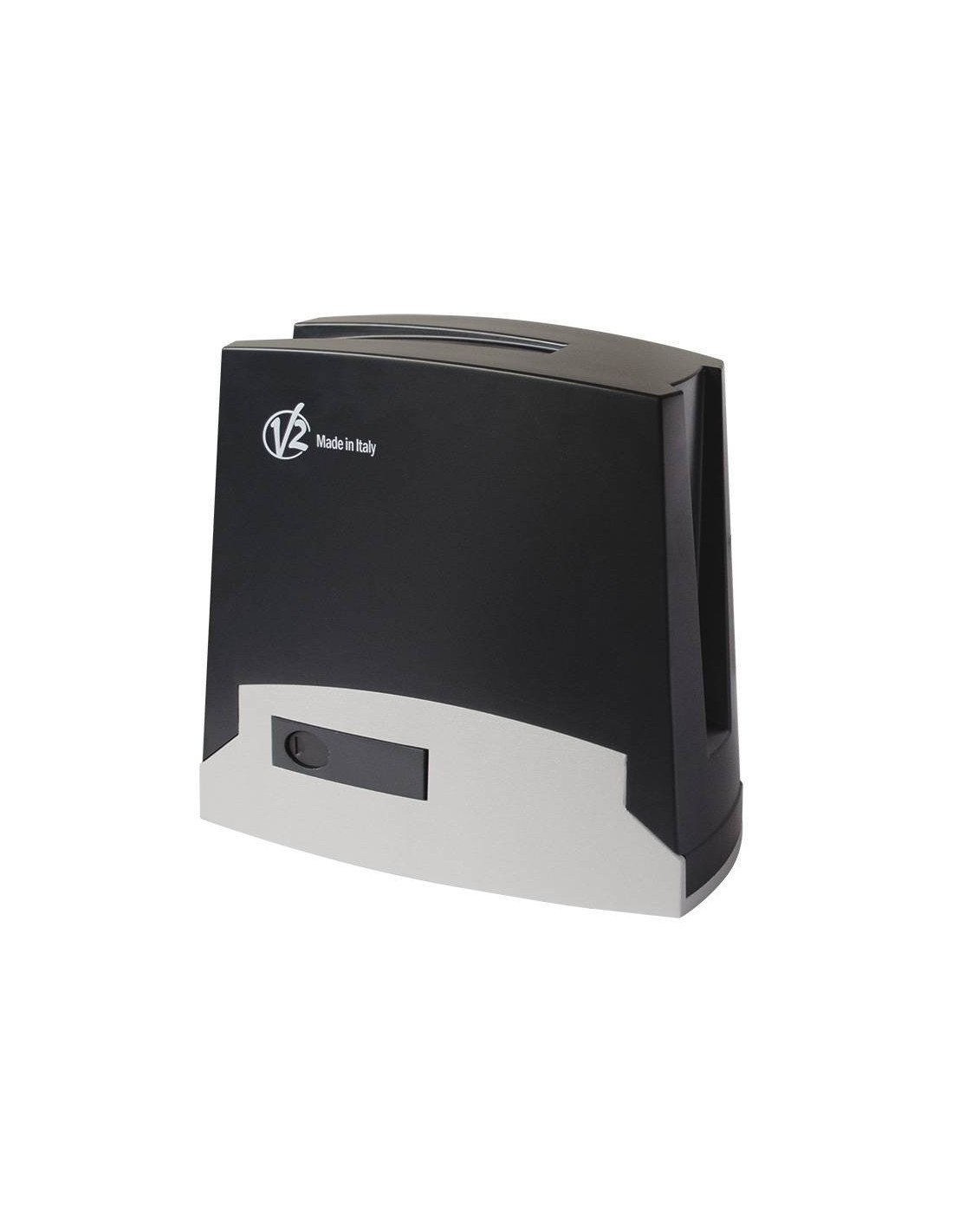

Engine V2 Torq 24V for sliding doors up to 500 KG with magnetic career end and digital maneuver box with Encoder.

Technical characteristics

• Max. of the door: 500 kg
• Food: 230 - 50 V / Hz
• Max power: 300 W
• Absorption with load: 2 a
• Speed: 0.28 rpm
• Max.: 600 N
• Work cycle: 90%
• Pinion: M4-Z15
• Operating temperature: -20 ÷ +55 ° C
• Weight: 9 g
• Degree of protection: IP44
• Load Max Accessories 24 Vac: 7 W

Functions

• Accurate and safe operation with Encoder

• Obstacle detection

• Accelerations and programmable decelerations

• Self-learning of opening and closing times

• Operation in case of absence of electric current using battery 161237

• Solar energy operation using the Eco-Logic system

• Synchronized operation of two motors using the Syncro module

• Precise and reliable magnetic career endings over time

Control unit

• Programming through three buttons and screen
• Connector for Modular Radio Receiver MR2
• 2 tickets for photocells with Autotest function
• 2 Inputs for Mechanical or Resistive Safety Bands
• Exit for 24V signaling lamp with or without intermittence
• Exit for courtesy light
• ENERGY SAVING FUNCTION (Energy Saving) to reduce consumption in stand by
• Self-learning function of work times and detection Obstacles
• Operating cycle counter with maintenance signage
• Soft leaves of leaves in close
• Soft start door start (programmable boot ramp)
• Display of the status of the inputs via screen

Manuals

Manual V2 Torq
