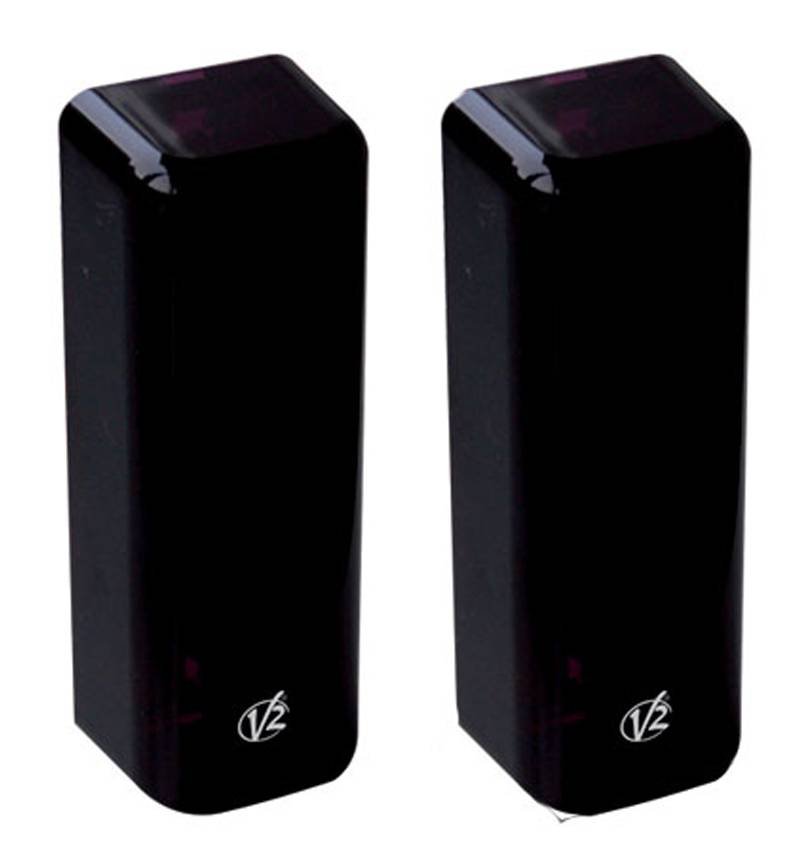

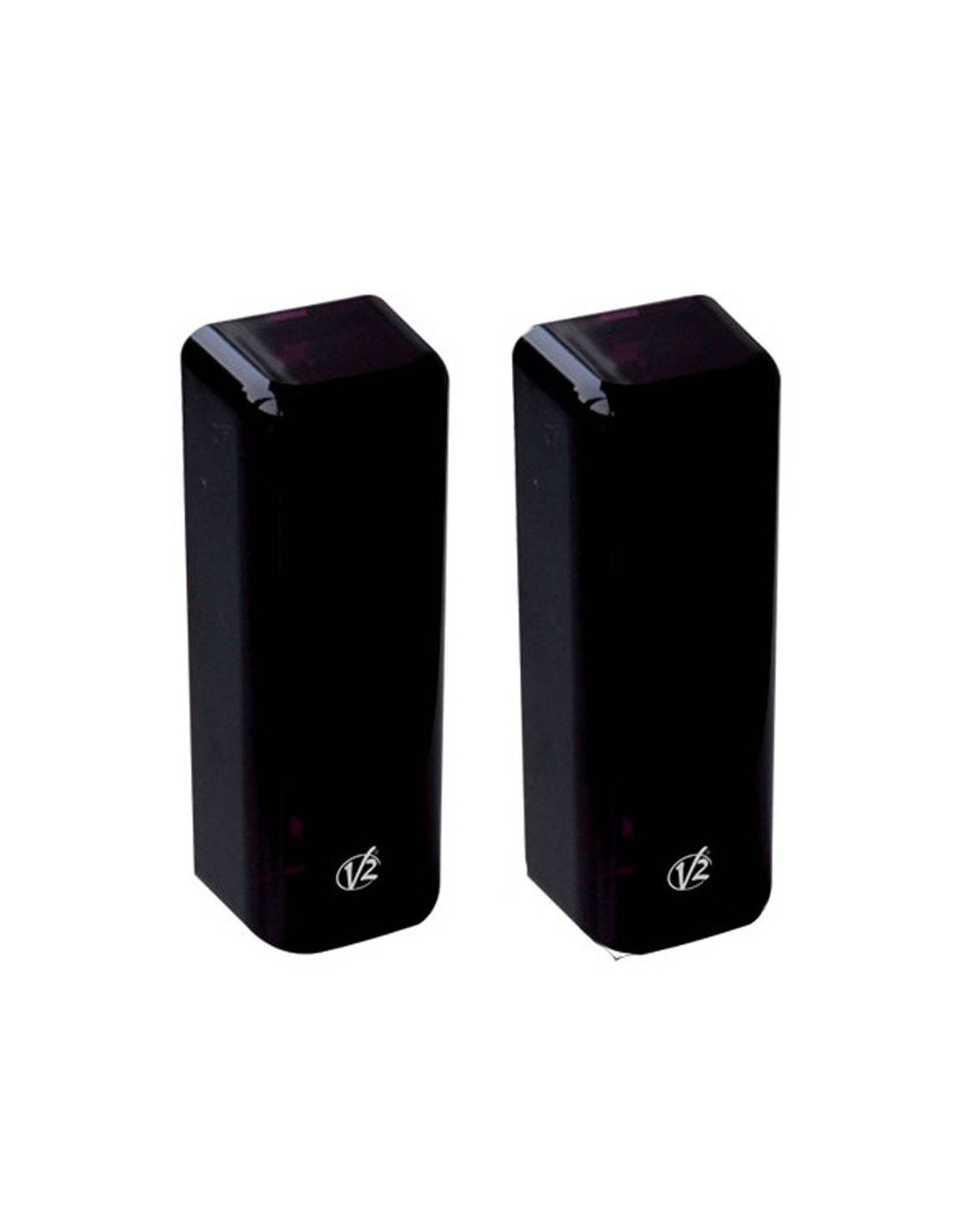

Manufacture from materials of any heading V2 this Regulation shall be binding in its entirety and directly applicable in all Member States surface and for self-aligning and synchronised columns.

• Very small dimensions84x29x24 mm)

• Can be installed inside GARDO columns

• Synchronized: the synchronization circuit allows two pairs of photocells to be installed very close together without interfering with each other

• Safe: immune to sunlight

CHARACTERISTICS

• Optical range: 20 m

• Dimensions: 84x29x24 mm

• Power supply: 12÷24 Vac / 12÷36 Vdc Vac/dc

• Relay contacts power: 1 (max 30 Vdc) A

• Operating temperature: -20 ÷ +60 °C

• Degree of protection: 54IP

MANUAL

Instruction manual V2 SENSITIVE

VIDEO SENSITIVE INSTALLATION
