KEYBOARD BFT

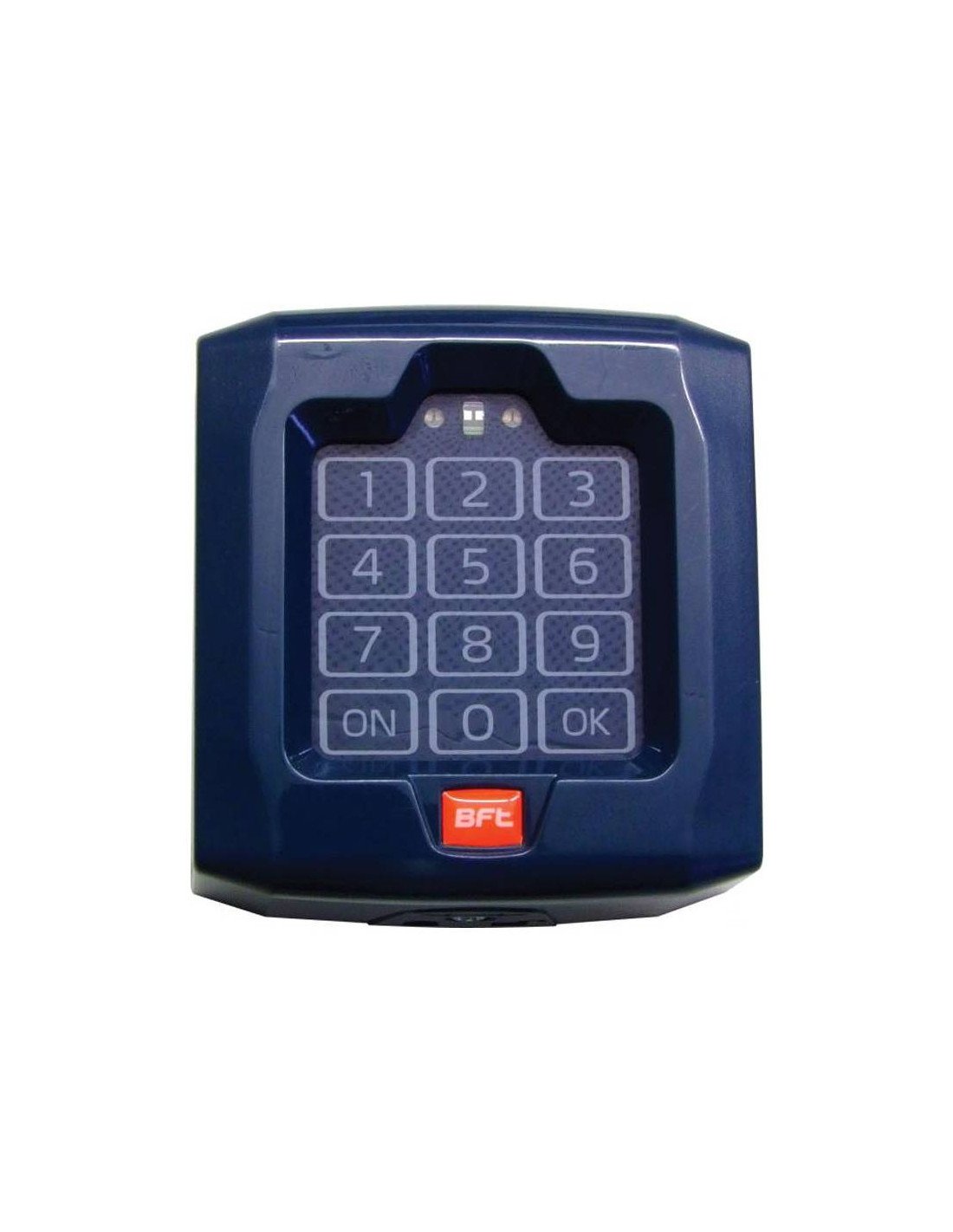

Wireless keyboard BFT "Q.BO TOUCH' digital membrane 433 MHz with variable code.

Compatible with all power plants with built-in or external receivers from the manufacturer BFT.

Q.BO TOUCH is a 10-channel transmitter which allows to control up to 10 receivers or 10 central (with receivers). Each channel has a code that must be entered from the keyboard. You can control up to 100 different CODES (each CODE consists of a sequence of minimum 4 and maximum 7 digits) and up to 10 different activation channels, each CANAL corresponds to a different plant installed (e.g. sliding channel opening with channel 1 and tilting channel opening with channel 2).

To perform any operation it is necessary to activate it using the ON button. The Q.BO TOUCH has a sensor which, in low light, activates the lighting of the keyboard to facilitate the introduction of the code. It is battery powered, so it does not need any wired electrical connection. For system security purposes, a password (default 1234) is required to add an enabled code. This password can be changed and must be remembered by the user.

• Type of battery: CR123A
• Frequency: 433 MHz
• Degree of protection: IP55
• Interconnectivity: not
• Stress: 12/24 V
• Number of batteries2

MANUAL KEYBOARD BFT

Instruction manual BFT Q.BO TOUCH
