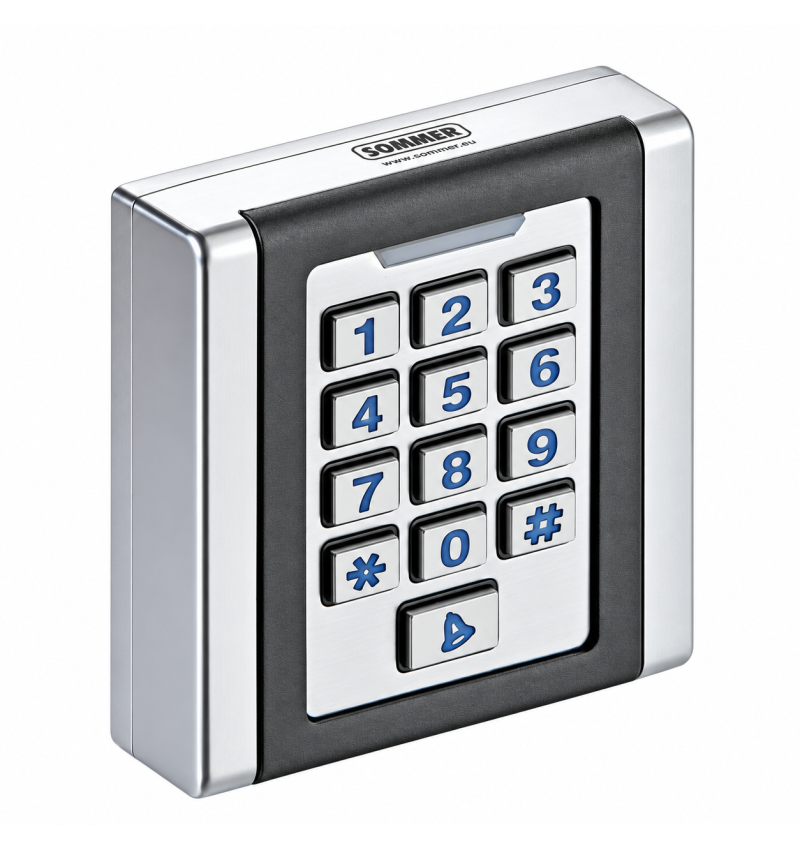

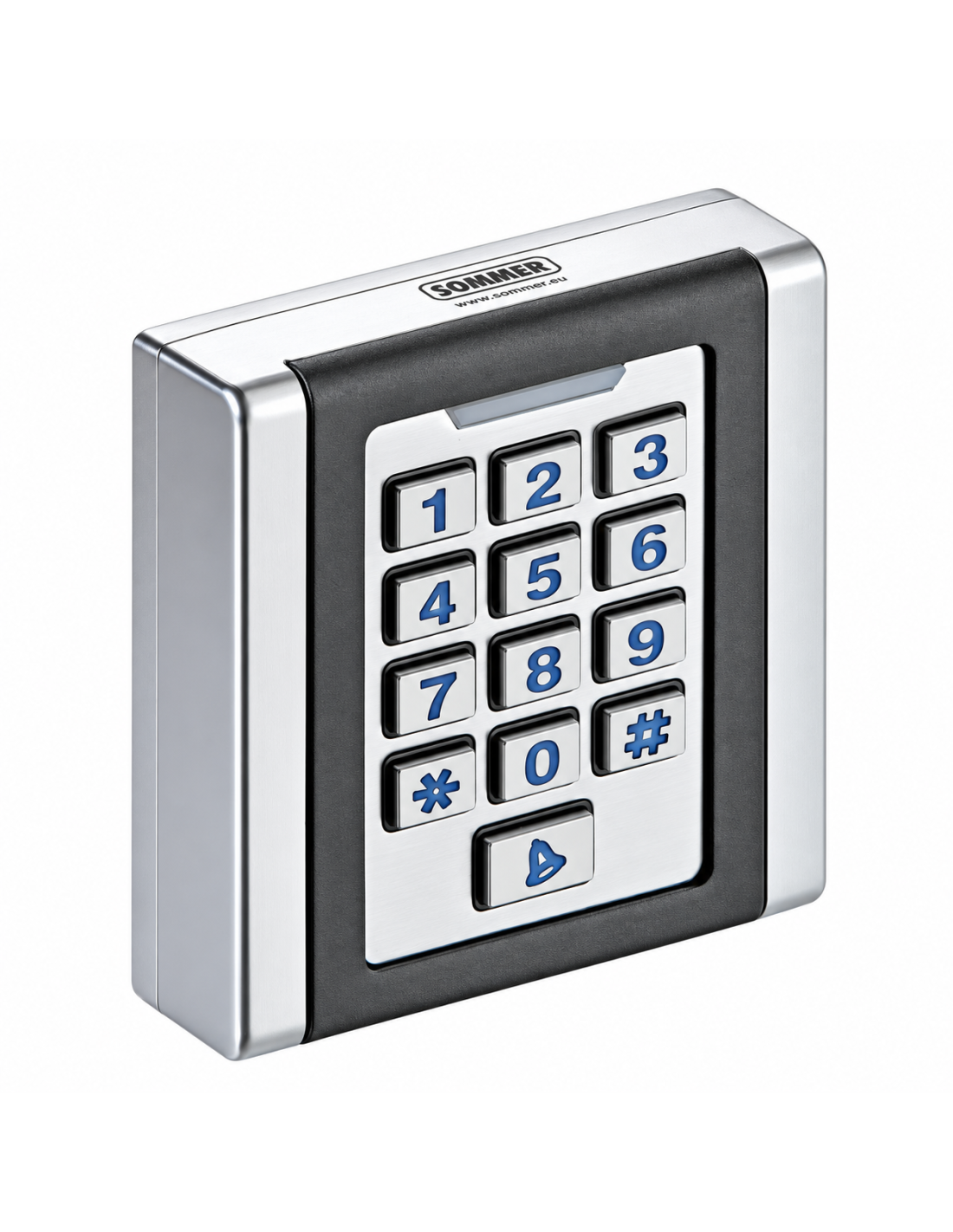

Radio code keyboard Sommer Entrakey (Somloq2)

Radio code keyboard Sommer Entrakey allows you to control garage doors, gates and other Sommer automations in a comfortable way by introducing a personal numerical code, without the need to use a remote control.

Thanks to its operation through somloq2 radiofrequency and feeding by stack, the entrakey does not need wiring or electrical connection, considerably facilitating its installation in both new automation and existing facilities.

His robust stainless steel housing, protection IP65 and backlit keyboard make it a specially indicated solution to control access from the outside.

Sommer Code Keyboard Entrakey

The Entrakey S14148-00001 it works as a Sommer radio station. Once programmed in a compatible receiver or automatism, the user can transmit an order simply by entering his personal code on the keyboard.

The device has memory to store up 100 different entry codes, so it is especially practical for installations where several people need to have independent access.

• Wireless access keyboard by radio frequency.
• Radio system Somloq2.
• Frequency 868.95 MHz.
• Until 100 entry codes.
• Configurable codes 2 to 6 digits.
• Possibility of assigning a different code to each user.
• 3 orders via radio.
• 2 orders protected by code.
• 1 additional order without code.
• Housing stainless steel.
• Metallized keys with blue backlight.
• Protection IP65 for outdoor installation.
• Feeding by pile, no need for wiring.

Technical characteristics Sommer Entrakey

* Coverage indicated by the manufacturer in optimal conditions.

Up to 100 different access codes

One of the main advantages of Sommer Entrakey it is your ability to store up 100 entry codes.

Each code can have between 2 and 6 digits and it is possible to assign an individual code to each user, facilitating the management of access in housing, communities, small businesses or other facilities with several users.

3 radio orders available

The Entrakey allows transmitting three orders via radio different a Recipients or Supply Sommer Automatisms:

• Order via radio 1: protected by code.
• Order via radio 2: protected by code.
• Order via radio 3: direct drive without the need to introduce code.

The two protected orders can be used, for example, to control two different functions or applications, depending on the receiver or automation in which they are programmed.

Without wiring or power supply

The Sommer Entrakey works through a stack CR2450 of 3V, so you do not need external power.

This avoids performing pipes or carrying cables from automation to the keyboard, making your installation especially simple.

According to Sommer, the approximate duration of the stack is 4 years, depending on the conditions and frequency of use.

Stainless steel housing and IP65 protection

The keyboard is designed to withstand the usual conditions of an external installation.

• Stainless steel housing resistant and prepared in front of vandalic acts.
• Degree IP65.
• Metallized keys.
• Blue backlight to facilitate use under low light conditions.
• Luminous state indicator.
• Configurable acoustic signal by pressing the keys.

Luminous indicator and acoustic signal

The Entrakey incorporates a signaling system that helps the user during use and programming.

By luminous indicator in green and red and different acoustic signals, the device may indicate whether an introduction has been valid, if an error exists or if it is in programming mode.

In addition, from programming it is possible to configure the background lighting and activate or deactivate the signal tones.

Compatible with Sommer radio receivers

The Entrakey is designed to work together with compatible Sommer radio automations and receivers. Each of the radius commands that you want to use must be previously memorized in the corresponding receiver channel.

The device uses the radio system Somloq2. Before making the purchase, it is recommended to check the radio system and the compatibility of the installed receiver, since the compatibility does not depend solely on the frequency.

Applications of the Sommer Entrakey

This keyboard can be used to control different accesses equipped with a compatible Sommer receiver, such as:

• Garage doors.
• Automatic sliding doors.
• Automatic swing doors.
• Access gates.
• Other devices managed by compatible Sommer radio receivers.

Supply content

Main advantages of Sommer Entrakey

• Access by numeric code.
• Until 100 user codes.
• Configurable codes of 2 to 6 digits.
• 3 orders via radio.
• Radio system Somloq2.
• You do not need electrical connection or wiring.
• Approximate autonomy 4 years.
• Housing stainless steel.
• Protection IP65.
• Keyboard with blue backlight.
• Compact installation on the surface.
• Ideal as access control solution for compatible SOMMER automation.

Sommer Entrakey S14148-00001

The Sommer Entrakey it combines an access system by code with Sommer radio technology on a compact, resistant and easy-to-install device.

Its wireless operation, capacity to manage up 100 codes, stainless steel housing and IP65 protection degree make it a particularly practical solution to control residential and professional access equipped with compatible Sommer receptors.

Sommer Entrakey S14148-00001: somloq2 radio code keyboard To control doors and automatisms without the need for keys, or wiring.
