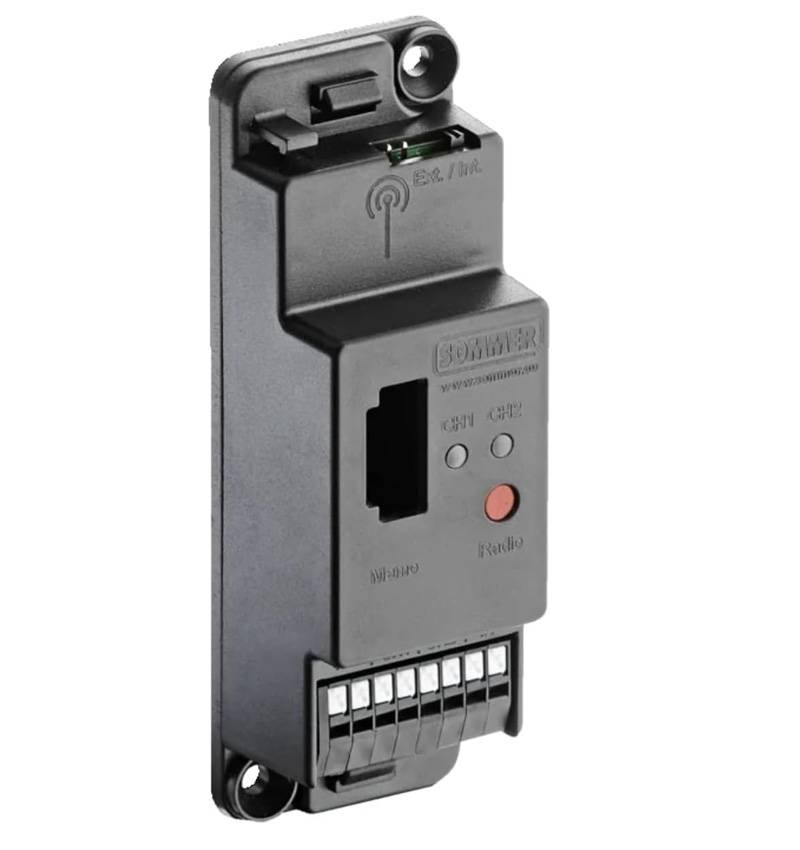

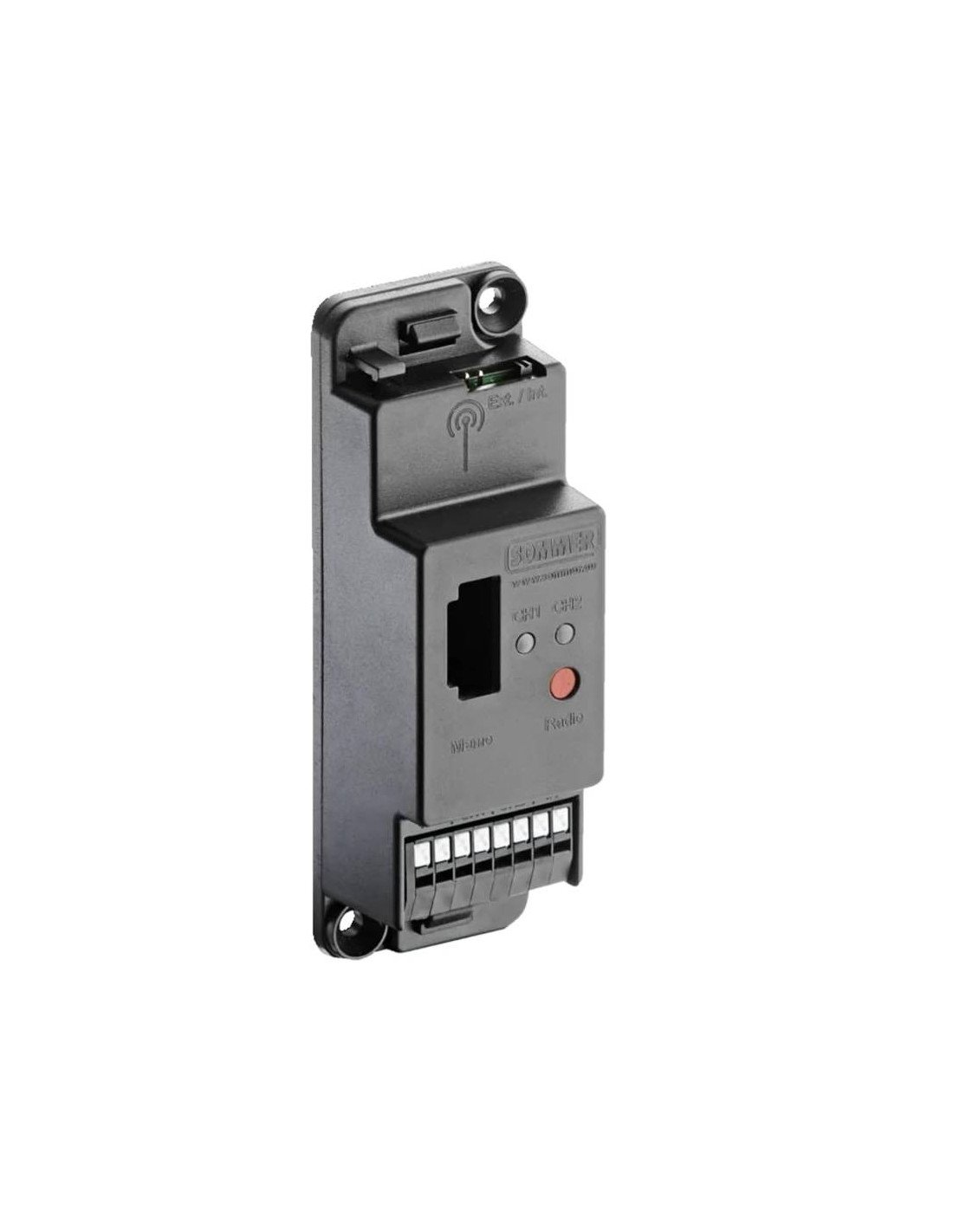

Receiver Sommer Somcom2.1 of 2 channels 12 / 24V with SOMLOQ2 system frequency 868.95 MHz.

✓ Internal memory up to 40 controls with the possibility of expanding the capacity up to 450 controls.

✓ Compatible with Somlink S2

✓ Active forwarding of the radio signal using the Somloq2 receiver (HOP function)

✓ Integrated antenna. An optional external antenna can be connected.

✓ 1 Input for the state of the door to make incompatible units compatible with Somweb

✓ Slot for Memo Memory Extension (450 Radio Commands)

✓ Control out: 2 potential-free relay contacts (usually open, 1 A, DC 30 V)

✓ Operating mode: TAP mode: The relay is activated while the radio signal is present ON / OFF defined: Command for defined power and command defined

✓ Switching mode (Toggle): The relay can be turned on and off radio as an overvoltage relay (can only be configured through Somlink S2)

Technical characteristics

• Manufacturer: Sommer
• Reference: S13611-00001
• Product dimensions: 10.6 x 3.6 x 2.9 cm; 90 g
• Product model number: S13611-00001
• Color: Black
• Weight of the product: 90 g
