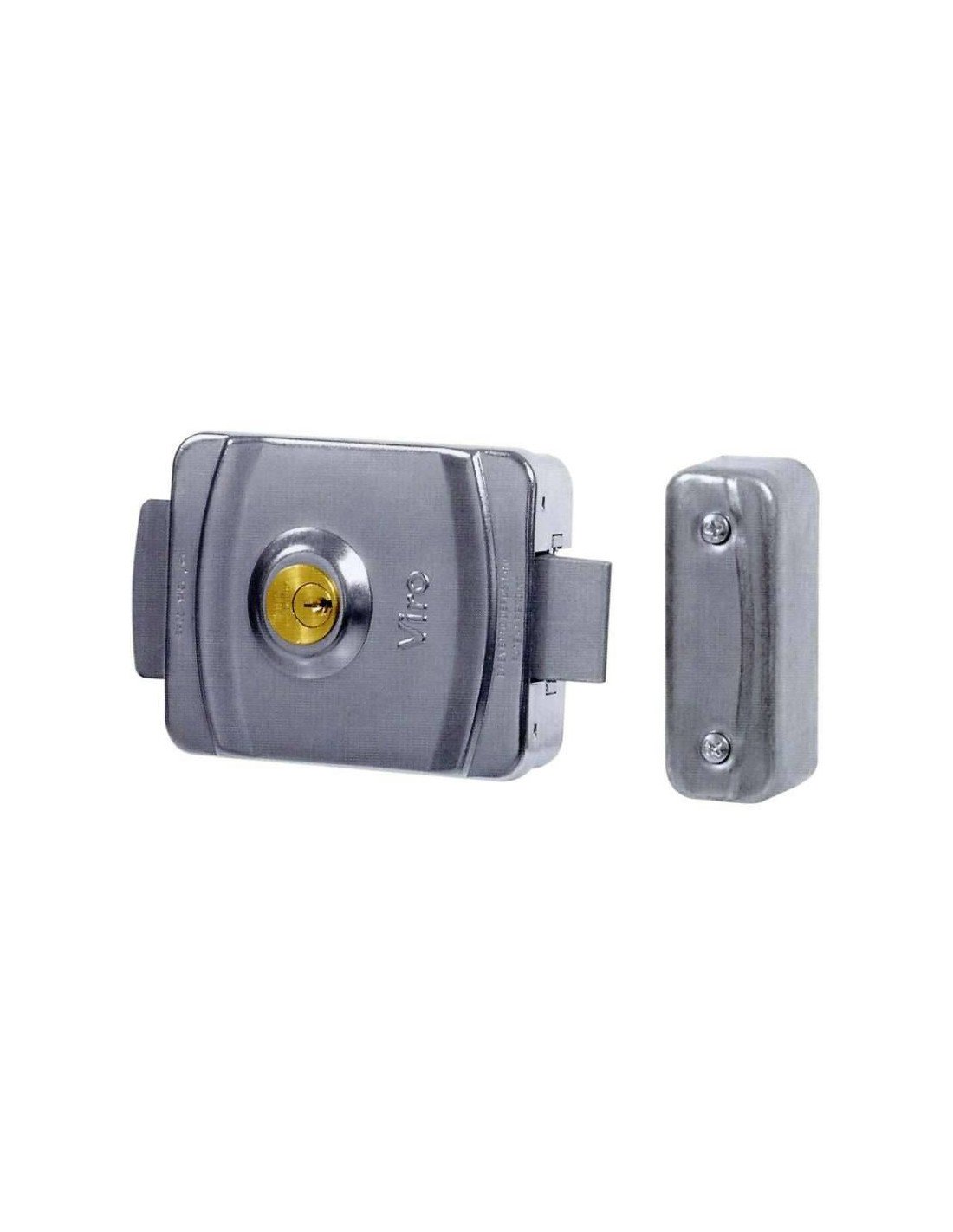

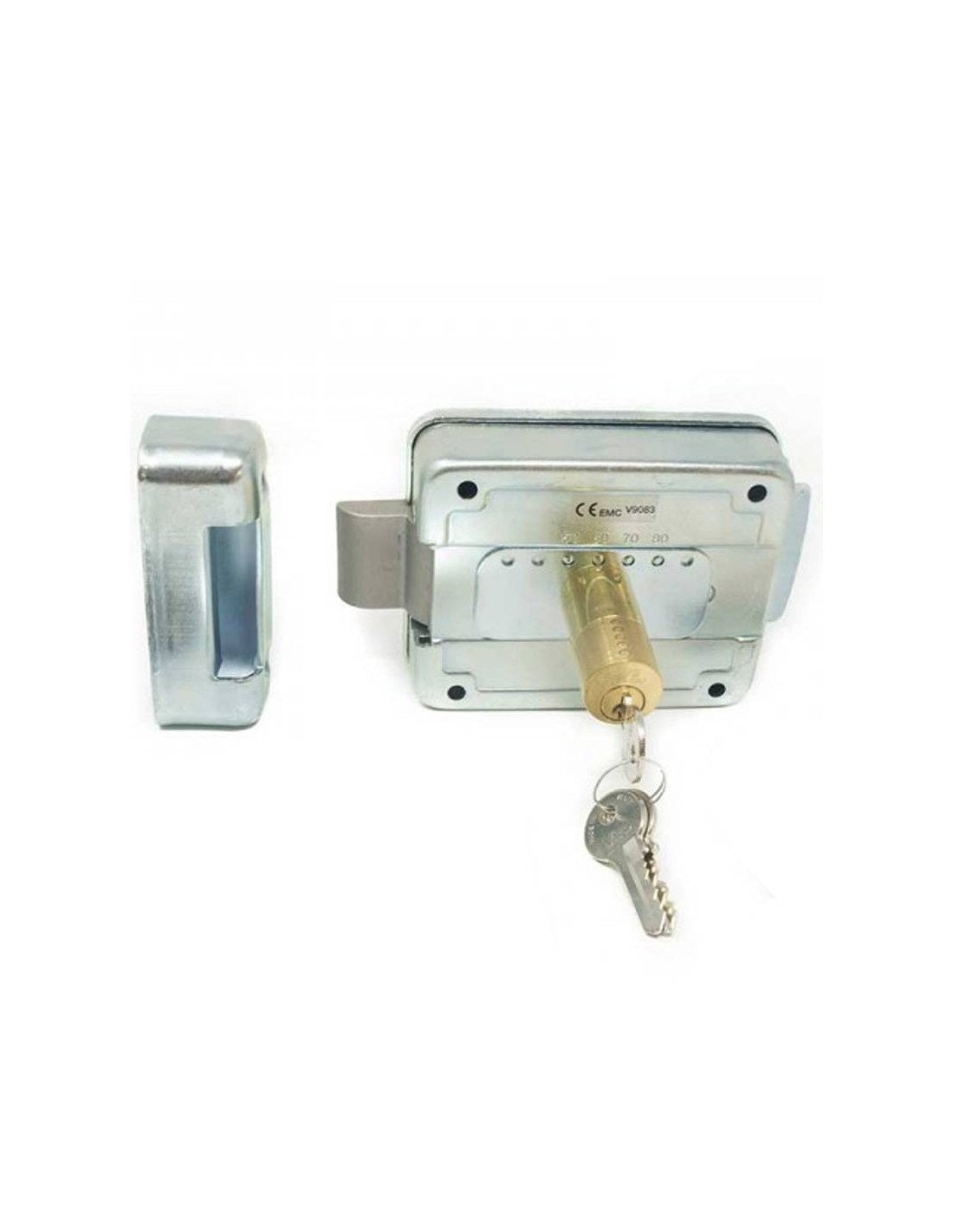

Electrical lock ERREKA LV9083 VIRO with outside pump, a width of not more than 50 mm. This is a 60mm Long Gun. Horizontal or vertical mounting.

GENERAL CHARACTERISTICS

• Installation on automatic or manual doors and gates.
• Power supply: 12V C.A.
• Rust-proof zinc box and receiver, galvanized internal components.
• Circular, fixed, brass cylinder (V9083), with 3 keys in nickel-plated brass.
• Rotary lock.
• The only version.
• Interchangeable with V90 (series 7920) and V83 (series 7910) electric locks.
• The V9083 is supplied with the Service Function: the lock opens upon receiving an electrical impulse and only closes again when the door has been opened and then closed. It is therefore suitable for use with locks and/or automatic doors.
• By removing an internal component, the V9083 acquires the Safety Function: the electric lock opens only when the electrical impulse and a manual or automatic pressure are applied simultaneously. Therefore it is not suitable for use with locks.
• It can be opened with the key from the outside and with the key or with an electrical impulse from the inside.
• Double-strength bolt of high strength AISI 304 stainless steel. The distance between the lock and the metal receiver (± 7,5 mm) ensures that the lock will work even if there is a vertical movement between the lock and the receiver (a common occurrence due to weather changes).
• Suitable also for light doors without threshold support, as the bolt is perfectly locked at the end of its rotation.
• Supplied with adapter plate of the receiver, to cancel possible differences between the pillar and the door.
