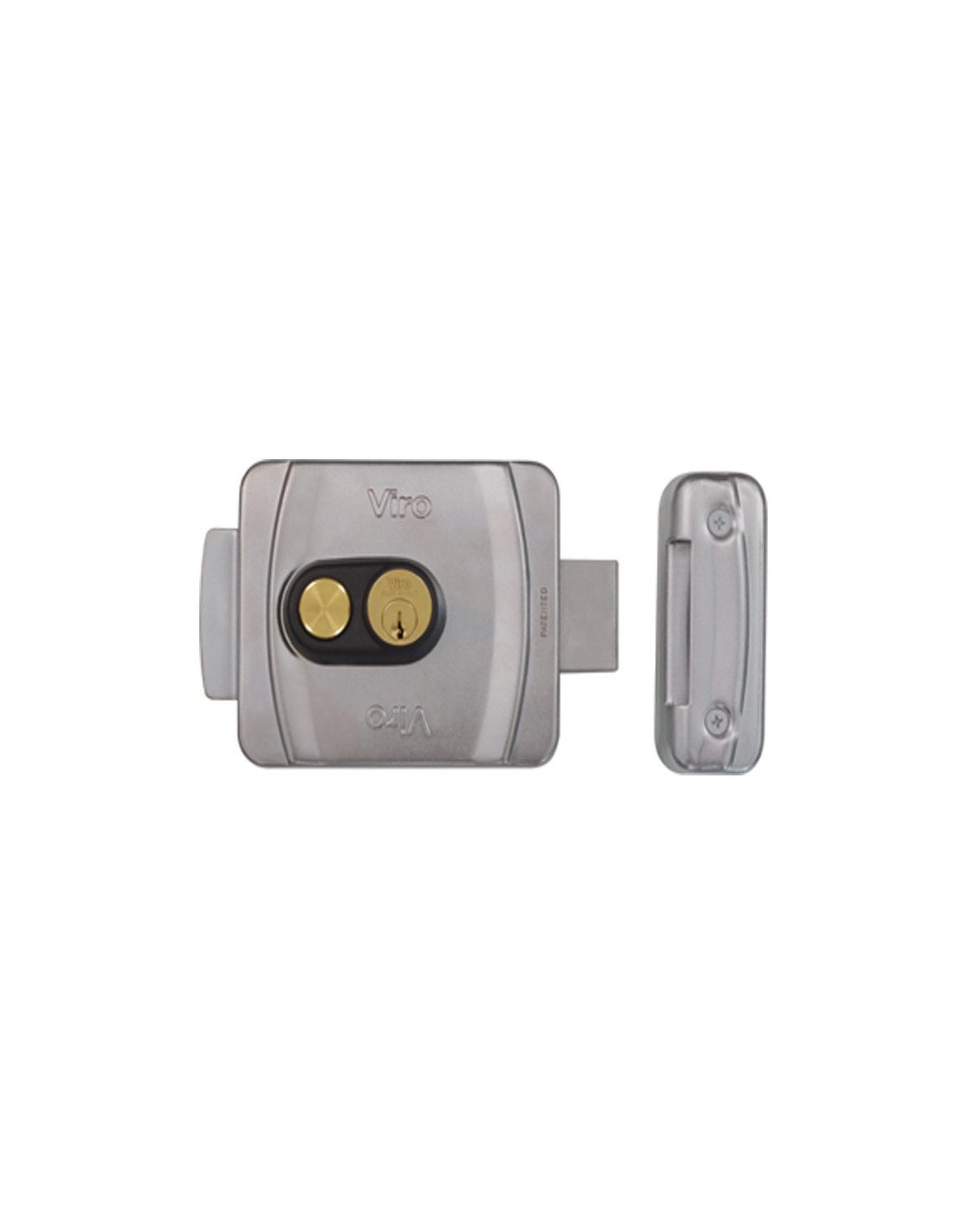

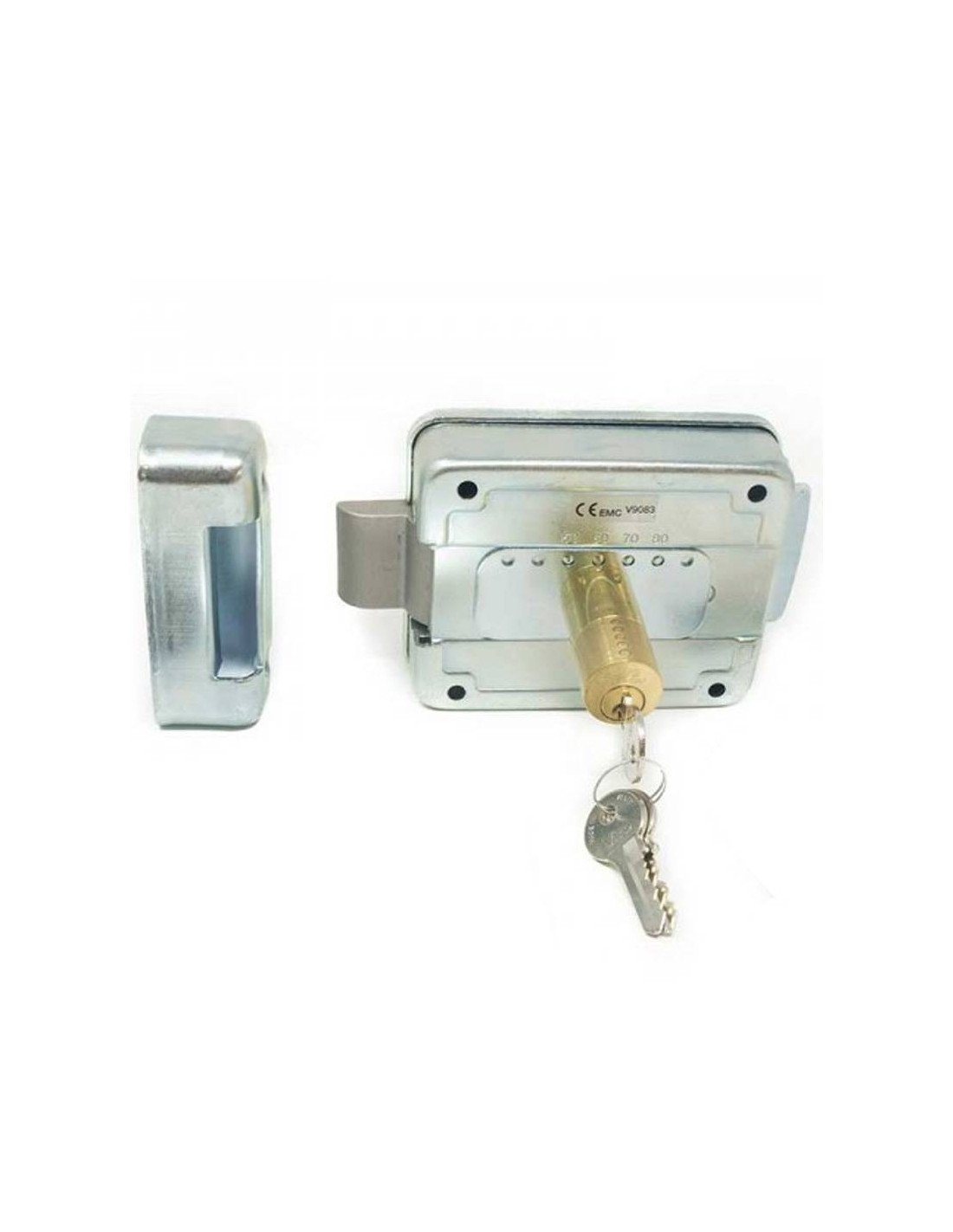

Electric lock ERREKA LV9083 VIRO with adjustable input 50-60-70-80 mm. With interior push button. Length of cylinder 60mm. Horizontal or vertical mounting.

GENERAL CHARACTERISTICS

• Installation in automatic or manual doors and gates.
• Power supply: 12V A.C.
• Zinc-plated, rust-proof case and receiver, galvanized internal components.
• Circular, fixed brass cylinder (V9083), with 3 nickel-plated brass keys.
• Rotary lock.
• Single version.
• Interchangeable with electric locks V90 (7920 series) and V83 (7910 series).
• The V9083 is supplied with the Service Function: the bolt opens when receiving an electric impulse and only closes again when the door has been opened and then closed. It is therefore suitable for use with door closers and/or operators.
• By removing an interior component, the V9083 acquires the Security Function: the electric lock opens only when the electric impulse and a manual or automatic pressure are applied simultaneously. It is therefore not suitable for use with door closers.
• It can be opened with the key from the outside and with the key or with an electric impulse from the inside.
• Bolt with double resistance, made of high strength AISI 304 stainless steel. The distance between the bolt and the metal receiver (± 7.5 mm) guarantees that the lock will work even if there is a vertical movement between the lock and the receiver (a common occurrence due to weather changes).
• Suitable also for light doors without threshold support, as the bolt is perfectly locked at the end of its rotation.
• Supplied with receiver adapter plate, to cancel possible differences between the pillar and the door.
