Cardin Blade5 230V Electromechanical Motor Kit Up to 5m, Anti Crushing Encoder

Cardin Blade5 230V Electromechanical Engine Kit to Beating doors up to 5m length.

The use of this electromechanical engine is intended for cancelas of 350 kg weight or 5000 mm long. Has Encoder anti built-in crushing.

Blade is an irrevexic electromechanical gearmotor Reliable and robust for swing cancelas in 230Vac offering excellent service in residential use

• Autoblocative, the reduction system ensures that the door is locked when closing and opening (anti wind).

• Irreversible, an electric lock is not necessary but in swing doors from 3M it is recommended its installation.

• Control of the position of the door, with the help of mechanical stops, is done through an encoder with self-learning programming reducing and minimizing installation times.

• Available as an accessory as well as the Electric Limit End-running Kit to ensure precise control of the door position.

• Repositioning intervenes automatically if forces are produced on the sheet during opening or closing maneuvers.

• The control performed by the central is completed with the anti-crushing safety devices and the functions of "Soft Start" and "Soft Stop".

• In case of lack of network voltage, the manual operation is guaranteed (in the self-locking models) by a practical lever unlocking system, protected by a safety key.

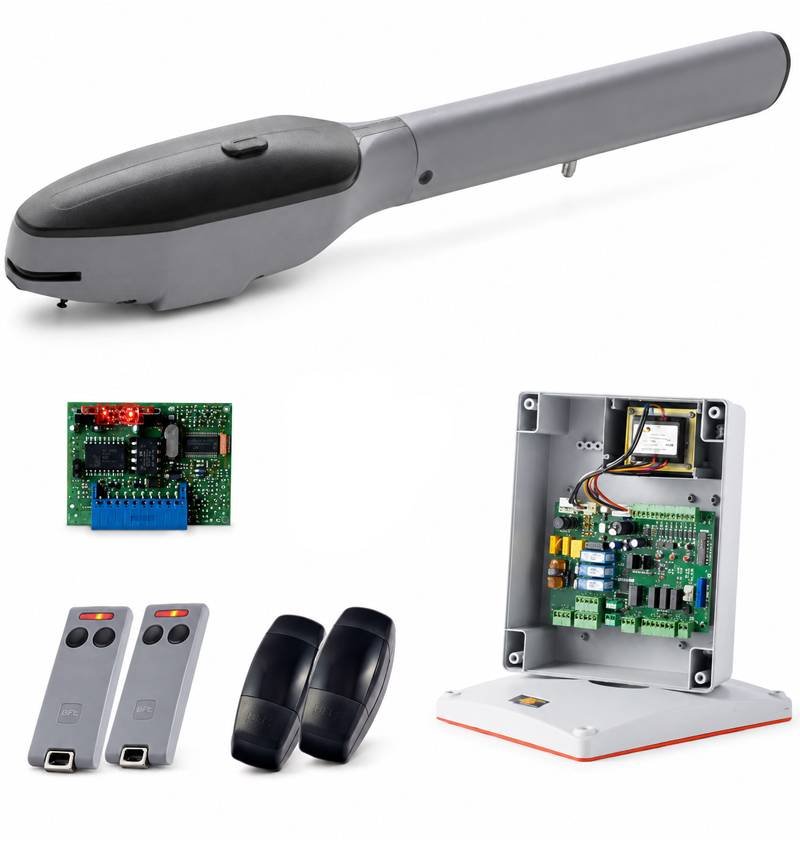

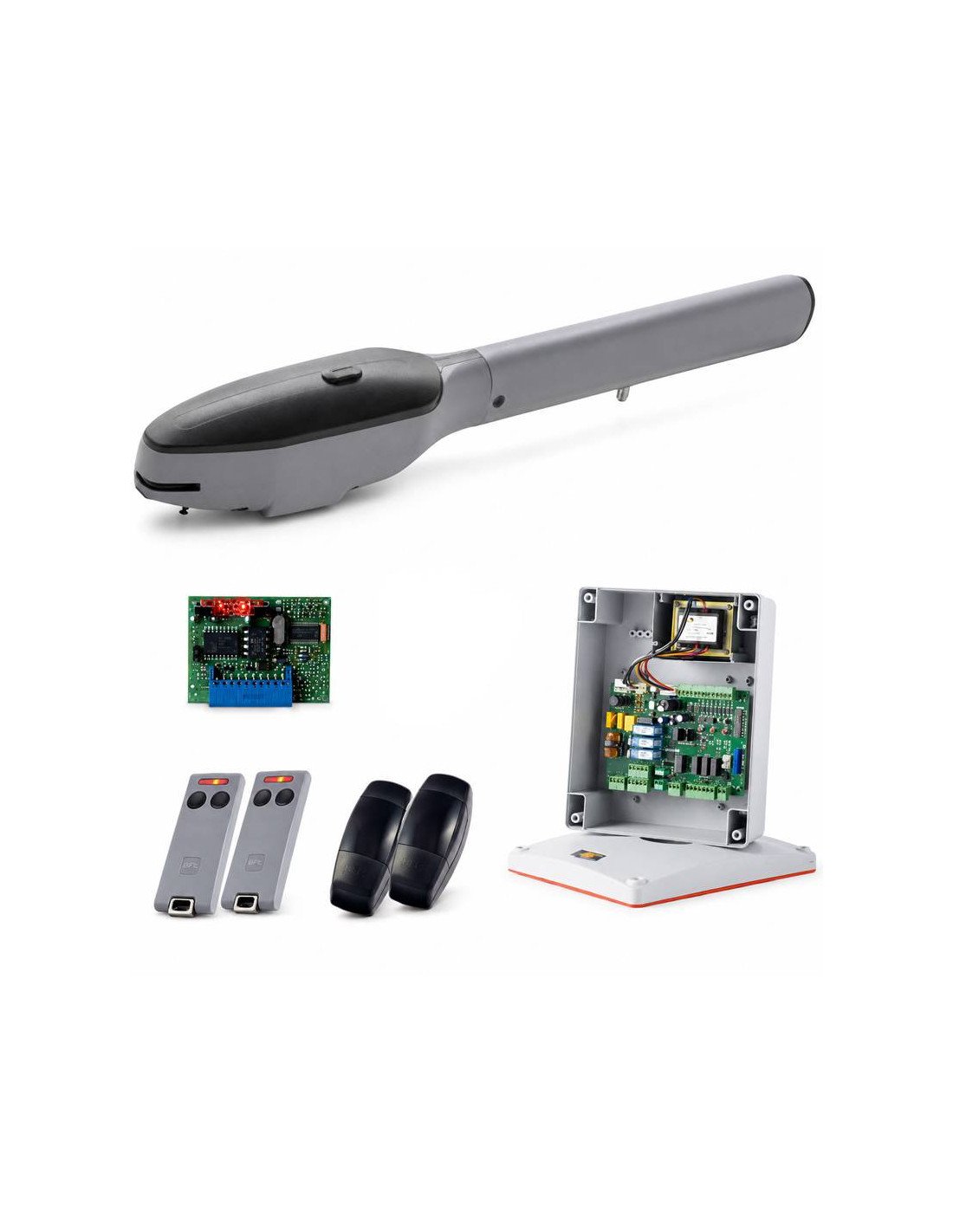

Kit content:

• 1x blade5 230: 230V electromechanical gearmotor, for residential-use swing doors, with lock for cancelas of 300 kg. Of weight or 5000 mm long. Built-in anti-crushing encoder. Requires Central T600.
• 1x T600: Central for 2 swing motors. Option Regulation Anti crushing by encoder. Step-step / STOP function. Automatic closing option. Pedestrian function. Double photocell / phototest.The race. Pre-warning / light courtesy lamp. Electronic force regulation. Soft unemployment - Communities function. Clock option. Around blow in opening. Electro lock. Closing stroke Connection for OC receptor (not included). External transformer. Connection Safety Band Connection Garage light. Connection PRG-LINK. Auxiliary channel for irrigation or lights.
• 1x OC2 Tango / FM / S508: Integrable receiver Open Collector Series Tango 2 channels AM 433.92MHz. Fixed code, FM 433,92 MHZ ROLLING CODE or FM 868 MHZ ROLLING CODE.
• 1x oto180: Synchronized surface photocelling set orientally 180º.Alcance maximum 25 meters. Feed 12/24 VAC-DC. G. IP44 Protection. AUTO CENTERO AUTO AUTO ERRORS EVERING EVERING IN THE VERTICAL CONDITION.
• 2x S508 of 4 channels at 868 MHz
• 1x Mounting Kit

Technical characteristics

Measures
