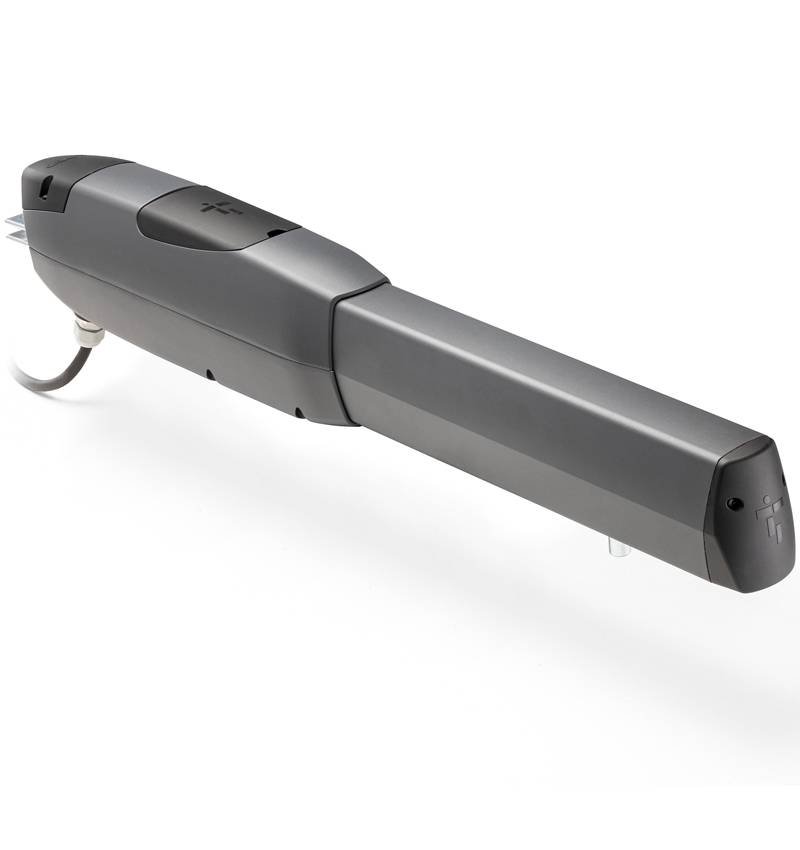

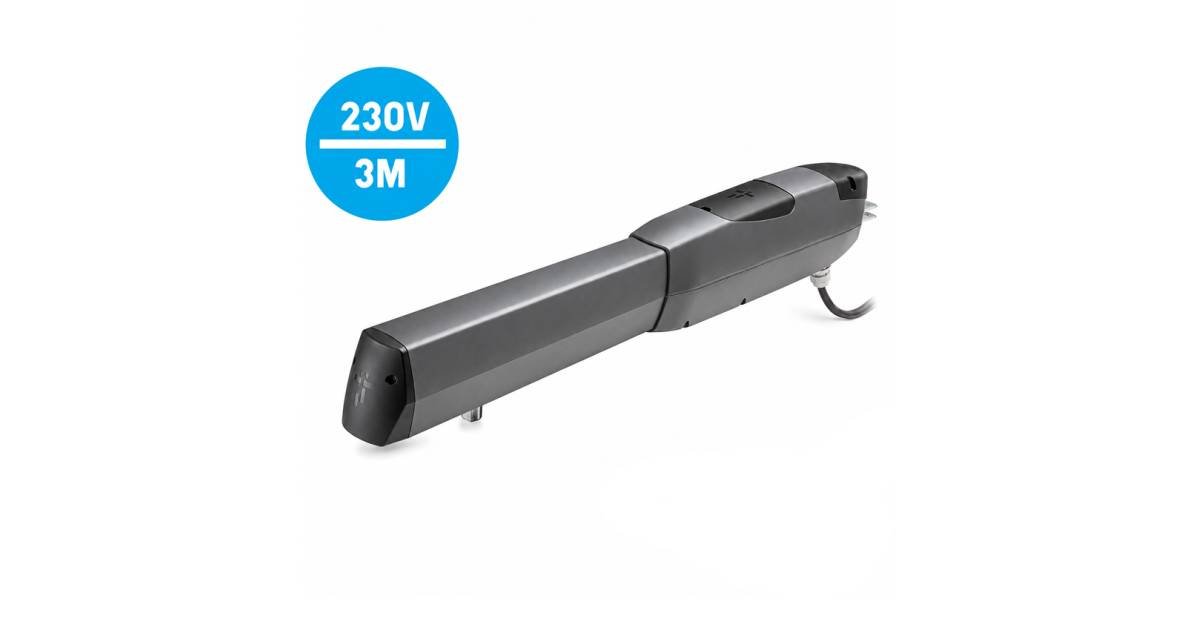

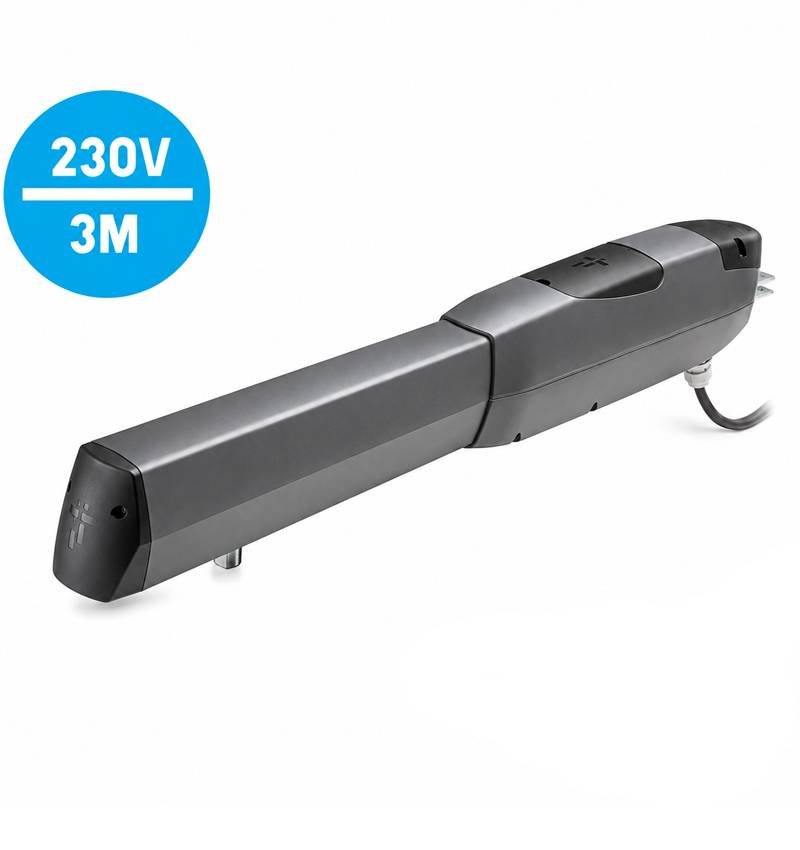

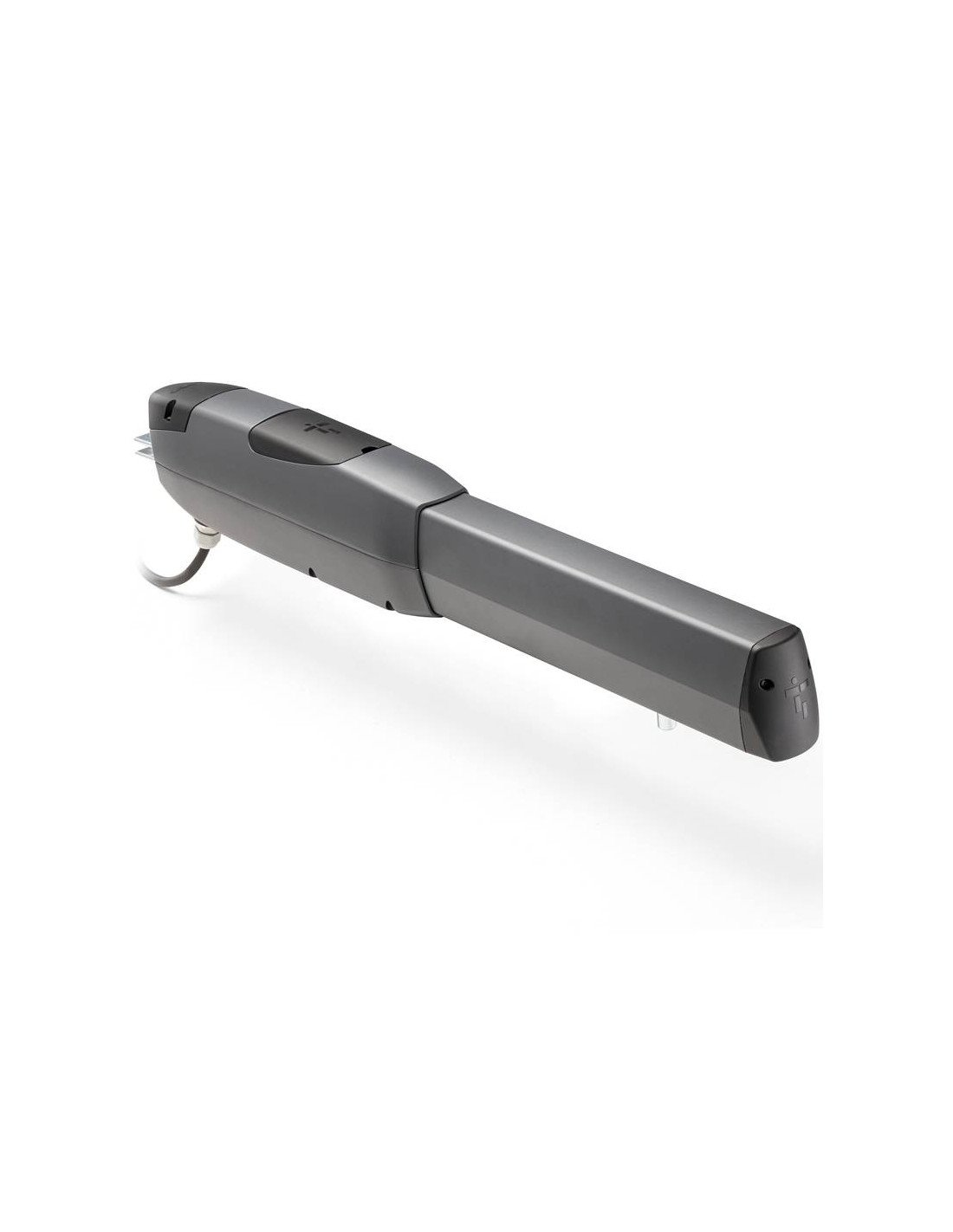

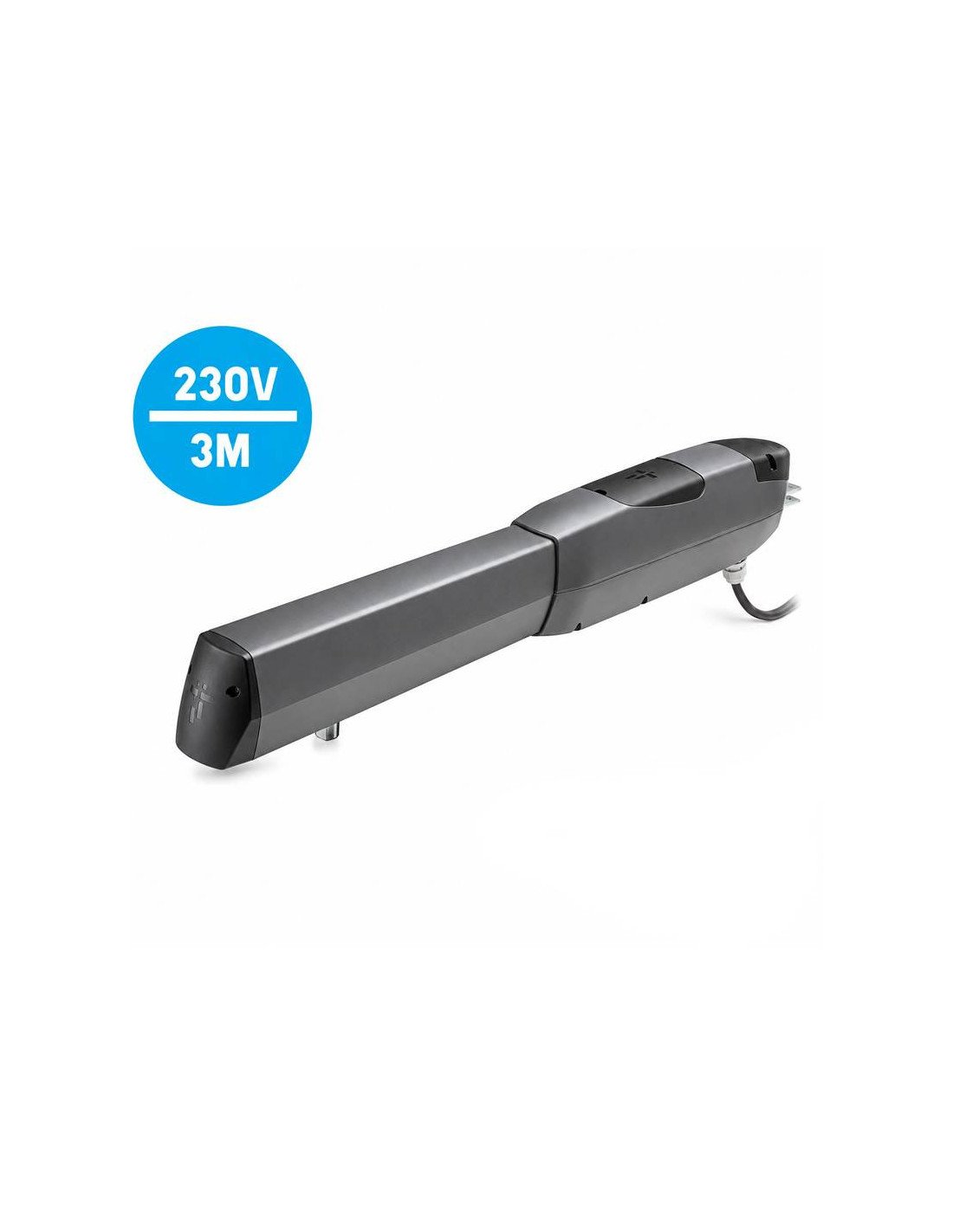

CAME Ati30ags, reference 801mp-0170, It is an irreversible 230V electromechanical engine designed to automate residential and community-use swing doors.
This engine is indicated for leaves up 3 meters long and 400 kg of weight, offering a robust, reliable and suitable solution for installations where a safe and safe operation automatism is needed.
The new ATI range maintains the characteristic reliability of CAME, incorporating a renovated design with an aluminum body, transmission by endless screw and adjustable mechanical stroke endings in opening and closing.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
CAME Ati30ags, reference 801mp-0170, It is an irreversible 230V electromechanical engine designed to automate residential and community-use swing doors.
This engine is indicated for leaves up 3 meters long and 400 kg of weight, offering a robust, reliable and suitable solution for installations where a safe and safe operation automatism is needed.
The new ATI range maintains the characteristic reliability of CAME, incorporating a renovated design with an aluminum body, transmission by endless screw and adjustable mechanical stroke endings in opening and closing.
The motor CAME Ati30ags 801MP-0170 It is designed for residential and community swing doors. It is an appropriate option when you need to automate a door up to 3 meters per sheet, maintaining a simple and reliable installation.
According to the dimensions of the door, the maximum admitted weight varies:

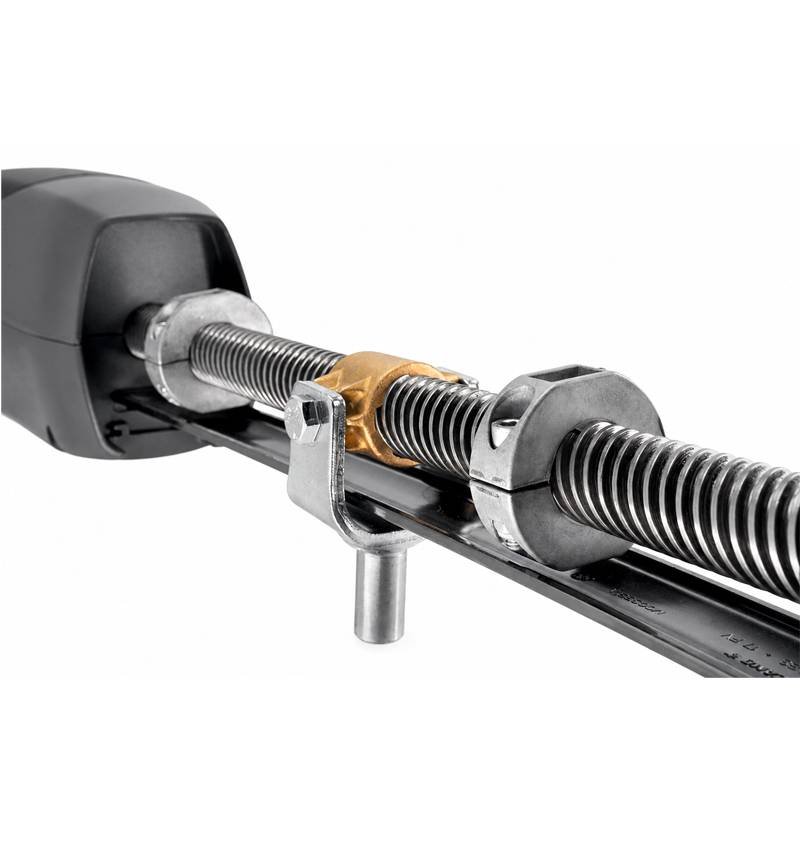

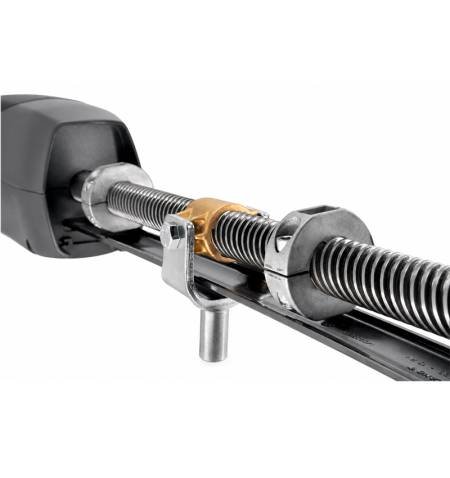

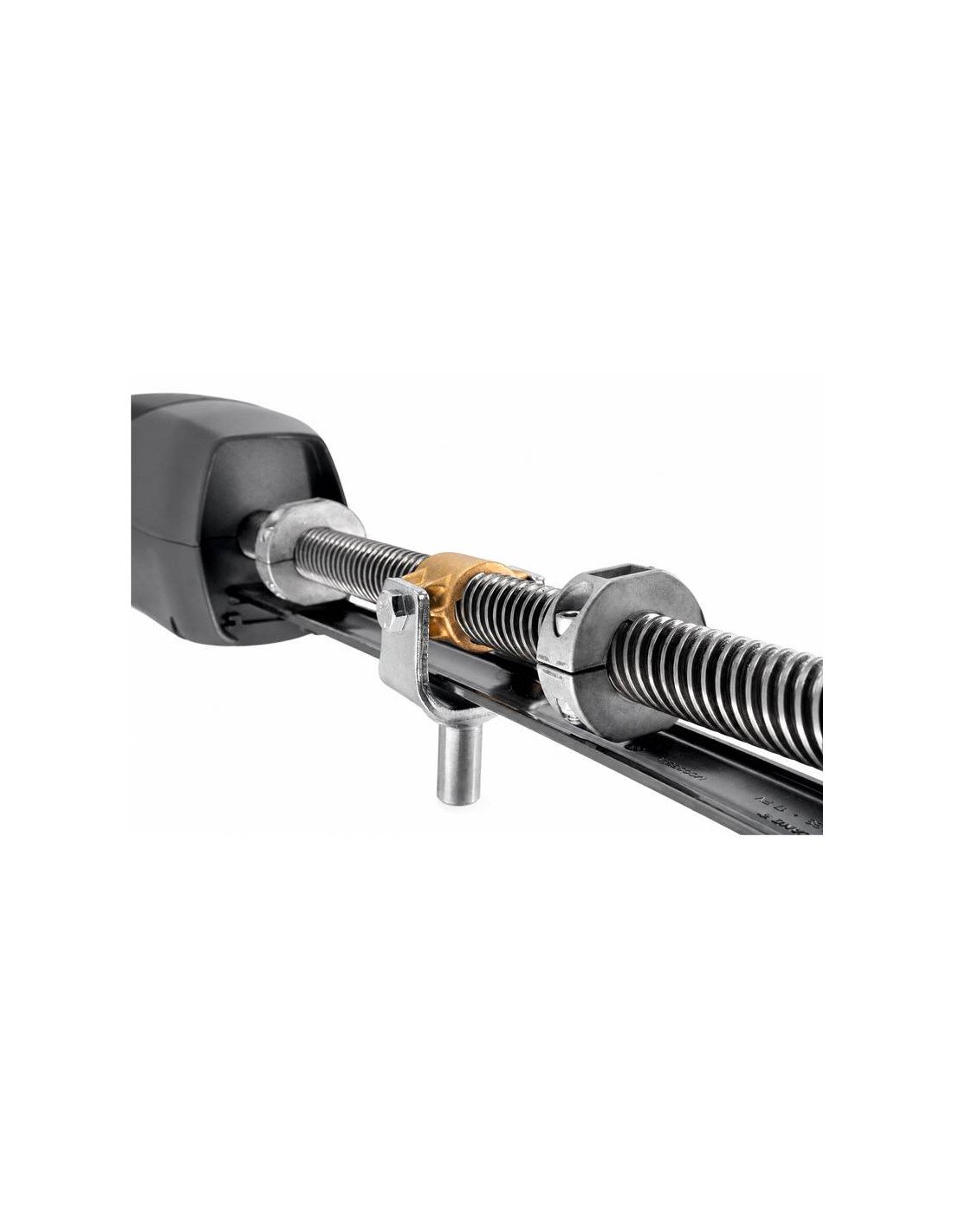

The engine incorporates mechanical opening and closing endings. These race endpoints allow to accurately adjust the gateway, setting the maximum opening point and closing directly on the transmission system.
To perform the adjustment, the mechanical butes are placed in the desired position, facilitating a clean and accurate installation.
The CAME Ati30ags It offers a solid construction, with degree of protection Ip54 and operation in temperatures -20 ºC to +55 ºC. Its irreversible system and its mechanical career end make it a reliable solution to automate residential or community-use swing doors.
For swing doors, especially sheets of more than 2.5 meters, it is recommended to assess the installation of an electric lock to improve the closure and protect the mechanical set of automation.
| Brand | CAME |
| Model | Ati30ags |
| Reference | 801mp-0170 |
| Engine type | Irreversible electromechanical swing motor |
| Application | Residential and community swing doors |
| Motor feed | 230V AC 50/60 Hz |
| Power | 220 W |
| Absorbed current | 1.1 to |
| Capacitor | 8 μF |
| Maximum length of leaf | Up to 3 m |
| Maximum leaf weight | Up to 400 kg on a sheet of 3 m |
| Use limits | 2 m / 800 kg · 2.5 m / 600 kg · 3 m / 400 kg |
| Maximum opening | Up to 120 ° |
| Opening time at 90 ° | 17 seconds |
| Cycles per hour at 20 ºC | 28 cycles / hour |
| Cycles per hour at 55 ºC | 19 cycles / hour |
| Push | 400 - 4000 N |
| Race | Mechanics in opening and closing |
| Encoder | Not |
| C.-Max | 75 mm |
| Degree | Ip54 |
| Operating temperature | -20 ºC to +55 ºC |
| Sound pressure level | ≤ 70 dB (A) |
| Weight | 8.5 kg |
| Color | Gray ral 7024 |
