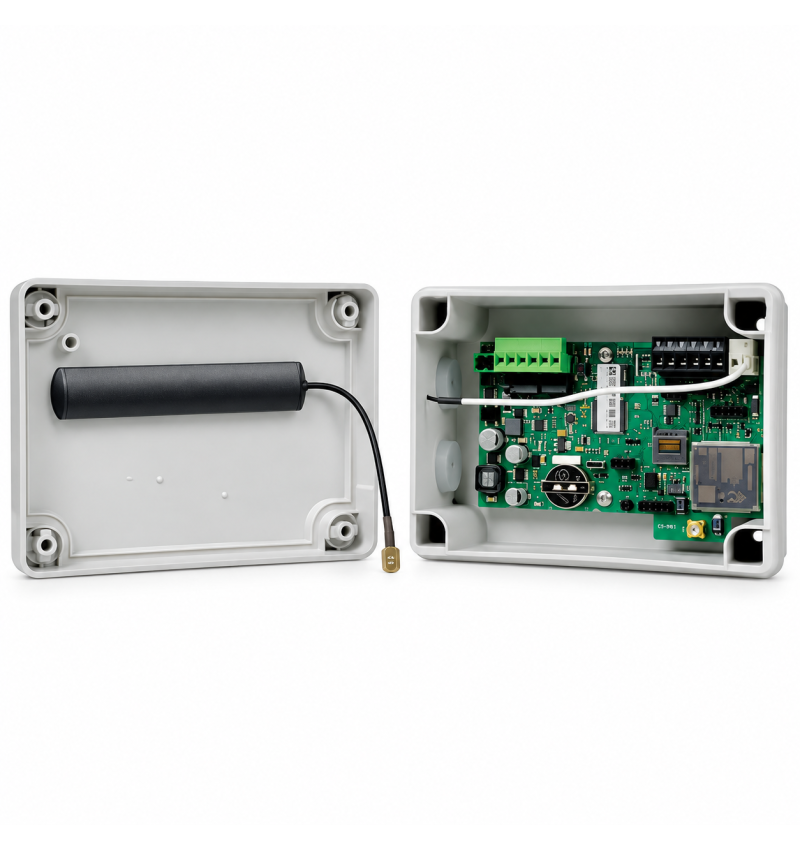

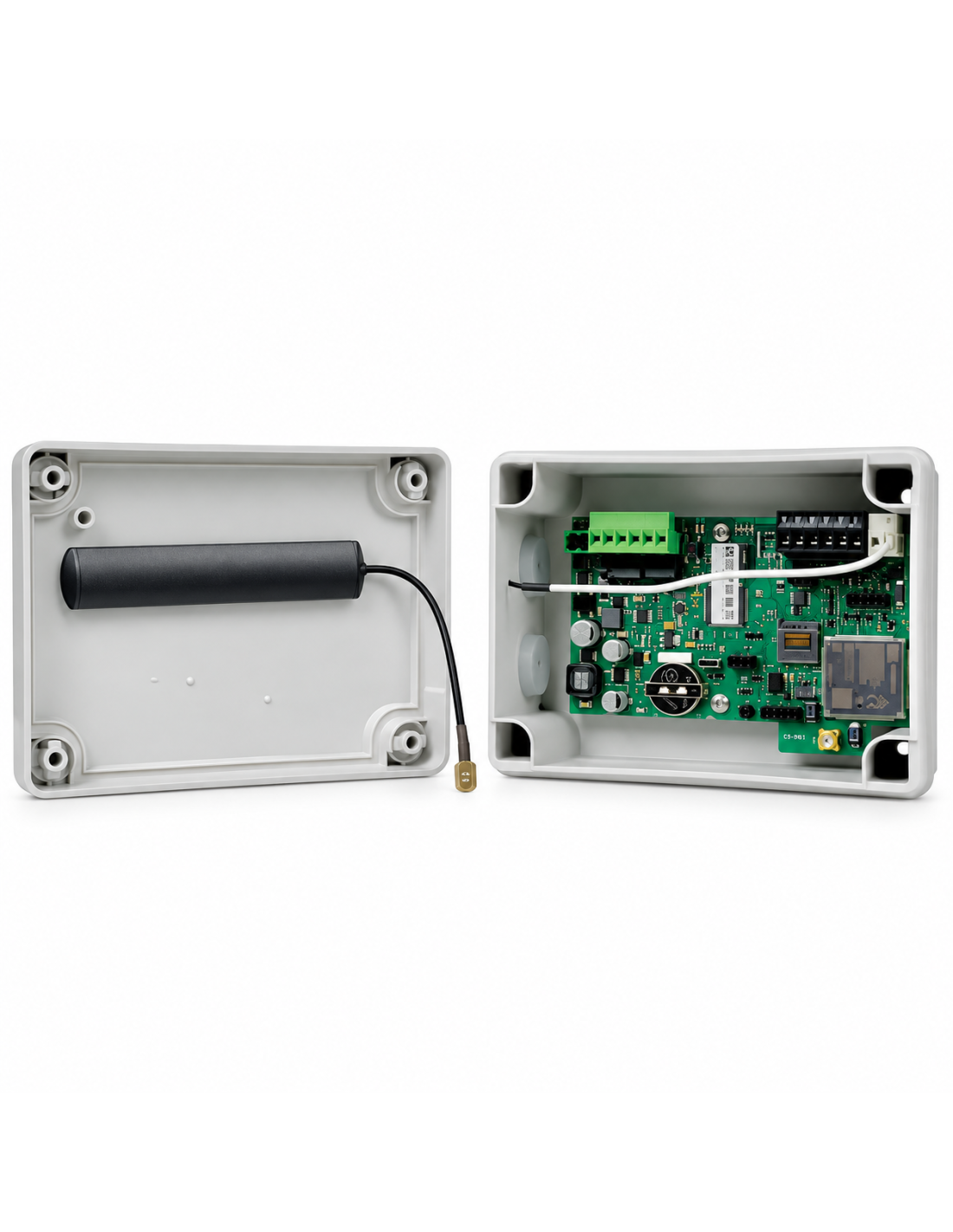

DEA NET-COM / 4G 4G module for remote management of automation

4G DEA MODULE NET-COM / 4G 679120 for remote management of automation

The DEA NET-COM / 4G, reference 679120, is a communication device with 4g Modem designed for remote management, maintenance and control of AUTOMATIZATION installations.

Once connected to a compatible installation, it allows distance management and diagnosis, manage issuers, consult events and perform different operations from the platform Deacloud.

The device also incorporates a radio receiver 433 MHz capable of managing 1,500 remote controls, offering advanced access control functions and authorization of users.

The version 679120 supplied without SIM card, allowing us to use a SIM M2M compatible from another operator. The 4G antenna is included.

Remote management via 4G connection

The Net-COM / 4G allows you to have data connectivity even in installations where there is no available local network connection.

Through Deacloud it is possible to perform monitoring, diagnostic, managing management and installation management functions, depending on the central and the configuration used.

Important: SIM card not included

The reference NET-COM / 4G 679120 is supplied without SIM.

Can be used a Compatible Sim M2M supplied by another operator. DeA also has its own connectivity plans for NET-COM, available separately.

Power supply needed

The Net-COM / 4G requires a external power supply.

DEA recommends the source Power Supply 840MA Ref. 163523, of 24V / 20W. . The power supply is not included and must be requested separately.

✓ Communication device DEA NET-COM / 4G.

✓ Reference 679120.

✓ Communication modem 4G.

✓ Remote management through Deacloud.

✓ Integrated radio receiver 433 MHz.

✓ Management of up 1,500 controls.

✓ It has 2 programmable entries.

✓ It has 2 programmable outputs.

✓ File memory for 150,000 event logs.

✓ Calendar functions and slots.

✓ Internal battery to maintain the clock function in case of power interruption.

✓ Antenna included.

✓ Compatible with card SIM M2M.

✓ Indicated for professional management, maintenance and access control of compatible facilities.

Remote management of facilities: it allows to consult and manage compatible facilities without having to physically move to automatism.

Diagnosis: it allows to consult the state of the installation and certain events registered by the plant.

Management of controls: it allows to administer up to 1,500 issuers, including time authorizations and slots.

Event record: it has memory to store up to 150,000 records.

Time schedules: it can be used as a timer by calendar and operating strips.

Automatic actions: it allows to configure certain opening, closing or permissions actions according to the installation and the connected center.

NET-COM connects to the ecosystem Deacloud, allowing centralizing the management of compatible facilities and emitters.

Among the available functions are the consultation of installations, configuration of emitters, automatic actions, access permissions and reading of information from power plants compatible with the DEA system.

The available functions may vary according to the central used, SIM type, contracted service and installation configuration.

■ Power Supply 840MA – Ref. 163523: 24v / 20W power supply needed to feed the device.

■ SIM M2M compatible: necessary to use the 4G mobile connection.

■ SIM DEA BASE / PRO: aSO connectivity options for NET-COM, when the corresponding functions are required.

■ Compatible dea controls: they can be managed by the integrated radio receiver, depending on the encoding used.

Before placing the order

Check that the plant and the installation that you want to manage are compatible with the Net-COM / NETLINK SYSTEM.

Remember that this reference 679120 does not include SIM or power supply. The antenna is included.

■ 1 × net-COM / 4G DEA DEVICE – Ref. 679120.

■ 1 × antenna.

Does not include SIM card or power supply Power Supply 840MA Ref. 163523.
