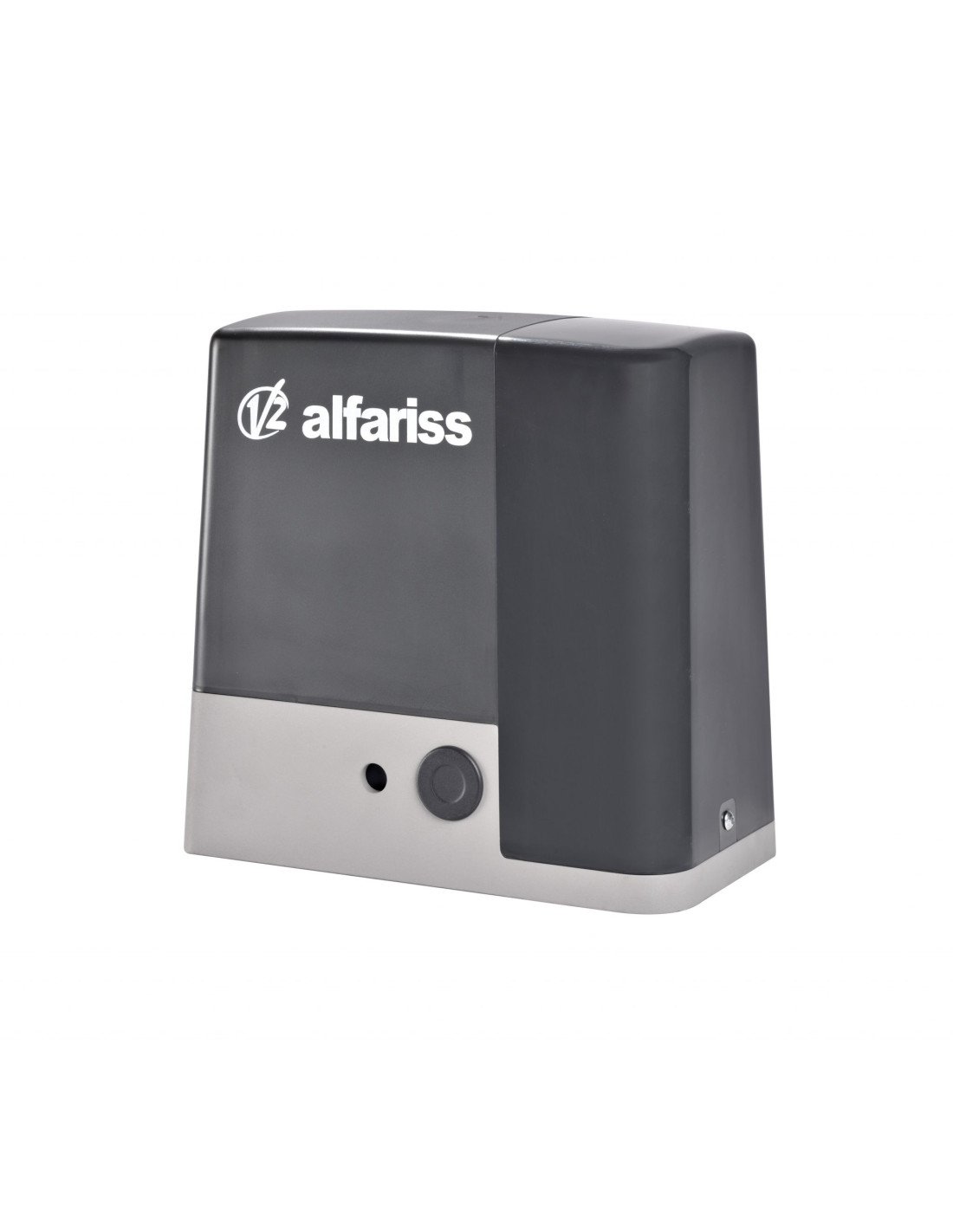

Geared motor V2 24V irreversible electromechanical ALFARISS model for sliding gates up to 300 kg in weight. With obstacle detection, encoder, steel pinion and precise magnetic limit switches.

* THIS MOTOR HAS BEEN REPLACED BY THE TORQ MODEL FROM 24V UP TO 500 KG *

CHARACTERISTICS

• Precise and safe operation with encoder
• Obstacle Detection
• Programmable accelerations and decelerations
• Self-learning of opening and closing times
• Operation in the absence of power using the B-PACK battery
• Solar-powered operation using the ECO-LOGIC system
• Synchronous operation of two motors using the SYNCRO module
• Precise and time-reliable magnetic limit switches
• Steel sprocket

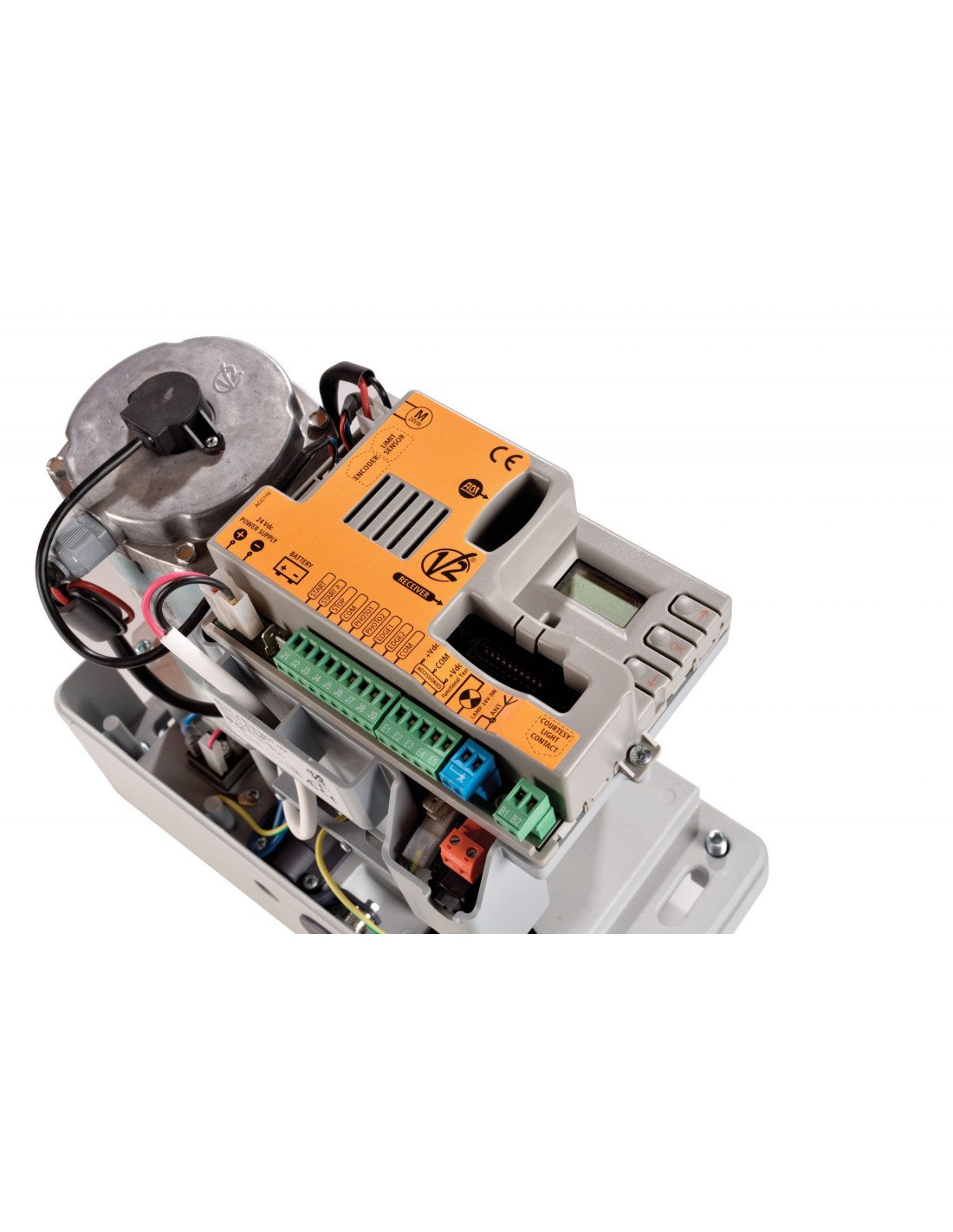

CONTROL UNIT

• Programming via three pushbuttons and display
• Connector for MR2 modular radio receiver
• 2 photocell inputs with self-test function
• 2 inputs for mechanical or resistive safety belts
• Output for 24V signal lamp with or without flashing
• Output for courtesy light
• Energy Saving function to reduce standby consumption
• Self-learning function of working times and detection of obstacles
• Operating cycle counter with maintenance signalling
• Soft stop of the sheets in closing
• Soft start of the door on opening (programmable start ramp)
• Display of the status of the entries via screen
• ADI connector for connection of the optional module

DIMENSIONS

ASSEMBLY DIAGRAM

1 ALFARISS geared motor

2 Issuer

3 Receiver module

4 Photocells

5 Signal lamp with integrated antenna

A Keyed Selector

B Photocells with columns

C Digital selector via column radio

D Safety strips

E WES-ADI Module (Radio Band Control)

F WES Sensors

G ECO-LOGIC SYSTEM

MANUAL

PDF Instruction Manual
