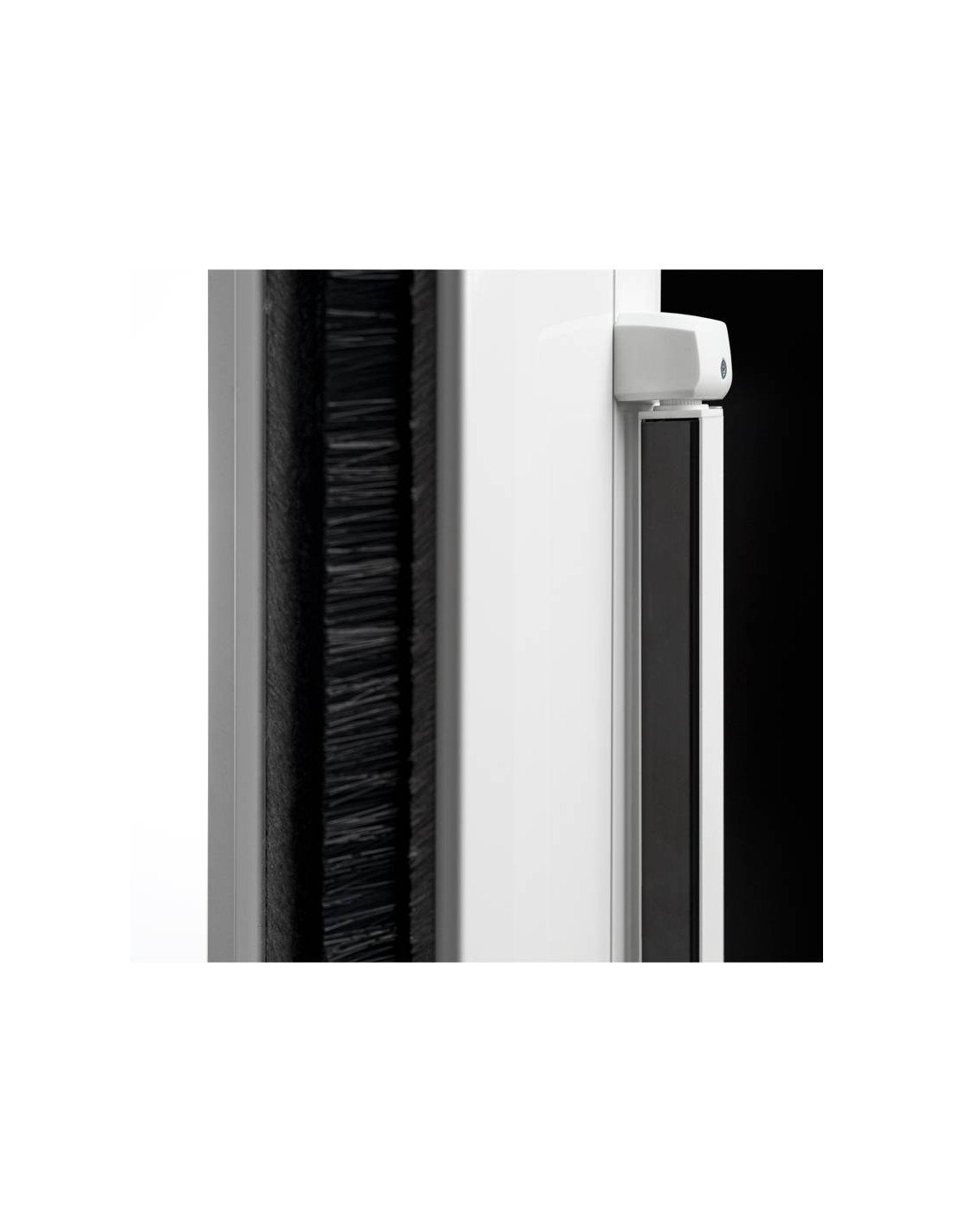

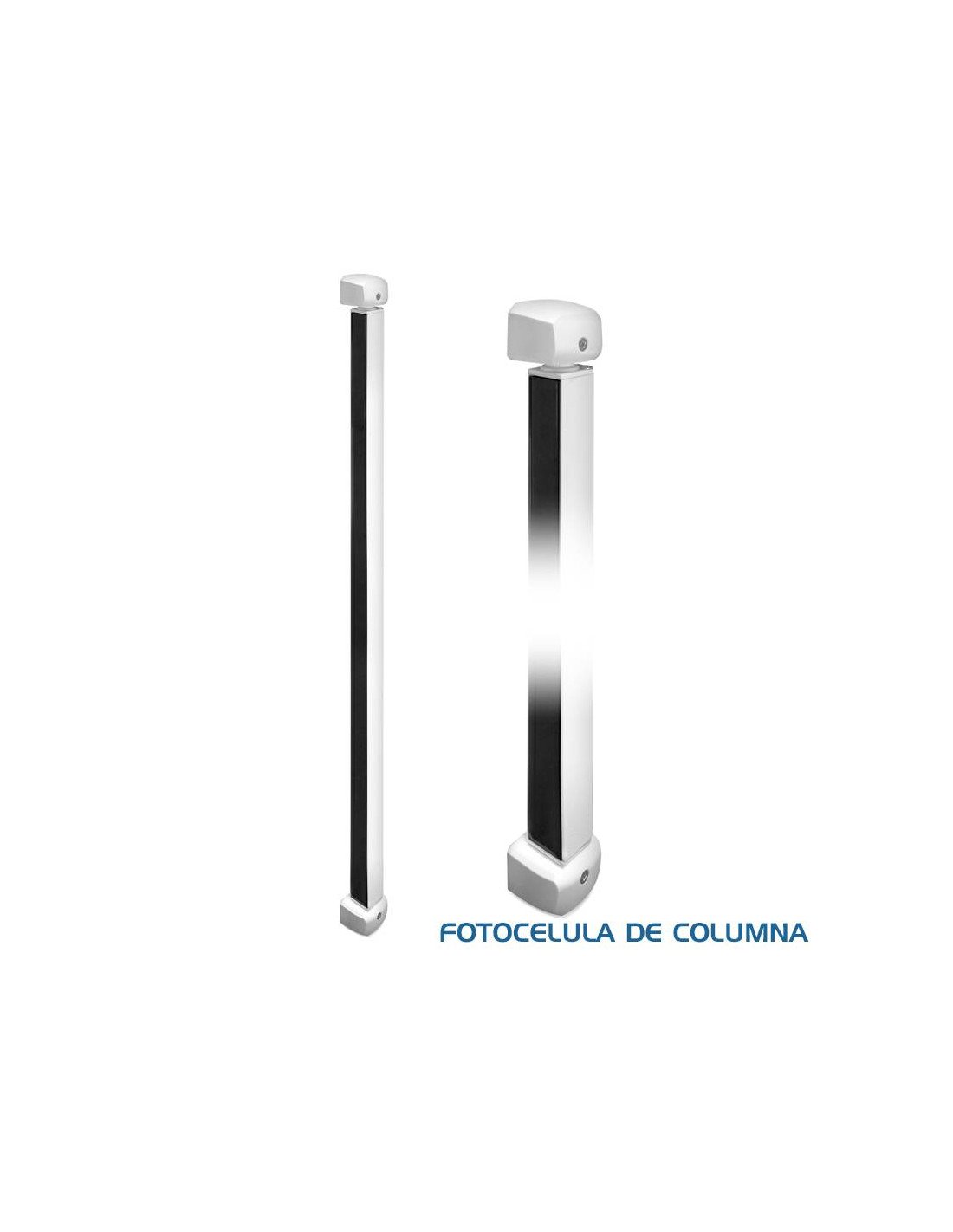

The MF2020 is a column photocell developed to safeguard all types of industrial doors (sectional and fast doors) up to a maximum width of 10 metres.

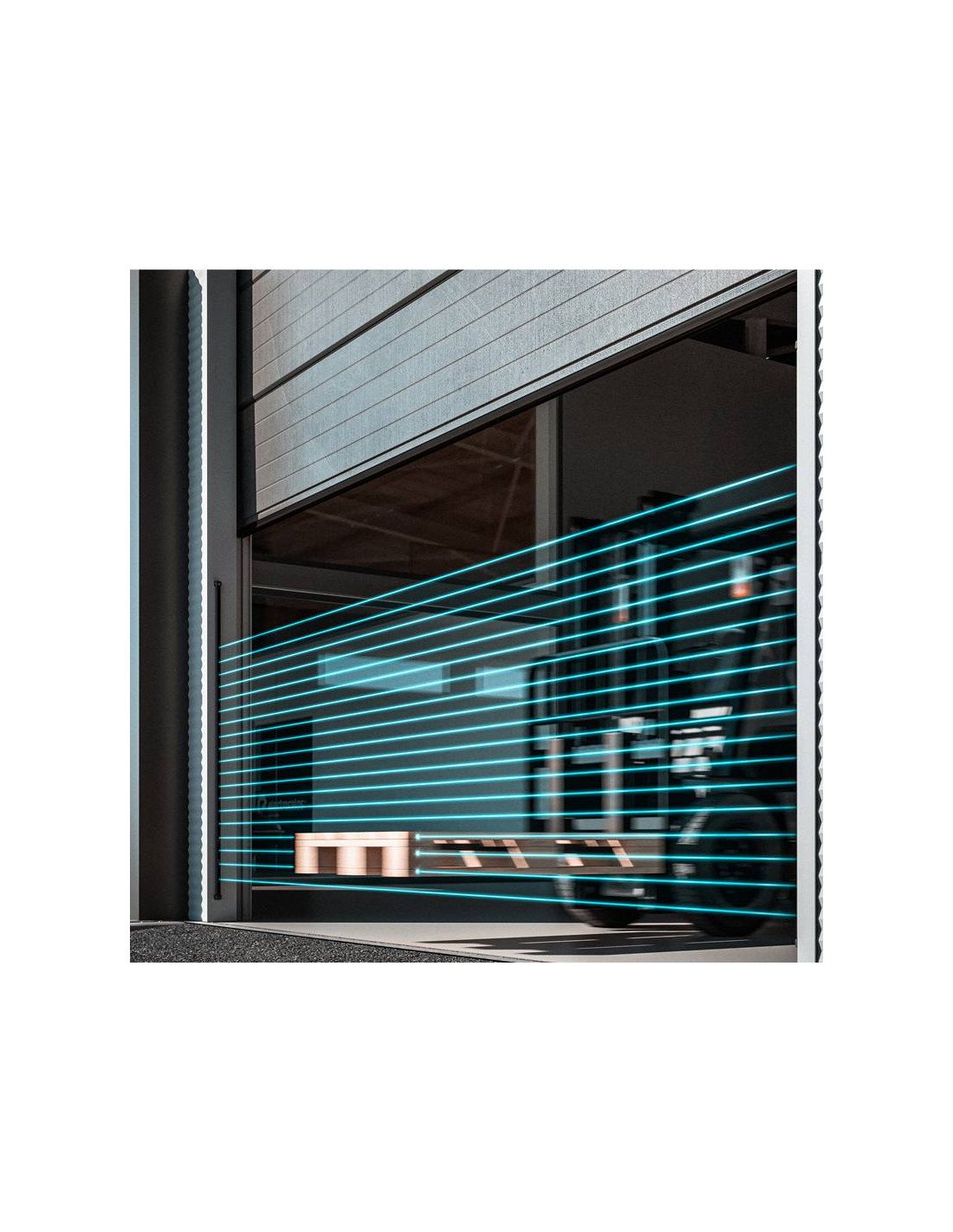

The sender and receiver create a infrared grating it offers protection up to eight feet high.

When the infrared beams are interrupted, a signal is sent to the control room. After the holding area is clear, a new signal is sent to the control to indicate that the area is clear.

The photocell has two modes of operation:

• Static: Functioning of a common photocell

• Sequential: The photocell recognizes the opening and closing motion of the door, not sending a signal to the control unit.

COMPOSITION OF THE KIT

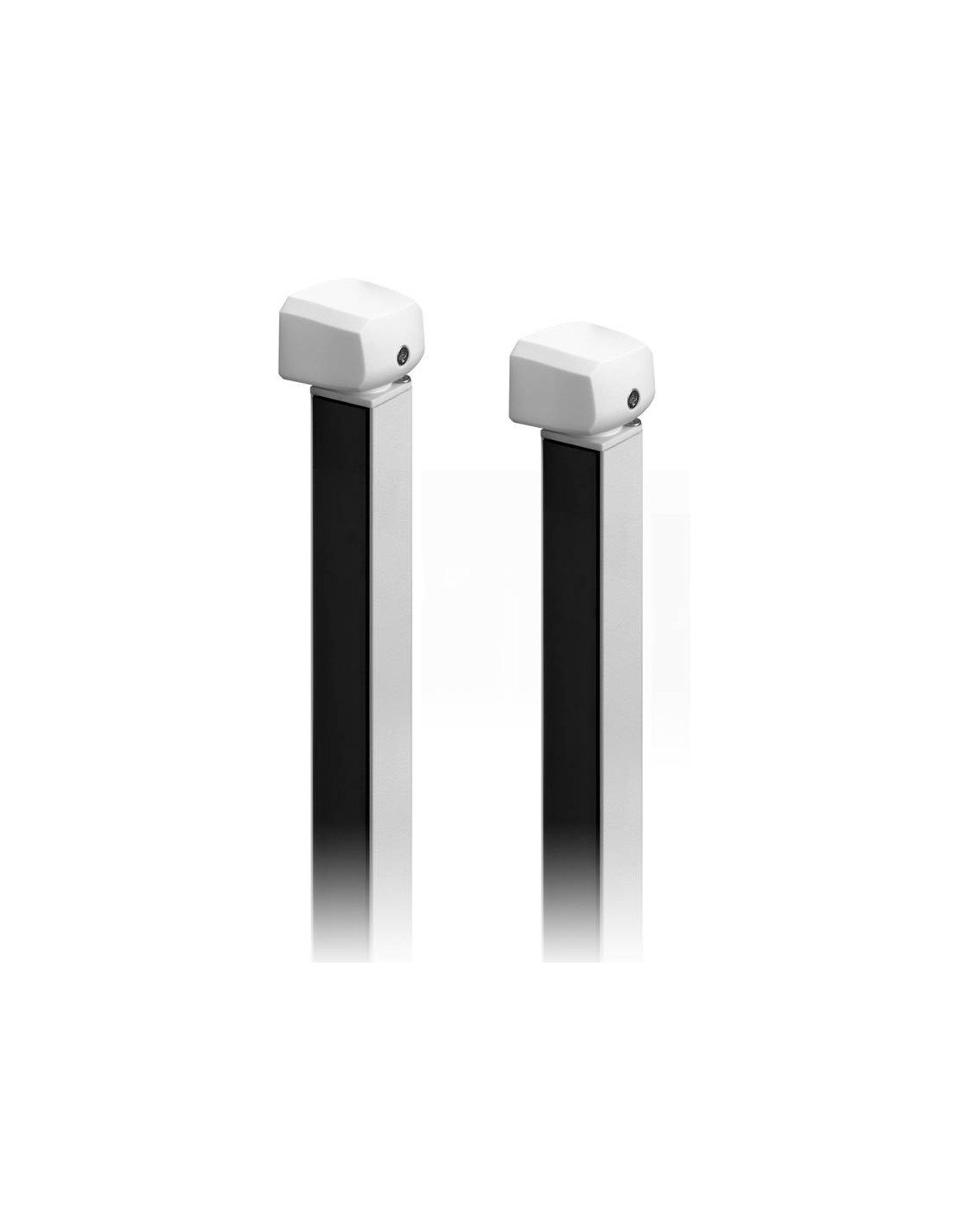

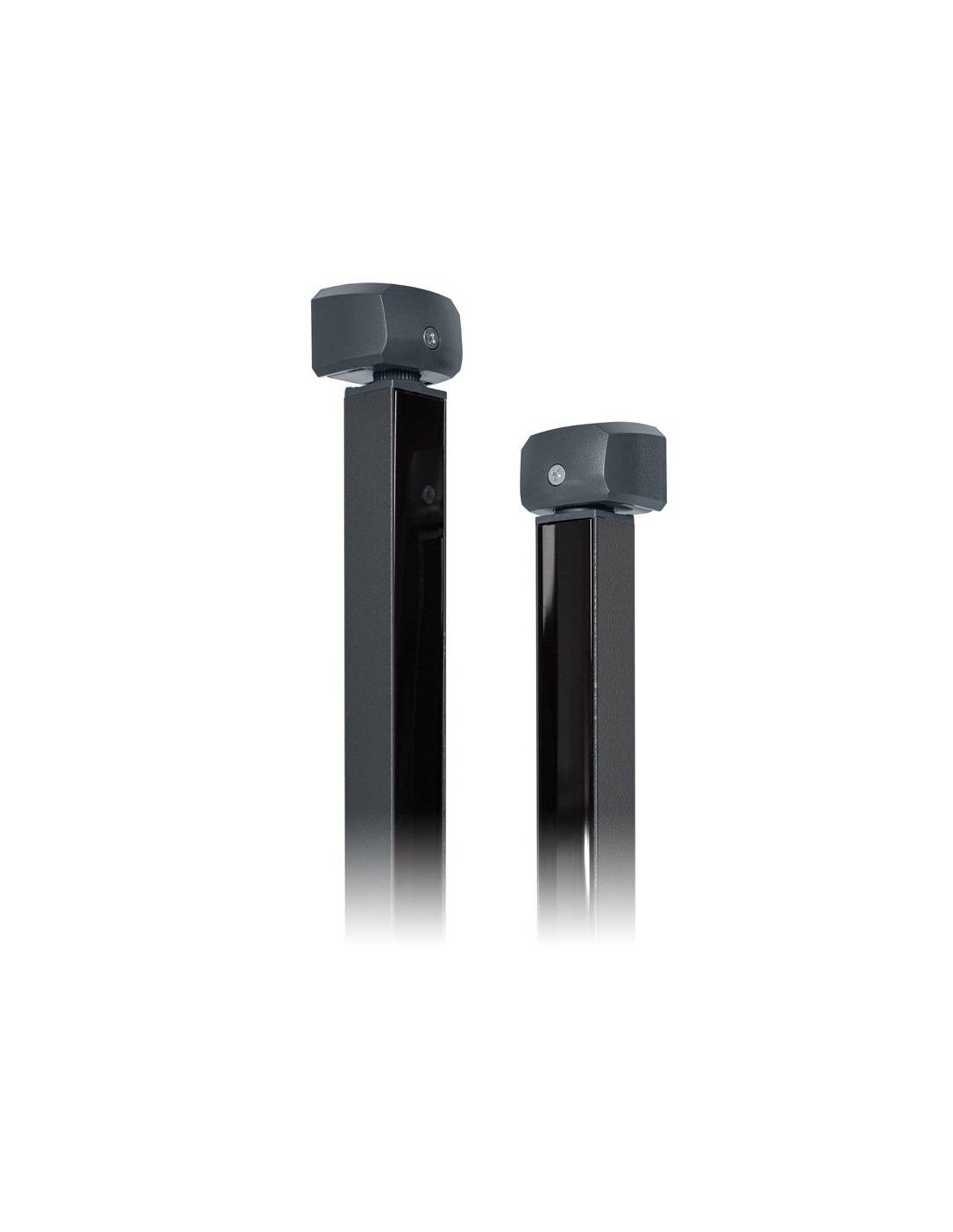

• 2 Column photocells (receiver and emitter)
• 1 Timing cable
• 1 Control panel connection cable

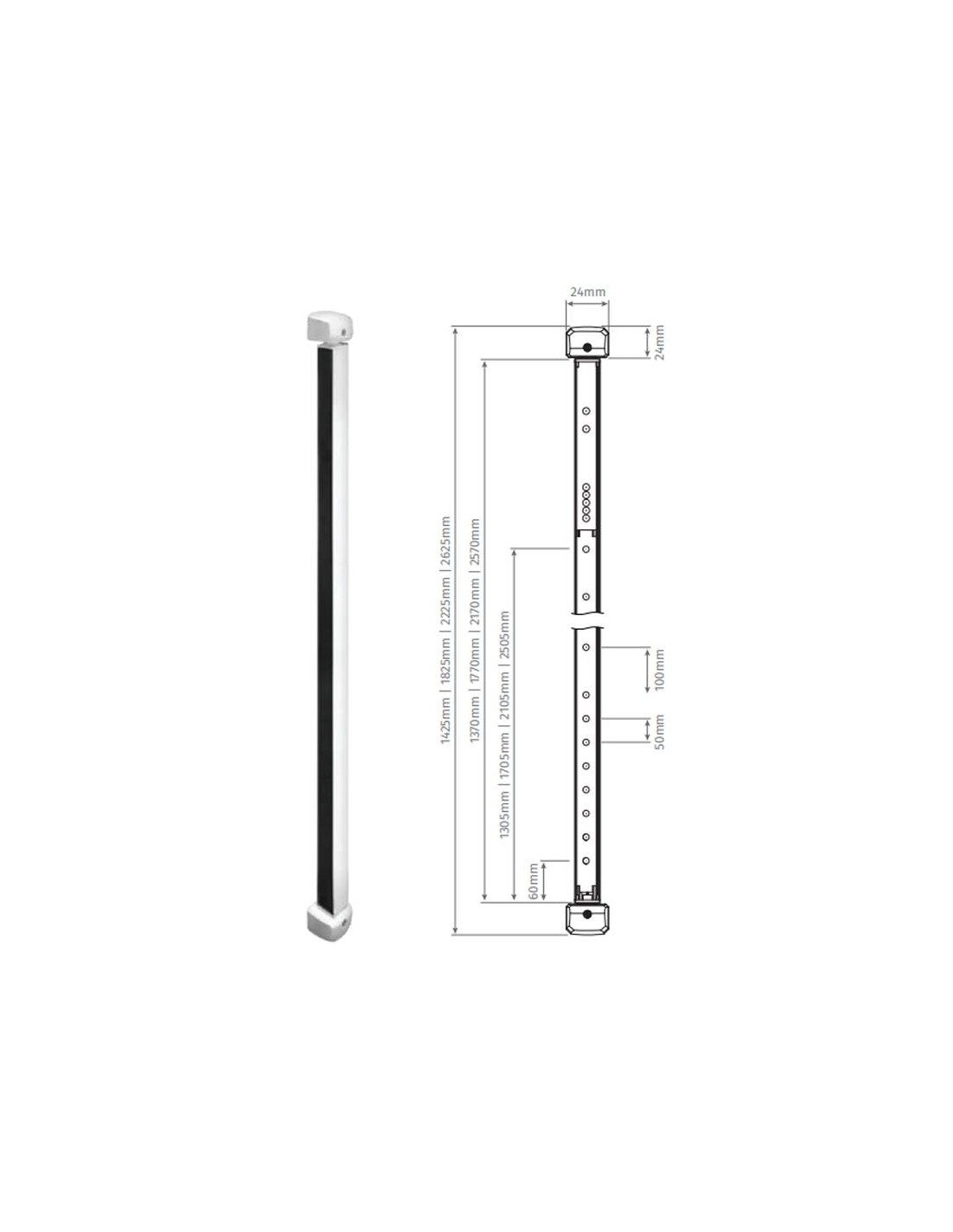

MODELS AVAILABLE

• THE FOLLOWING PARAGRAPH IS ADDED:: Photocells up to 1305 mm of protection
• OF WHICH:: Photocells up to 1825 mm of protection
• OF WHICH:: Photocells up to 2225 mm of protection
• OF WHICH:: Photocells up to 2625 mm of protection

VIDEO MF2020

MANUAL

Instruction manual Motorline MF2020
