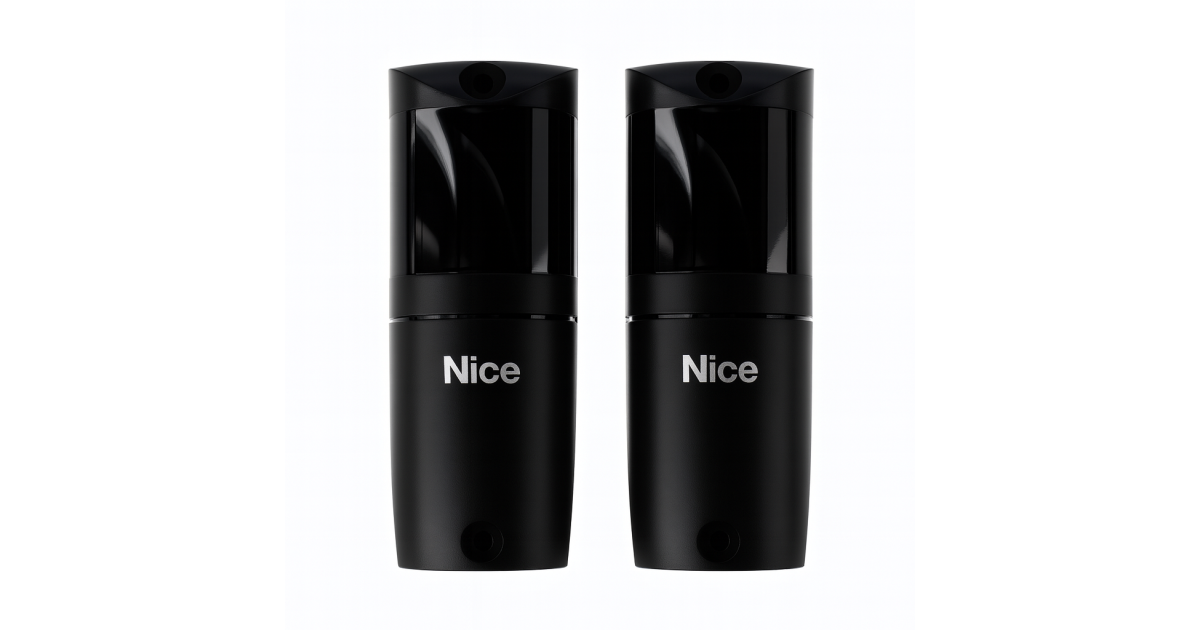

Nice F210B | Safety photocell Nice

The photocell Nice F210B with bluebus technology offers maximum safety and reliability in automatic doors Nice Slides and swingers that have BlueBus technology.

The installation is simple, with only two threads, Alcace stable and automatic synchronization.

Synchronized photocells adjustable to 210 ° on the horizontal axis and 30 ° on the vertical axis.

The solution at 210 °

The photocellsNice F210B allow to guide the beam at 210 ° on the horizontal axis, to increase the safety of the system and simplify the installation: the garage sheet or the garage door that will usually slide flush with the wall and there is no space Enough to fix the photocells.

Said technology allows easy connection to the plant of all devices with two threads only.

Cutting-edge technology

The anti-collision circuit avoids interference with other detectors also without synchronizing.

The optical devices F210B have a special sensor, which detects the stop of the gate, remaining in low consumption mode, and setting up only when the gate moves.

Adjustable scope on 2 levels; Alignment with proportional LED for easy and safe installation.

Suitable for all architectural frames And comfortable to install.

Reduced dimensions: 46x128x45 mm; option

of electrical connection also on the lower side of the box.

Very robust and safe Polycarbonate housing; metallic wrap Anti-vandalism FA1 (optional); Partially downloaded transmitter battery indicator.

Technical characteristics · Model F210B

Manual

Manual Nice F210b
