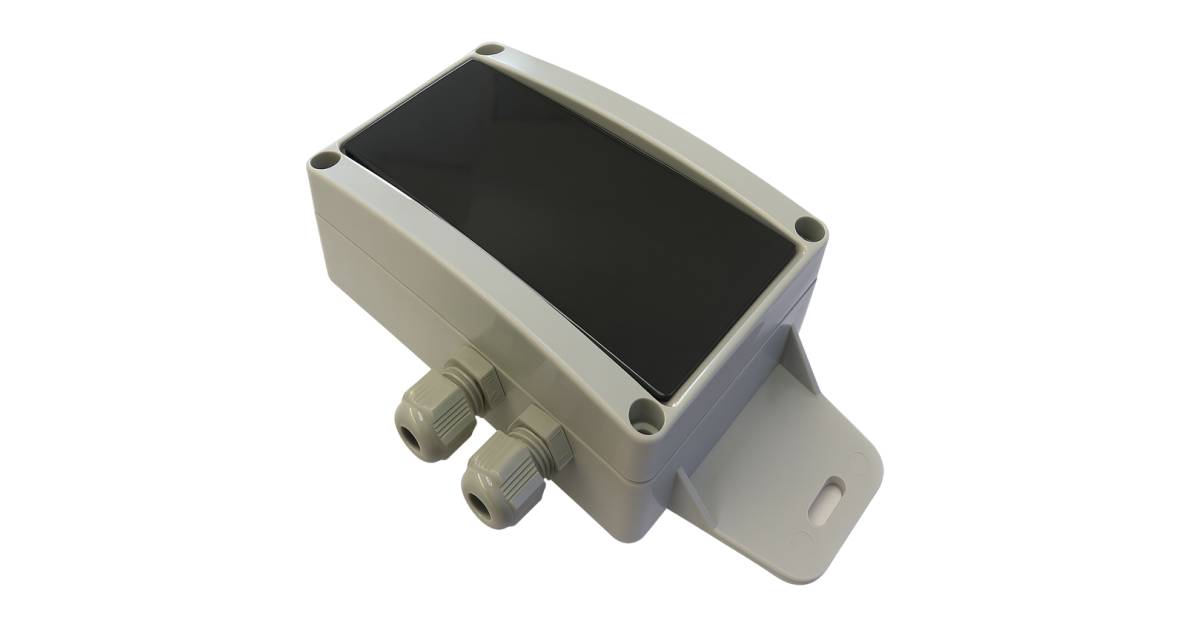

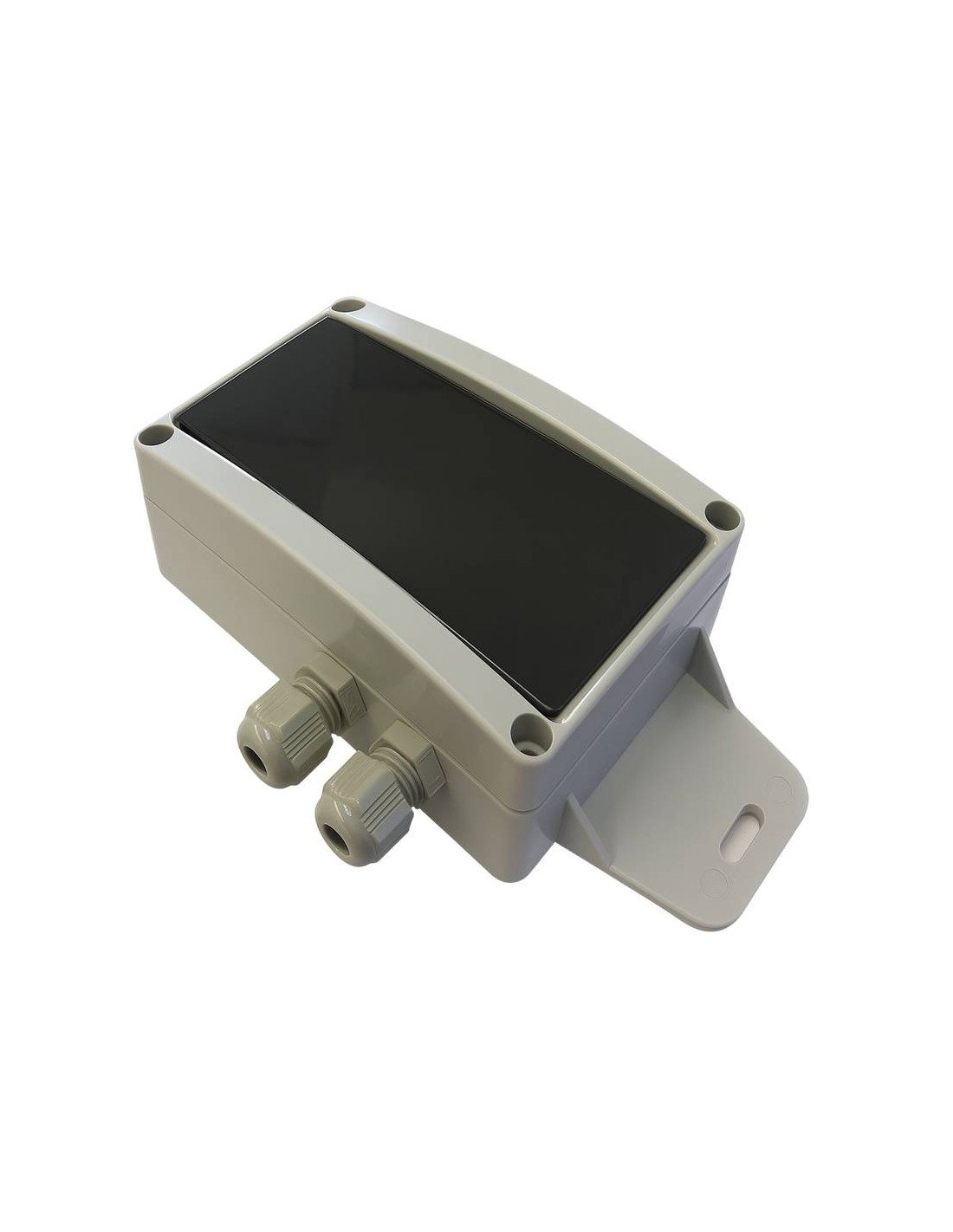

The wireless receiver for the Gilbert system of AERF It allows easy integrating the Gilbert Metallic Mass Detector Signal with any maneuvering box or access automation. Designed to receive and process the detection sent by the wireless sensor, this receiver offers stable, fast and totally reliable communication, Guaranteeing the correct activation of automatic doors, step barriers and vehicle control systems.
It is ideal for installers who need to replace a faulty receiver, expand an existing installation or acquire it as a separate replacement. Its compact design facilitates assembly, while its Departures per relay allow compatibility with virtually any market automation.
The receiver has 2 relay outputs for the functionalities of Impulse in detection and security (Presence of the vehicle).
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
The wireless receiver for the Gilbert system of AERF It allows easy integrating the Gilbert Metallic Mass Detector Signal with any maneuvering box or access automation. Designed to receive and process the detection sent by the wireless sensor, this receiver offers stable, fast and totally reliable communication, Guaranteeing the correct activation of automatic doors, step barriers and vehicle control systems.
It is ideal for installers who need to replace a faulty receiver, expand an existing installation or acquire it as a separate replacement. Its compact design facilitates assembly, while its Departures per relay allow compatibility with virtually any market automation.
The receiver has 2 relay outputs for the functionalities of Impulse in detection and security (Presence of the vehicle).
✔ Original receiver for the Gilbert wireless system (AERF).
✔ Stable and secure communication with the detector.
✔ Quick installation and compatible with most maneuvering boxes.
✔ Relay outputs for door control, barriers and automation.
✔ Perfect as replacement, expansion or replacement of the Gilbert System.
| Description | Value |
|---|---|
| Receiver | 12/24 AC / DC |
| Transmitter feeding | 2x AA Lithium Batteries 3.6V |
| Life of the batteries | 4 years |
| Receiving memoria | 7 emitters per receptor |
| Outputs Receiver | 2 relays, contact free of tension |
| Recipient consumption | 0.5 W - 12 V / 1,2 W - 24 V |
| Test pressure (IEC 695-10-2) | PCB (125ºC) WRAP (75ºC) |
| Protection class (IEC 60529) | IP65 (TX) - IP55 (Rx) |
| Frequency channels | 868,150 & 869,525 MHz |
| Scope | 50 m |
| Work temperature | -35ºC A + 55ºC |
| Software | Class |
| Over transient nominal voltage | 330 V |
| Emitter consumption | Transmitting 17 MA / STANDBY 100 UA |
| Reaction time | Less than 60 ms |
The wireless receiver for the Gilbert system of AERF It allows easy integrating the Gilbert Metallic Mass Detector Signal with any maneuvering box or access automation. Designed to receive and process the detection sent by the wireless sensor, this receiver offers stable, fast and totally reliable communication, Guaranteeing the correct activation of automatic doors, step barriers and vehicle control systems.
It is ideal for installers who need to replace a faulty receiver, expand an existing installation or acquire it as a separate replacement. Its compact design facilitates assembly, while its Departures per relay allow compatibility with virtually any market automation.
The receiver has 2 relay outputs for the functionalities of Impulse in detection and security (Presence of the vehicle).
