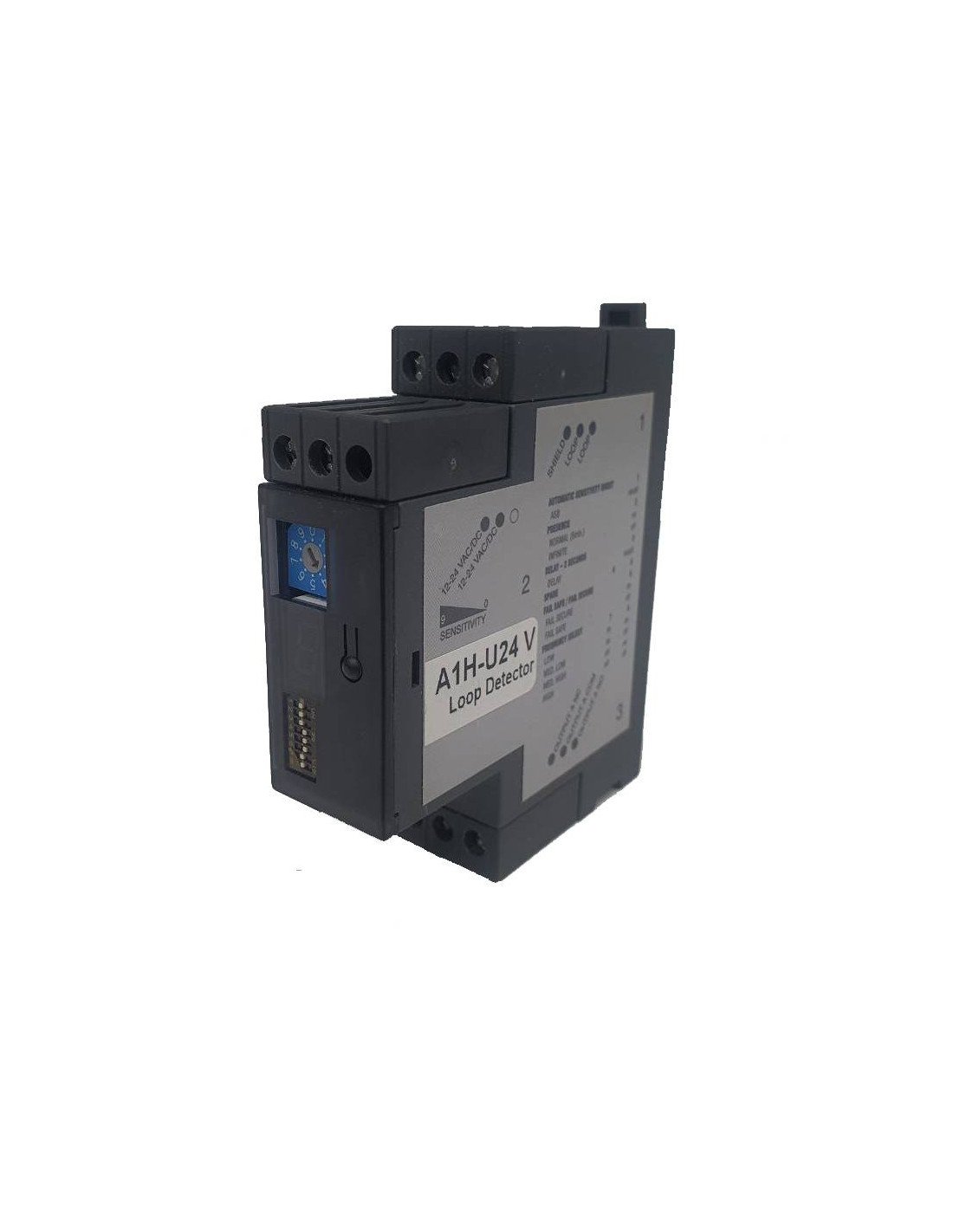

Presence detector Allmatic A1H-U for detecting the presence of vehicles
A1H-U
€90.00
VAT excluded
108,90 €
Tax incl.
Presence detector Allmatic A1H-U for detecting the presence of vehicles, 1 relay at 12/24V.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Presence detector Allmatic A1H-U for detecting the presence of vehicles, 1 relay at 12/24V.
The A1H-U product mounted on the DIN-guide is compatible with most cantilever operators. It could be used as security or control input. What. The A1H-U display makes the adjustment very simple by indicating the optimum sensitivity setting requested to locate the position of a vehicle on the spire. Ten sensitivity settings allow an exact fixation of the marking level.
The A1H-U has outbound contacts indicating the presence of a vehicle. What. The A1H-U allows to regulate:
ASB (automatic increase of sensitivity), response time, management in case of breakage of the magnetic coil. Four frequency adjustments allow for good flexibility by avoiding interference with other detectors.
| Technical specifications | |
| Sensitivity | 10 levels from 0 to 9 |
| Spire frequency | 4 frequencies (low, medium – low, medium – high, high) |
| Inductivity of the spiral | 20...2000μH (Q factor > 5) |
| Relay | 1 relay (N.O./COM/N.C.) |
| Contact capacity | 1A @ 24VDC ... 120VAC |
| Food | 12VDC... 24VDC, 24VC, WHAT IS THAT |
| Consumption (standby / recording) | 15 mA/45 mA |
| Operating temperature | -40 DEGREES. -82 DEGREES 0 to 95% relative humidity |
| Dimensions (L x L x H) | 74 mm by 23 mm by 84 mm |
MANUAL
