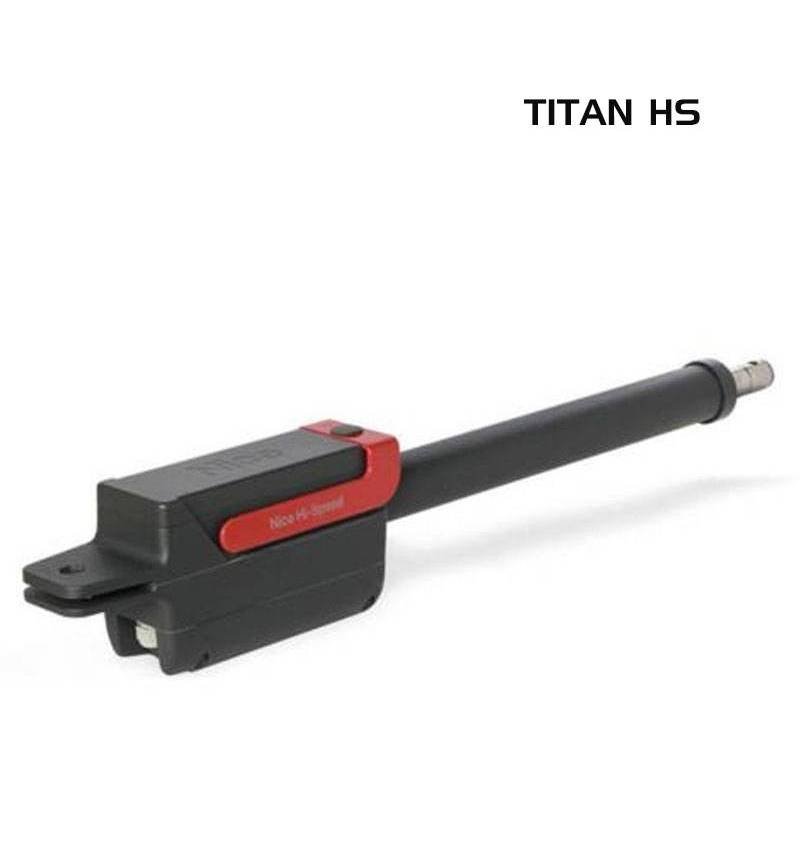

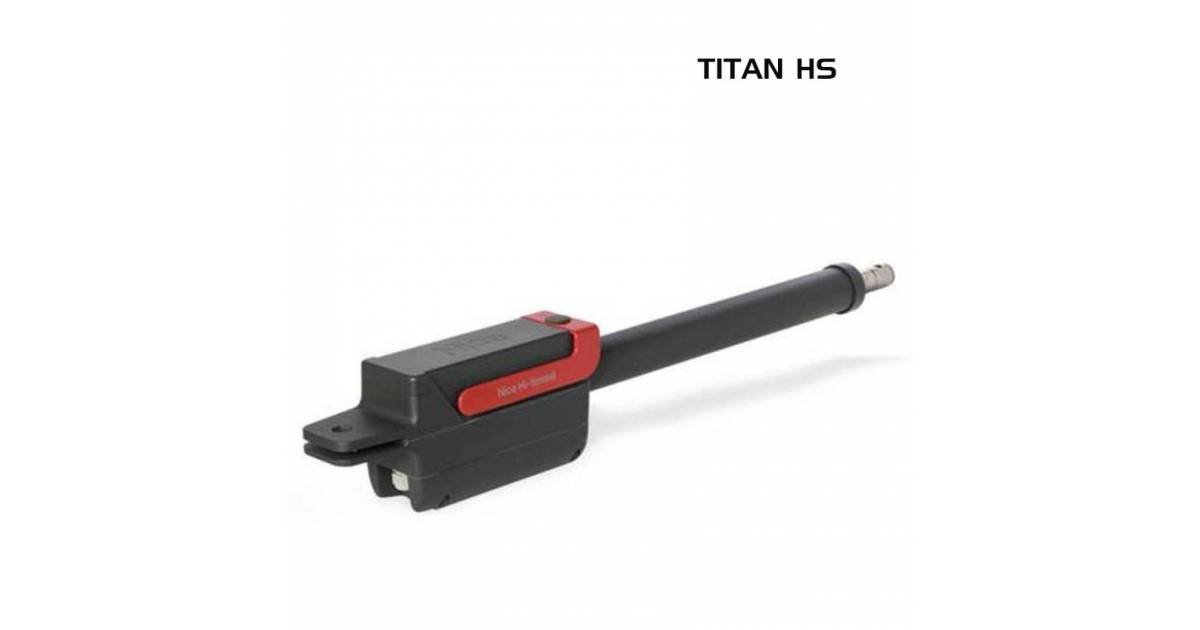

24Vdc electromechanical geared motor Nice TITAN HS with magnetic encoder for fast actuation of swing gates with leaves up to 3.7m (TTN3724HS, TTN3724RHS), and for leaves up to 6m (TTN6024HS, TTN6024RHS).

It ensures fast manoeuvres: opening to 90º in approximately 12 seconds with TTN3724HS and TTN3724RHS or 19 seconds approximately TN6024HS and TTN6024RHS.

• Reliable: The magnetic encoder maintains the preset values in the long term and ensures accurate obstacle detection.
• Easy installation: convenient access to electrical connections from above via the dedicated input. Fixing brackets will be supplied with the motor.
• Versatile: the motor can also be installed at the bottom of the blade, at a minimum distance of 110 mm from the ground.

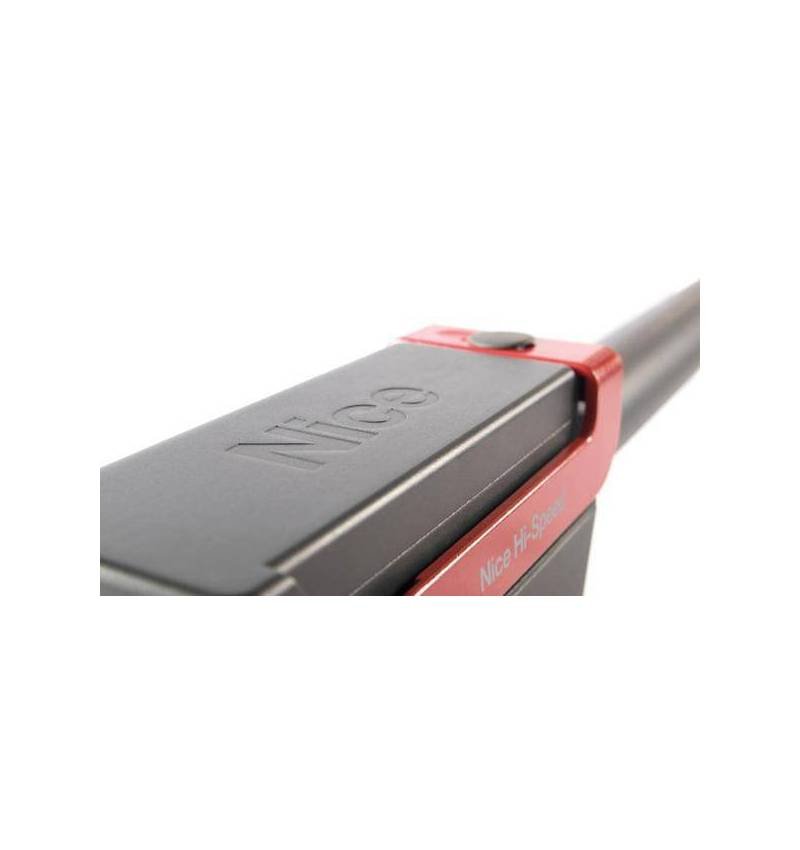

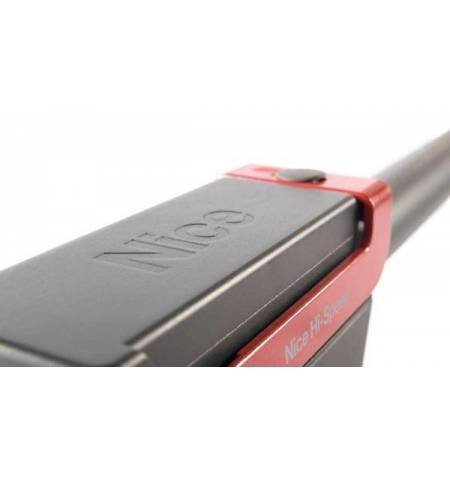

• Practical and safe: convenient lockable release at the top of the motor, which allows the gate leaves to be moved manually in the event of a power failure.

Models TTN3724HS and TTN6024HS are compatible with the Moonclever MC824H control panel, while models TTN3724RHS and TTN6024RHS are compatible with the MC824HR control panel.

• Simple, one-button programming
• Self-learning of the final degree courses at the beginning and closing.
• Self-diagnosis of anomalies
• Pause Time Scheduling
• Pedestrian leaf
• Deceleration at opening and closing
• Obstacle detection with dual technology
• Powerless operation with state-of-the-art sensitive batteries

AVAILABLE MODELS

■ TTN3724HS: Irreversible 24Vdc motor, fast with magnetic encoder for sheets up to 3.7m or 450kg.

■ TTN3724RHS: Reversible 24Vdc motor, fast with magnetic encoder for sheets up to 3.7m or 450kg.

■ TTN6024HS: Irreversible 24Vdc motor, fast with magnetic encoder for sheets up to 6m or 450kg.

■ TTN6024RHS: Reversible 24Vdc motor, fast with magnetic encoder for sheets up to 6m or 450kg.

SPECIFICATIONS

MANUALS

Instruction manual Nice TITAN HS

VIDEO DEMONSTRATION
