20x20 adapter to corrugated shaft Aprimatic Cam 665670000Q0

20x20 adapter to corrugated shaft Aprimatic Cam

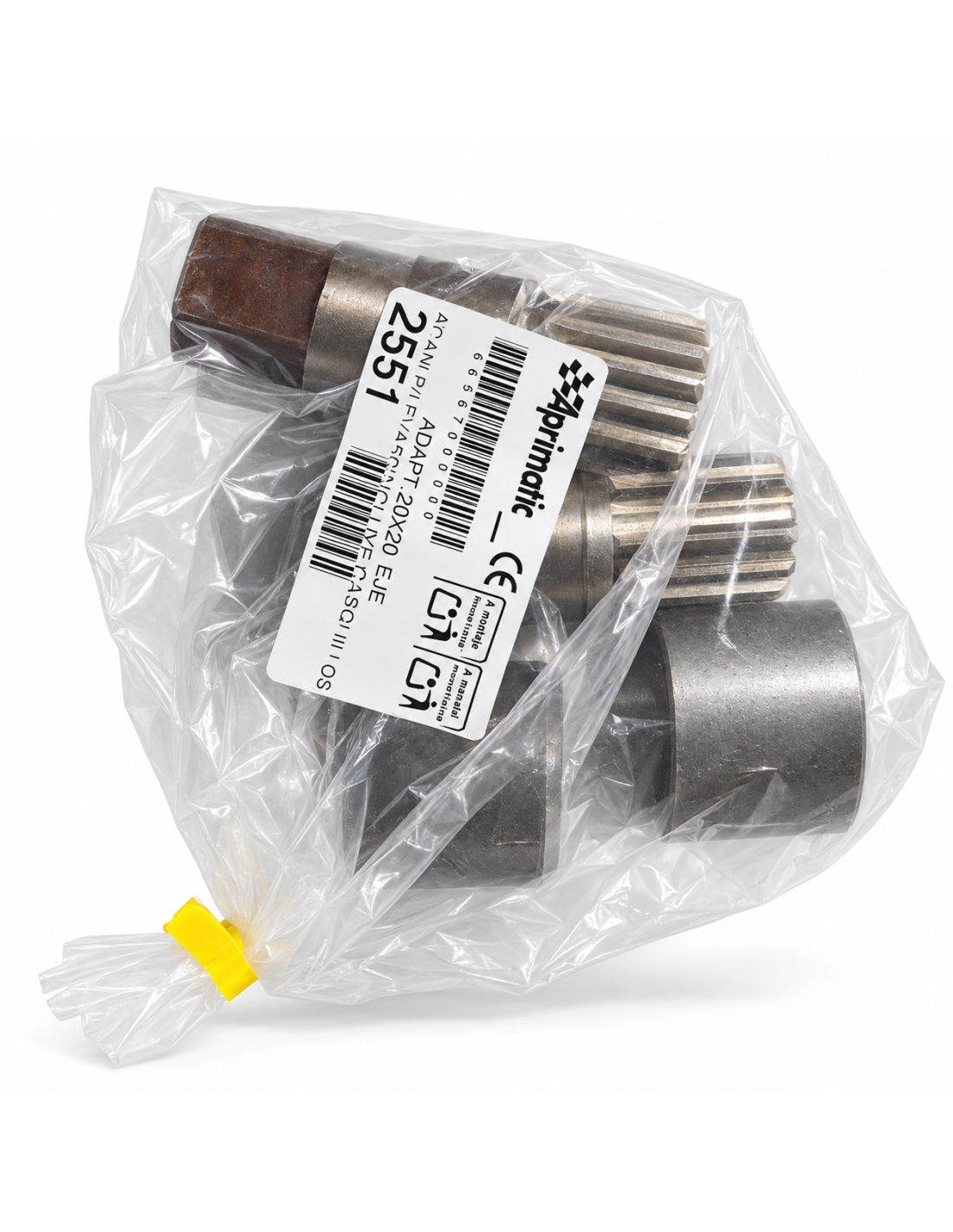

The Aprimatic 665670000q0 It is an adapter or corrugated bushing used in the tilting range engines of the range Aprimatic Cam.

Its function is to allow adaptation between a 20 × 20 mm drive bar and the Corrugated shaft of the tilting motor.

This spare part is especially useful when desired Take advantage of the existing transmission bars, welding the adapter to the bar to later attach it to the motor rotation axis.

Compatibility

✓ Tilting engines Aprimatic Cam that use corrugated output shaft compatible with reference 665670000q0.

This bushing is used as a joining element between the Corrugated motor shaft Aprimatic Cam and the transmission bar From the tilting door.

It is usually welded at the existing transmission bar to be able to reuse it and connect it correctly to the axis of rotation of the automatism.

✓ adapter for Transmission bar 20 × 20 mm.

✓ Ribbed / Striated For coupling to the motor shaft.

✓ Compatible with tilting automatisms Aprimatic Cam.

✓ Reference Aprimatic 665670000q0.

✓ Reuse existing transmission bars.

✓ Indicated for work Repair, replacement or adaptation of existing facilities.

Adapter assembly

The adapter is normally used by welding it to the 20 × 20 mm drive bar.

Once fixed to the bar, the corrugated part allows the Coupling with the motor rotation shaft Aprimatic Cam. Before performing any welding, check the position, alignment and measurement of all the elements of the transmission.

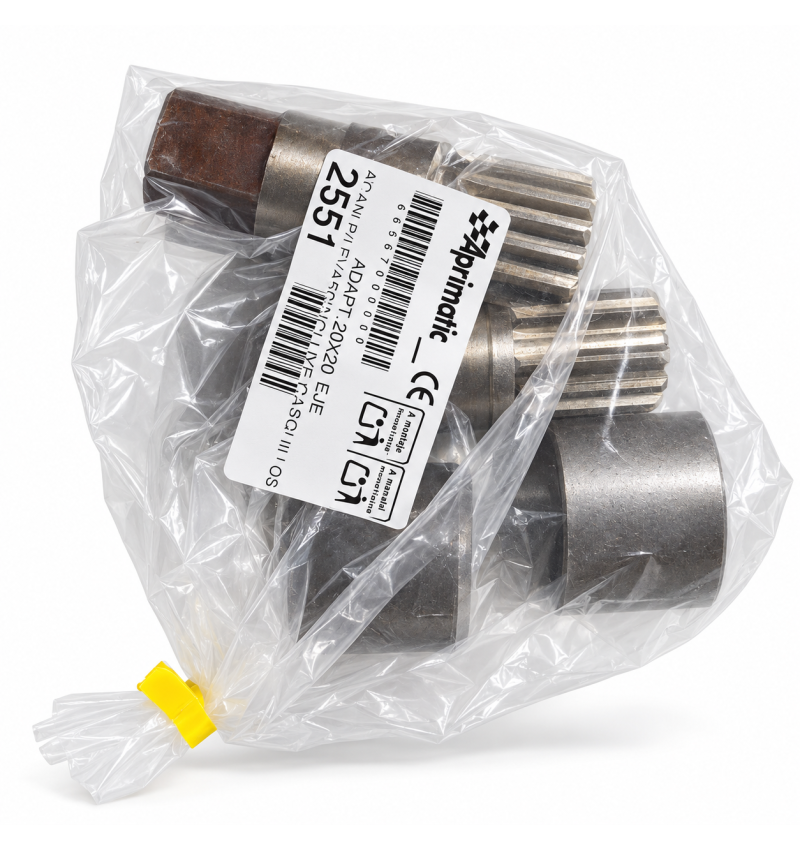

■ 20 × 20 mm adapter to corrugated shaft Aprimatic Cam - ref. 665670000Q0.
