Minimax hydraulic motor kit with telescopes for...

Minimax hydraulic motor kit with telescopes for tilting doors

Name: Minimax hydraulic motor kit with telescopes for tilting doors
Brand: HYDOM
SKU: K-1RM2D25-T

Reference K-1RM2D25-T

This product has a special discount!

To view the price or buy the product you have to Register or you can ask us.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

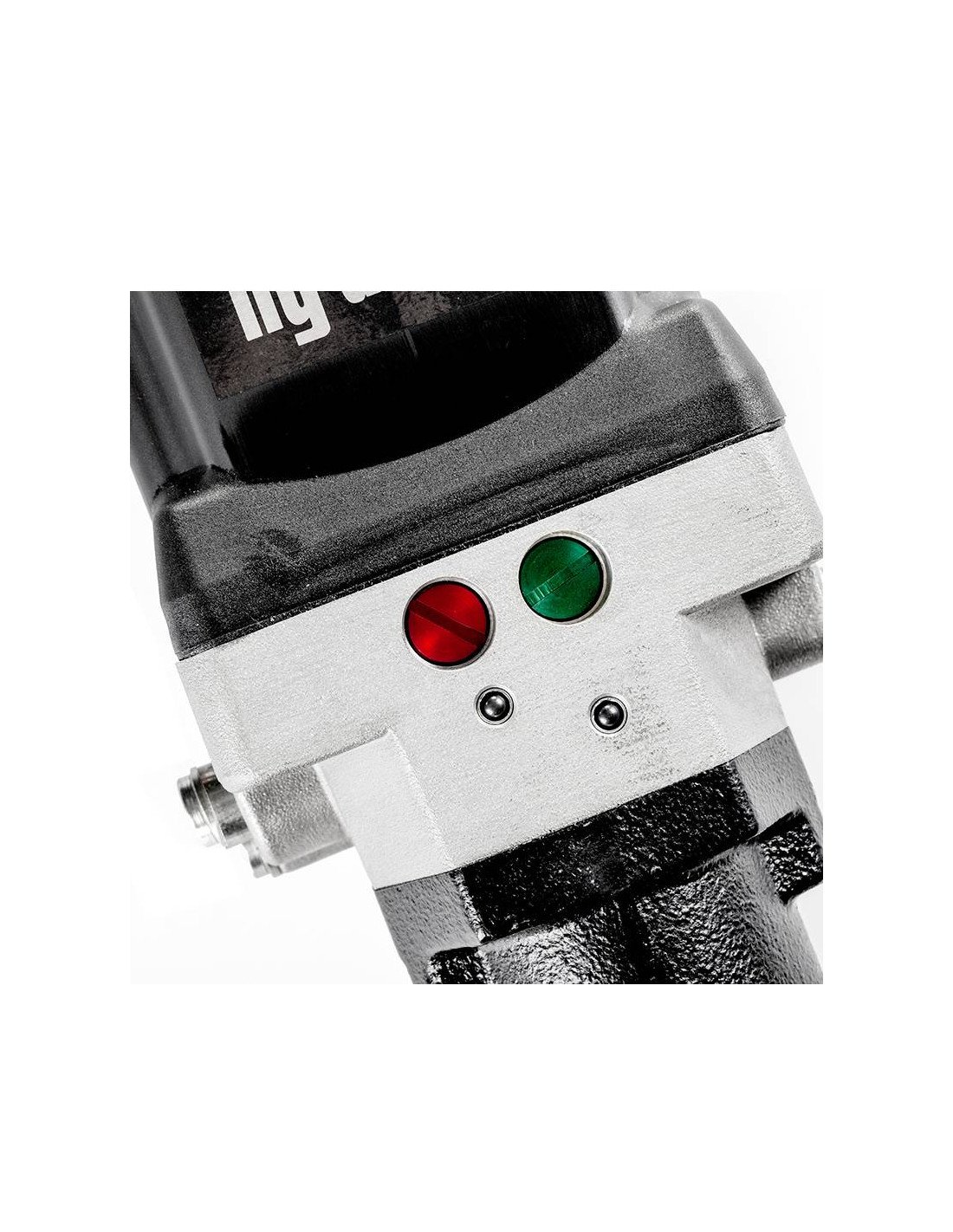

HYDOM MINIMAX hydraulic motor for semi-intensive use for large double-leaf overhead doors (maximum 14m²). It allows manual opening and closing in case of power failure.

Maintenance of this engine is practically zero.

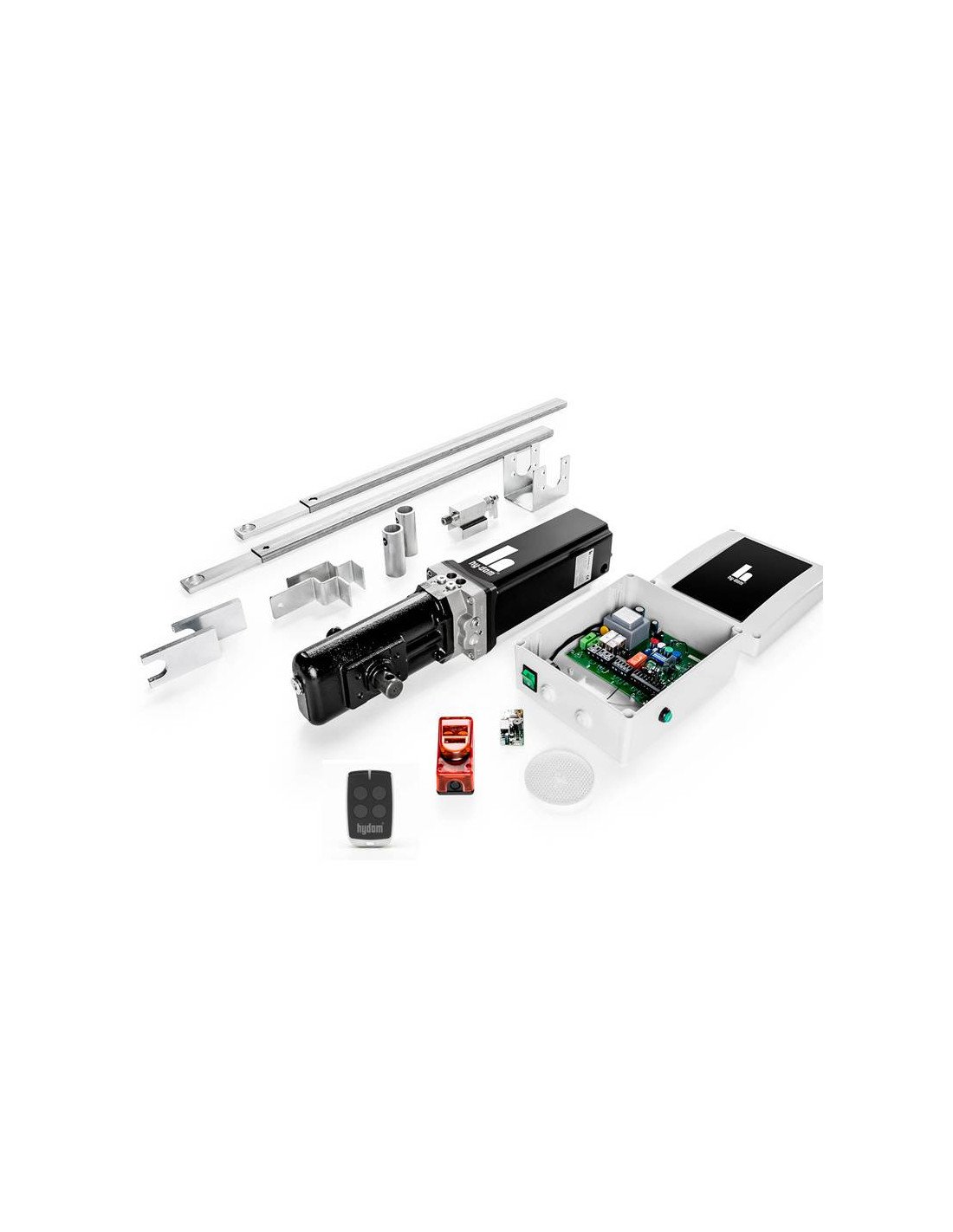

THE KIT CONTAINS

1pc 1RM2D25: Non-locking hydraulic motor.
1 pc 0301001.0: Hydraulic lock with 1 meter hose.
1 pc HLT750RM: Pair of 750mm telescopic fittings for doors up to 3000mm high.
2 pcs 1090/8: Transmission tube Ø28x18 (2000 mm).
1pc QBM2PI: Control panel for 1 x 230V motor
1 pc SRT: 433 MHz receiver card.
1pc HD4: 4-channel transmitter 433 MHz
1 pc PHOTORP: Safety photocell with reflector reflector.

FEATURES MINIMAX NON-LOCKING

Reference: 1RM2D25 / 1RMT2D25 (cushioned version)

For counterbalanced doors and booklet doors (horizontal version) with a total surface area of up to 14 m². Semi-intensive use.

• Hydraulic sequence to keep latches retracted during opening and closing manoeuvres
• Independent force regulating valves
• 230V - 50Hz single-phase motor with overheat protection
• Damping at the end of the open and close travel (1RMT)
• 1RM*2D25: Needs external lock
