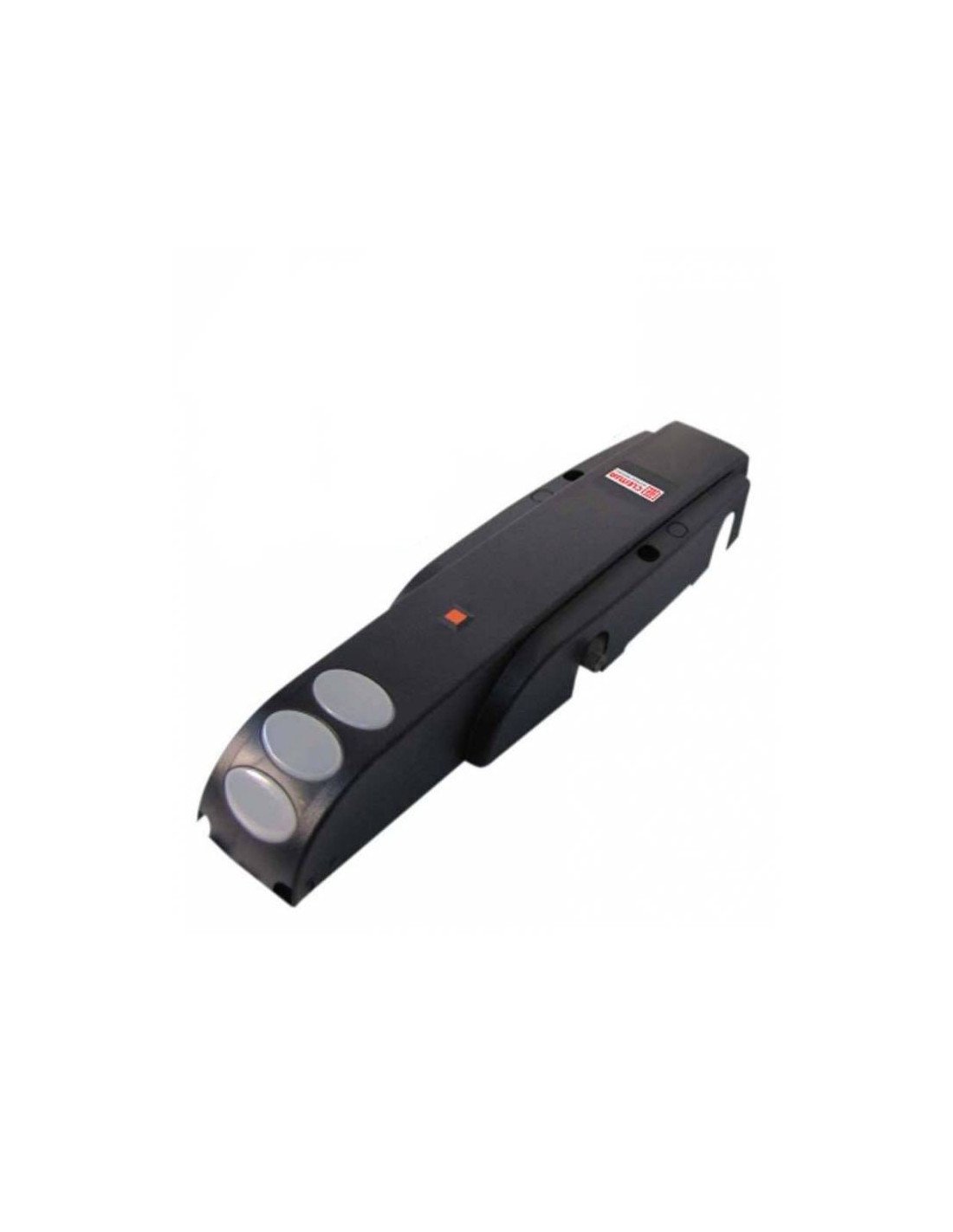

Engine Clemsa "AB10BC' electromechanical 230V for residential counterweighted tilting doors up to 10m2.

The actuator has the manoeuvre chart CLAS107 incorporated, irreversible locking system with mechanical locking so no locks are required. The manual interior unlocking allows us to actuate the door manually in case of lack of electric current.

ATTENTION: Not included in the package: holder, receiver, hardware or controls. If you need the kit for complete assembly, we have it posted right here.

TECHNICAL CHARACTERISTICS

• BUILT-IN CONTROL PANEL: CLASS 107
• FOOD: 230 VAC
• POWER: 350 W
• CURRENT: 1.5 TO
• HEAT PROTECTION: 140 oC
• CAPACITOR: 10 uF
• MAXIMUM TORQUE.: 300 Nm
• ANGULAR VELOCITY: 12o/sec
• 90° TILTING OPENING TIME15 seconds
• MAXIMUM WIDTH OF DOOR: 3.3 m (one engine) - 5 m (two engines)
• MAXIMUM HEIGHT OF DOOR3 m
• TYPE AND FREQUENCY OF USE AT 20°C: S3 - 30%
• INDICATIVE HOURLY CYCLES AT 20°C~ 36
• OPERATING ROOM TEMPERATUREThe following: -20°C TO +55°C
• DEGREE OF PROTECTION: IP44
• OPERATOR WEIGHTOTHER:

TECHNICAL CHARACTERISTICS CLASS 107

• FOOD230 VAC 50 to 60 Hz
• ACCESSORY OUTPUT: 24Vdc - 500 mA maximum
• SIGNALLING LAMP: 230V 60W
• OPERATING LOGICManufacture from materials of any heading, except that of the product
• OPENING/CLOSING TIMEProgrammable from 0 to 59 s
• BREAK TIMEProgrammable: 0 to 4 min
• ENTRIES: Pusher, safety, end of race, capacitors, drives, bus G-WAY, encoder
• EXITS: Pusher, safety, end of race, capacitors, drives, bus G-WAY, encoder

MEASURES

MOUNTING

MANUAL

Instruction manual Clemsa AB10BC
