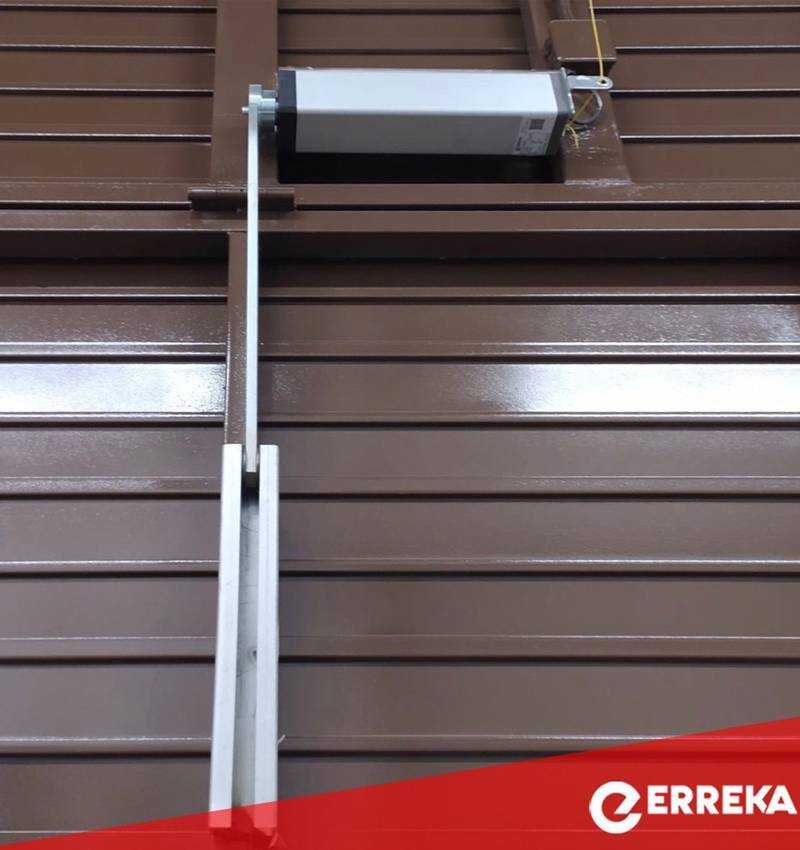

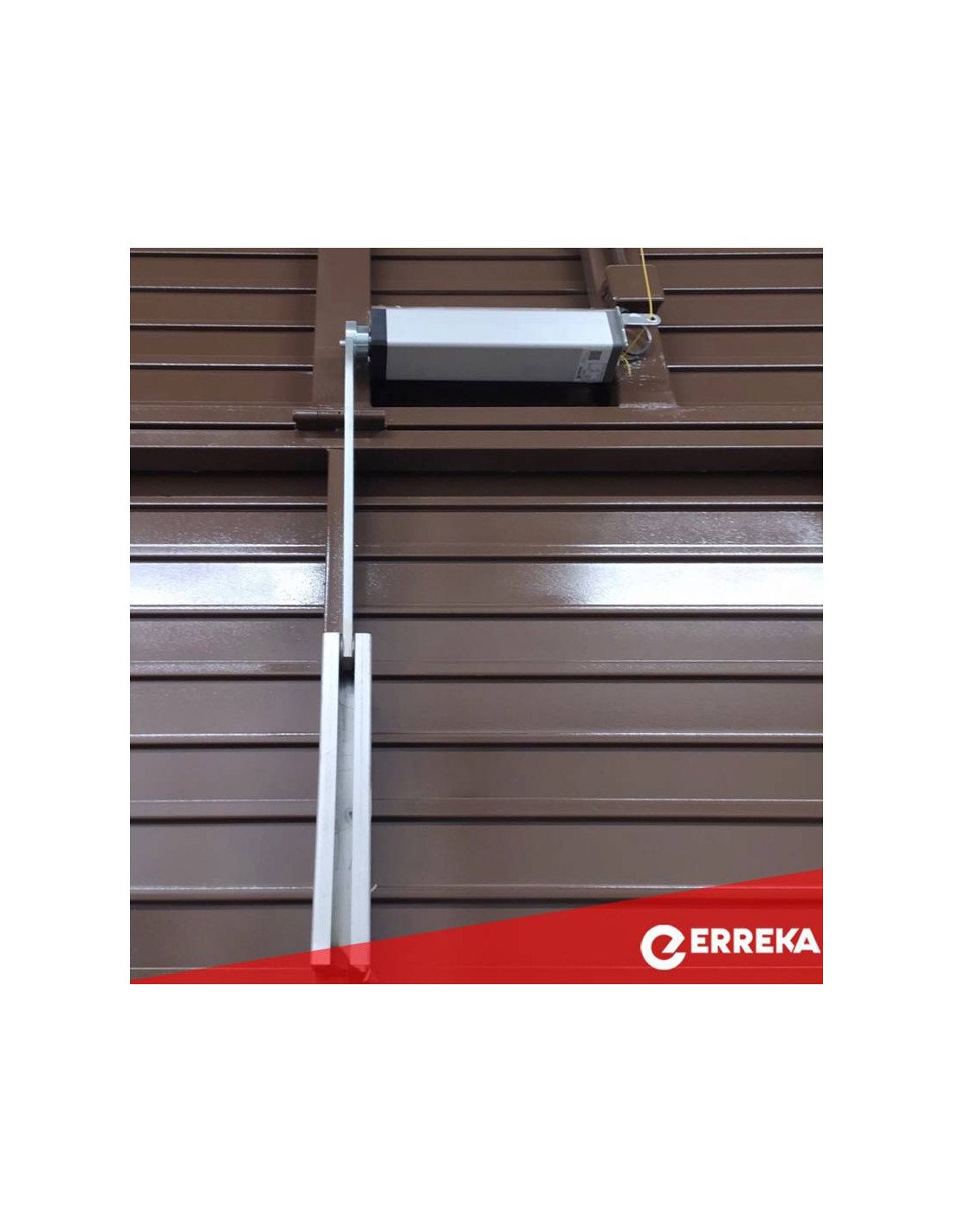

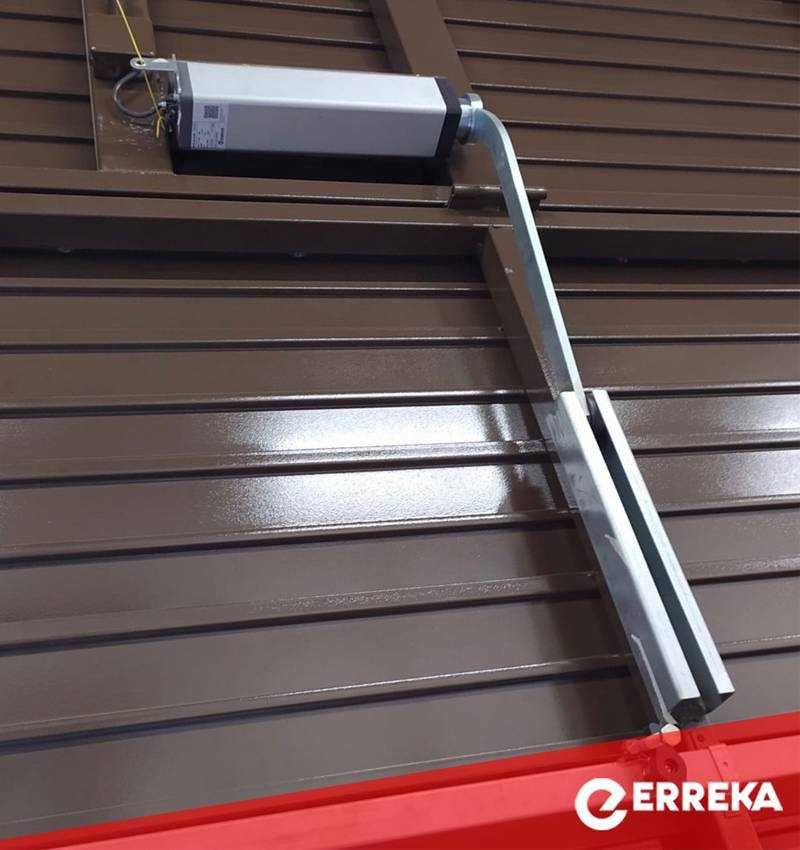

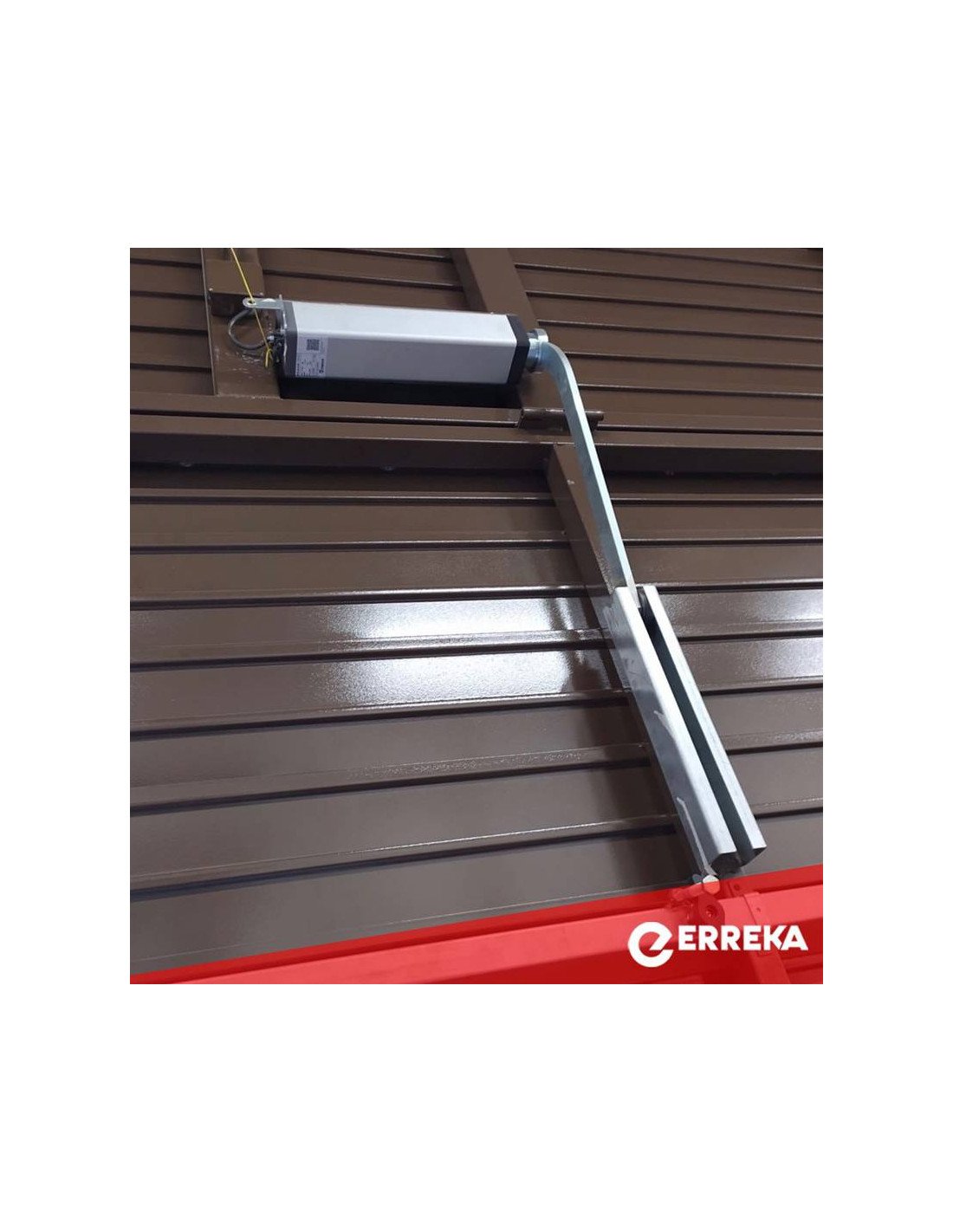

230V Electromechanical Motor Kit Erreka Orion for tilting doors
KIT ORION
€737.00
VAT excluded
891,77 €
Tax incl.

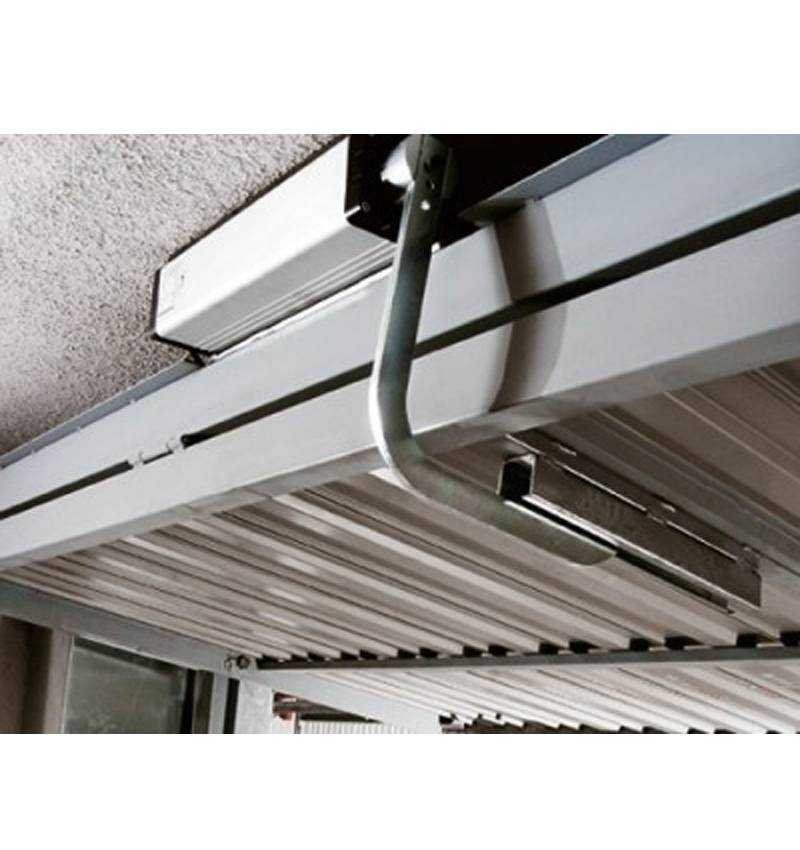

Kit Electromechanical motor Erreka Orion of 230VAC for tilting doors of two bladed leaves up to 12m² (220nm) or 20m² (500nm), available with Encoder or race endings. It can be used with hardware Interior Opening or Outdoor Opening.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
KIT Electromechanical motor Erreka Orion of 230VAC for tilting doors of two bladed leaves up to 12m² (220nm) or 20m² (500nm), available withencoder or race endings. It can be used with hardwareinterior Opening or Outdoor Opening.
All accessories are included to perform a new installation but the opening that makes the door must be taken into account, if the lower sheet opens towards the indoor.
Features Erreka Orion
- Security with obstacle detection / anti-Apruse system in models with Encoder
- Encoder or end of electromechanical race

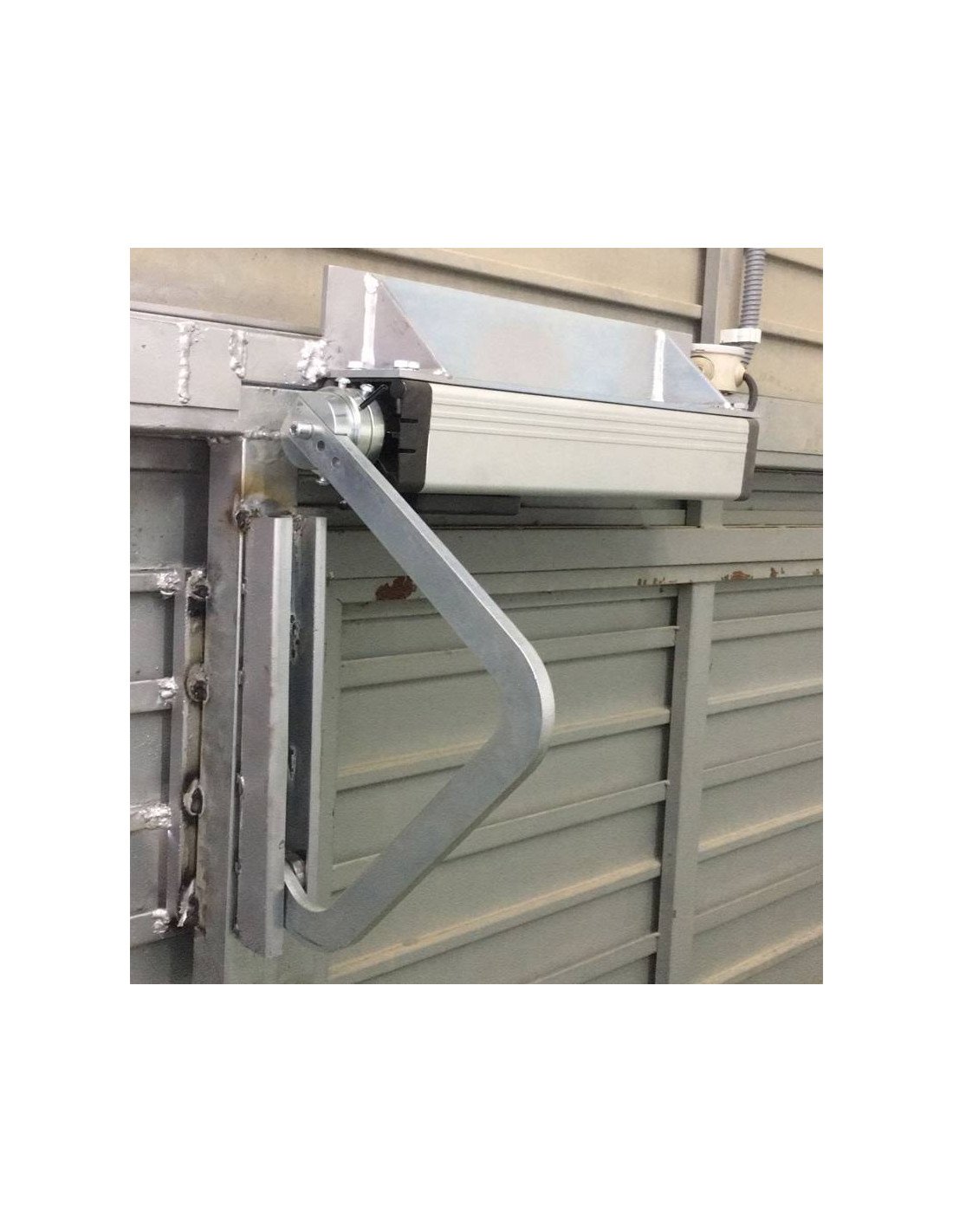

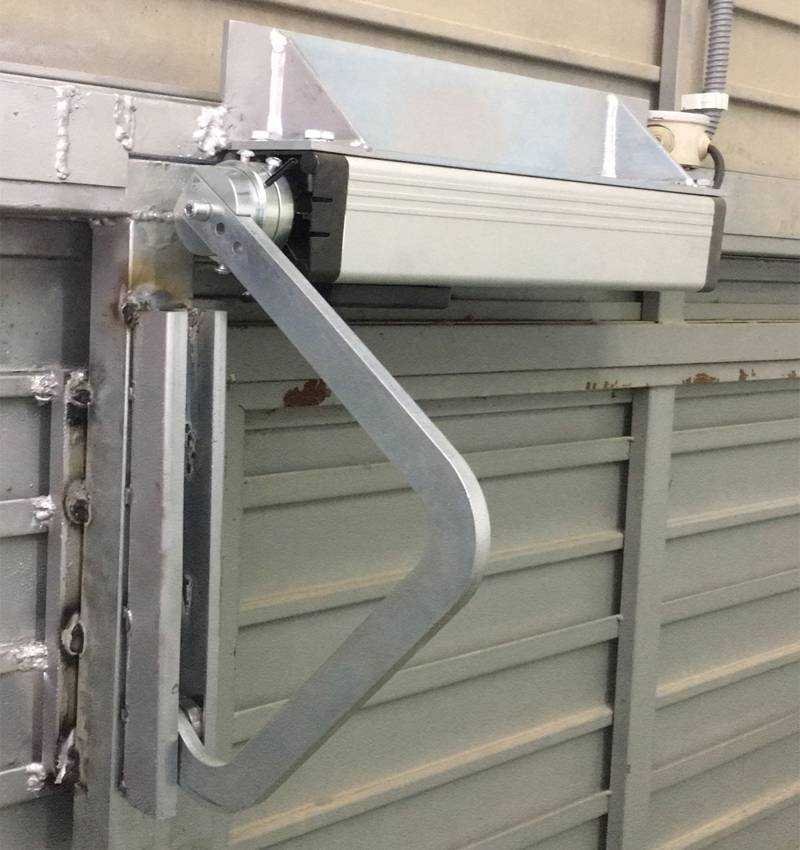

- Sliding fittings for tilting doors of 2 sheets and telescopic for 1 sheet
- Locking system
- Travel self-aggratation
Technical characteristics
| Kt2010f | Kt2000ce | Kt2050f | Kt2150ce | |
|---|---|---|---|---|
| Food (VAC / HZ) | 230/50 | |||
| Absorbed power (W) | 230 | 230 | 375 | 375 |
| Intensity (a) | 1 | 1 | 1,7 | 1,7 |
| Capacitor (μF) | 5 | 5 | 8 | 8 |
| Pair (nm) | 220 | 220 | 500 | 500 |
| Speed (r.p.m.) | 1,3 | |||
| Block | Yes | |||
| Race | Not | Yes | Not | Yes |
| Encoder | Yes | Not | Yes | Not |
| Anti-drug security | Yes | Not | Yes | Not |
| Work cycles | S3-30% | |||
| Degree | Ip44 | |||
| Service temperature (ºC) | -20 / 60 | |||
| Motor weight (kg) | 13 | 15 | ||
| Dimensions Packaging (cm) | 55 × 23 × 11 | |||
| Max door surface. (m²) | 12 m² | 12 m² | 20 m² | 20 m² |

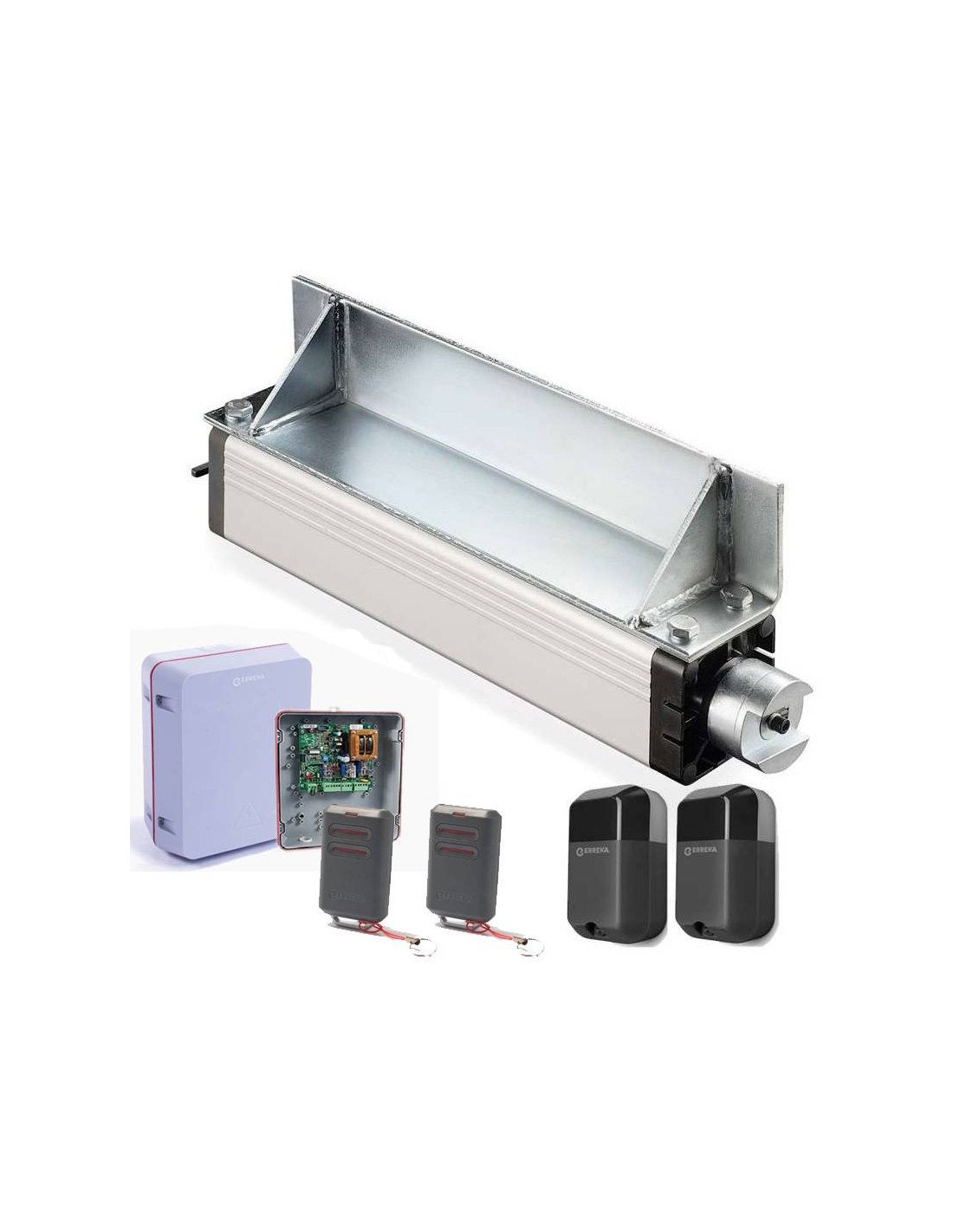

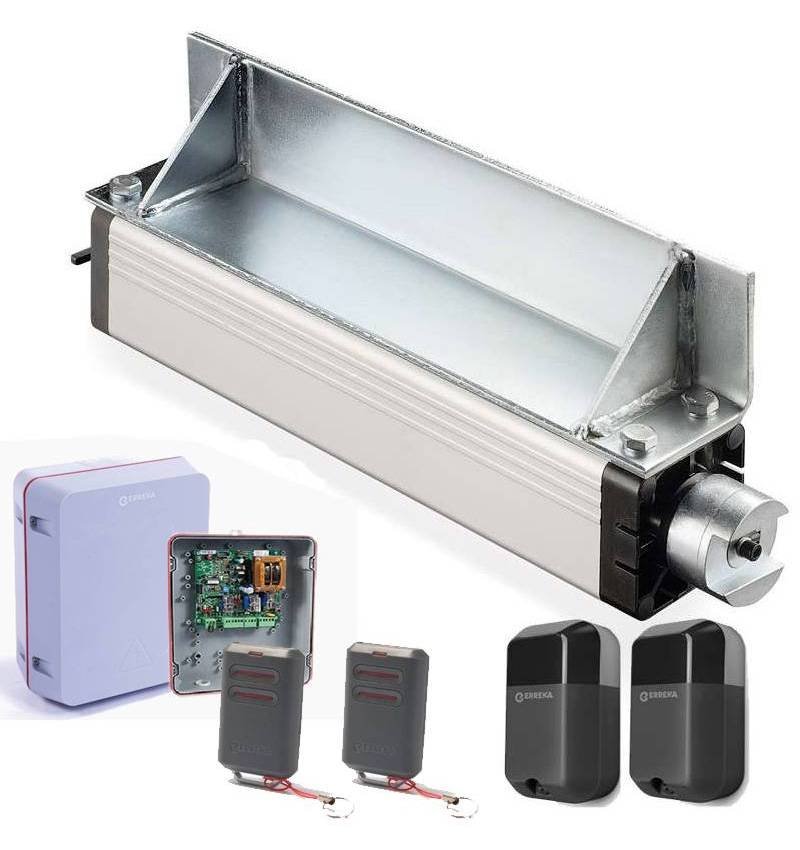

Kit KT2010F
- Kt2010f: Electromechanical motor with encoder, 220 nm, blocked
- EPE-b09: Analog maneuvering box for 1 230VAC engine
- N1100-001:
- N1100: Arm interior or exterior opening
- Irre2: Receptive card 433,92 MHz
- Ku02: Fixed code control 433,92 MHz (2 units)
- Ft06: Security photocell emitter-receiver
Kit KT2000CF
- Kt2000cf: Electromechanical motor with race end, 220 nm, blocked
- Live-m101: Analog maneuvering box for 1 230VAC engine
- N1100-001:
- N1100: Arm interior or exterior opening
- Irre2: Receptive card 433,92 MHz
- Ku02: Fixed code control 433,92 MHz (2 units)
- Ft06: Security photocell emitter-receiver
Kit KT2050F
- Kt2050f: Electromechanical motor with encoder, 500 nm, blocked
- EPE-b09: Analog maneuvering box for 1 230VAC engine
- N1500-001:
- N1500: Arm interior or exterior opening
- Irre2: Receptive card 433,92 MHz
- Ku02: Fixed code control 433,92 MHz (2 units)
- Ft06: Security photocell emitter-receiver
Kit KT2150CF
- Kt2150cf: Electromechanical motor with race end, 500 nm, blocked
- Live-m101: Analog maneuvering box for 1 230VAC engine
- N1500-001:
- N1500: Arm interior or exterior opening
- Irre2: Receptive card 433,92 MHz
- Ku02: Fixed code control 433,92 MHz (2 units)
- Ft06: Security photocell emitter-receiver
MANUALS
- Type of engine
- Electromechanical 230V
- Type of door
- Industrial gate
Residential door
