1.739,98 €
Automation FAAC A952, according to EN16005, allows the movement of the pedestrian door, with a weight up to 800 KG, in absolute silence and continuous service. It can be evacuation facilities in accordance with EN16005, meeting all the security criteria of EN13489-1 PLD.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain
FAAC A952 Δ Automation for Intensive Peatonal Doors
Automation FAAC A952, according to EN16005, allows the movement of the pedestrian door, with a weight up to 800 KG, in absolute silence and continuous service. It can be evacuation facilities in accordance with EN16005, meeting all the security criteria of EN13489-1 PLD.
• Variable relationship pinion and zipper for constant compression of the spring (PATENTE FAAC)
• Parallel Axis Gears of Variable Relation for Fluent and Effective Movement Management (PATENTE) FAAC)
• Compact and ideal dimensions for moving firewall doors and smoke control doors
• The cover carter is made of silver anodized aluminium.
✓ 700 to 1,600 mm
✓ Jacket arm 800 Kg - 700 mm
✓ Joint arm 700 Kg - 750 mm
Technical characteristics FAAC A952
- Network feeding voltage: 110-240 V~ - 50/60 Hz
- Max power.: 350 W
- Standby power: 5 W
- Frequency of use100%
- Electric motor: 24 V powered motor
- Max load. accessories: 1A - 24V
- Electro-lock feeding voltage: (N.O./N.C.) 24 V / 500 mA max.
- Dimensions (LxPxH): 715x150x74 mm
- Weight: 12 Kg
- Operation in the absence of network tension: Manual opening of push/tiring - Spring lock
- Max angle. opening sheet: 100° ÷ 125°
- Adjustment of opening speed: 4 s ÷ 10 s (regulable)
- Setting closing speed: 4 s ÷ 10 s (regulable)
- Partial opening: 10% ÷ 90% of the total opening
- Time of pause: 0 ÷ 30 s
- Night break time: 0 ÷ 90 s
- Codifier: Series
- Monitoring protection sensors (EN16005): Serial (excluding possibility)
- Low Energy Operation (EN16005): Serial (excluding possibility)
- Operating environment temperature: -20°C ÷ +55°C
- Protection Degree: IP 23 (only for internal use)
- Compliance with standards: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN13849-2
Automation FAAC includes:
CONTROL UNIT
• Microprocessor control unit integrated with self-diagnosis and continuous check of all door functions
• Active anti-plasting safety both in closing and opening phase thanks to a high-precision magnetic encoder
• Function selector integrated into the operating device with logics:
AUTOMATICS - MANUAL/
IT 'S OPEN AT NIGHT
• Self-learning of the "open" and "closed" door positions"
• Selection of arm type used
• Function "GOLPE DE CIERRE" to ensure that the door closes even in the presence of strong wind
• Function of "Partial STOP Security" that defines the security detection space in the opening phase
• Function "PUSH and GO" that controls the motorized opening after an initial manual push operation of the door
• Function "SCP" to increase strength in the final part of the closing phase
• Function “HOLD-CLOSE”, automatism opposes the attempt to open the door of manual origin or caused by wind blows
• MAESTRO-ESCLAVO version for doors with double sheet
• enslavement function
• INTERCOM function
• Firmware update and download/load of certain information (configurations, timer, log) via USB key
• Predisposition for connection
sIMPLY CONNECT cards
Predisposition for keyboard functions KP EVO, LK EVO and KS EVO
The use of the KP EVO function keyboard allows the following functions:
Introduction user access password and installer;
– speed opening and closing settings;
– adjustment force opening and closing;
– anti-plastering adjustment;
– regulation time pause;
– diagnostic management;
Weekly calendar management;
– blockade management;
– I/O programming;
– maintenance cycle warning;
– display cycles performed;
ACTIONING GROUP INCLUDING:
• Electromechanical automation for swing doors with continuous current engine and spring
• Possibility of installation in evacuation, firewall doors and smoke control doors
• In the absence of tension, the dock can be opened or closed depending on the type of installation
• Silver anodized aluminium cover
• Pattin or articulated steel drive arm(s separately)
• Coverage of the arms of Geomet 321 (Rohs compliant) of high corrosion resistance
• Installation both on the lintel and on the door with opening to the outside or to the interior

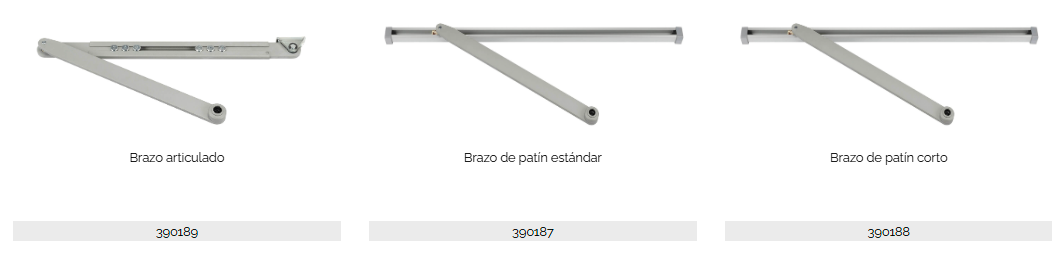

Types of Arms FAAC A952
