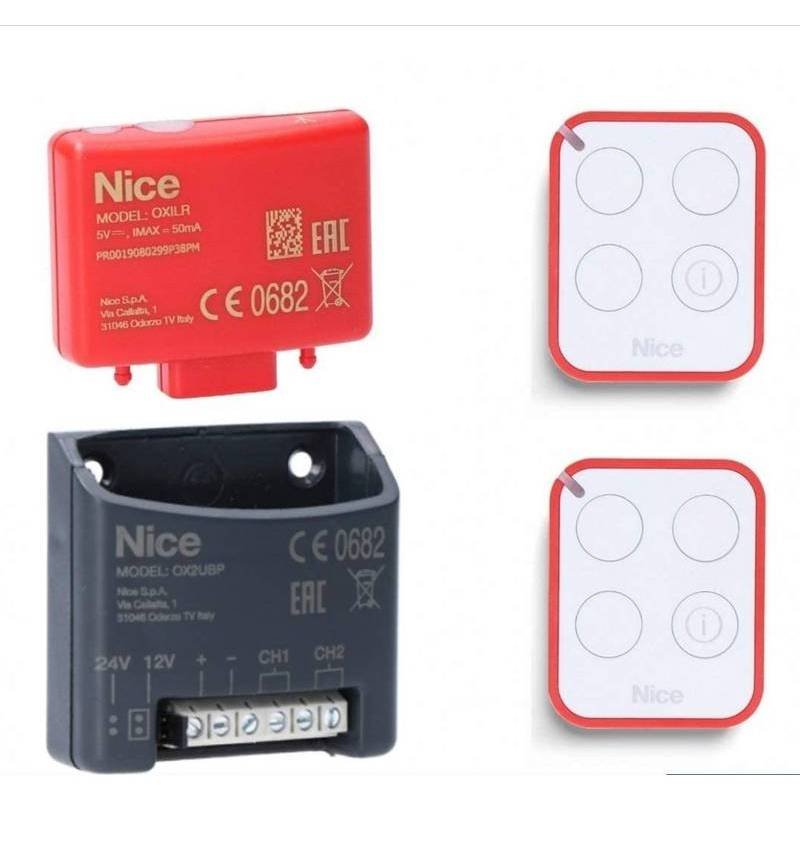

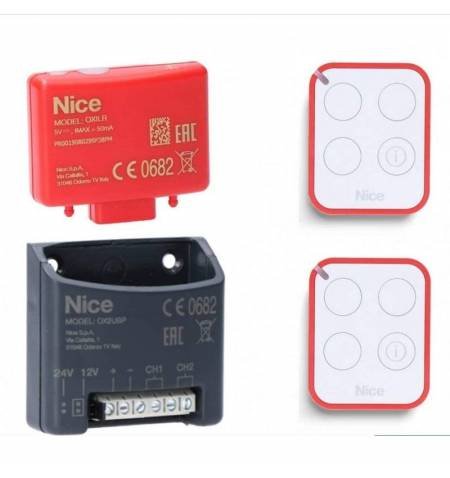

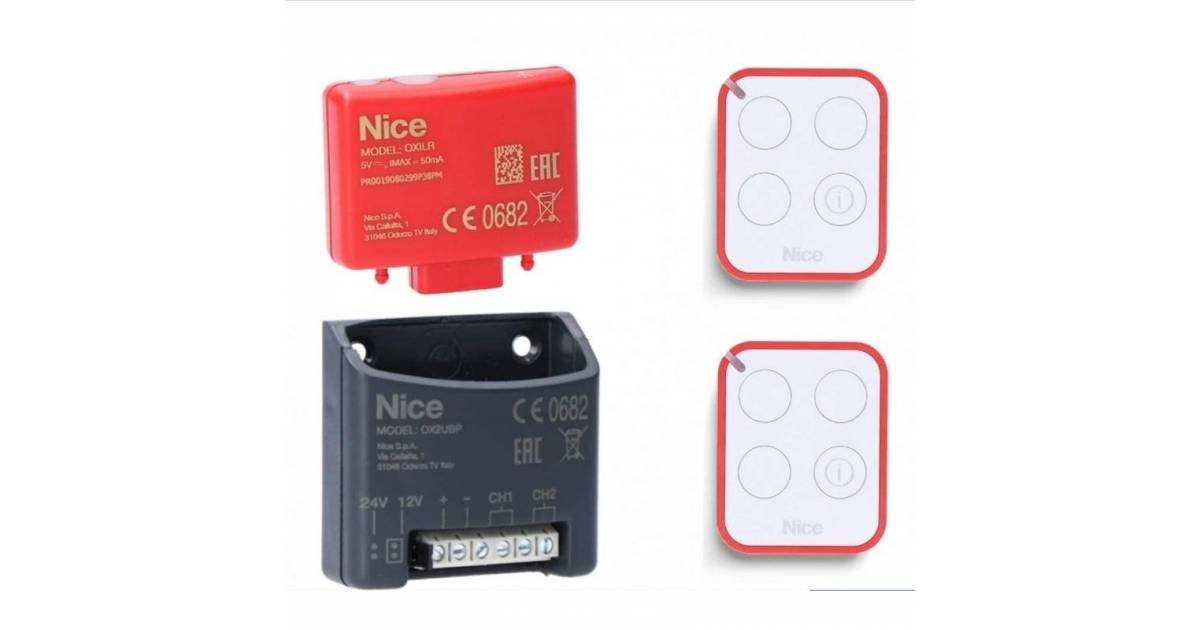

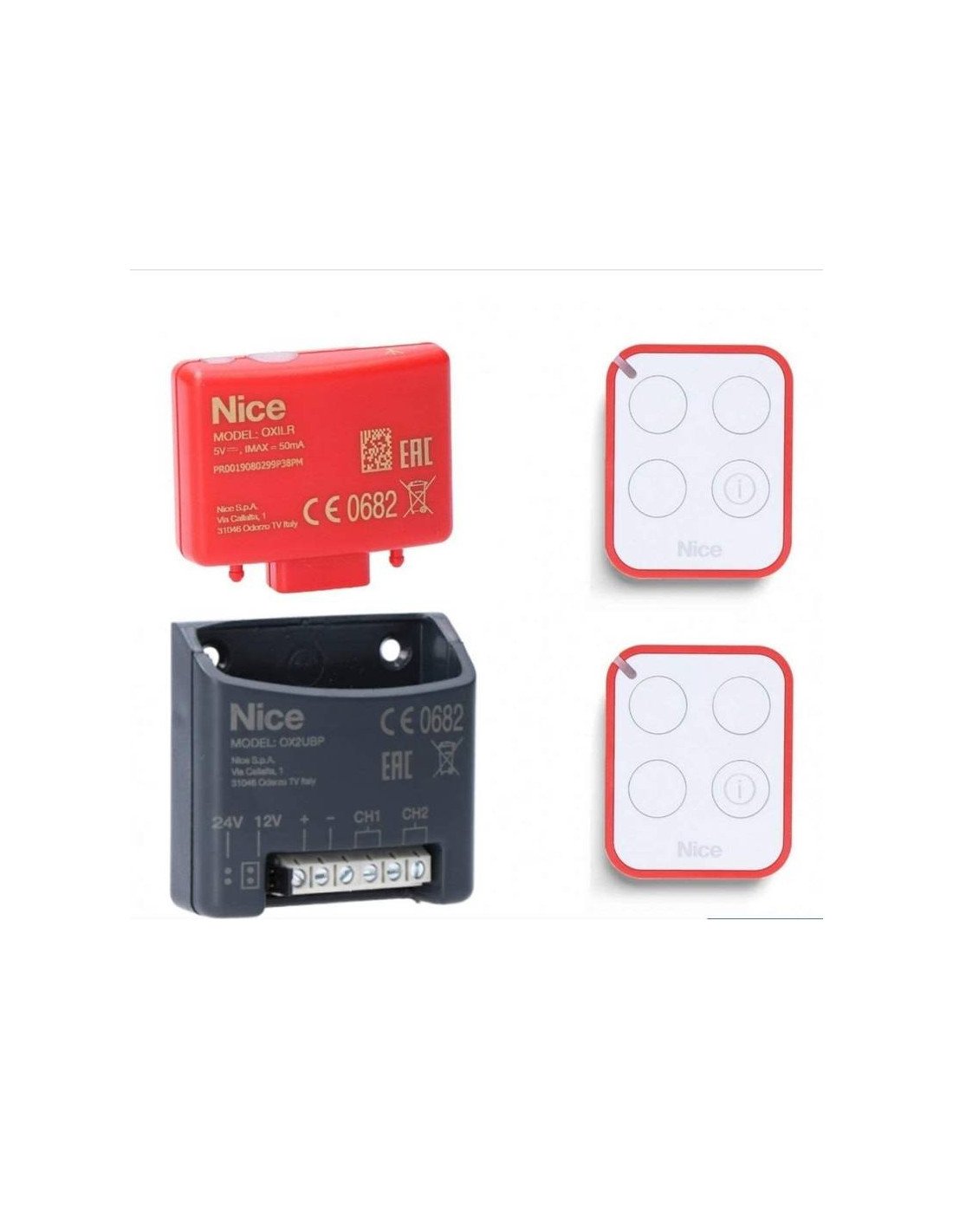

Receiver kit Nice long range OXILR with two-way emitters and a universal adapter for frames from other manufacturers.

THE KIT CONTAINS:

■ 1 unit OXILR: Long range two-way pluggable receiver

■ 2 units WHERE: 2 Two-way long range transmitters 433 MHz

■ 1 unit OX2UBP: 1 Universal adapter for use wired in frames of other manufacturers

Plug-in receiver, two-way, with LoRa® technology.

OXILR is compatible with all control stations Nice, equipped with the SM connector, and thus enables the automatic systems to be converted into wide-range bidirectional Nice existing ones.

Ergonomic design: convenient and practical position to use the connectors for the antenna, button and led for programming.

Maximum flexibility: store up to 1,024 bidirectional transmitters with LoRa® technology.

TECHNICAL CHARACTERISTICS

• Receiving frequency: 433.92 MHz
• Transmission frequency: 433.92 MHz (BD only)
• Input impedance is 50 Ohm
• Sensitivity is -18 dBm
• Decoding: BD, O-Code, FloR, TTS, Flo and Smilo
• Number of channels: 4 (on pluggable "SM" connector)
• Power supply: 5 Vdc
• Absorption: 50 mA at most
• Protection degree: IP 30
• Size: 49,5x18x41,9 h mm
• Weight: 22 g
