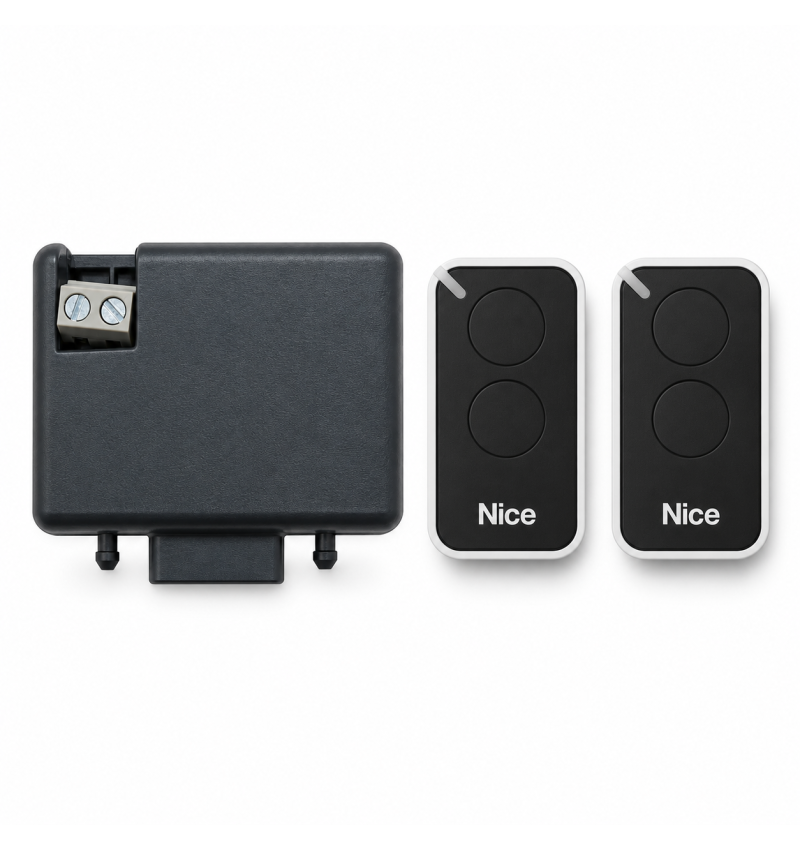

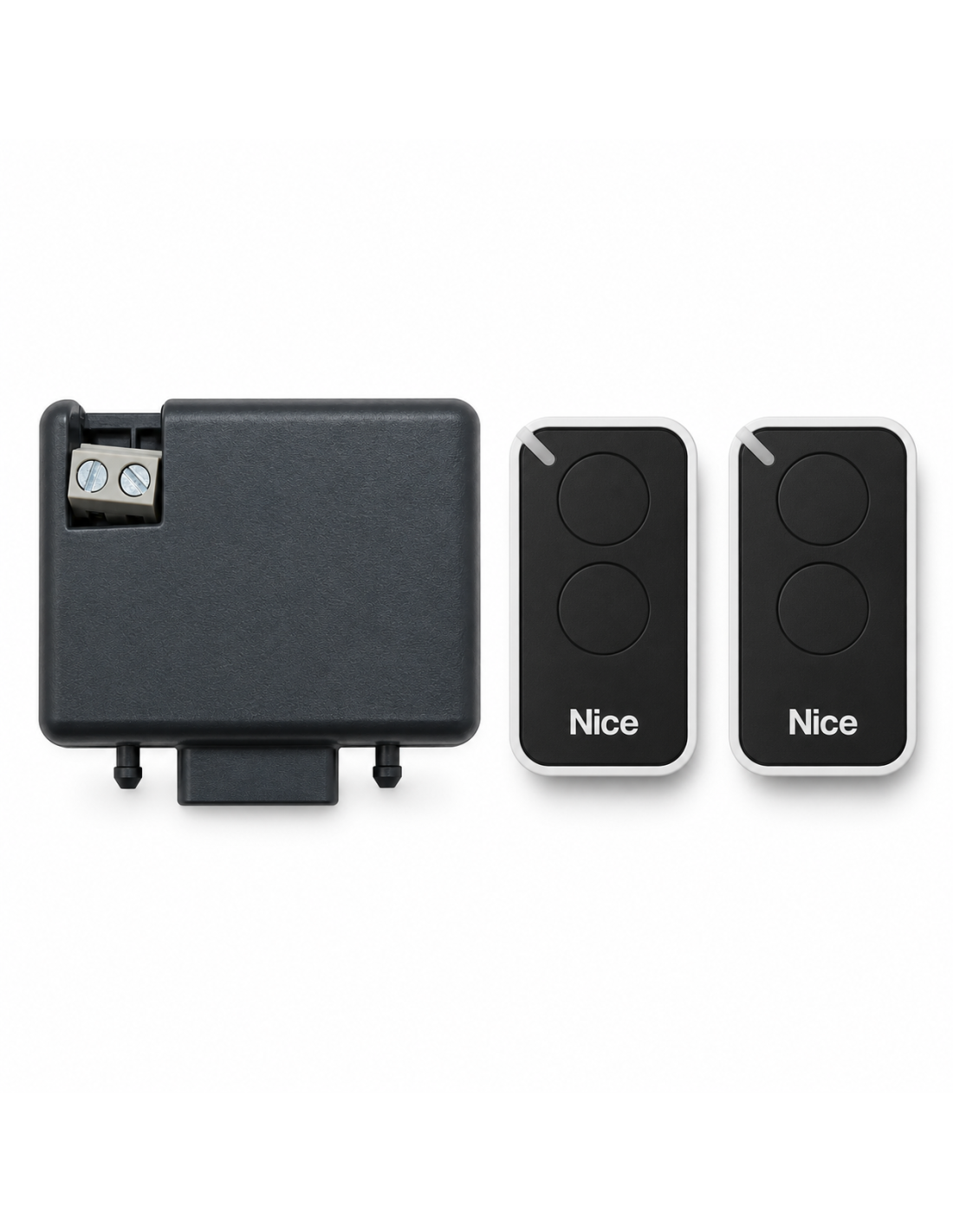

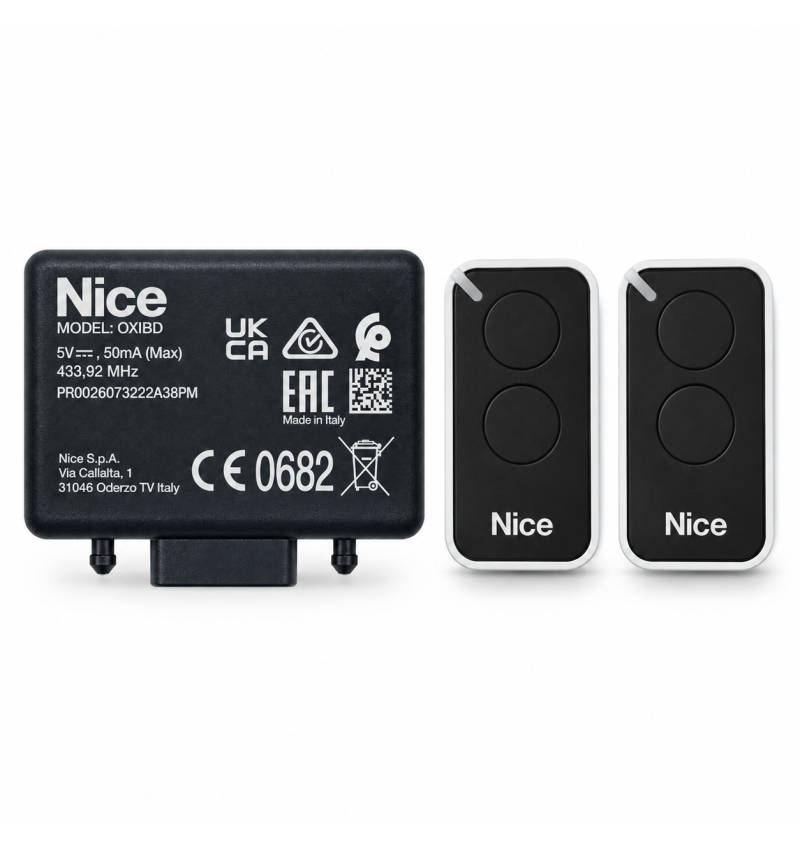

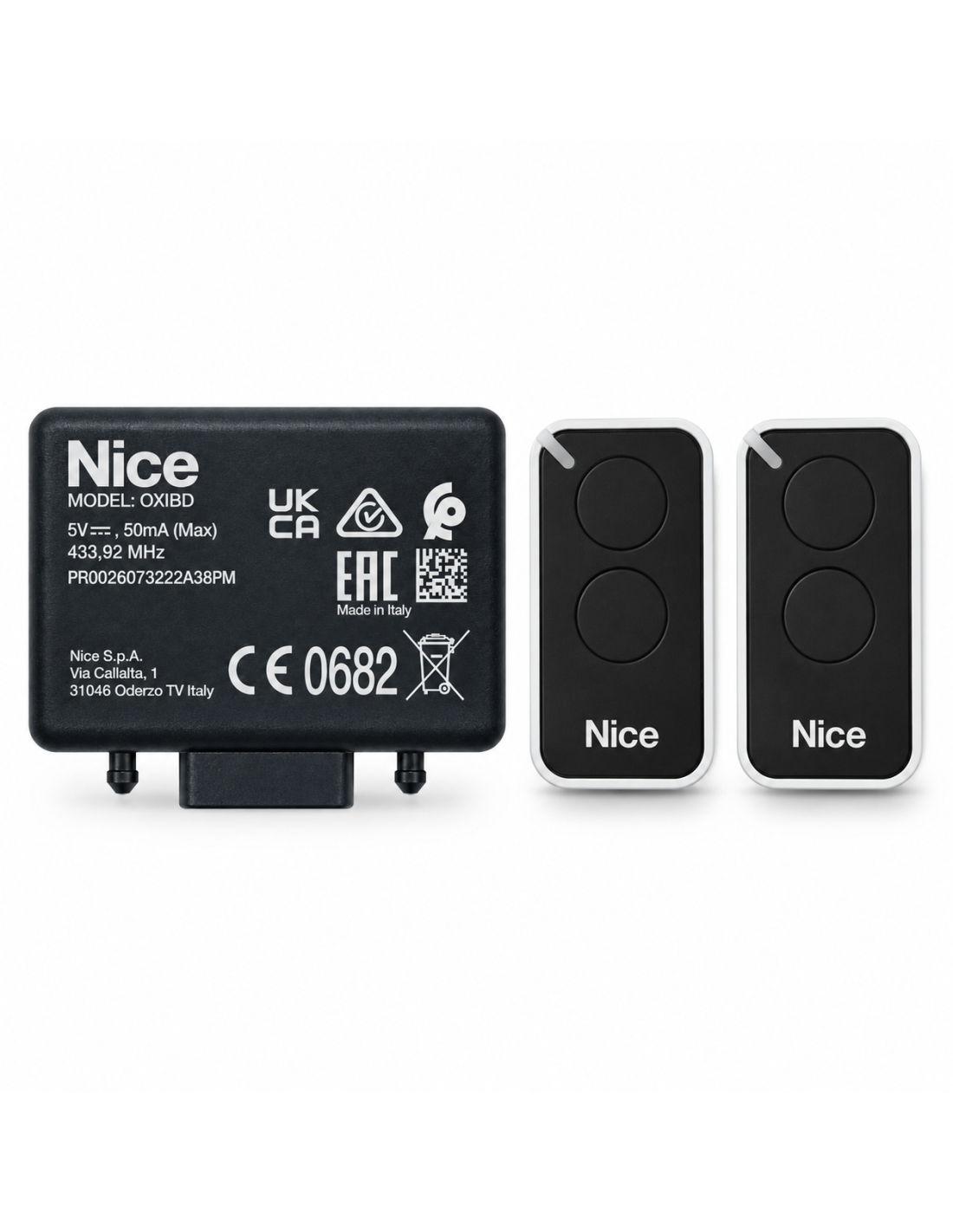

Receiver Kit Nice OXIBD with 2 controls was inti2 433,92 MHz

Receiver Kit Nice OXIBD with 2 controls was inti2 433,92 MHz

The kit Nice OXIBD + 2 controls was inti2 it is a radiofrequency set to control automatisms Nice by remote controls of 433,92 MHz with safe coding O-Code Rolling Code.

Includes a plug-in receiver Nice OXIBD, compatible with electronic power plants Nice equipped with sM connector, and 2 controls Nice It was 2-channel inti2.

Is an indicated solution for the replacement of a fault receiver, renewal of the radio system or incorporation of new controls in compatible facilities.

The receptor Nice OXIBD also supports bidirectional technology and nicepera system functions. The included Inti2 controls use communication unidirectional O-Code, so they do not have confirmation or consultation functions of the state of the door.

Compatible with central Nice with SM connector

The receptor Nice OXIBD it is installed directly in the plug-in connection HM of the plants Nice compatible.

Before the order, verify that your plant has this connector. The receiver is not an independent electronic power station or incorporates external relay outputs.

✓ 1 receiver Nice OXIBD of 433,92 MHz.

✓ 2 controls Nice WAS INTI2 of 2 channels.

✓ Coding system O-Code Rolling Code 72-bit.

✓ Compatible with central Nice equipped with sM connector.

✓ Receiver with advanced system functions Niceopera.

✓ Each control allows you to memorize its two keys according to the functions available in the control panel.

✓ The receiver admits 1,024 memory positions for unidirectional transmitters.

✓ Possibility of adding more controls Nice compatible.

✓ Compact controls powered by lithium pile CR2032.

✓ Indicated for automation of sliding doors, swing, sectional and barriers Nice compatible.

The OXIBD it is a plug-in radio receiver that connects directly to a central Nice using the SM connector.

It is compatible with different radio codifications: BD, O-Code, Flower, TTS, FLO and SMILO.

Allows you to memorize 1,024 positions for unidirectional controls o 750 bidirectional BDF emitters, depending on the system used.

The kit uses inti2 controls with O-Code coding, compatible with the OXIBD receiver.

The Nice WAS INTI2 they are compact remote controls of 2 buttons frequency 433,92 MHz.

They use coding O-Code Rolling Code 72-bit and are compatible with receivers Nice who admit this protocol, including the OXIBD.

Its two channels can be used to operate different compatible functions or automatisms, depending on the programming carried out.

Each command works with a 3v lithium pile CR2032 and has approximate dimensions of 30 × 56 × 9 mm.

IMPORTANT: UNIQUENTE INTI2 INTI2 CONTROLS

Although the receiver Nice OXIBD has bidirectional technology, the two commands INTI2 included in this kit are one-way.

Therefore, they allow sending orders to automatism, but they do not show confirmation of reception or information about the state of the door. To dispose of these functions, bidirectional controls are needed Nice BD compatible and a plant that supports the corresponding functions.

Inti2 controls must be memorized in the receiver so that they can control the automation.

1. Disconnect the power supply from the center before installing the receiver.

2. Connect the OXIBD to the SM connector of the center and restore the power.

3. Keep pressing the OXIBD button until your green LED turns and drop it.

4. In the next 10 seconds, press and hold a button of the first Inti2 and release it after the first green confirmation blinking of the receiver.

5. Repeat the procedure with the second Inti2, following the indications of the manual.

This procedure corresponds to the memorization in mode i. To assign specific functions to a key, see the procedure for Mode II of the OXIBD and central manual.

Manual Nice OXIBD in Spanish (PDF)

Manual Nice IT WAS INTI (PDF)

Before placing the order

Check that the automation center has sM connector compatible with Nice OXIBD.

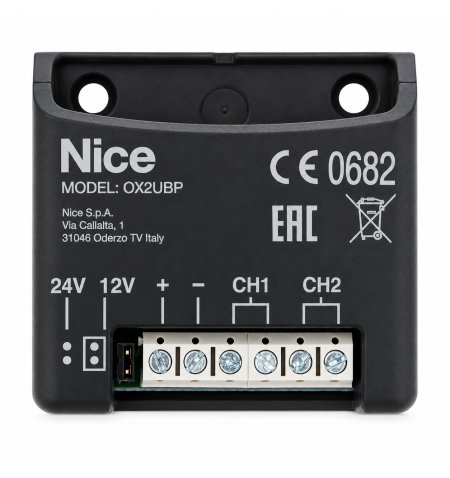

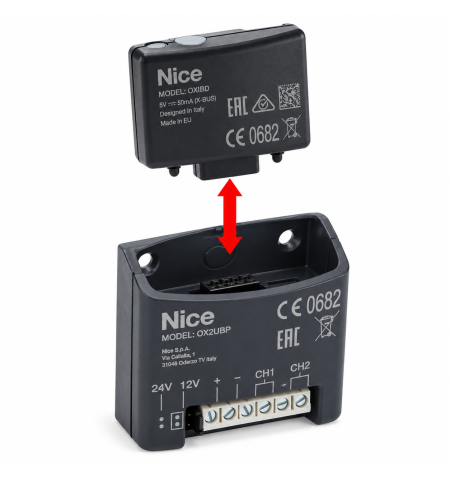

This kit does not include electronic central, engine or universal relays interface. For certain central other manufacturers, a compatible additional interface may be necessary, such as the Nice OX2UBP.
