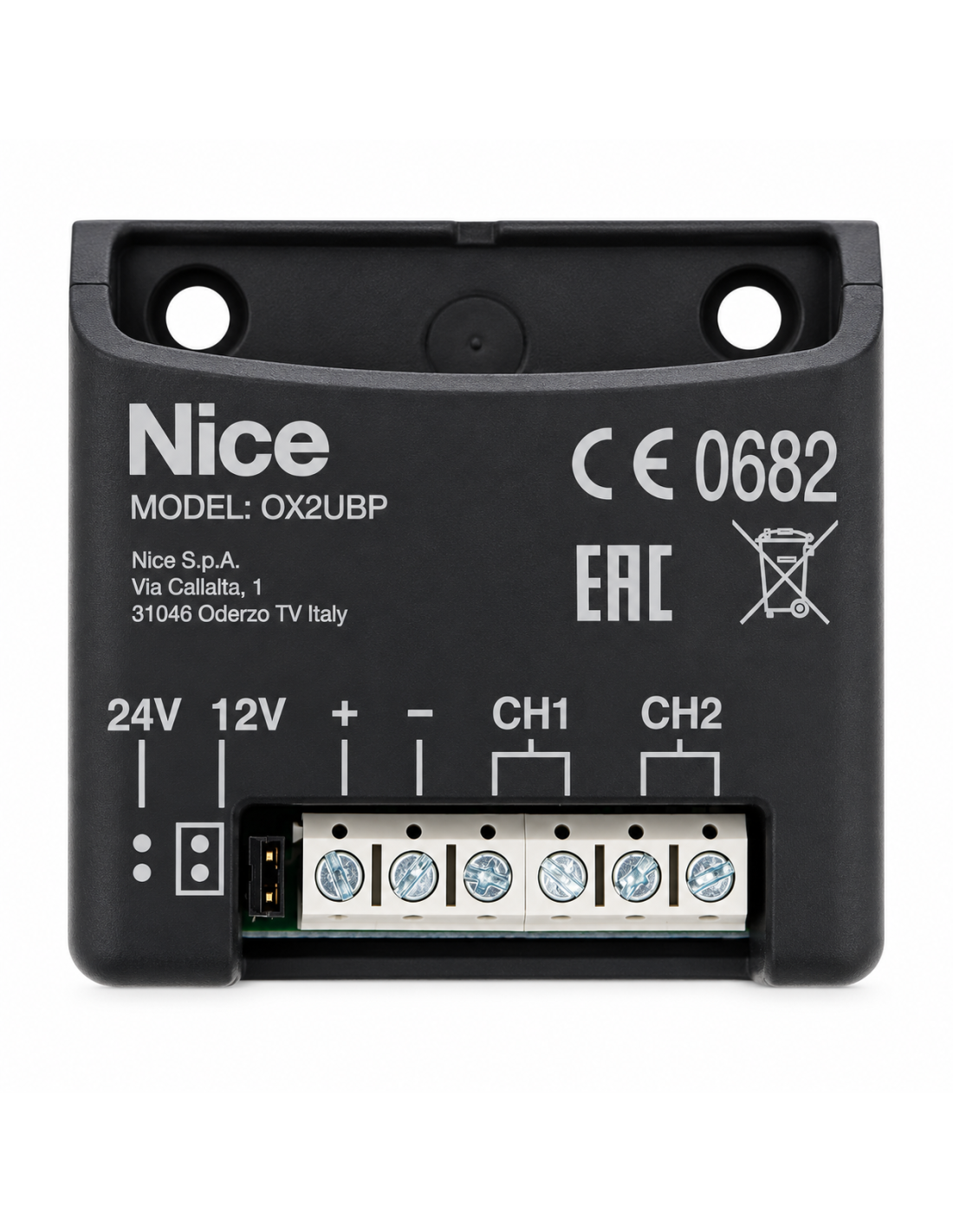

Universal interface Nice OX2UBP for OXI receptors

The Nice OX2UBP it is a universal hardware interface designed to be able to use plug-in receivers Nice of the XI / OXI FAMILY in electronic power plants that do not have directly from the connector Nice compatible.

Incorporates 2 independent relay outputs by dry contact, allowing to transmit radio orders to virtually any maneuvering center equipped with tickets for opening, closing or step by step.

Thanks to this interface it is possible to install receivers Nice like OXIBD, OXILR or OXIR10 in automation Nice or other manufacturers, expanding the possibilities of compatibility and modernization of existing facilities.

The OX2UBP has 2 output channels CH1 and CH2 and admits feeding both in continuous current and alternating.

Convert a receiver Nice OXI in a universal receiver

The interface OX2UBP allows you to use a plug-in receiver Nice in power plants that do not have the original SM / XI connector, transforming orders received by radio in 2 dry contact relay outputs.

Important: Radio receiver not included

The OX2UBP is only the interface. To receive the orders of the controls it is necessary to install a receiver Nice compatible.

Between the receptors indicated by Nice they find each other OXIBD, OXILR and OXIR10. The receiver and the controls are supplied separately.

✓ Universal hardware interface Nice OX2UBP.

✓ Connector for family plug-in receivers XI / OXI.

✓ 2 independent relay outputs.

✓ Outputs through dry contacts.

✓ Contacts configured of origin as NA - normally open.

✓ Possibility of modifying contacts NC - normally closed.

✓ Compatible with power plants with entries opening, closing or step by step.

✓ Allows you to install receivers Nice on automation of other manufacturers.

✓ Eating compatible with 12V or 24V and wide AC / DC RANK.

✓ Compact installation within the automatism or in an adequate protective box.

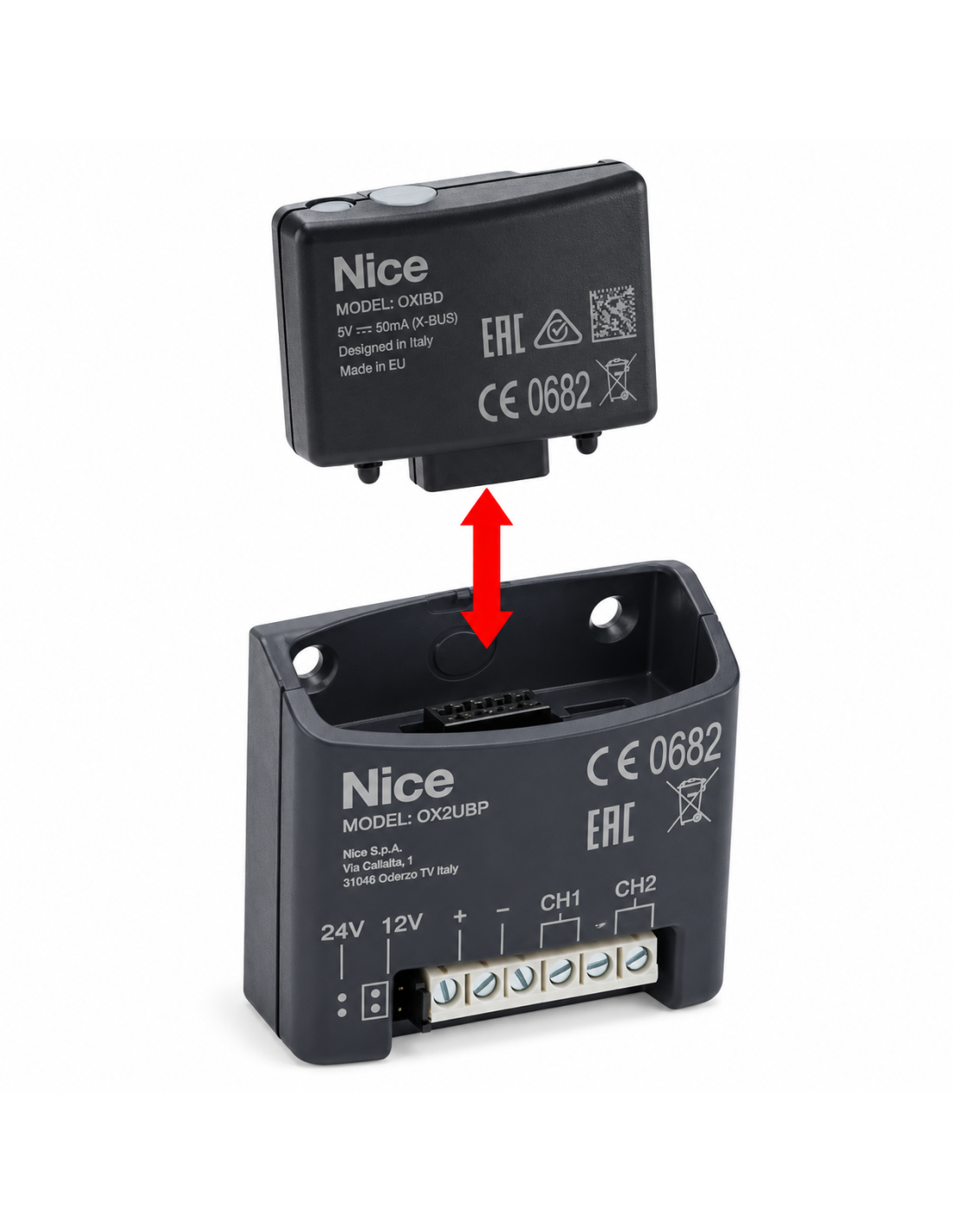

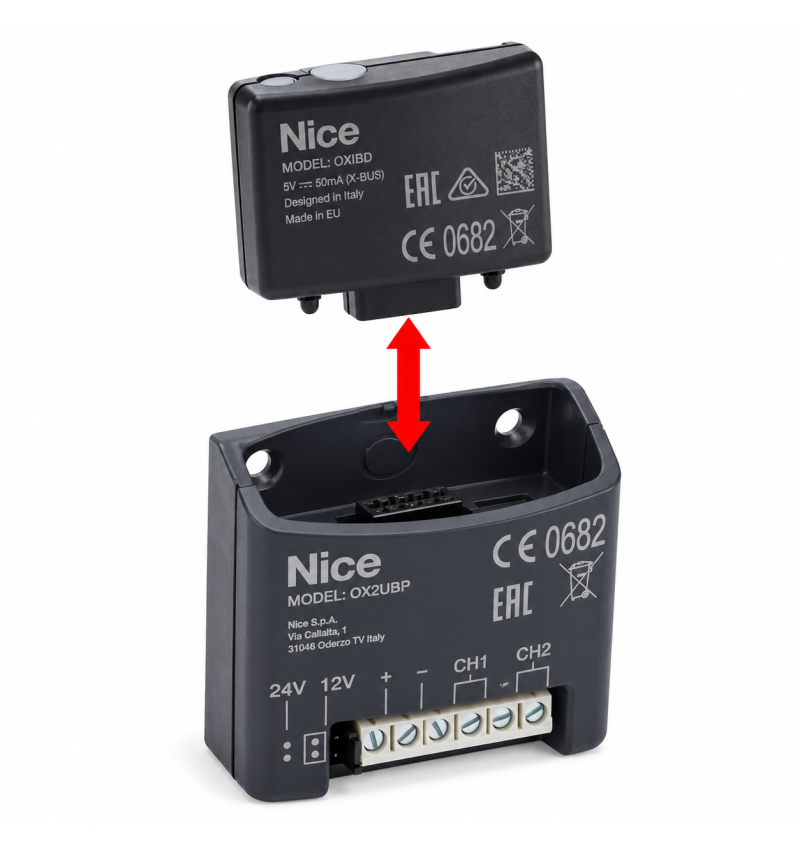

The receptor Nice it connects directly on the oX2UBP interface.

When the receiver receives the signal from a previously memorized control, the active interface one of its two relays:

CH1: exit corresponding to relay 1.

CH2: output corresponding to relay 2.

These contacts can then be connected to the control entries of the automation center, for example at an entry of START / step by step, opening or closing.

* Indicated values including the connected OXI receiver.

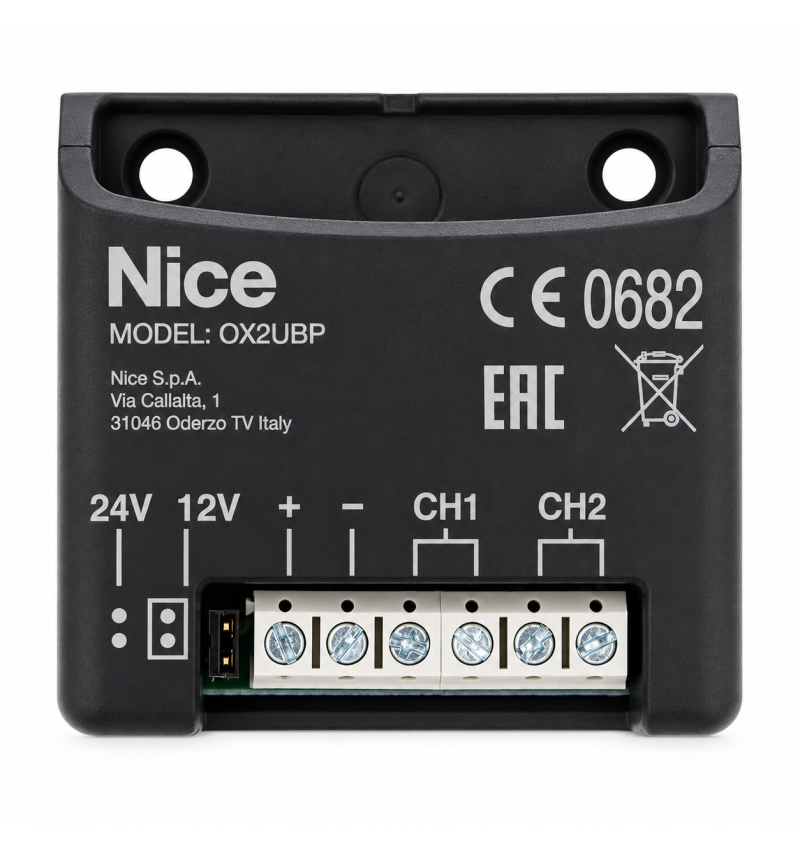

The interface has a jumper JP to adapt the device to the voltage used:

Jumper placed: 12v feeding.

Jumper withdrawn: 24v feeding.

Ideal for other manufacturers engines

OX2UBP allows to use receivers Nice in a plant from another manufacturer whenever you have the appropriate control entries. In this way it is possible, for example, use Nice in an automation that originally does not have a receiver Nice plug.

Protected installation

The degree of protection of the OX2UBP is IP30. Must be installed within the automatism or in a adequate protective box; it is not designed to be directly exposed to the weather.

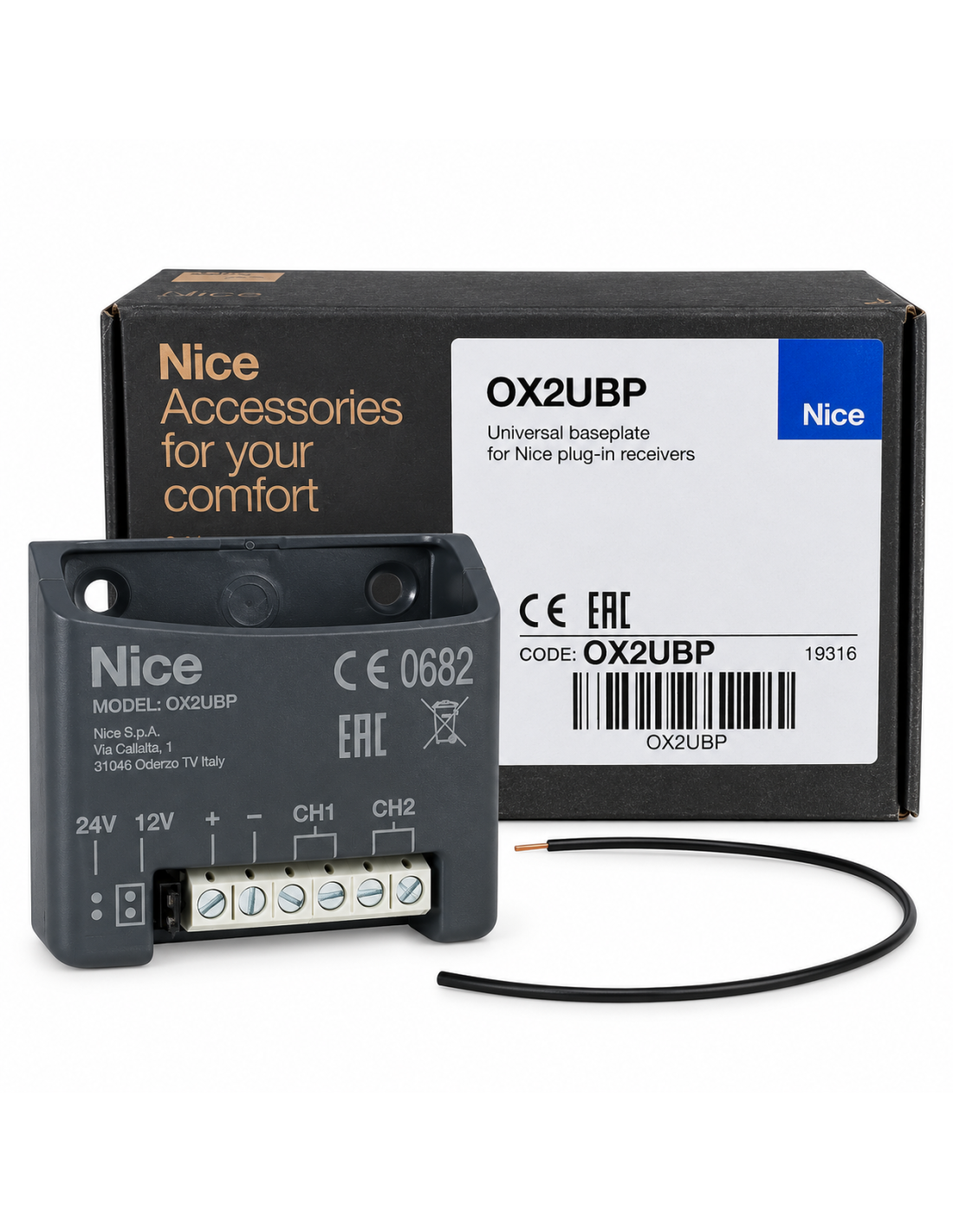

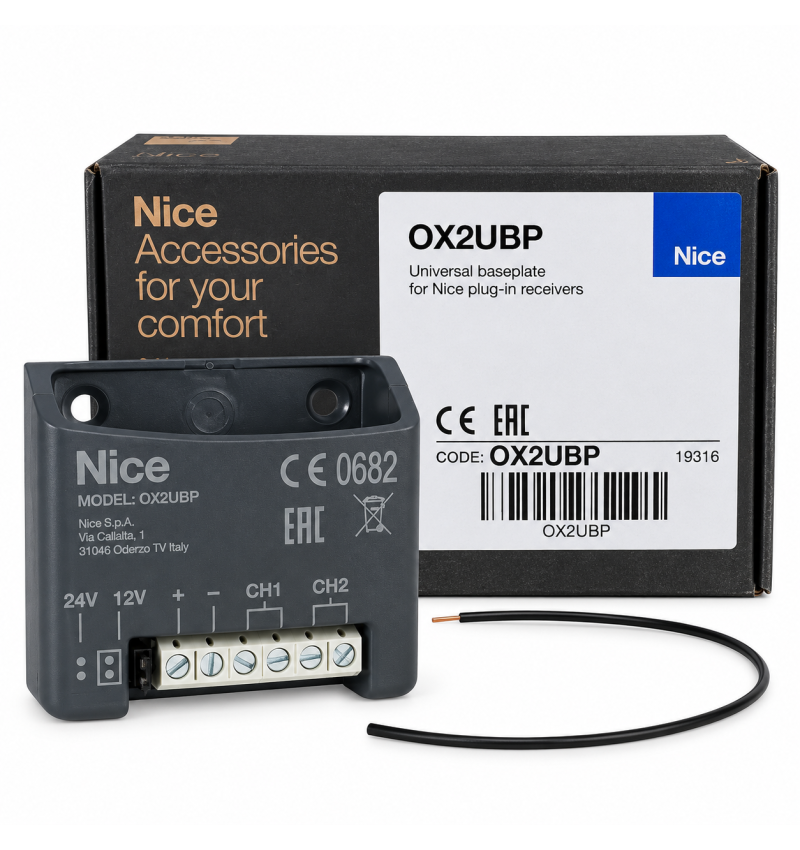

■ 1 × hardware interface Nice OX2UBP.

Radio receiver and controls not included.
