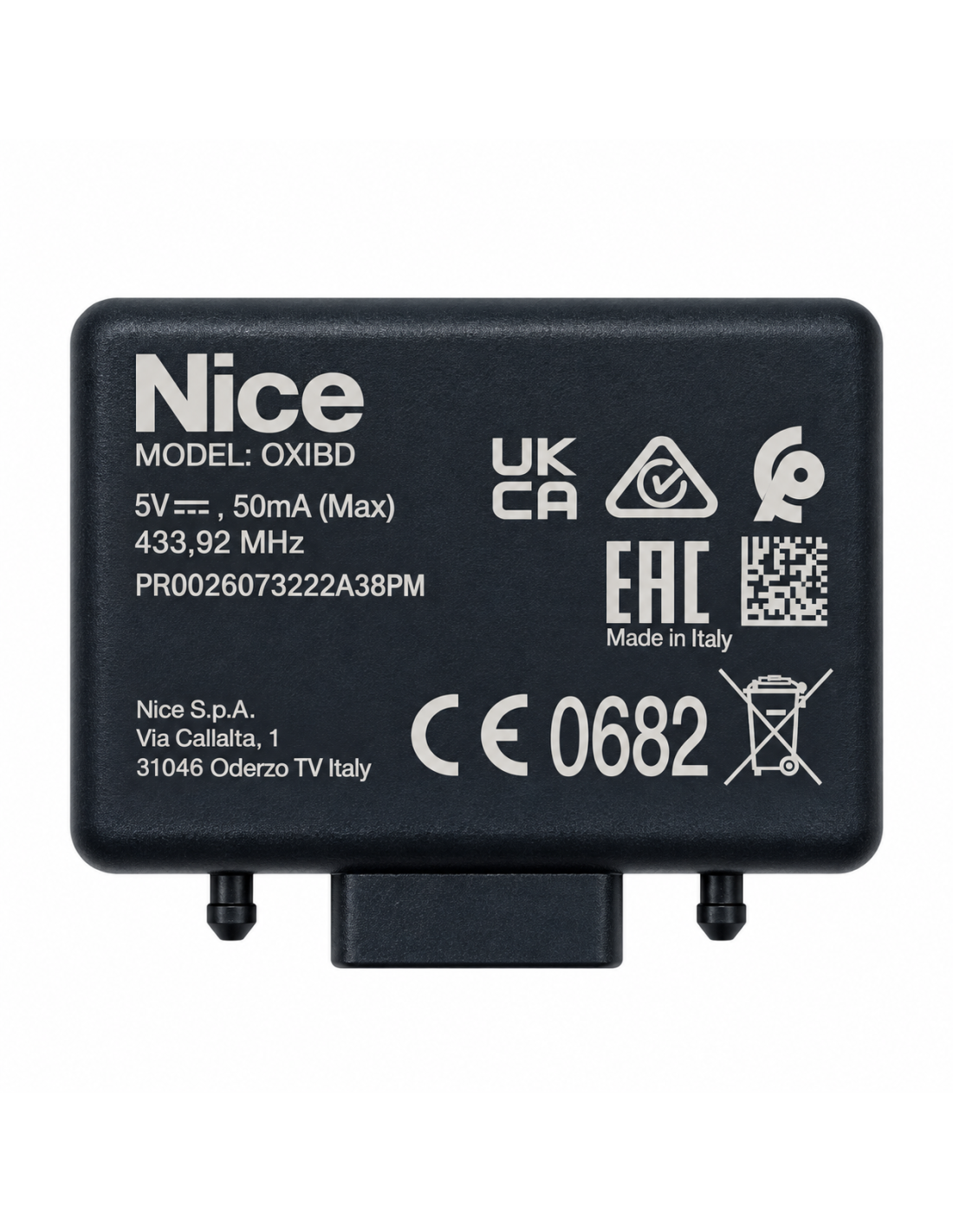

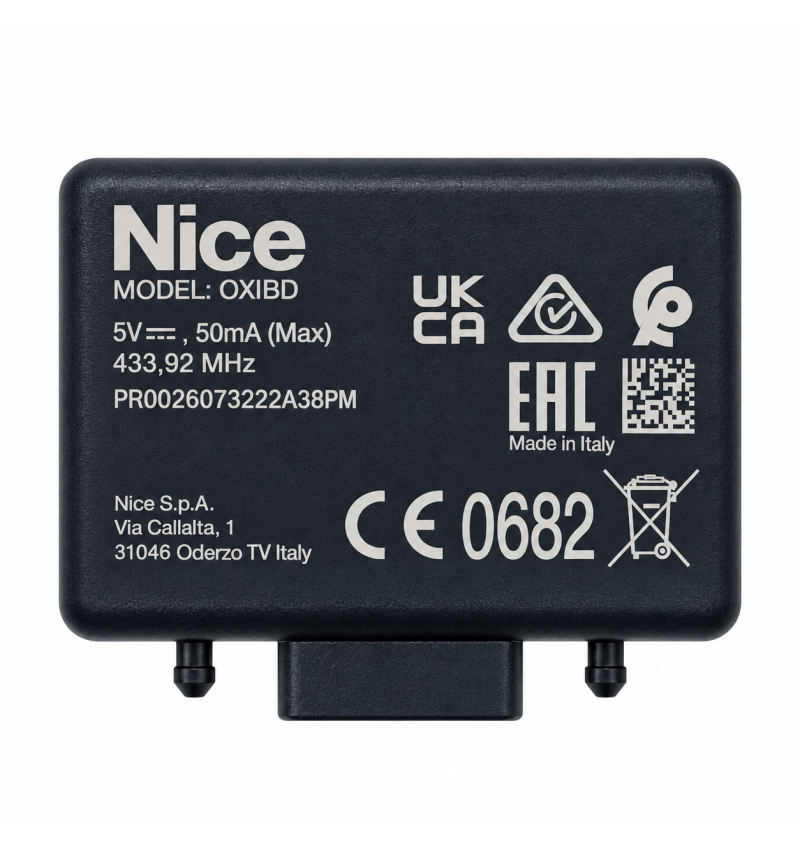

Receiver Nice OXIBD 433,92 MHz Bidirectional for power plants Nice

Plug-in receiver Nice OXIBD 433,92 Bidirectional MHz

The Nice OXIBD is a plug-in radio receiver 433,92 MHz with technology two-way Nice BD and advanced system functions Niceopera.

Is designed to be installed directly in the electronic power plants Nice equipped with SM connector, allowing compatible remote controls to control sliding doors, swing doors, garage doors and automatic barriers.

Thanks to its bidirectional technology, it allows you to receive orders from the controls and transmit return information to the issuers Nice Compatible BD, including the confirmation of order reception and, when the installation allows it, information about the status of the automation.

The receiver also admits different traditional radio systems of Nice, as O-Code, flower, TTS, FLO and SMILO, facilitating its use in existing facilities.

It has a memory up 750 bidirectional issuers or 1,024 memory positions for unidirectional issuers, depending on the system and mode of memorization used.

Compatibility with power plants Nice

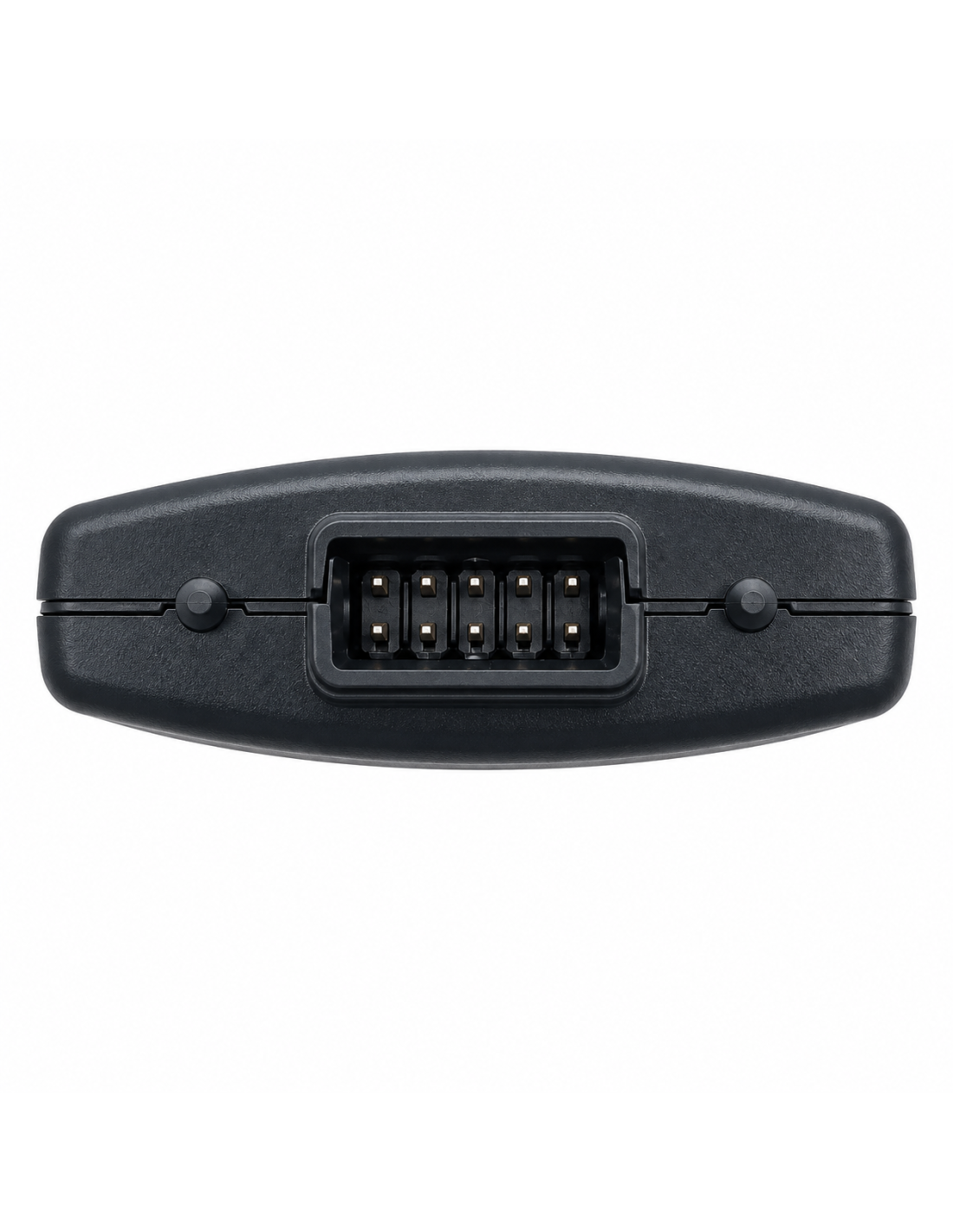

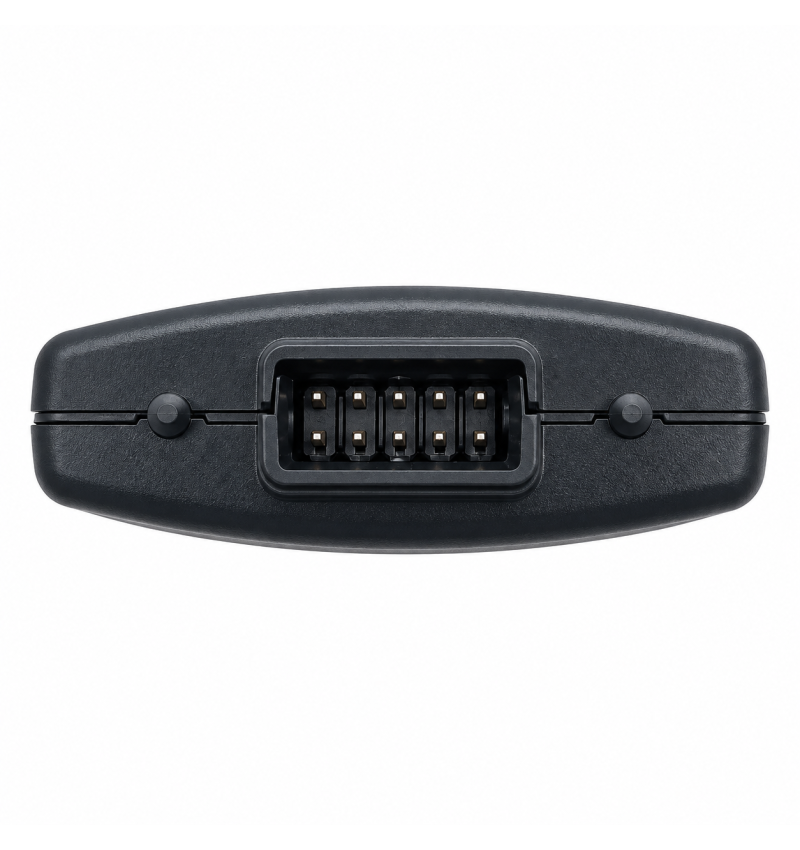

The receptor Nice OXIBD it can be installed in electronic power plants Nice have sM plug-in connector compatible.

✓ Central Nice with sM connector.

✓ Automation Nice compatible with the radio system Niceopera.

✓ Existing installations with SM connector who wish to incorporate technology controls Nice BD, according to the functions admitted by the plant.

The system Nice BD it allows communication in both directions between the receiver and compatible bidirectional controls.

Unlike conventional receptors, which only receive orders from the controls, the OXIBD can also transmit response information.

Confirmation of reception: it allows informing the transmitter that the receiver has received the order sent.

State Information: it allows communicating the status of automation, such as open or closed door, when the central one and the installation configuration support this function.

Some controls Nice bidirectional, like those of the family was one bd, they use LED indicators to communicate this information to the user.

Note: the confirmation and query functions of the state depend on the control, the electronic power station and the configuration of the system Nice.

IMPORTANT: Compatibility between controls

The first unidirectional memorized command determines the unidirectional coding family that the receiver will use.

It is not possible to freely mix different unidirectional families such as FLO, FLOOR or SMILO.

However, the bidirectional controls Nice BD can coexist in the receiver memory with the unidirectional controls of the selected family.

To change the unidirectional coding family it will be necessary to perform a complete deletion of memory and re-memorize the controls.

Up to 750 bidirectional controls Nice BD when the memory contains only bidirectional emitters.

Up to 1,024 memory positions when unidirectional emitters are used exclusively.

On Mode i, an emitter can occupy a single memory position. On Mode II, each memorized key occupies an independent position. Effective capacity depends on the type of memorization.

✓ Plug-in receiver Nice OXIBD.

✓ Radio frequency 433,92 MHz.

✓ Communication unidirectional and bidirectional.

✓ Compatible with Niceopera.

✓ Installation through sM connector.

✓ 4 different commanders available in power plants without Bust4.

✓ 15 different commanders in Central compatible with Bust4, according to the available functions.

✓ Compatible with encodings BD, O-Code, Flower, TTS, FLO and SMILO.

✓ Memory up 750 bD emitters or 1,024 unidirectional positions.

✓ Programming of issuers in Mode I and mode II.

✓ Possibility of memorization of new controls through compatible remote procedures.

✓ Advanced management and programming functions through Nice O-Box and O-View.

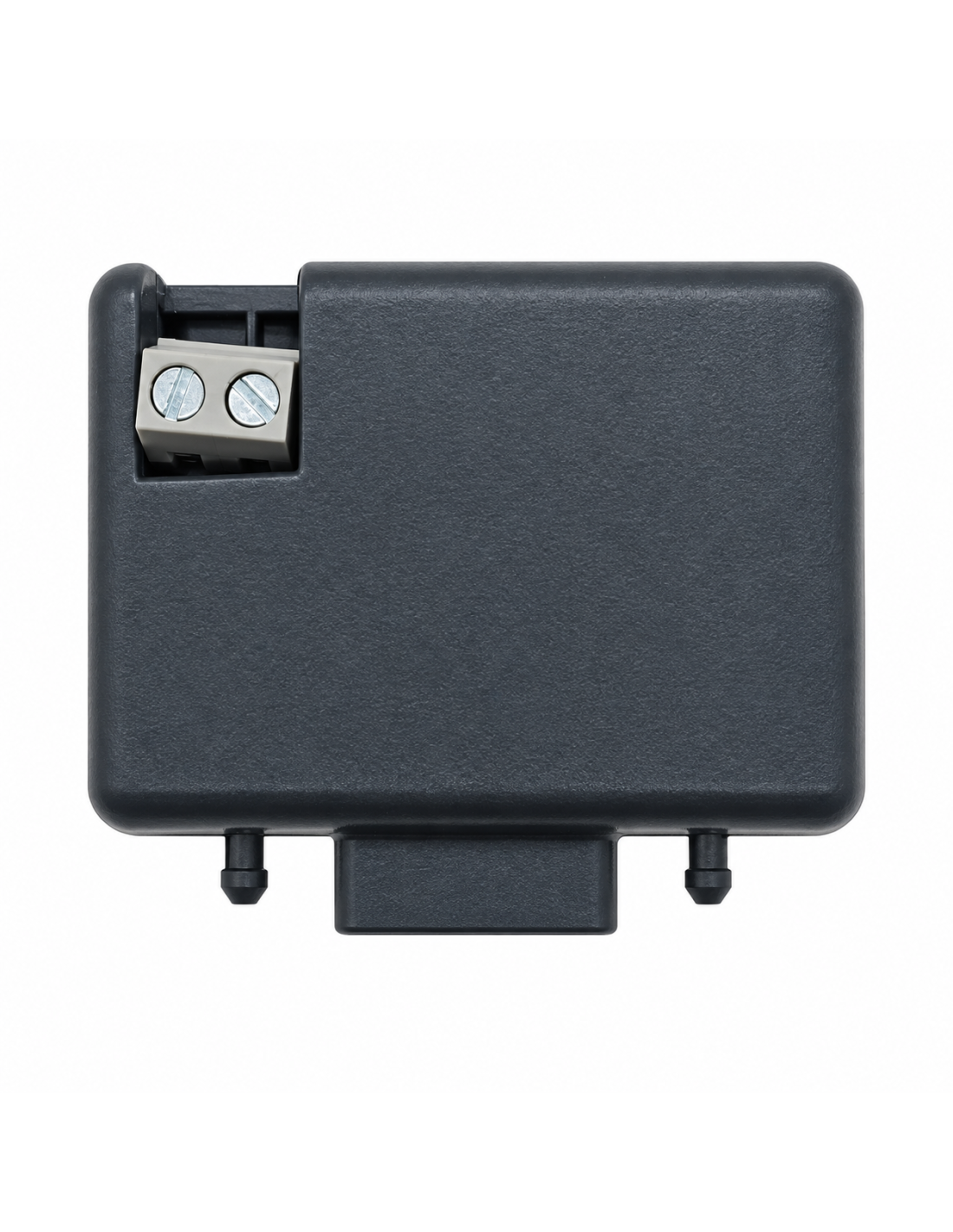

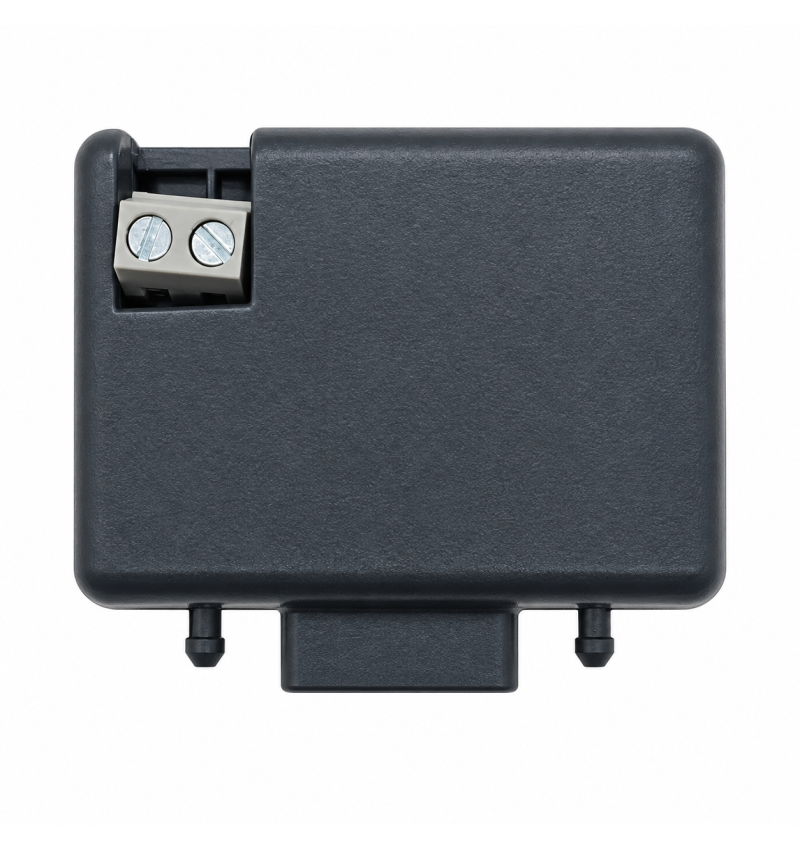

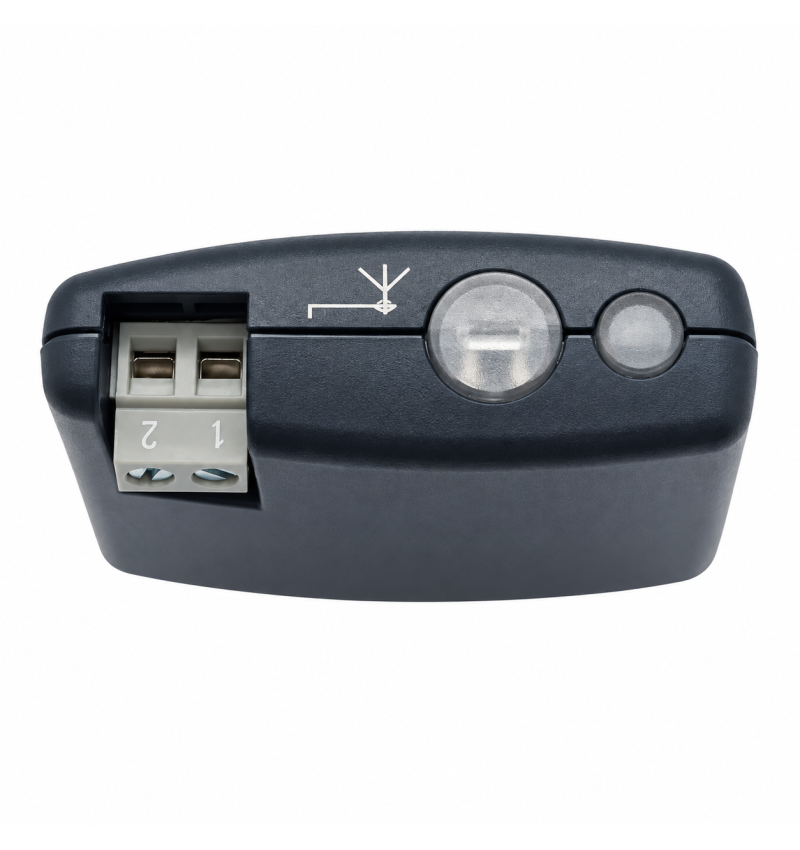

✓ Connection for supplied antenna or external antenna by coaxial cable 50 ohms.

✓ Compact design for installation inside a compatible electronic center.

Advanced features with Bust4

When installed in a central Nice compatible Bust4, the receiver can offer additional control functions.

In central with Bust4 you can manage up 15 different commanders, while in Central without Bust4 it has up 4 different commanders.

Installations with several automatisms connected via Bust4 can also support orders retransmission functions through said network, upon configuration of the corresponding receivers.

The availability of these functions depends on the electronic center and system configuration.

Memorization in mode i

In this mode the control keys are memorized with the functions automatically assigned by the control panel.

1. Keep pressing the receiver button until the green LED lights up and drop it.

2. In the next 10 seconds, carry out the transmission from the command:

- Unidirectional command: keep a key pressed up to the first confirmation blinking of the receiver and release it.

- Bidirectional command BD: press and release a key immediately.

3. The receiver confirms memorization by 3 green blinks.

Memorization in II mode

This mode allows you to memorize a specific key of the control and associate it with a certain function of the automatism.

1. Consult in the Manual of the Central Nice the number corresponding to the desired function.

2. Press the receiver button as many times as indicate the number of that function.

3. Transmit with the command key that you want to memorize, following the procedure corresponding to its unidirectional technology or BD.

4. Memorization is confirmed by 3 green blinks. For other keys, repeat the procedure.

What commands can I memorize in the OXIBD?

You can memorize emitters Nice compatible with encodings BD, O-Code, Flower, TTS, FLO and SMILO. The unidirectional controls must belong to the same selected coding family, while the BD controls can coexist with them.

How can I know what coding the receiver has memorized?

Disconnect and reconnect the power supply of the plant. After ignition, observe the receiver LED blinks.

1 green flashing: Flo.

2 green blinks: O-Code, flower or TTS.

3 green blinks: Smilo.

5 green blinks: no memorized command.

An additional orange flashing: indicates presence of BD bidirectional controls in memory.

Can you delete a single command?

Yes. The OXIBD allows you to delete a single transmitter or a specific key using the receiver button and the removal command. The process varies according to the transmitter is unidirectional or bidirectional. See the section 3.7 manual.

How are all controls erased?

Press and hold the receiver button and observe the LED blink sequence:

Release during the third blinking: delete all memorized transmitters.

Release during the fifth flashing: delete all the memory of the receiver. To change the unidirectional coding family, this last operation must be performed.

Can I use it with a central one that is not Nice?

The OXIBD is designed to connect directly to central with compatible SM connector. To use it in other manufacturers' power plants, a compatible interface such as the Nice OX2UBP, which provides relay outputs. The compatibility of the installation should be prior.

Important during installation

Before connecting or removing the OXIBD receiver must disconnect the electrical power supply of the electronic power station.

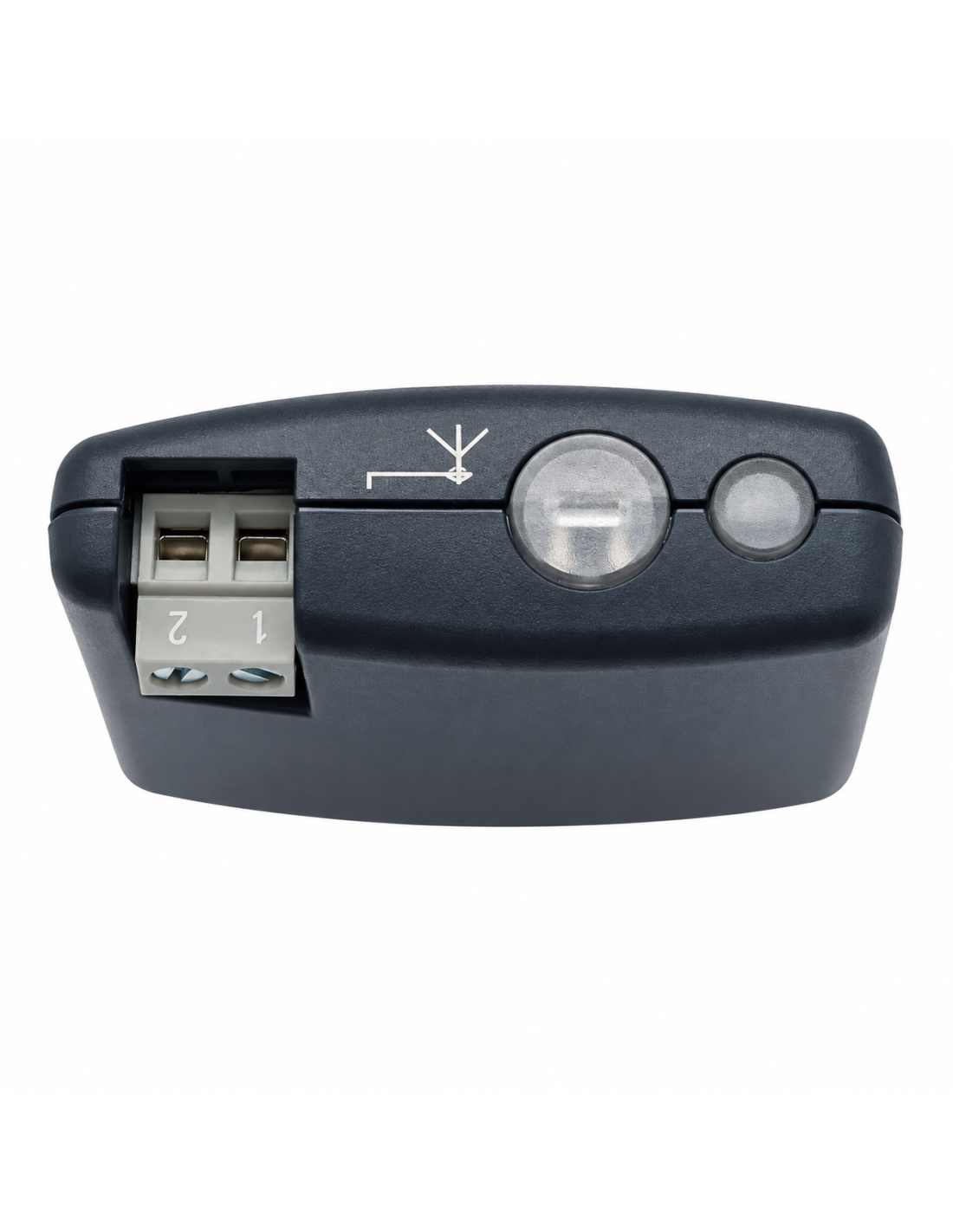

To improve the reception, an external antenna can be installed using coaxial cable 50 Ω, type RG58, connected directly to the receiver antenna terminals, following the manufacturer's scheme.

OXIBD is a plug-in receiver for protected mounting within a central or suitable housing; It should not be exposed directly to the weather.

Download Manual Nice OXIBD in Spanish (PDF)

■ 1 × plug-in receiver Nice OXIBD 433,92 MHz. . Remote controls not included.
