Cardin EDGE OC2 receiver kit with 2 controls Tango2 433,92 MHz

Cardin EDGE OC2 receiver kit with 2 controls Tango2 433,92 MHz

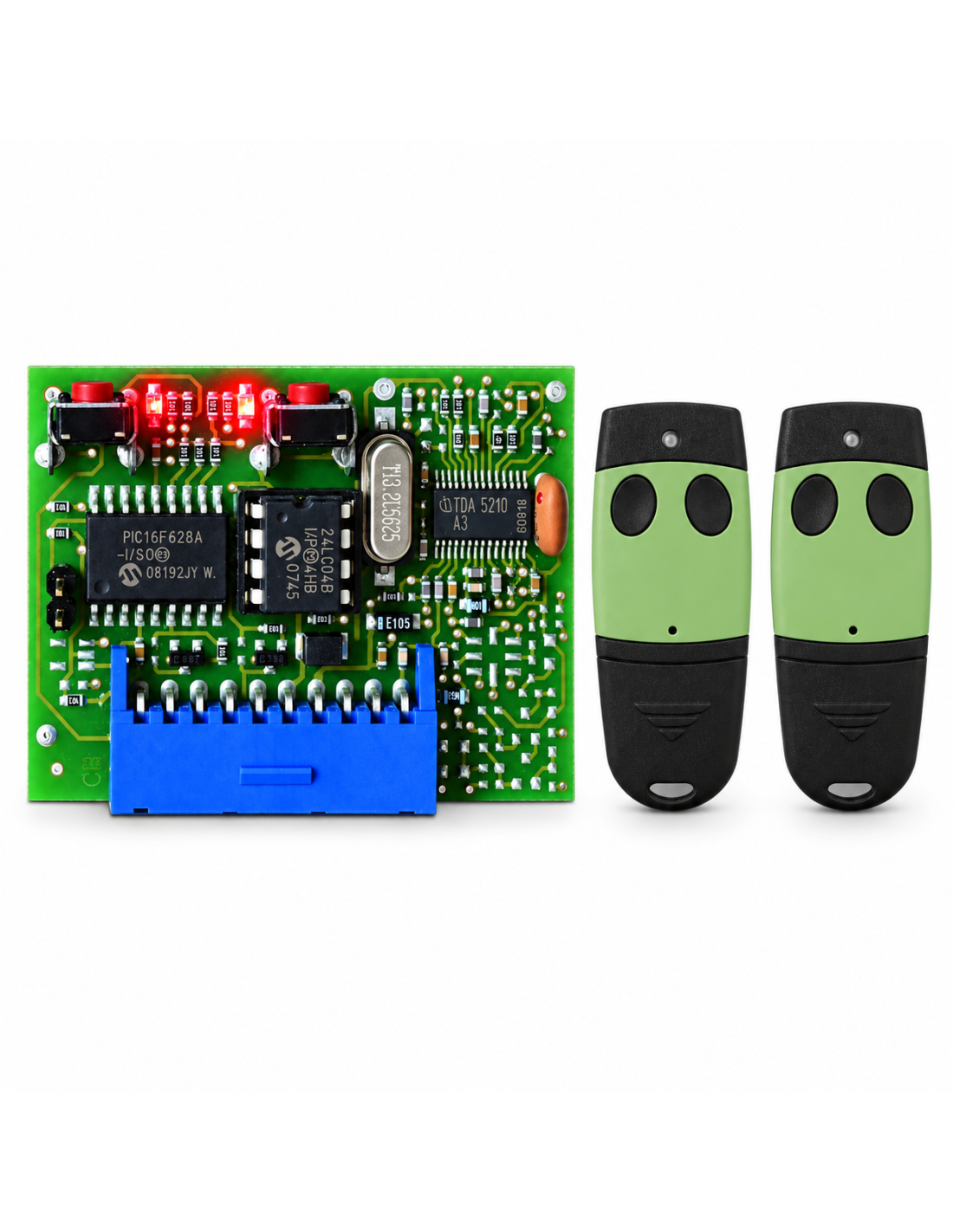

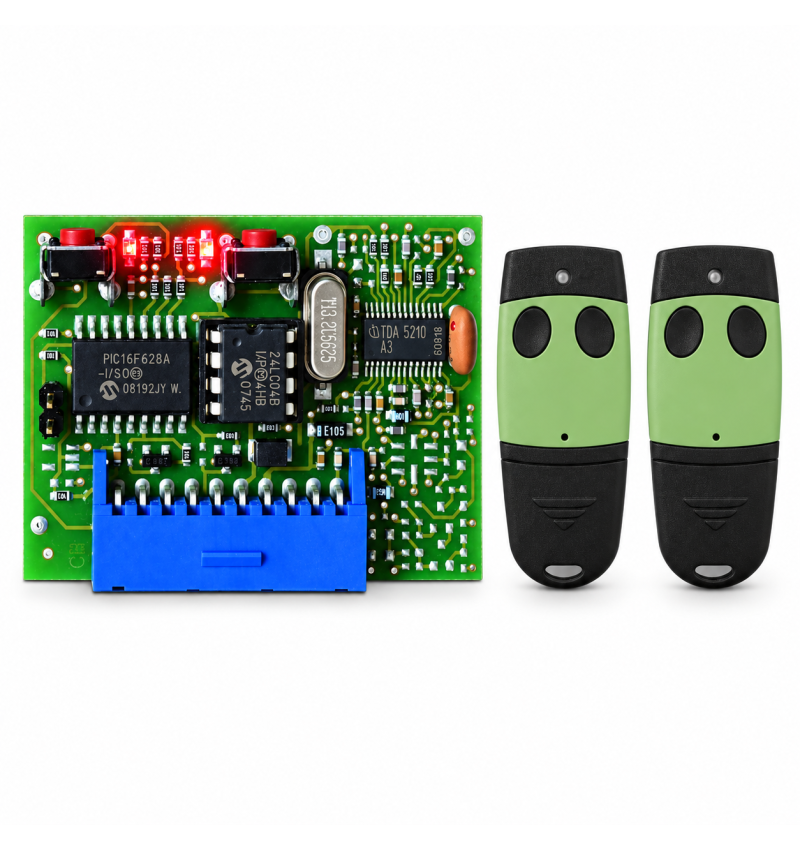

This kit is composed of a cardin Edge OC2 plug-in receiver and 2 controls Telcoma / Cardin Tango2 of 2 channels, all of them working at a frequency of 433,92 MHz.

The EDGE OC2 receiver has 2 channels with Open Collector outputs and is designed to be installed directly in Cardin electronic power plants / Telcoma prepared for this type of receiving card.

Controls TANGO2 belong to the previous generation Telcoma and are compatible with the EDGE OC2 receiver, allowing to maintain or expand facilities that use this radio system.

Is a specially indicated solution for facilities that need receiver and controls in the same set, avoiding having to acquire the components separately.

Full receiver kit + 2 controls

✓ 1 eDGE OC2 receiver.

✓ 2 controls tango2.

✓ Frequency 433,92 MHz.

✓ System compatible with CARDIN / CENTRAL Telcoma prepared for Open Collector plug-in receiver.

The EDGE OC2 is a plug-in receiving card 2 channels for compatible power plants.

Your outputs are of type Open Collector, so it must be connected exclusively in computers prepared for this type of receiver.

Work 433,92 MHz and allows you to memorize 163 codes with the standard memory.

The capacity can be extended until 675 codes using a compatible 24LC16 memory.

The kit includes 2 controls tango2 of the previous series Telcoma, compatible with the EDGE OC2 receiver.

Each command has 2 buttons / 2 channels and work at a frequency of 433,92 MHz.

The codes are memorized directly in the receiver using the self-learning procedure.

Each command uses a battery 12V Type A23 / L1028.

The receptor EDGE OC2 it is compatible with:

✓ Controls of the series Cardin Edge.

✓ Controls of the previous series Telcoma TANGO compatible, like the Tango2 included in this kit.

✓ Central Cardin / Telcoma prepared 5vDC Open Collector receiver.

Important: Do not confuse with Tango SW

The receptor EDGE OC2 it is compatible with the previous series Compatible code tango, but it is not compatible with controls Tango Rolling Code or Tango SW. Before replacing an existing system, check the exact model of the installed controls.

The two inclusive controls must be memorized in the eDGE OC2 receiver before using them.

1. With the receiver installed and powered, briefly press the button P1.

2. Place the command approximately 50 cm from the receiver.

3. Press the Tango2 control button that you want to memorize.

4. Check through the receiver LEDs that the code has been stored correctly.

The function associated with each channel will depend on the electronic Central where the EDGE OC2 is connected.

Open Collector plug-in receiver

The EDGE OC2 it is not a universal outdoor receiver with relay contacts. It is fed at 5Vdc from the plant and must be installed only on Cardin / Telcoma prepared for a compatible Open collector receiving card.

This kit can be used to control compatible automatisms such as:

✓ Sliding doors.

✓ Snack doors.

✓ Garage doors.

✓ Automatic barriers.

The final compatibility depends on the electronic Center.

Download Manual Cardin Edge OC2 in PDF

■ 1 × cardin EDGE OC2 receiver card of 2 channels.

■ 2 × controls Telcoma / Cardin Tango2 of 2 channels and 433,92 MHz.
