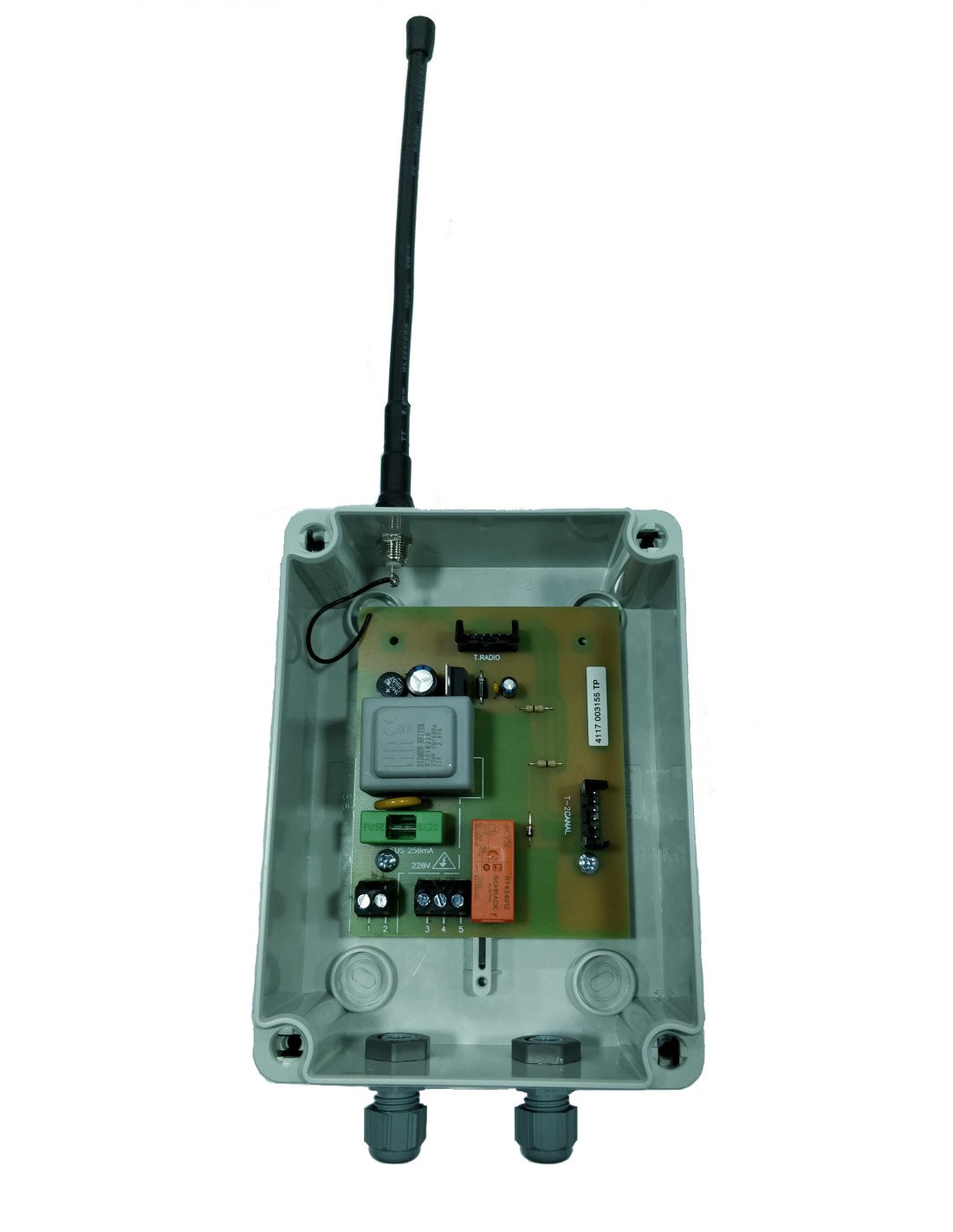

220v ac receiver base incorporating a voltage-free switched contact output on the base plate and enabling expansion to 2 functions by means of a card.

DESCRIPTION OF BOARDS

• Power supply at 220v ac
• Output contact switched
• Common
• Contact is normal. closed
• Contact is normal. open

TECHNICAL CHARACTERISTICS

• Power supply 220v
• Maximum power consumption 17 mA
• Output relay 1 contact switched max 250v 10A
• Selection of functions: 1st and 2nd optional card

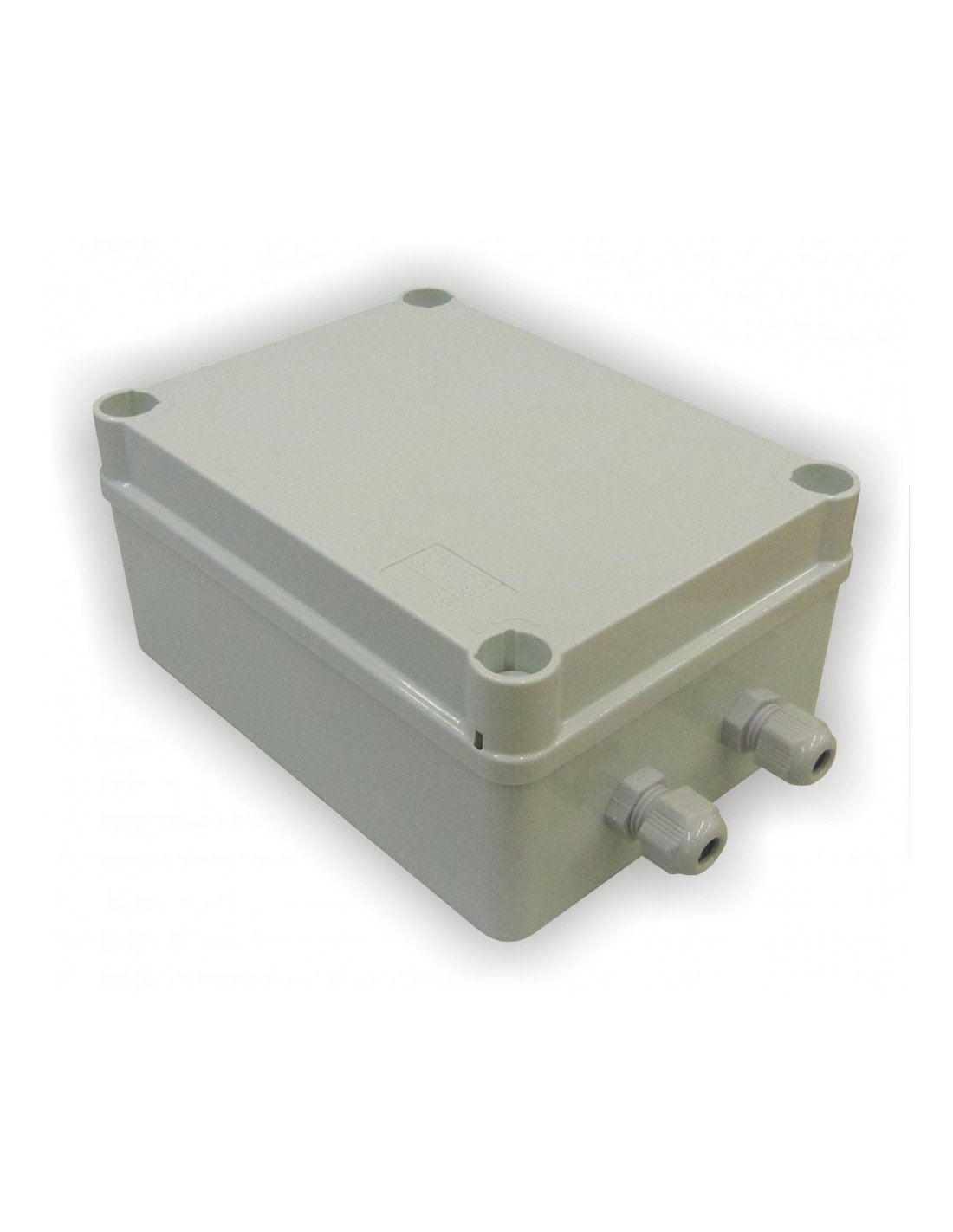

BOX CHARACTERISTICS

• Material: ABS plastic with load
• Protection degree: IP-65
• Fire resistance: HB UL94
• For the purposes of this Regulation, the following definitions shall apply:
• Size: 166x91x56mm
