Receiver CAME RKLT-W50 for mechanical tubular motor 50 nm and 500 W

Name: Receiver CAME RKLT-W50 for mechanical tubular motor 50 nm and 500 W
Brand: CAME
SKU: 001YE0119
Price: 45 EUR
Availability: InStock

Reference 001YE0119

€45.00

VAT excluded

54,45 €

Tax incl.

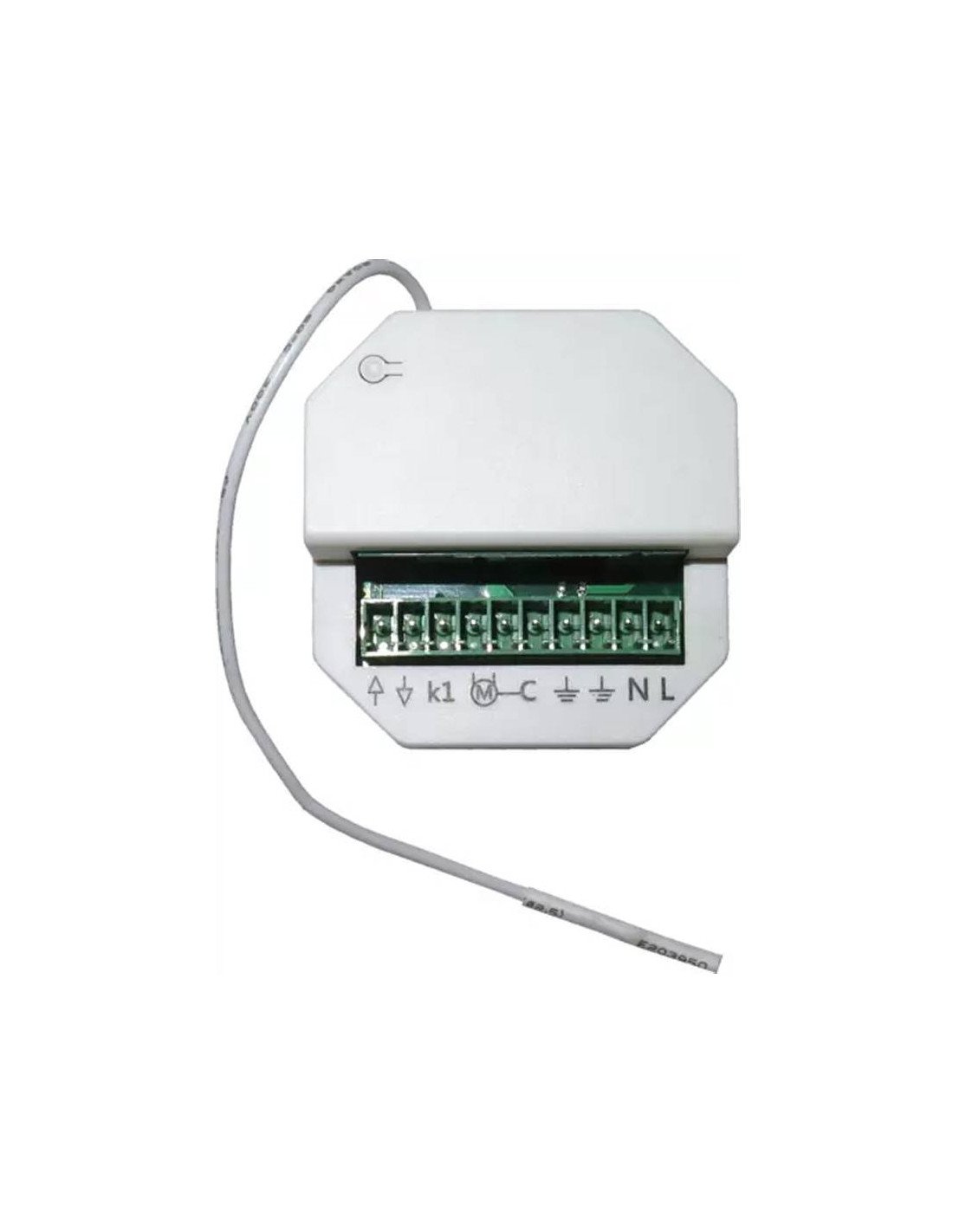

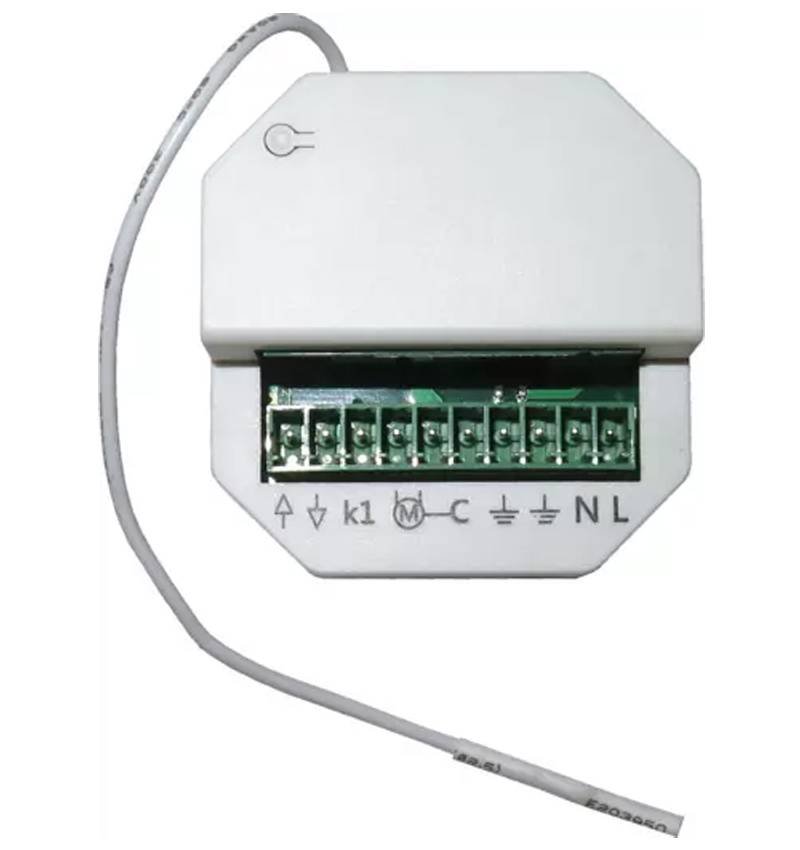

Receiver CAME Rklt-w50 It allows radio control a 230 V single-phase mechanical tubular motor intended for awnings, blinds and similar roller systems.

Is designed for engines with Electromechanical race end, with a maximum pair of 50 nm and a maximum power of 500 W. In addition to the control by emitters CAME KLT, it supports the connection of an external button to perform the rise, stop and down maneuvers.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Receiver CAME Rklt-w50 It allows radio control a 230 V single-phase mechanical tubular motor intended for awnings, blinds and similar roller systems.

Compatibility: Valid for mechanical tubular motors CAME or other brands that work at 230 V, have electromechanical career end and do not exceed the limits of 50 nm and 500 W. Each receiver can control single engine.

Advantages of the receiver CAME Rklt-w50

Allow to add radio control to a mechanical tubular motor.
Compatible issuers CAME of the KLT series at 433.92 MHz.
Memory for a maximum of 20 emitters, including compatible meteorological plants or timers.
Admits a External switch push button with zero central and automatic return.
It has a functioning mode automatic and of main action.
Compact format for installing in a properly protected mechanisms or derivation box.
Integrated antenna by isolated cable of 17 cm.

Important about the frequency: the reference CAME 001ye0119 works at 433,92 MHz. Before placing the order, check that the KLT controls that you want to use work on this same frequency.

Technical data CAME Rklt-w50

Manufacturer	CAME
Reference	001ye0119
Model	Rklt-w50
Application	Awnings, blinds and roller systems
Compatible engine type	Single-phase asynchronous mechanical tubular motor with electromechanical career finishes
Maximum number of engines	1 receiver motor
Maximum torque	50 nm
Maximum power	500 W / 400 VA
Feed	230 V AC ± 5%, 50 Hz
Reception frequency	433,92 MHz
Memory capacity	Up to 20 emitters
Operating temperature	From 0 ° C to +55 ° C
Maximum duration of the maneuver	4 minutes
Dimensions	51 × 51 × 27 mm
Antenna	Integrated 17 cm isolated cable

Operation and control

In automatic mode, a click ordered the opening or complete closure. The plant also allows to select the maintained action mode and connect an external button to govern the motor locally.

The external push button is operative after memorizing the first emitter. A new pulse on the same direction or on the opposite direction stops the movement.

Installation recommendations

Installation and electrical connections must be performed by qualified personnel And always without tension.
No more than one engine should be connected to the same receiving plant.
It is recommended to install the receiver in a plastic box Protected against blows.
The antenna must remain remote from the feeding cables and should not be cut or modified.
After wiring, it should be checked that the direction of rotation of the engine is correct.
