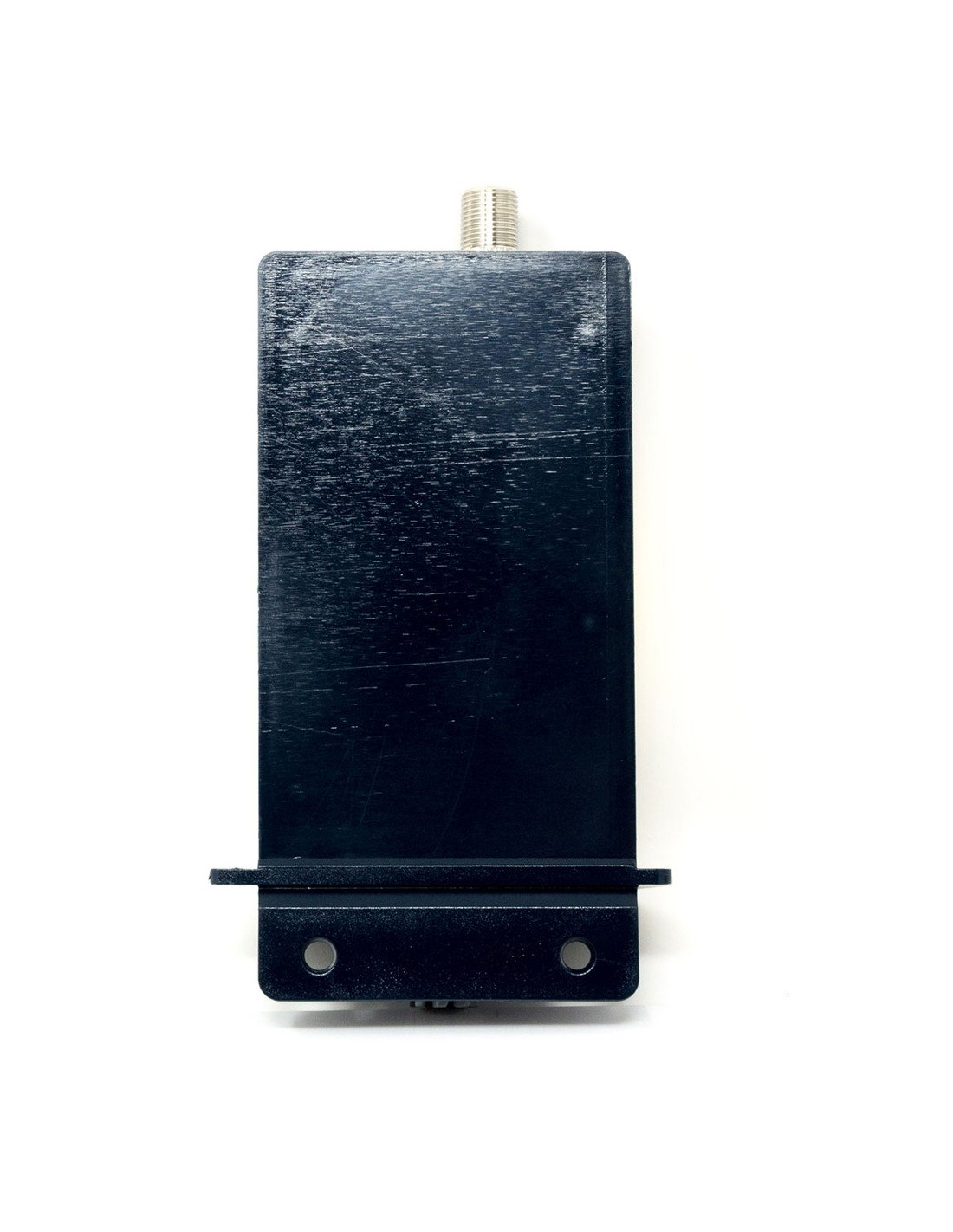

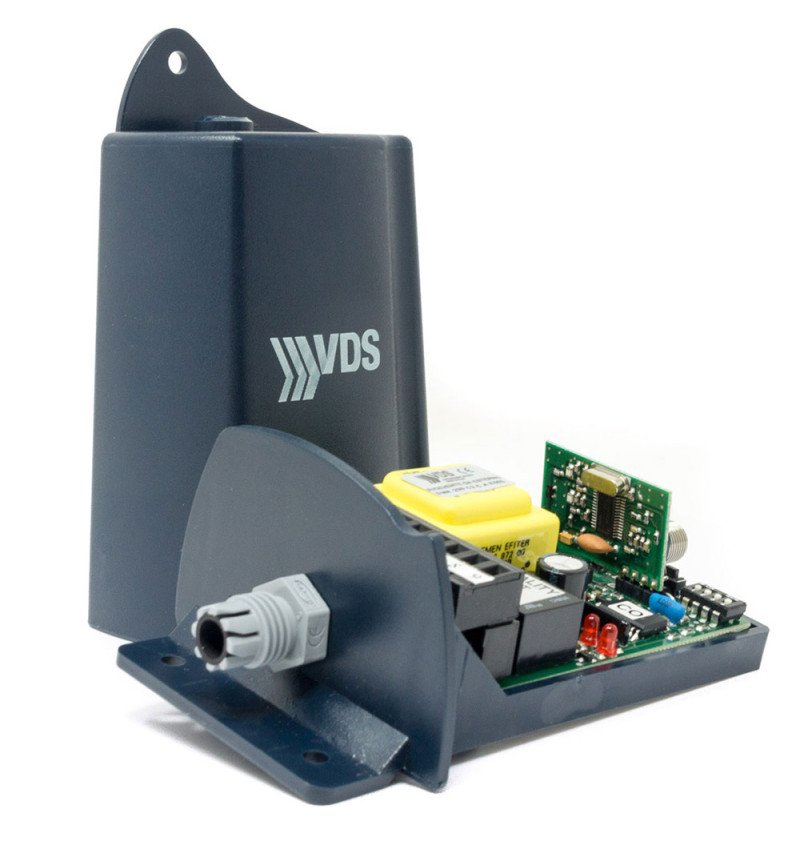

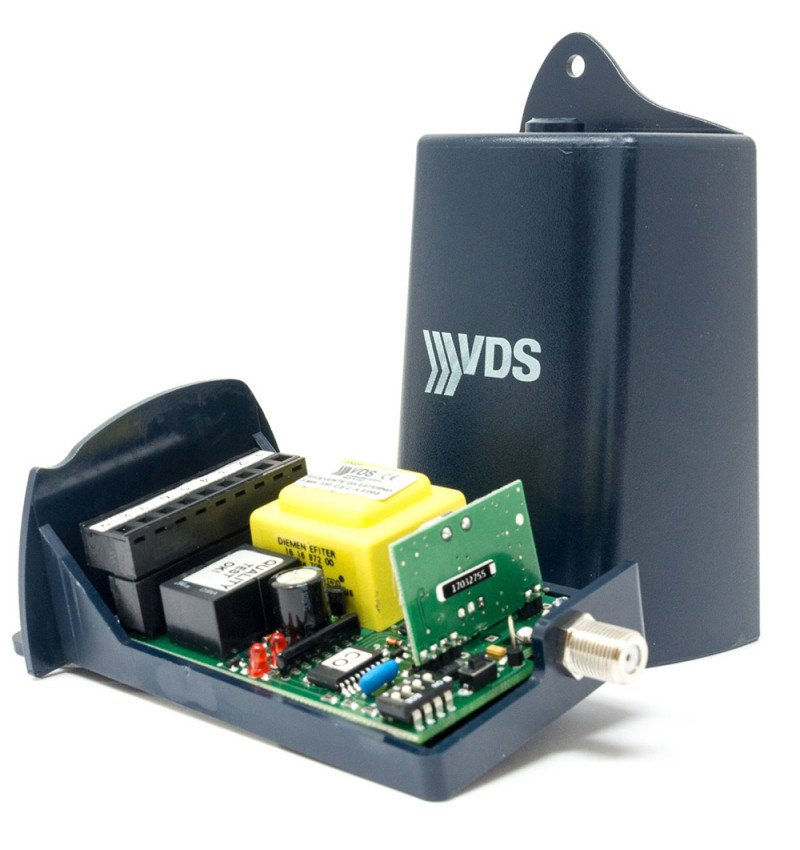

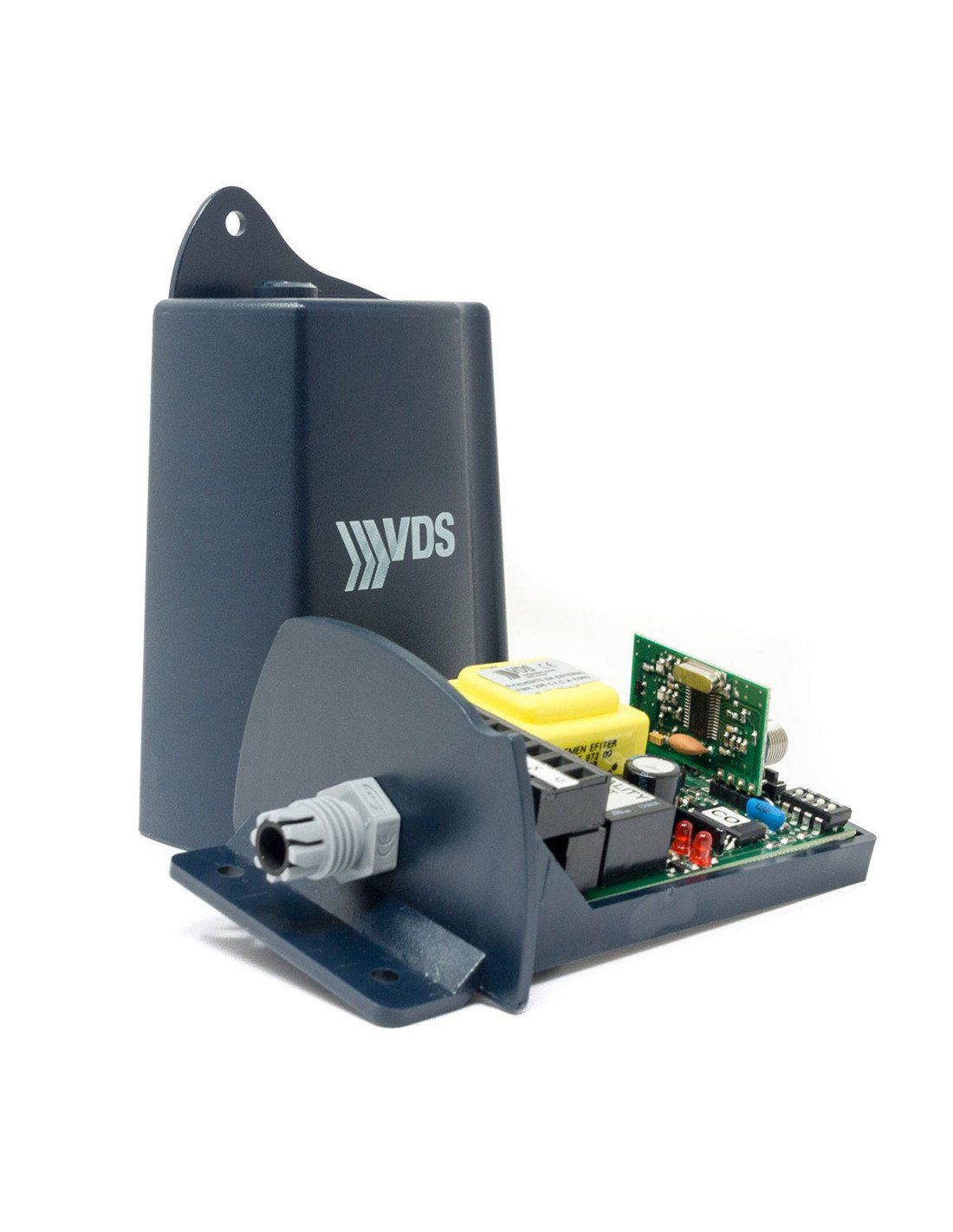

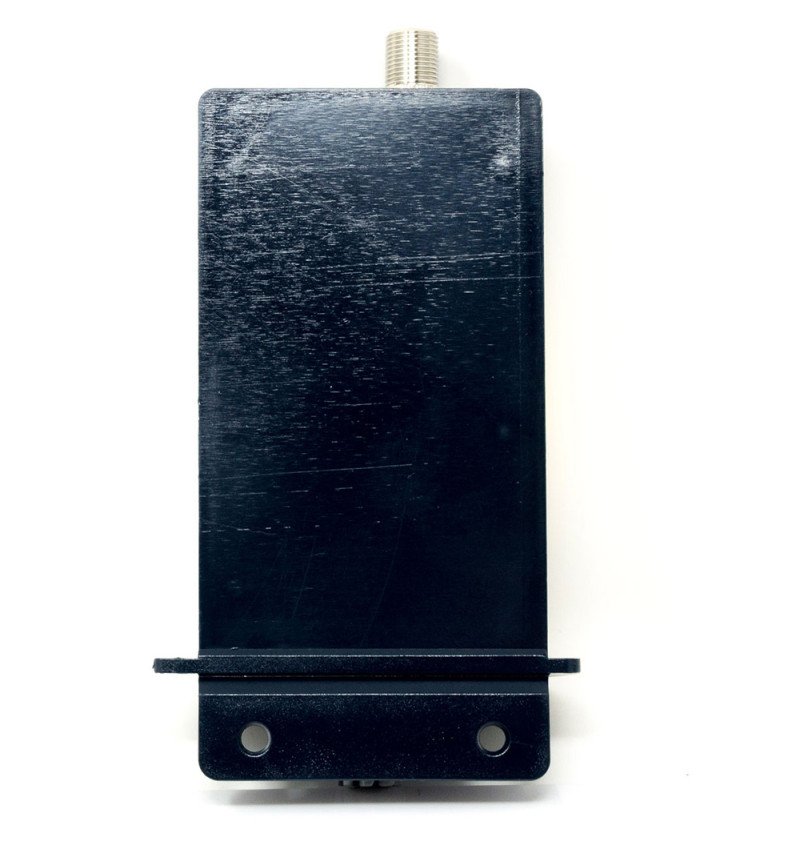

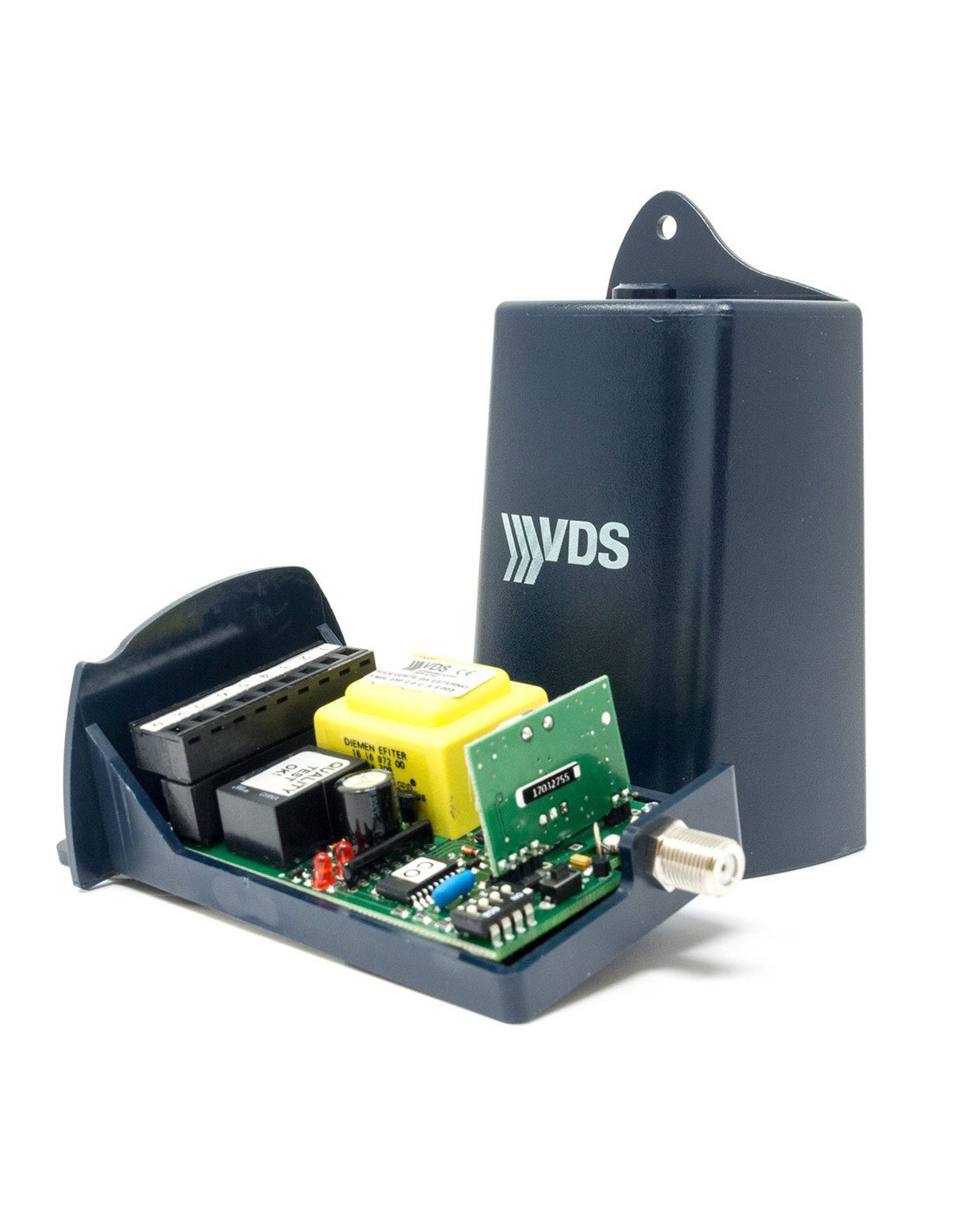

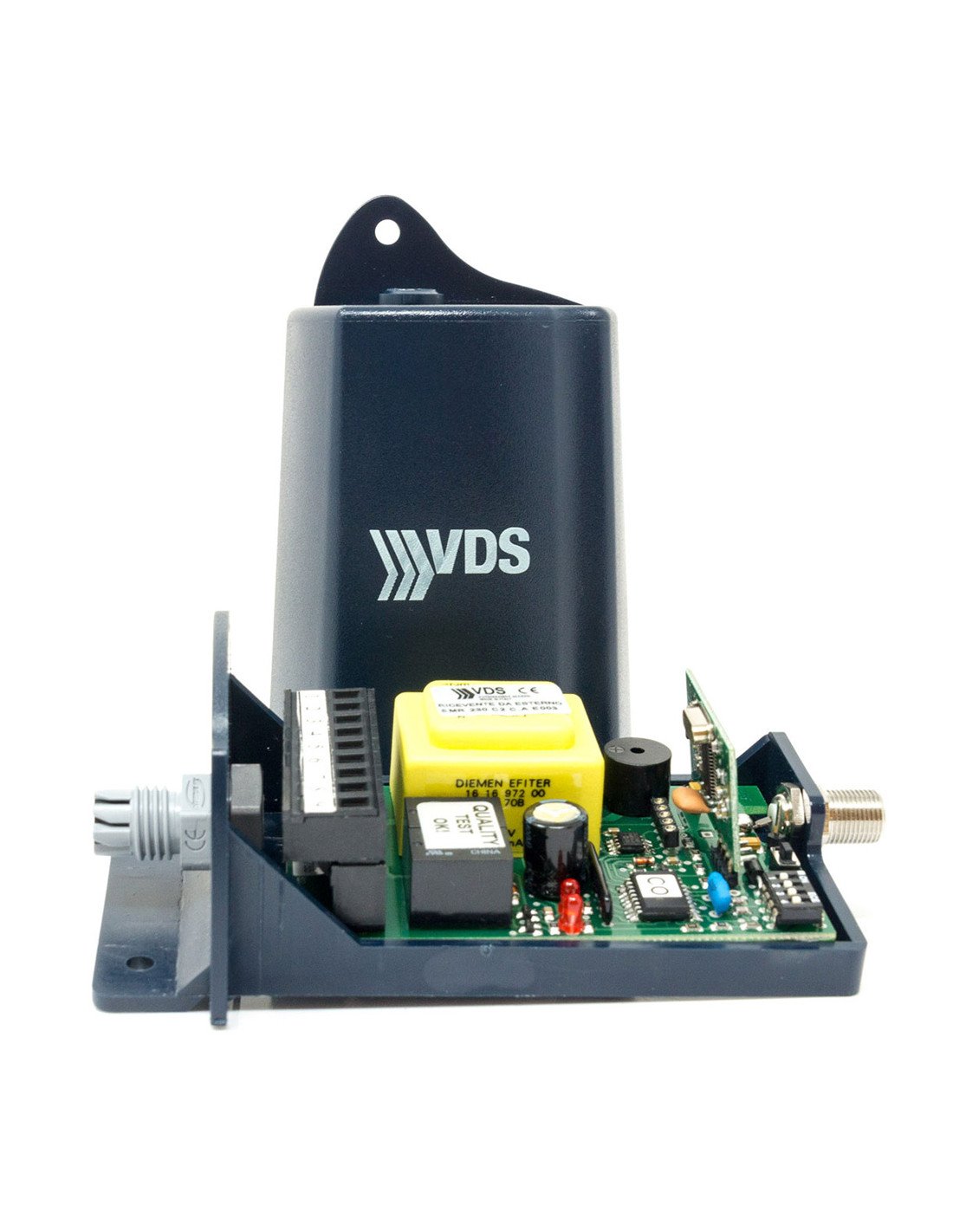

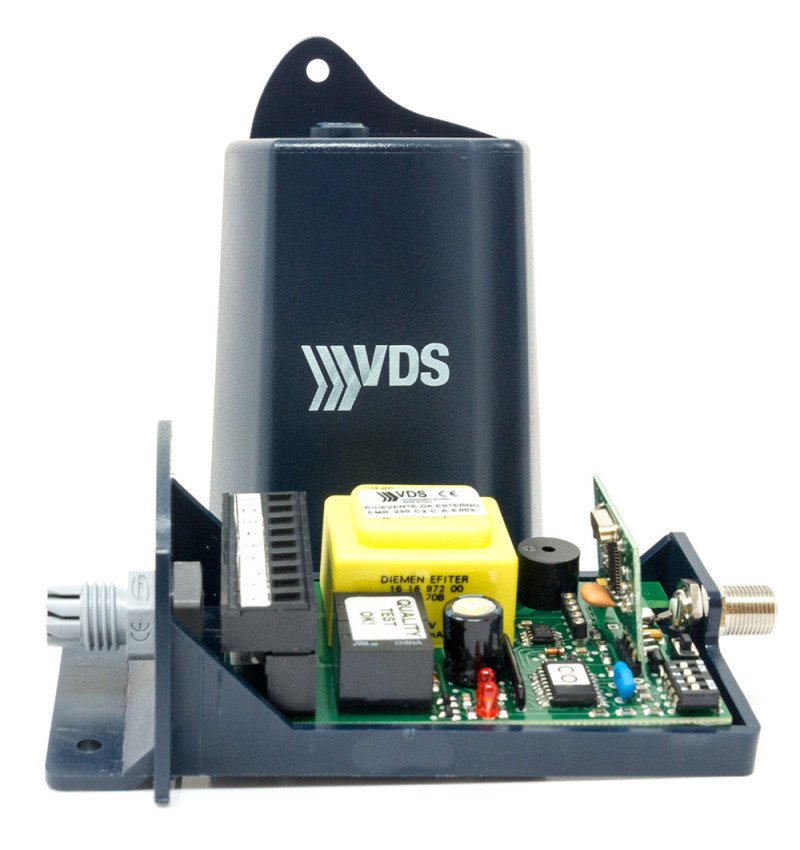

Outdoor receiver VDS SMR220 2 channels 433,92 MHz 230V

Outdoor receiver VDS SMR220 C2 it is a radio receiver of two-channels, Designed to control automatic doors, garage doors, cancelas, barriers, blinds and other automation systems.

It has a feeding 230 VAC and has two exit relays with normally open contacts, normally closed and common. This allows you to connect it to maneuver boxes that have an opening entry using voltage-free contact.

The receiver belongs to the range Smart control of VDS and can work with emitters using technology Hopping Code or by fixed code, depending on the selected configuration.

Main features

• Outside radio receiver for automations.
• Two operating channels.
• Feeding 230 VAC ± 10%.
• Two departures by relay.
• Output contacts No, NC and common.
• Running Hopping Code or fixed code.
• Encryption technology 64 bits.
• Automatic detection of transmission errors.
• Memorization by self-learning.
• First configurable relay in impulse or bistable mode.
• Programmable assignment of buttons and relays.
• Entry for access control system.
• Approximate maximum range of 60 meters.

Operating configuration

The receiver incorporates different configuration options to adapt its operation to the needs of each installation:

• Assignment function-relay: it allows assigning the buttons of the emitters to each of the relays according to the memorization order.
• Default assignment: the button 1 controls the first relay and button 2 controls the second relay.
• Selection of the type of code: operation through Hopping Code or fixed code.
• Multiple or manual memorization: it allows to select different programming systems of the emitters.
• Relay 1 Bity: each pulse changes the status of the relay between activated and deactivated.
• Relay 1 impulse: the relay remains activated while the corresponding signal is received.

Technical characteristics

Receiver connections

Compatibility

The receiver can be used with different maneuver boxes for automatic doors, as long as they have an activation input by voltage-free contact. For a habitual opening connection step by step, contacts will be used No and common of one of the relays.

Important: before performing the installation, the power supply must be disconnected. The connection must be made by qualified personnel and an easily accessible disconnection device must be incorporated.
