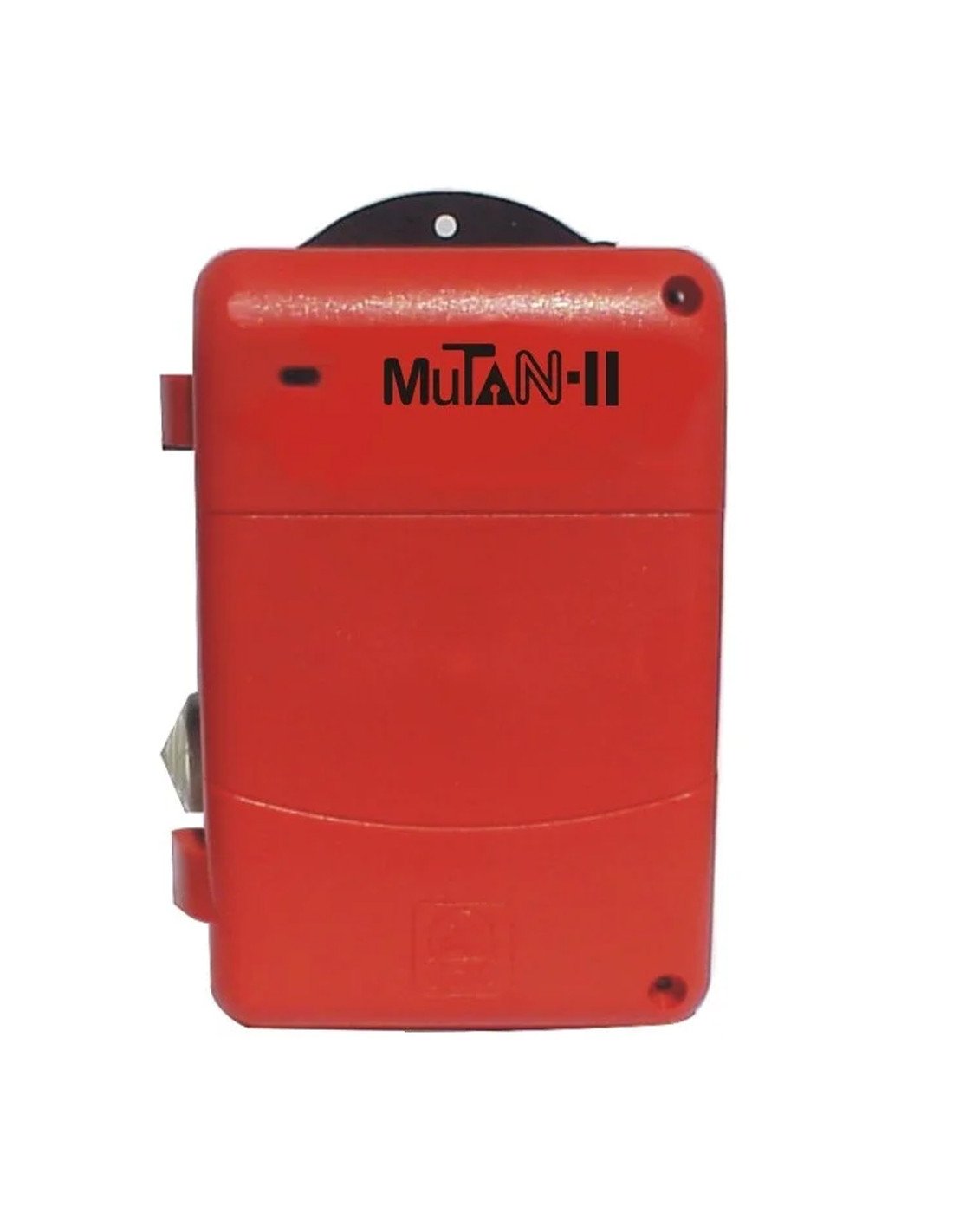

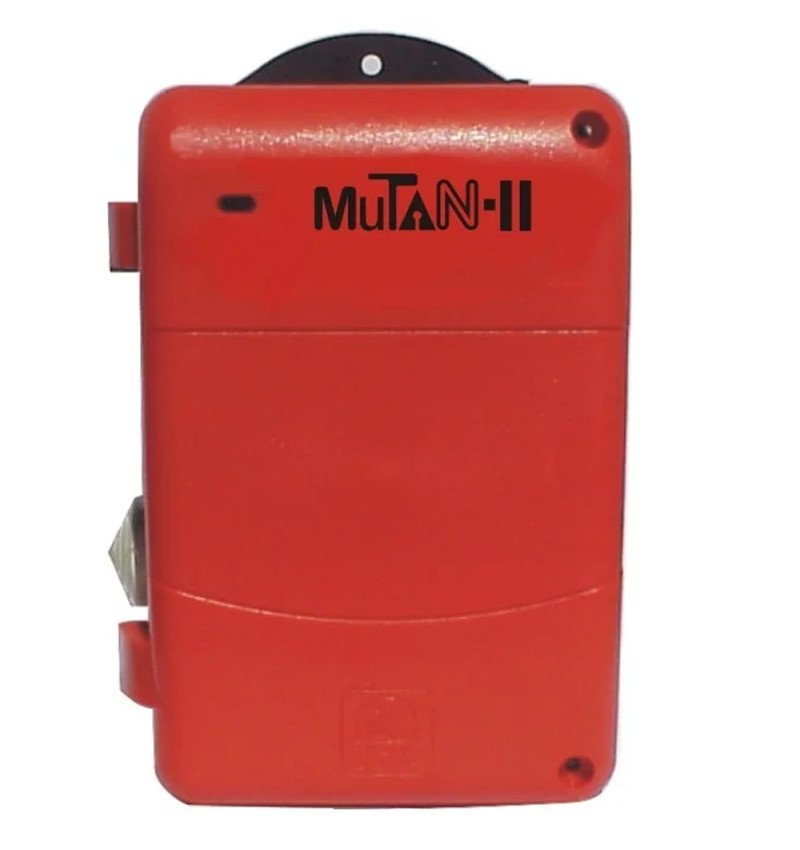

Outdoor receiver Clemsa Mutancode RN44 to 230V or 12 / 24V

Clemsa RN44 is a 4-channel multifrequency outdoor receiver designed for automation control, garage doors and other access systems. Its great versatility allows you to feed it directly to 230 VAC or by 12-24 VAC / VCC, facilitating its adaptation to different facilities.

Has 4 relay outputs with normally open contact, configurable to associate each output to the desired channel of the control. Your memory admits 400 users and the housing with IP54 protection allows you to install it outdoors, always respecting the manufacturer's assembly indications.

The receiver works simultaneously at the frequencies of 433.92 MHz and 868.35 MHz, so it is not necessary to manually select a single frequency. You are part of the family Clemsa Mutan II and provides advanced functions to increase security and facilitate the management of issuers.

Important: the receptor Clemsa RN42 of 2 channels has been discontinued. The 4-channel RN44 model is currently available.

Main advantages of the receiver Clemsa Rn44

• 4 relay outputs With normally open contacts.
• Capacity for 400 users.
• Simultaneous operation in 433,92 MHz and 868.35 MHz.
• Selectable 230 VAC or 12-24 VAC / VCC.
• High controls by pushbutton, supervised authorization or direct authorization, depending on the system configuration.
• Unique key for each installation In Mutan II mode.
• Advance To detect two issuers that use the same code.
• Manual configuration of the correspondence between the channels of the controls and the outputs of the receiver.
• Removable memory TM400 for user management.
• Outdoor housing with Degree of protection IP54.

High emitting modes

The RN44 allows you to memorize the controls through the Receiver Programming Pulse. If the function is enabled, it is also possible to access learning through Authorization supervised by radio Using an emitter that is already running in the installation.

In Mutan II systems duly configured, the direct authorization: The receiver memorizes a compatible emitter located in its vicinity when the customization and installation key match.

Compatibility with Mutancode and Mutan II

The RN44 receiver leaves the factory working with the system Mutancode, maintaining the compatibility with the existing programmers of this family. To use it in mode Mutan II and take advantage of its additional security functions, it is necessary to enter an installation key through a compatible programmer of the Mutan II family.

Configuration of the outputs

Factory, each emitter channel drives the corresponding output of the receiver. This association can be modified manually or with a compatible programmer, allowing the control channel to be assigned to each of the four outputs.

Technical characteristics of the Clemsa Rn44

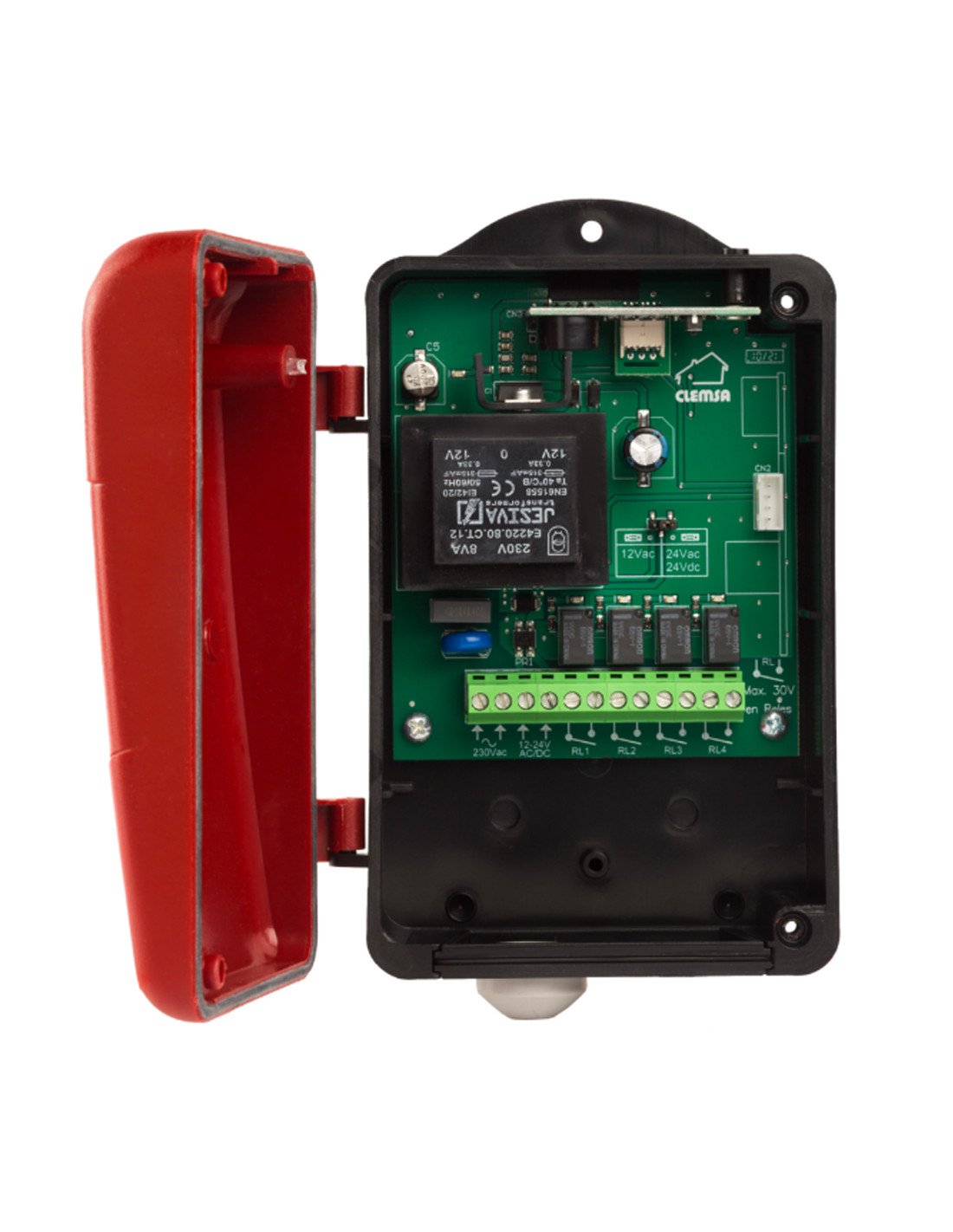

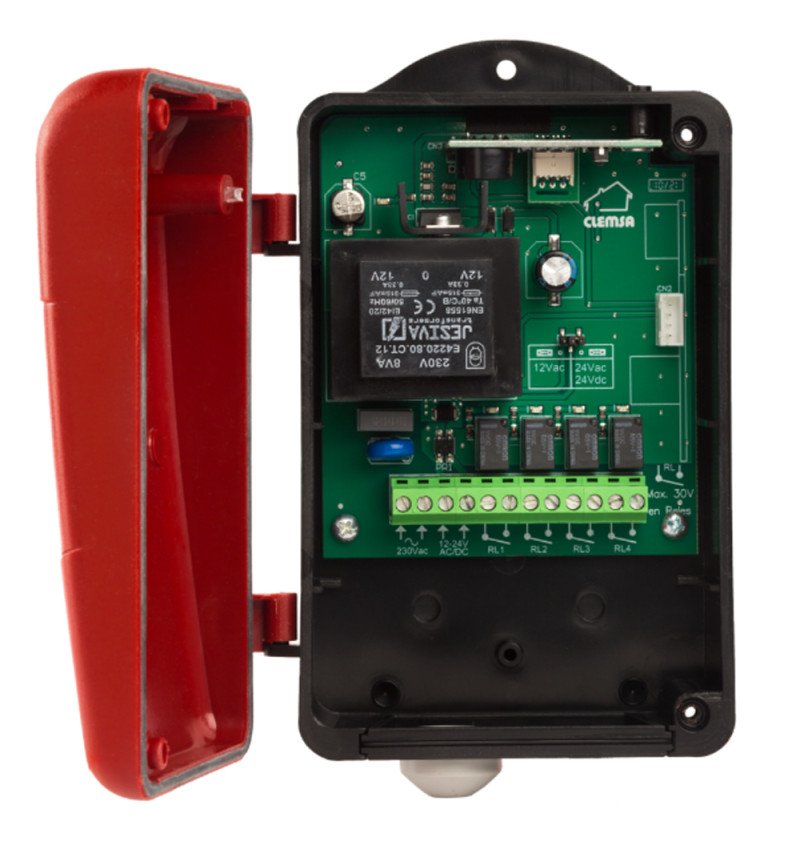

Connections of the RN44

Installation note: Before connecting the receiver at 12 or 24 V, the voltage selector must be adjusted correctly. The connections must be made with the installation without power and following the manufacturer's instructions.
