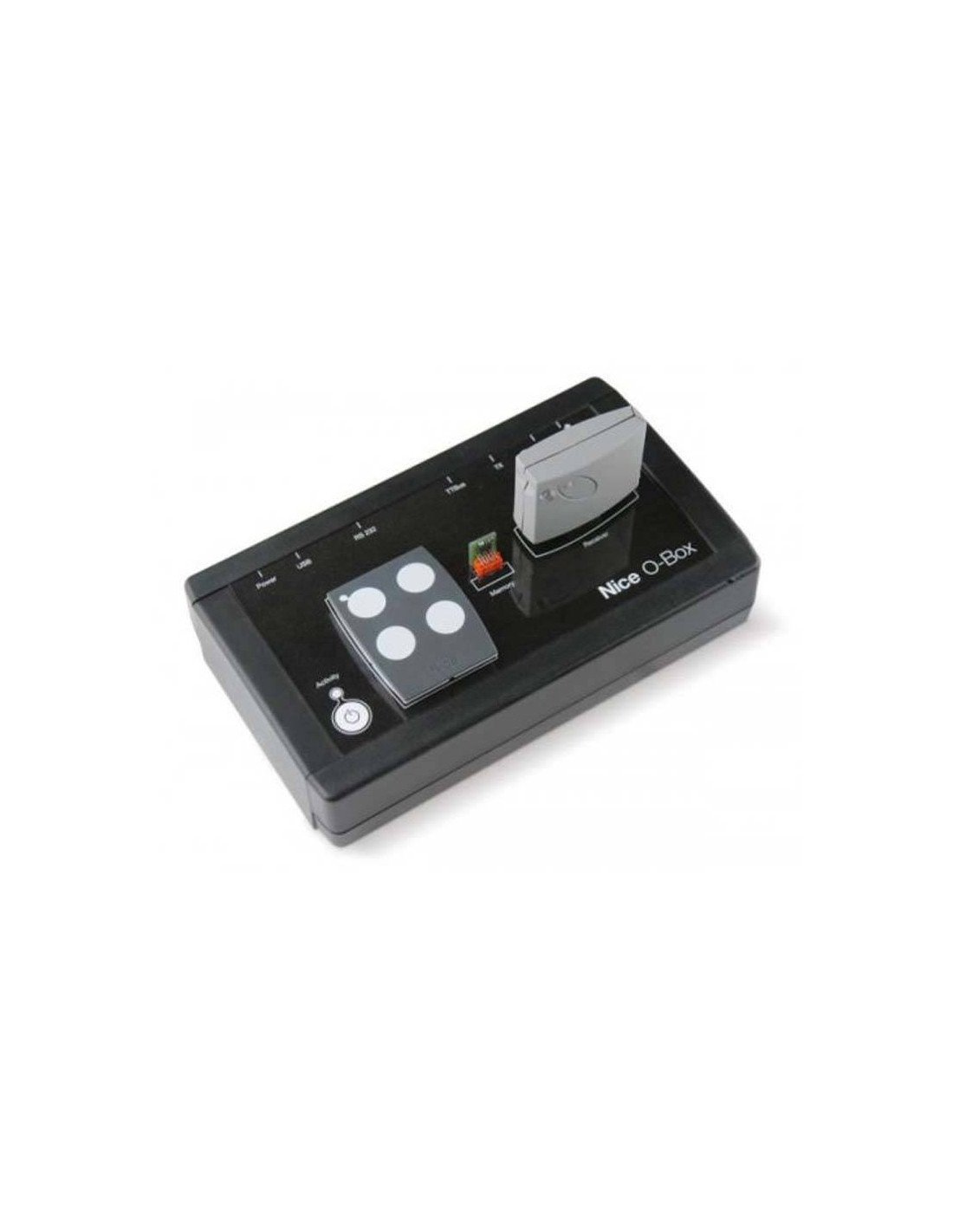

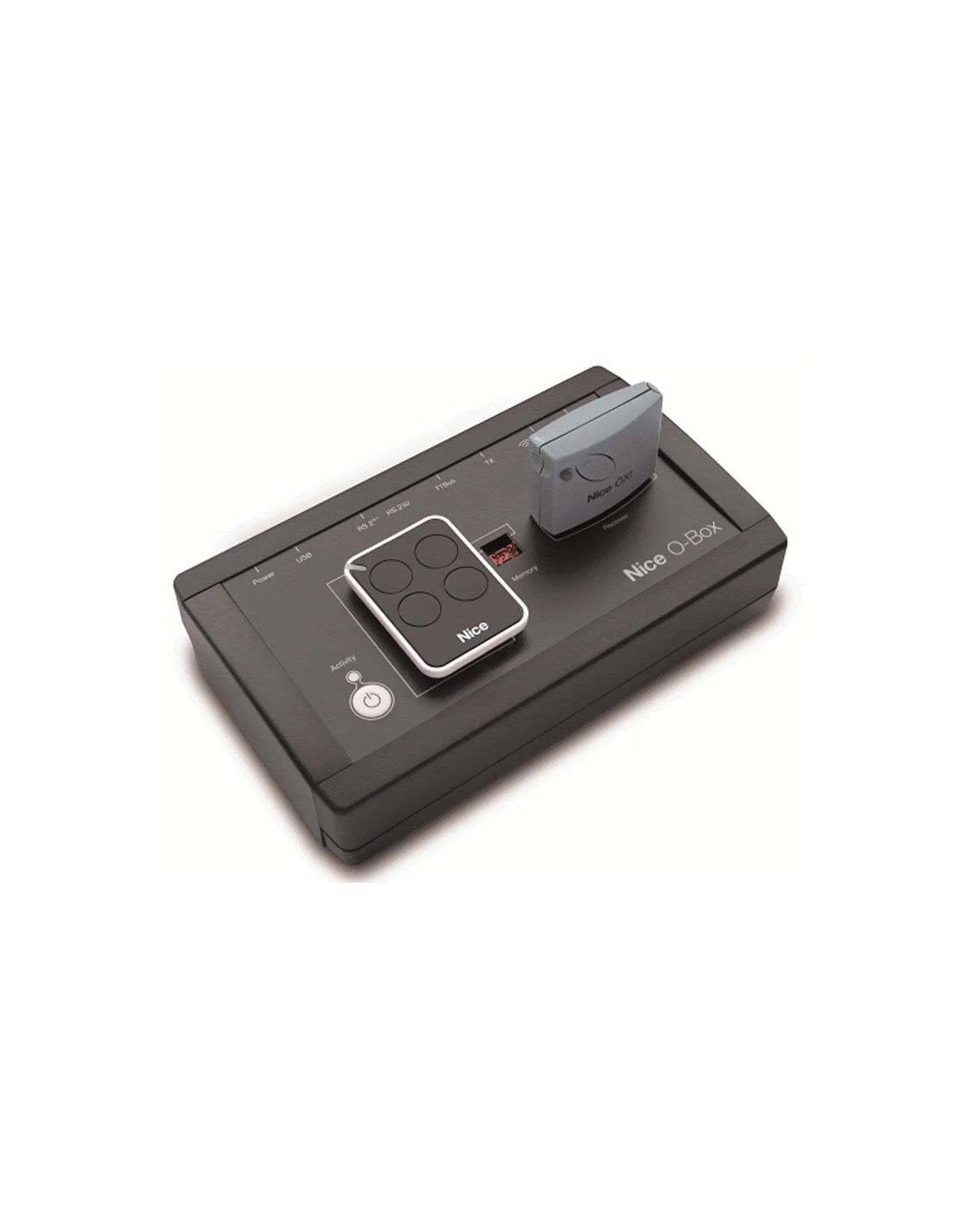

O-Box is the multifunction interface that, through the dedicated software "O-Box Software Suite" allows you to configure and program transmitters, receivers and other Nicedrive equipment directly with a PC or PDA, in a simple and intuitive way.

O-Box communicates with your PC or handheld PDA programmer so you can control, add, cancel, enable and disable codes; Program the memory, functions, and characteristic parameters of receivers, transmitters, and other Nicecontrol equipment.

Universal: O-Box manages all the programs that can be carried out through BUPC.

It also allows you to import databases previously created with the BUPC software into the "O-Box Software Suite".

The convenience of acting remotely: O-Box allows you to conveniently carry out some operations directly from your office, without having to go to the customer's facility.

For example, transmitter functions and parameters can be easily programmed and sent configured and usable to customers.

You can also:

• radio programming of One Series transmitters;

• manage all functions of One receivers with built-in transmitter by radio;

• Read and write Card with Moon series transponder;

• receive radio data from Smilo, VeryVE, Flo, VeryVR, FloR, One, Niceway series transmitters or via an optical reader for Bio series transmitters;

• programming the receivers of the Smilo, Bio, FloR and One series and the memories of the MOMB, MOTB and MORX control devices;

• Create and manage an up-to-date database with customer registration data and receiver configurations installed in the respective systems.

The "O-Box Software Suite" software is very easy and quick to install on a PC (O-Box Desktop version) or on PDA handheld programmers (O-Box Mobile version).

Minimum Requirements

O-Box Desktop Version for PC:

• Processor: AMD®/Intel® type (500 MHz) - Recommended by Nice: AMD®/Intel® type (1 GHz)

• RAM: 128 MB - Recommended by Nice: 256 MB

• Free Disk Space: 280 MB - Recommended by Nice: 512 MB

• Operating system: Windows® 98 SE or successive - Recommended by Nice: Windows® 2000 or successive until Win 7

• Connection: Bluetooth

• Video card: 800 x 600, with 256 colors

• Disc drive: CD-Rom (required for installation).

AVAILABLE MODELS

• OBOX2: Multifunction interface with the "O-Box Software Suite" software and USB connection cable provided. Dual Band, for devices at 433.92/868.46 MHz.
• OBOX2B: Multifunction interface with the "O-Box Software Suite" software, USB connection cable and integrated Bluetooth module. Dual Band, for devices at 433.92/868.46 MHz.

MANUAL

Instruction manual Nice O-Box
