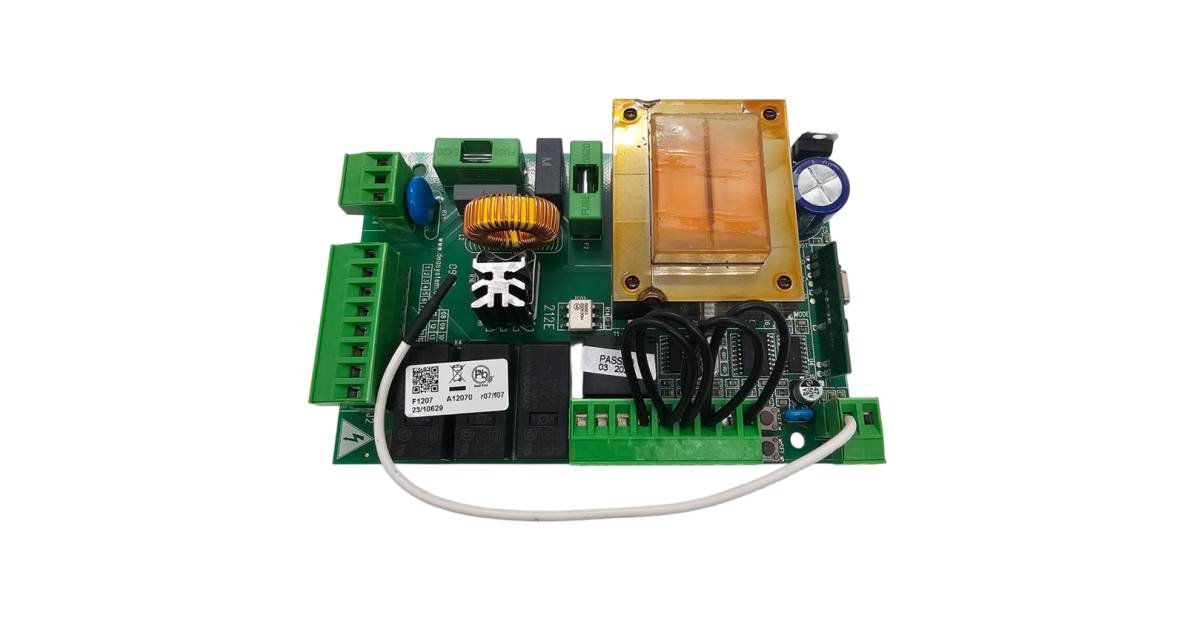

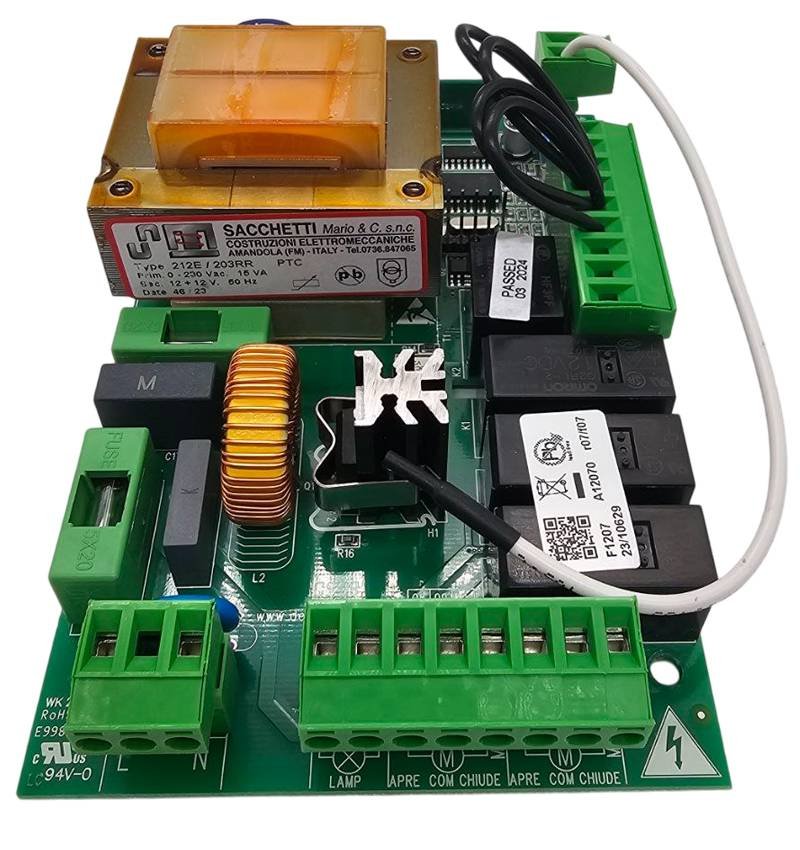

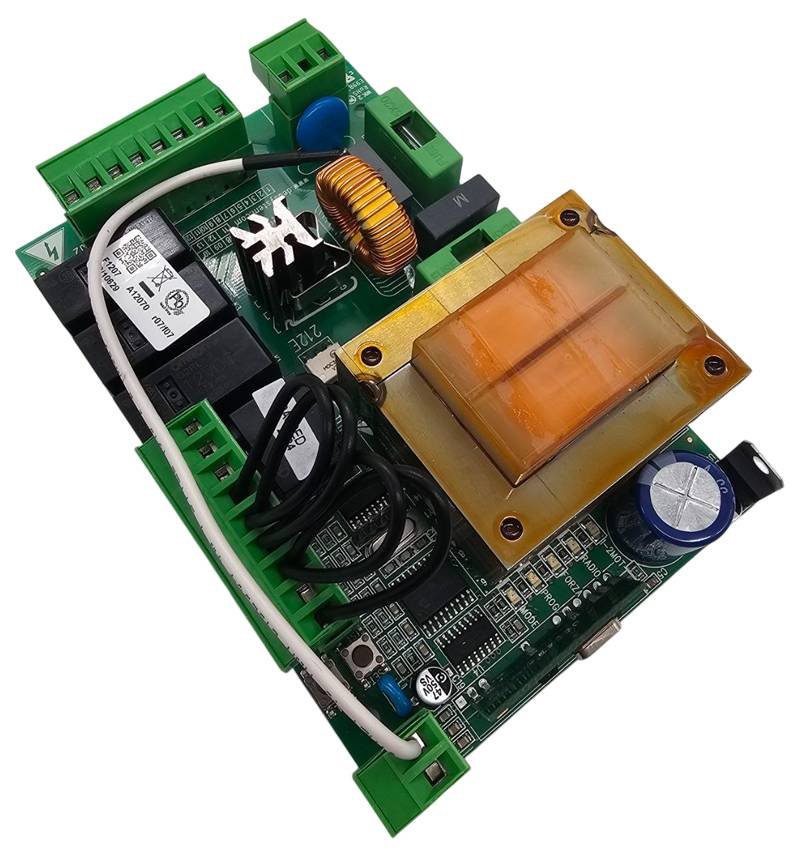

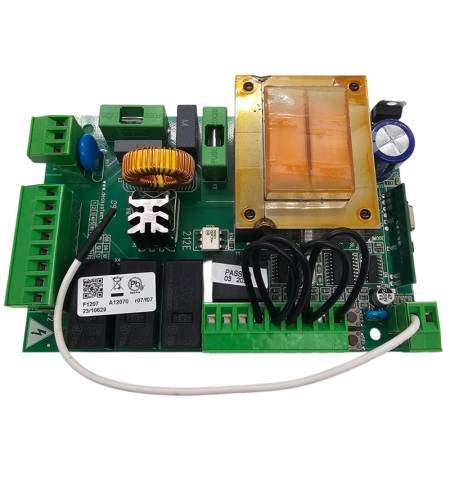

Table of manoeuvres DEA 212E for one or two 230Vac motors with built-in 433 MHz radio receiver.

Plate 212E can be used as a replacement slide DEA LIVI at 230V, models 403N, 6N, 803N and 9N.

■ Automated learning of manoeuvre times.

■ Regulation of force.

■ Soft stop.

■ Controlled entrances for external security devices.

■ Tickets for photocells

■ Input for alternate button

TECHNICAL CHARACTERISTICS

• Power supply: 230 V ~ 50 Hz
• The power supply shall be so designed and constructed as to meet the following requirements:. Lumy
• Power output auxiliary circuits (+24VAUX) 24 V ~
• Power output of safety devices (+24VSIC) 24 V ~ }Max. 200 mA
• Maximum engine power: 2 X 500W max
• Fuse F1: T5A 250V delayed
• Fuse F2: T100mA 250V delayed
• Radio frequency receiver: 433.92 MHz coding rolling code / dipswitch
• Maximum number of remote controls managed: 30
• In the case of vehicles of categories M1 and N2
