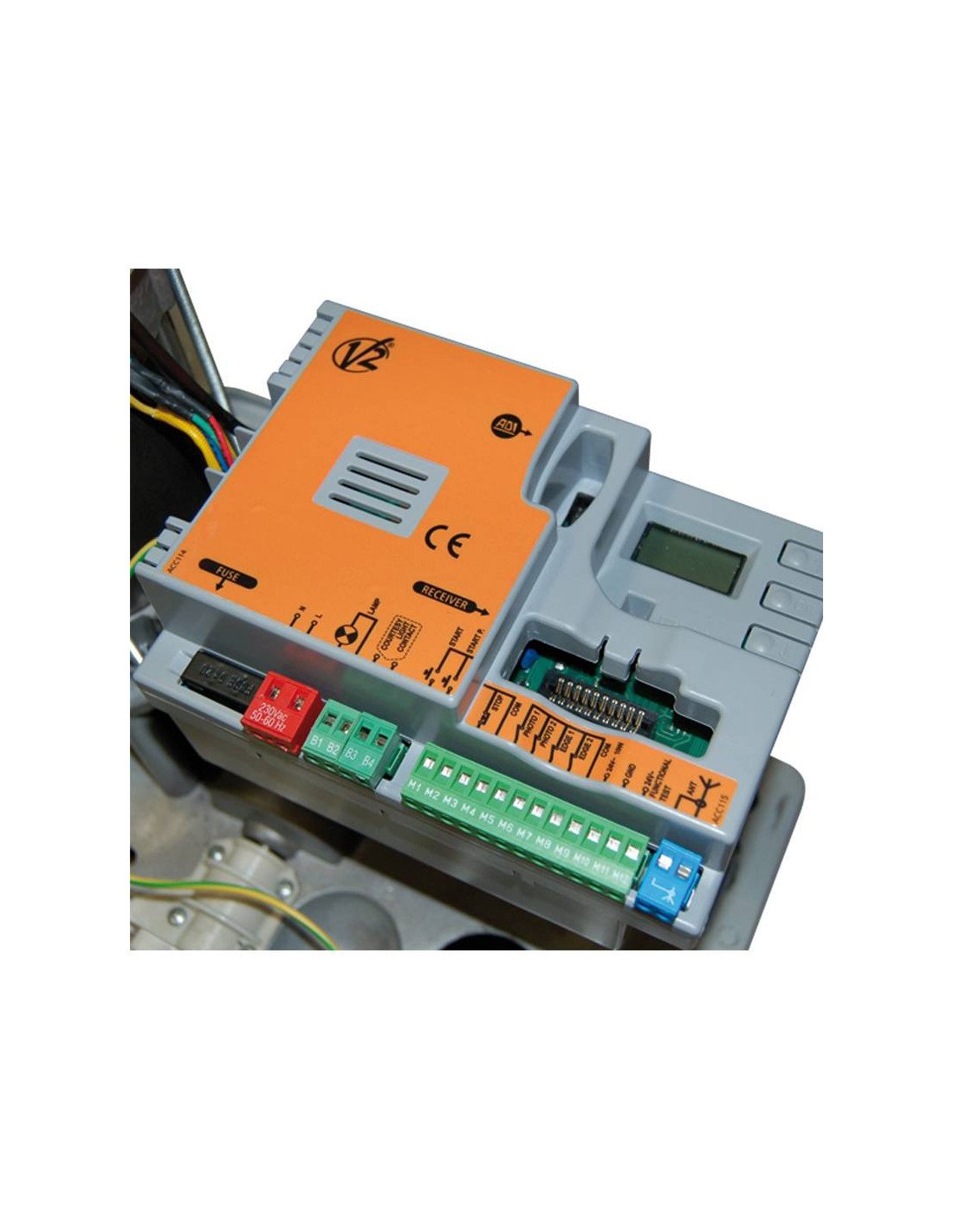

Table of manoeuvres V2 AYROSS PD19 230V plate, ideal for use as a spare in the AYROSS sliding motor.

The programming of parameters and configurations is done via the digital screen. The dashboard incorporates NO receiver, but is compatible with MR2 plug-in receivers.

CHART

CONTROL UNIT

• Programming by three buttons and screen
• Connector for the MR2 modular radio receiver
• 2 entries for photocells with self-test function
• 2 inserts for mechanical or resistive safety belts
• Out for courtesy light
• Self-learning function of working time and obstacle detection
• Operating cycle counter with maintenance signalling
• Softly I stop the closing leaves
• ADI connector for connection of optional module
• Soft start of the door on opening (programmable start ramp)
• Output for signalling lamp 24V with or without intermittency (24V versions)
• Energy saving function to reduce standby consumption (24V versions)
• Output for signalling lamp 230V with intermittent (versions 230V)
• Brake function with programmable power (versions 230V)
• Adjustable speed from 0,035 to 0,35 m/s in running and deceleration (version 1500-I)
• Dynamic torque control during all phases of the opening/closing cycle (version 1500-I)

RECEIVER

The PD19 board is compatible with MR2 receivers, it can take advantage of an old motor, however if you need a new receiver you can add it additionally from the "product accessories", as well as the controls.

MANUALS

Instruction manual V2 IRON OXIDES 230V
