Sommer Marathon (Y2229V000)

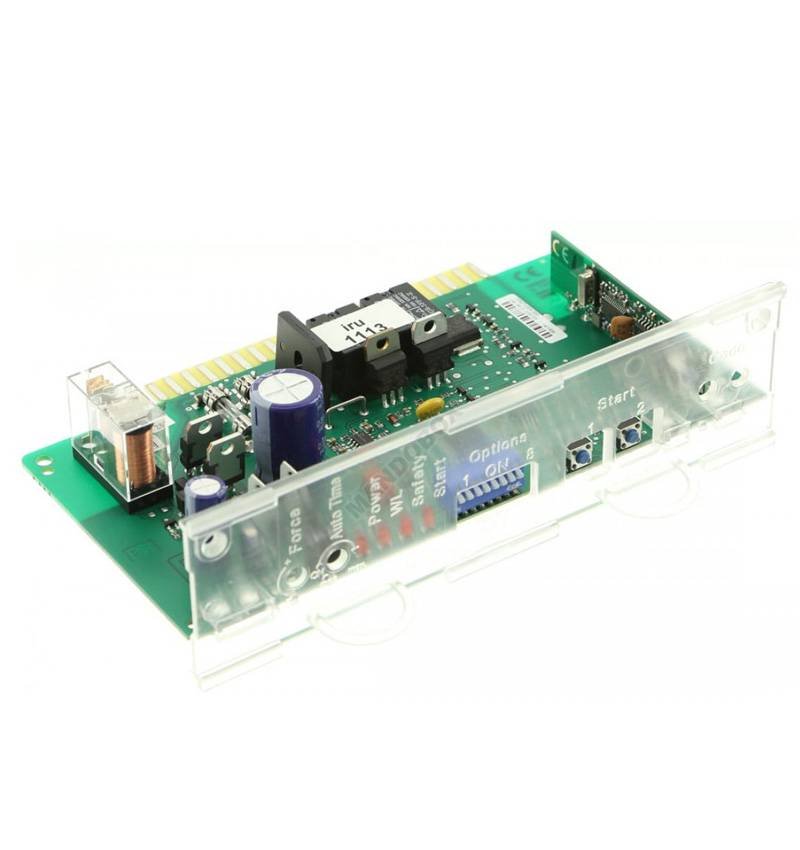

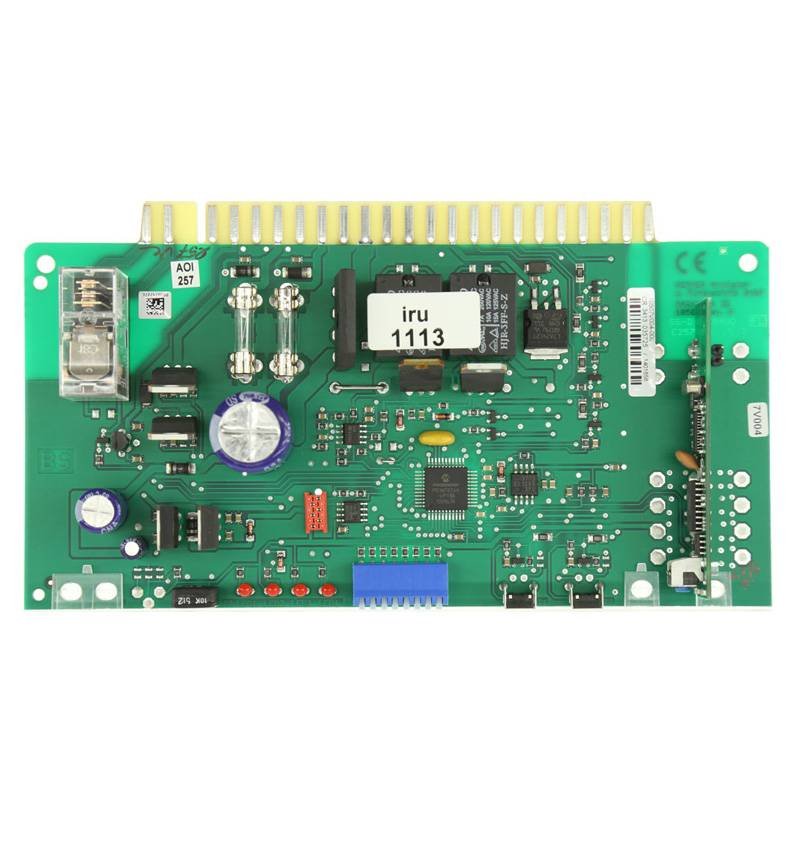

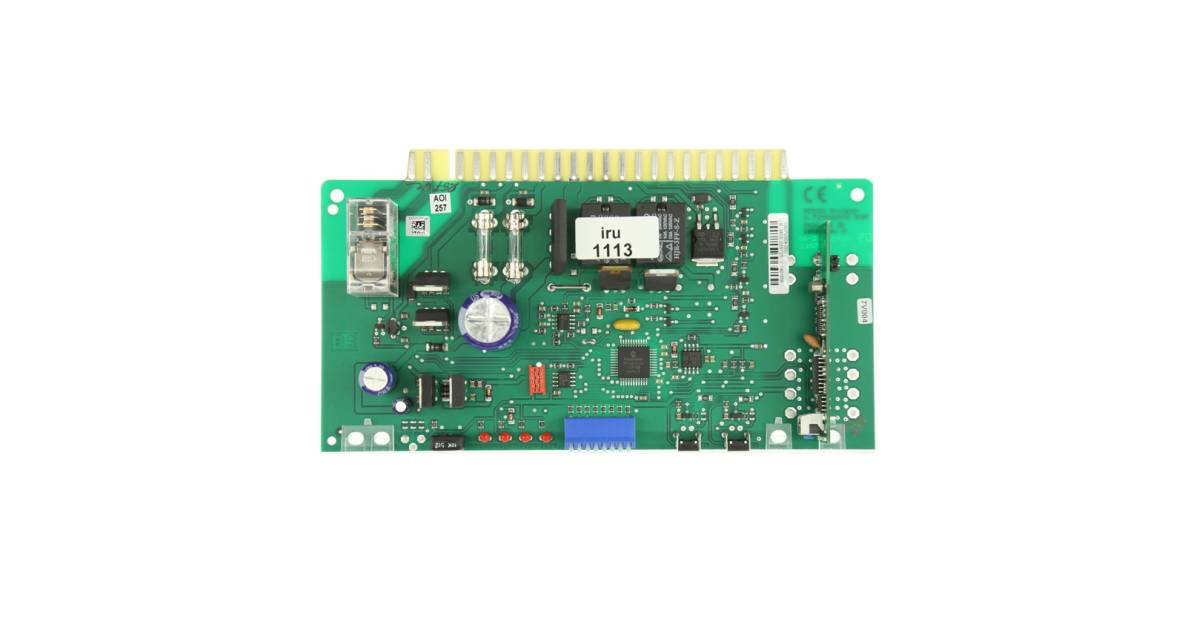

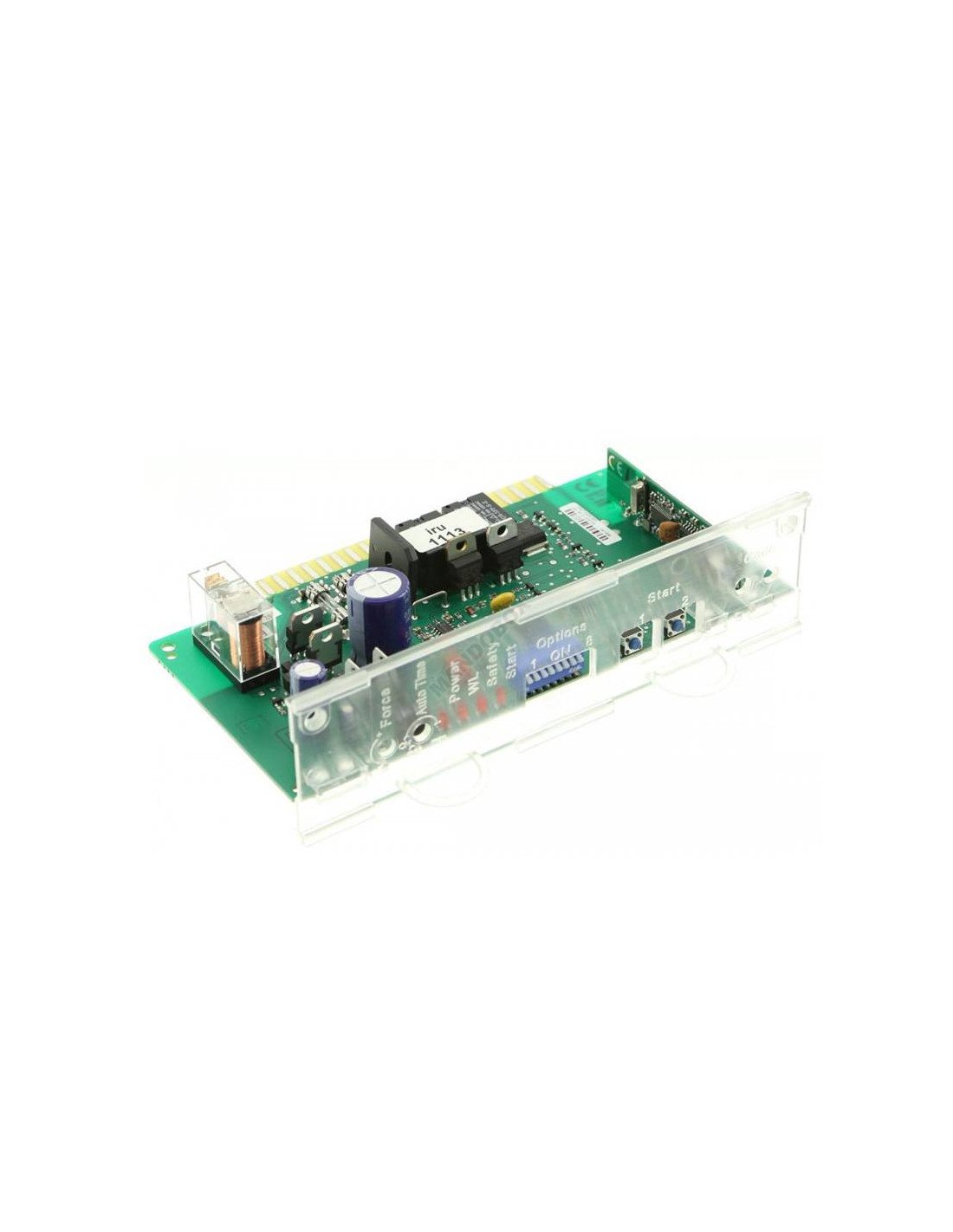

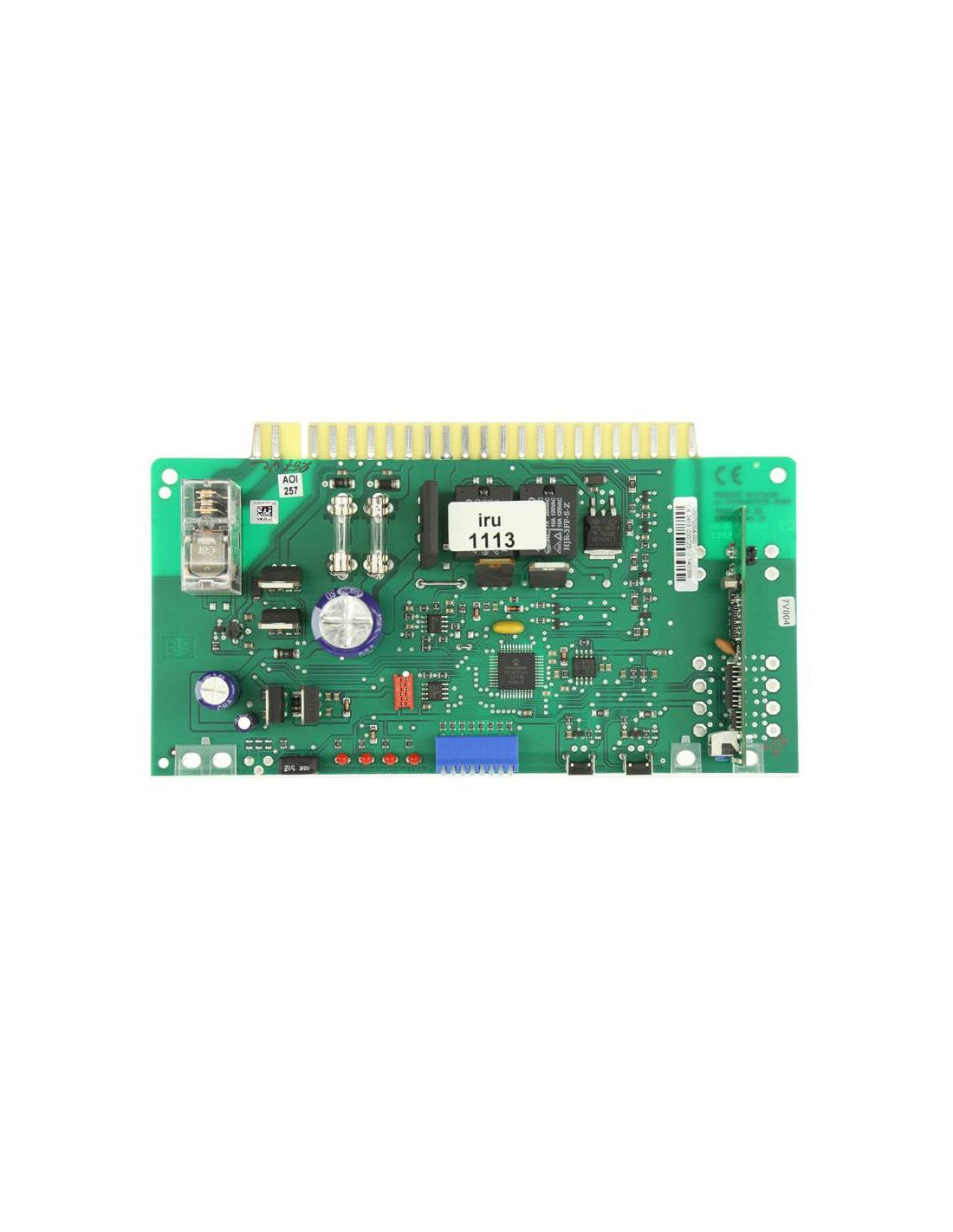

Electronic plate Sommer Marathon 3 FM 868MHz with integrated receiver.

✓ 868MHz integrated receiver with capacity for 448 codes

✓ Departure for safety photocell and anti crushing bands

✓ Simple programming

✓ Integrated antenna

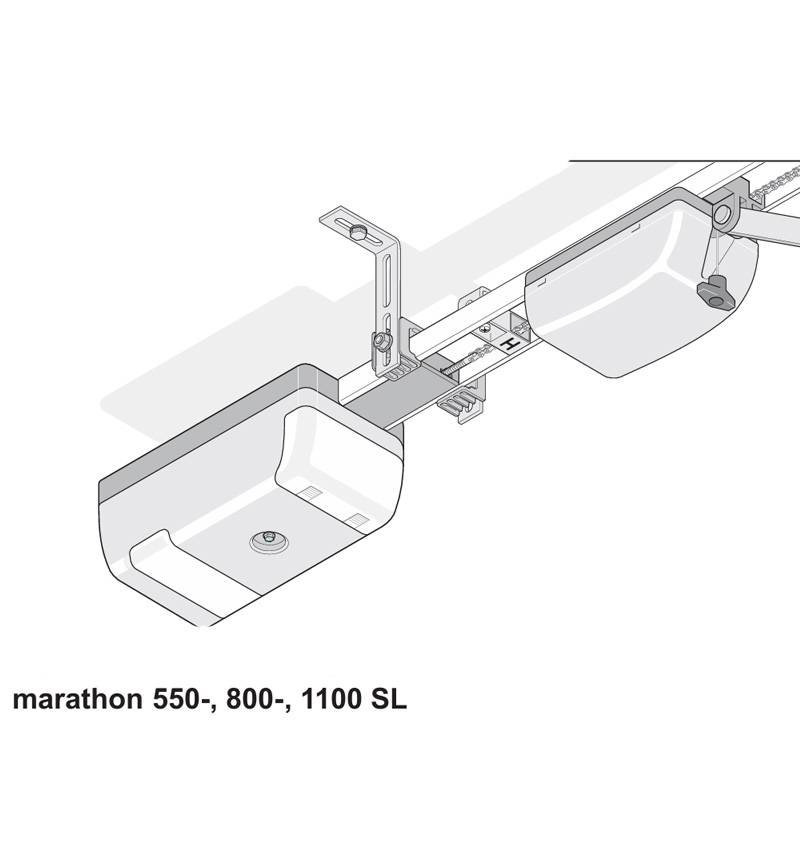

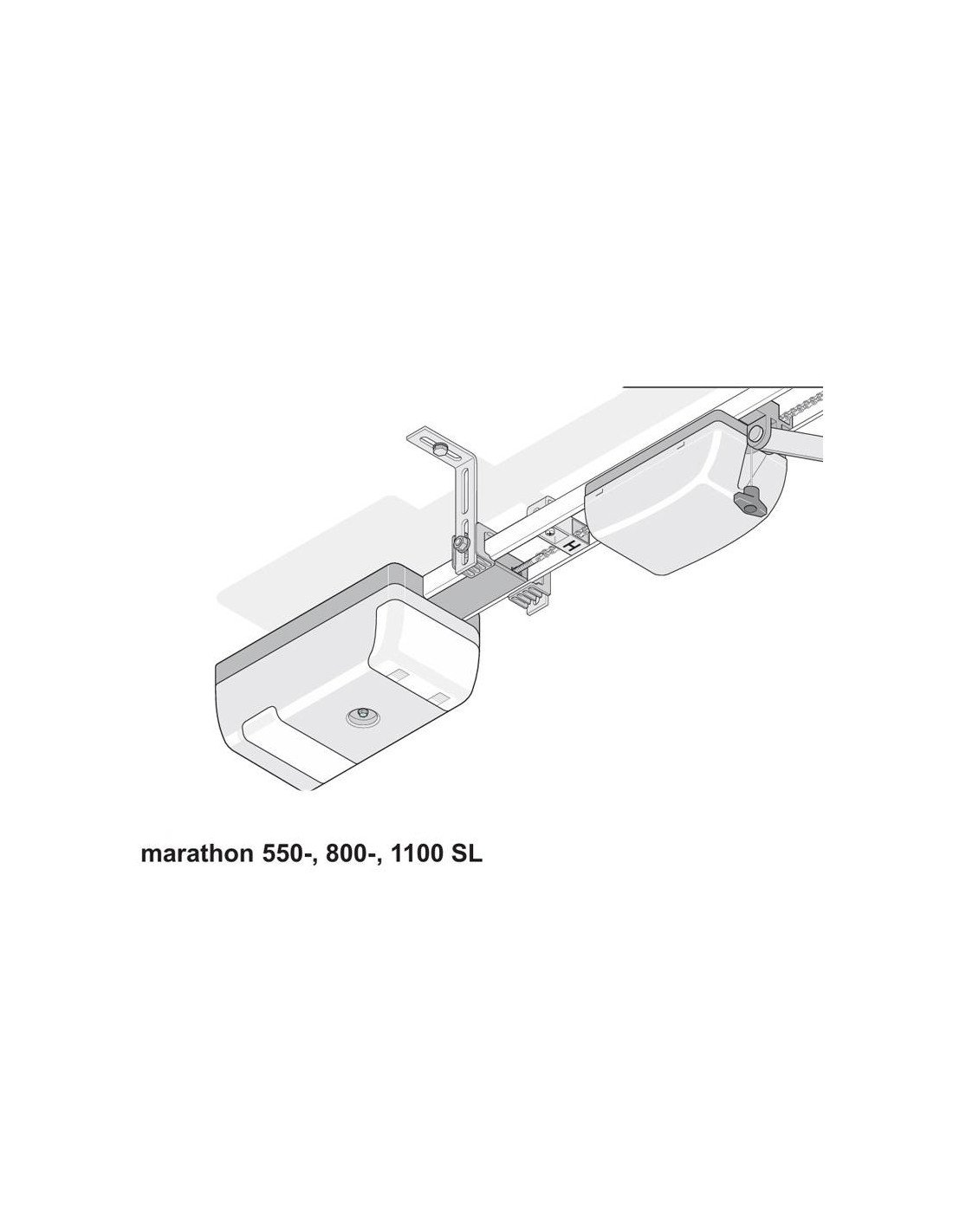

The plate Sommer Marathon is compatible with the following engines:

• Sommer Marathon S 800 SL
• Sommer Marathon S 550 SL
• Sommer Marathon S 1100 SL

Main functions of the electronic plate of the Sommer Marathon

Obstacle Recognition and Automatic Stop:

Thanks to its resistance detection system, the engine can stop and reverse its movement if it finds an obstacle during opening or closing.

Electronically adjustable motor force:

It allows to adjust the force of the motor without the need for mechanical adjustments, adapting to different pesos of door and conditions.

Partial opening (pedestrian mode):

It can be configured to perform a partial opening of the door, useful for the passage of people without the need to open the entire sheet.

Timed courtesy light:

Controls a lamp that is activated during the engine movement and remains on for a configurable time.

Soft stop (SOFT STOP / START):

The system reduces speed at the beginning and end of the route, avoiding blows and lengthening the life of the door.

Control of Electronic Career End:

It does not require mechanical career end; Learn the opening and closing points automatically during the start-up.

Configurable entries for security devices:

Fotocells, safety bands or other protection systems can be connected to increase safety during use.

Connection for emergency battery (optional):

Allows you to add a backup battery so that the system works during power cuts.

Self-learning programming:

The motor automatically memorizes the time and stop points when performing a complete opening and closing cycle.

Possibility of connecting remote control and external receivers:

The plate allows the learning of controls Sommer or other compatible, in addition to universal receivers.

Manual

Manual Sommer Marathon
