- New
Nice

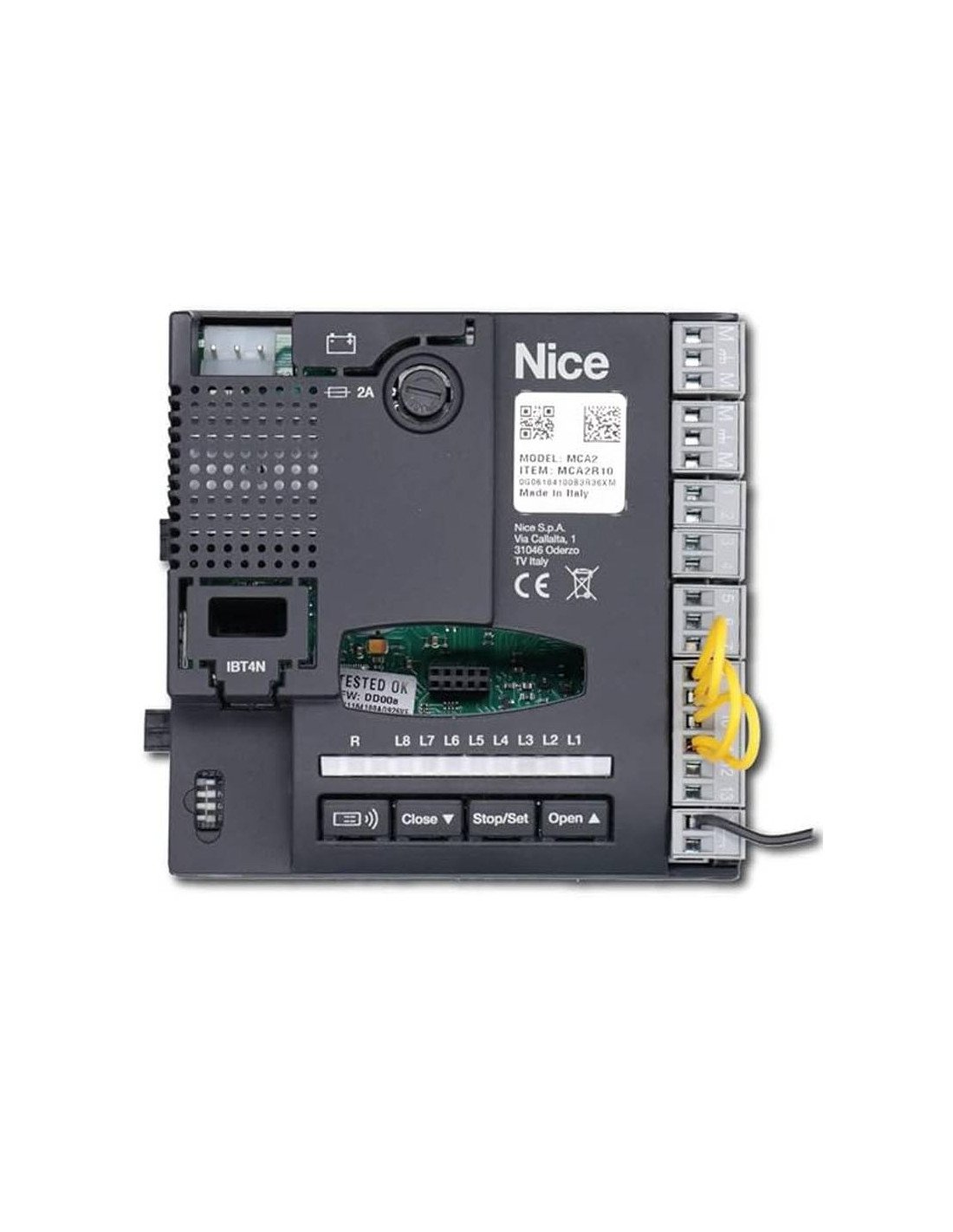

Electronic plate Nice MCA2 for electromechanical engines 24VDC
Referencia: MCA2R10
€146.00
IVA excluido
176,66 €
IVA incluido
Electronic plate Nice McA2 designed to work in 24VDC engines For folding doors, it includes an integrated receiver and battery entry Type PS124.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Nice Mca2
Electronic plate Nice McA2 designed to work in 24VDC engines For folding doors, it includes an integrated receiver and battery entry Type PS124.
The MC2 center replaces the old central MC424L, being able to be used with the following engines:
- Nice Wingo 2024
- Nice Wingo 3524
- Nice Wingo 4024
- Nice Wingo 5024
- Nice Too3024
- Nice Too4524
- Nice Xme2024
Central Nice MCA2 - Technical characteristics
| Network power | 230 V AC ± 10%, 50-60 Hz |
| Battery power (optional) | Input for Battery type PS124 - Operation ~ 21-28 V DC |
| Voltage output motors | 24 V DC |
| Maximum power current | 3 A per motor (integrated overcurrent protection) |
| Main functions | Self-learning of career end; amperometric detection of obstacles; soft-start / slowdown; pedestrian |
| Timers and adjustments | Pause (5-80 s), Luminous pre-signaling (~ 3 s), sensitivity of 1 to 6, delay of the first configurable engine |
| Auxiliary outputs | 24 V output for photocells (~ 200 mA); Exit flashing lamp (up to ~ 25 W); door indicator output; Exit Lock (12 V AC ~ 15 VA) |
| Compatible motors | Wingo 2024/3524/4024/5024, TOO3024 / TOO4524, XME2024 (All 24 V) |
| Working temperature | -20 ° C to +50 ° C (approx.) |
| Degree | IP54 (with properly mounted housing) |
| Dimensions (approx.) | 230 × 125 × 300 mm (according to version / housing) |
Product Details
MCA2R10
Specific References
