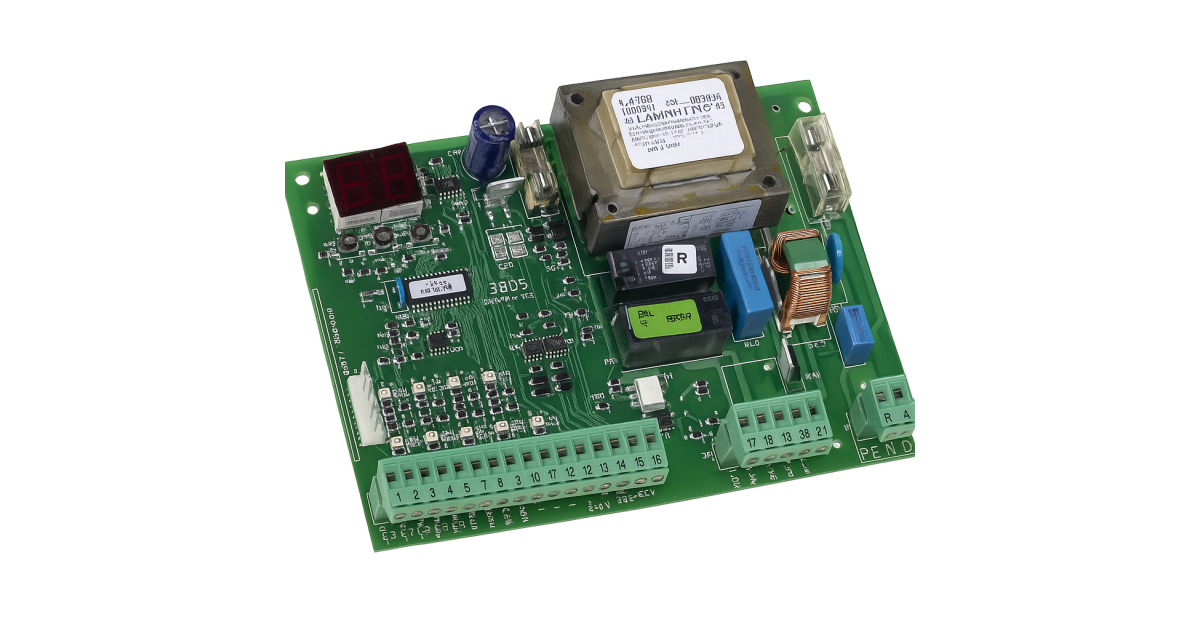

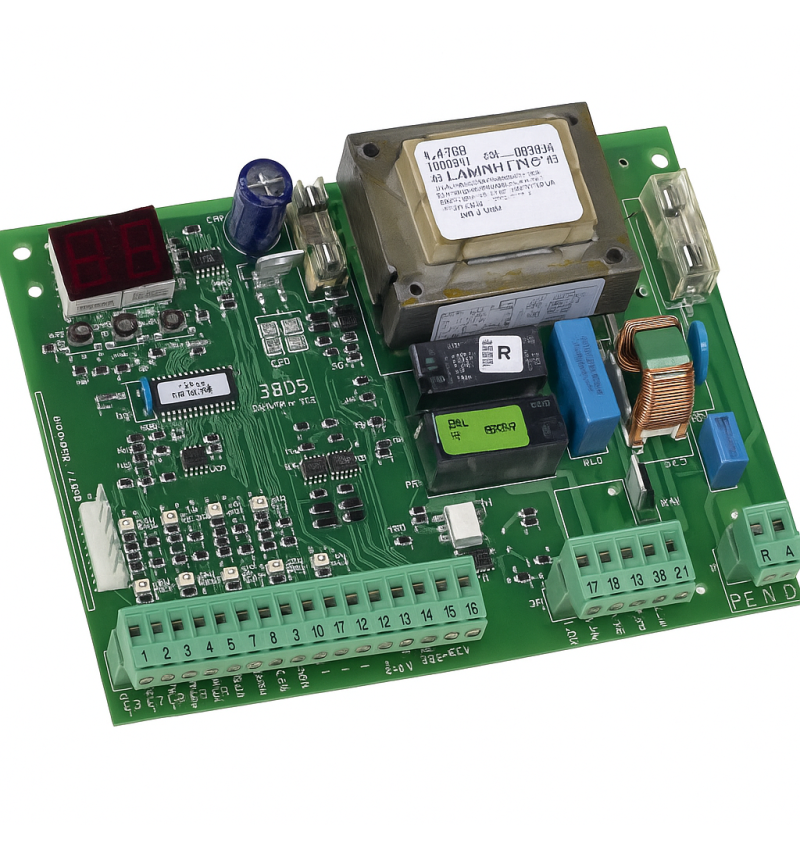

Placa electrónica FAAC 578D para Motores
Referencia: 790922
€152.00
IVA excluido
183,92 €
IVA incluido
Electronic plate FAAC 578d for automations of doors Slides or industrial gates at 230V.
The 578D card can be installed at a distance to control Sliding cancelas or industrial gates; It can also be inserted into a specific container equipped with a disconnector, teleketrons, control keypad and activation key.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
FAAC 578D | Electronic plate for engines FAAC
For automations of doors Slides or industrial gates at 230V.
The 578D card can be installed at a distance to control Sliding cancelas or industrial gates; It can also be inserted into a specific container equipped with a disconnector, teleketrons, control keypad and activation key.
Compatibility
Engines FAAC Compatible for industrial sliding (Range 230 V):
- FAAC 746 (230 V series).
- FAAC 844, including version 844 R (reversible).
- Boxes / Envelopes: Mod. E - L-LM.
Main functions
✓ "Advanced" programming via Display.
✓ Pair at startup, brake, Failsafe, preseñalization (pre-flashing).
✓ Exit for courtesy / timed indicator light.
✓ Management of electric lock in opening and closing.
✓ Differentiated logic for safety devices in opening / closure.
✓ Encoder input, anti-explashing with adjustable sensitivity.
✓ Deleterations, partial opening (pedestrian), work time.
✓ Maintenance warning and cycle counter.
Technical characteristics FAAC 578d
Technical characteristics - FAAC 578D (Ref. 790922)
| Description | Value |
|---|---|
| Catalog reference: | 790922 |
| Plate feeding: | 230 VAC ± 10% - 50/60 Hz |
| Motor feed: | 230 VAC - Up to 1000 W |
| Compatibility of engines: | FAAC 746 / FAAC 844 / FAAC 844 R (Reversible) |
| Type of Automation: | Sliding or industrial doors 230 V |
| Assembly: | Box FAAC MOD. E / L / LM or remote installation |
| Auxiliary outputs: | 24 VAC for accessories and security devices |
| Security control: | Adjustable electronic anti-explashing, independent logic Opening / closing |
| Features: | Pedestrian opening, decelerations, initial torque, brake, preseñalization, electric lock management |
| Programming Display: | Multifunction digital display with advanced menu |
| Encoder management: | Yes, compatible with position control and anti-scaling |
| Operating temperature: | -20 ° C to +55 ° C |
| Transformers: | Integrated |
| Degree of protection: | IP54 (in box mod. E / L / LM) |
| Dimensions: | Approx. 145 × 115 mm |
Manual
Product Details
790922
Specific References
Electronic plate FAAC 578d for automations of doors Slides or industrial gates at 230V.
The 578D card can be installed at a distance to control Sliding cancelas or industrial gates; It can also be inserted into a specific container equipped with a disconnector, teleketrons, control keypad and activation key.
