Analog maneuver box Erreka Puma for 230V engines

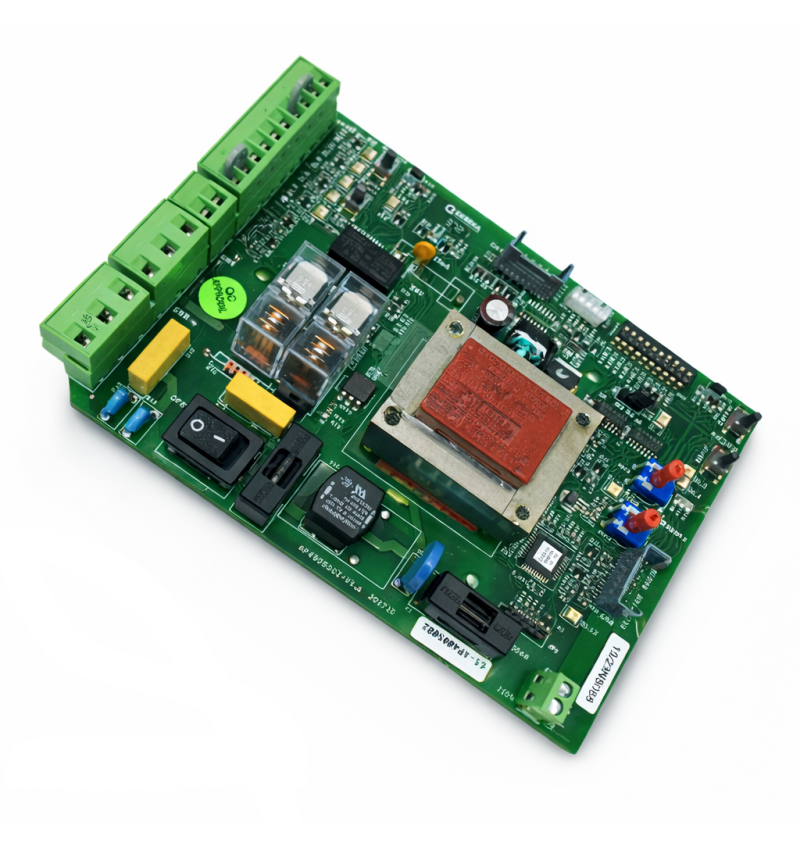

The maneuvering box Erreka Puma It is an analog control center designed for the management of single-phase sliding motors Erreka Puma Pus400ec of 230V.

This electronic picture allows you to control an engine up 600 W and incorporates advanced functions as Obstacle detection by encoder, Soft unemployment in opening and closing to avoid blows and rebounds, and complete management of security entries.

The programming is carried out quickly by Potentiometers and Dip-switch, allowing to adjust parameters as the waiting time before automatic closing or the behavior of the security entries.

Picture Erreka Cougar has also 6-pin socket for radio receiver, compatible with cards IRN2, IRN250 or RSD, allowing the use of remote controls Erreka Kuma or iris. It also includes 230V signaling lamp and semaphore management card connection.

Thanks to its integrated LED indicators, it is possible to easily view the status of the entries and perform quick diagnostics during installation or maintenance.

Main features

• Analog maneuver box for automatic door engines
• Food for single-phase motor 230v
• Maximum motor power: 600 W
• Programming by Potentiometers and Dip-switch
• Function Obstacle detection by encoder
• Soft unemployment in opening and closing
• Tickets for Sensor Hall or external career end
• Closing safety entrance
• Management of START and pedestrian opening via radio
• Display of the entrance status using LED
• Output 230V signaling lamp
• Integrated on / off switch
• Traffic card connector
• 6-pin socket for receivers IRR2 / IRE2-250 / RSD
• Compatible with controls Erreka Kuma and erreka iris

Technical characteristics

• Power: 230V - 50/60 Hz
• Maximum motor load: 600 W
• Departure Accessories: 24 VAC / 0,315 A
• Exit Lamp signage: 230 VAC / 5 A
• Regulation Timeout: up to 90 seconds
