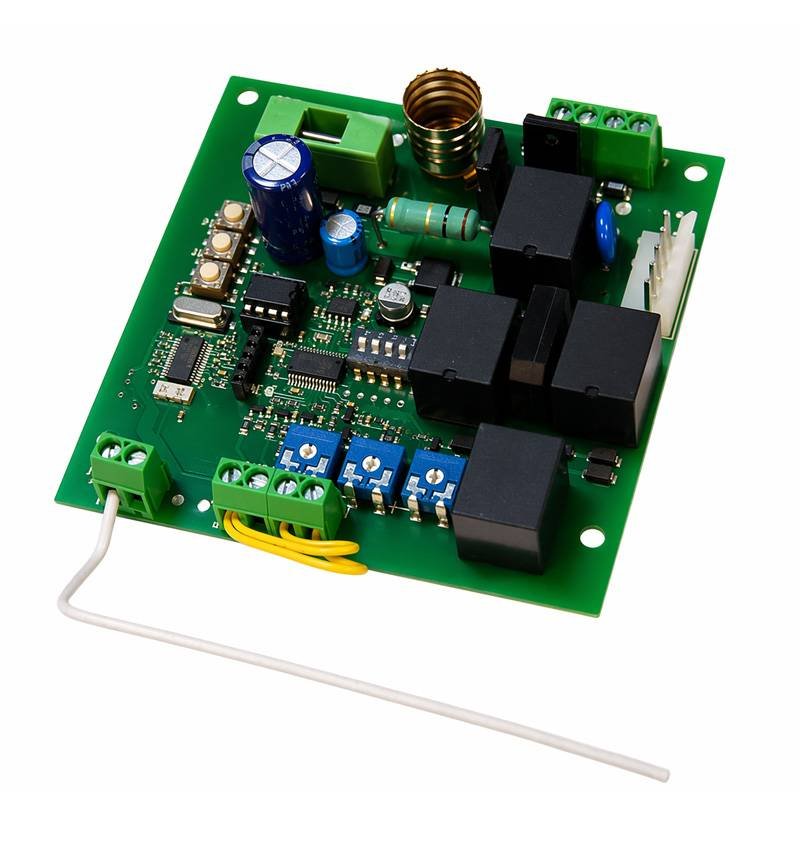

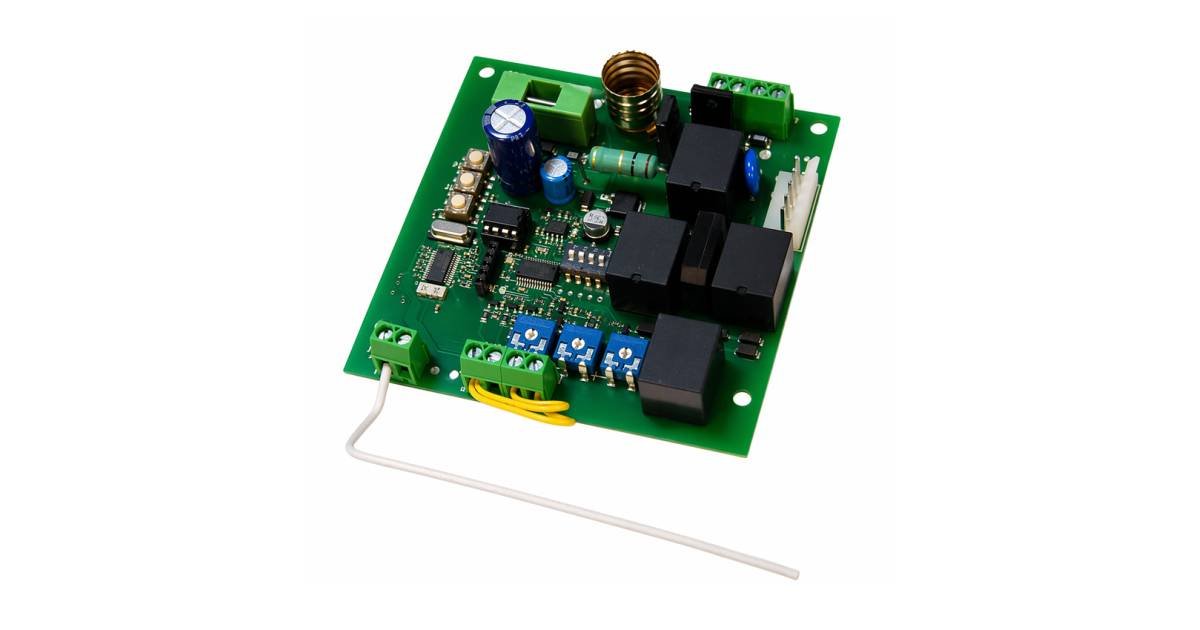

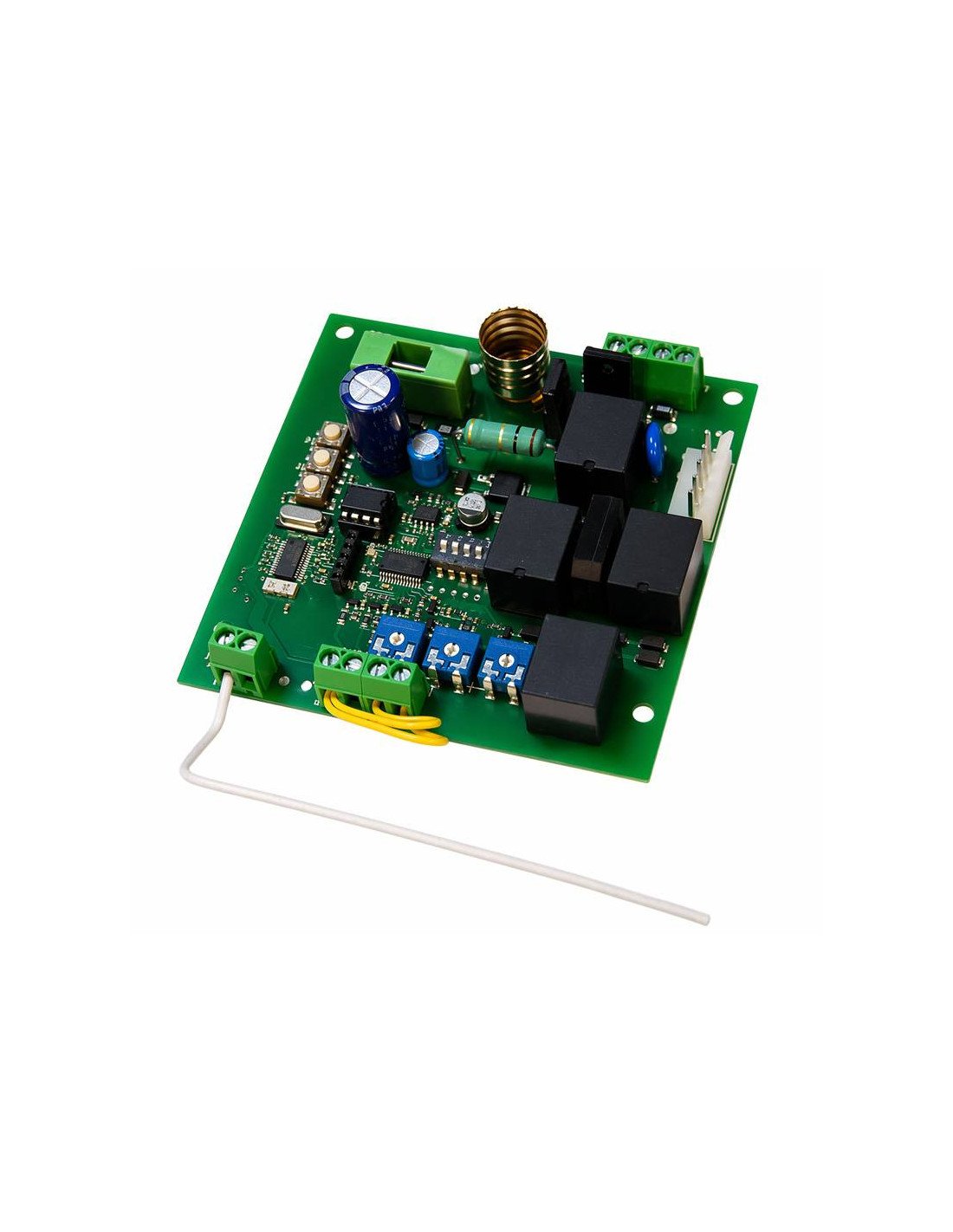

Beninca control box cp.j3m for Jim3 / JM.3 engine, Original spare electronic plate designed for automations Sectional garage doors. This central manages 1 engine and work with Food of Central to 230 Vac and Motor power to 24 VDC.

The plate Beninca cp.j3m It incorporates complete electronic management of automatism, allowing control of the main operator's main maneuver and safety functions. It is a specific solution for the range Beninca Jim3 / JM.3, ideal as original replacement When the engine electronics presents breakdown or need replacement.

Among its main functions, the Regulation of parameters and operating logics, management through Trimmers, Dip-switches and push buttons, Radio receiver integrated at 433,92 MHz, tickets for Step by step, Stop and photocell, as well as integrated courtesy light and output for flashing light.

In addition, this central has Electronic regulation of the pair, anti-explashing security By means of amperometric detection and management by encoder, Self-learning parameters, adjustable decelerations and electronic adjustment of the residual tension of the belt at the end of the maneuver. You can also support optional accessories according to motor version and installation.

The Plate Benincà cp.j3m Reference 9686678 It is an electronics oriented to restore the original operation of the automation, maintaining the compatibility with the own functions of the operator Benincà Jim3 / JM.3 for sectional garage doors.

• Brand: Benincà
• Plate model: Cp.j3m
• Reference: 9686678
• Application: 1 Motor Benincà Jim3 / JM.3
• Type of door: Sectional garage door
• Central feeding: 230 VAC
• Motor feed: 24 VDC
• Integrated receiver frequency: 433,92 MHz

Important: when it is a Specific replacement electronics, It is recommended to verify the original reference installed on the engine before placing the order, especially in Beninca teams of the JIM / JM series.
