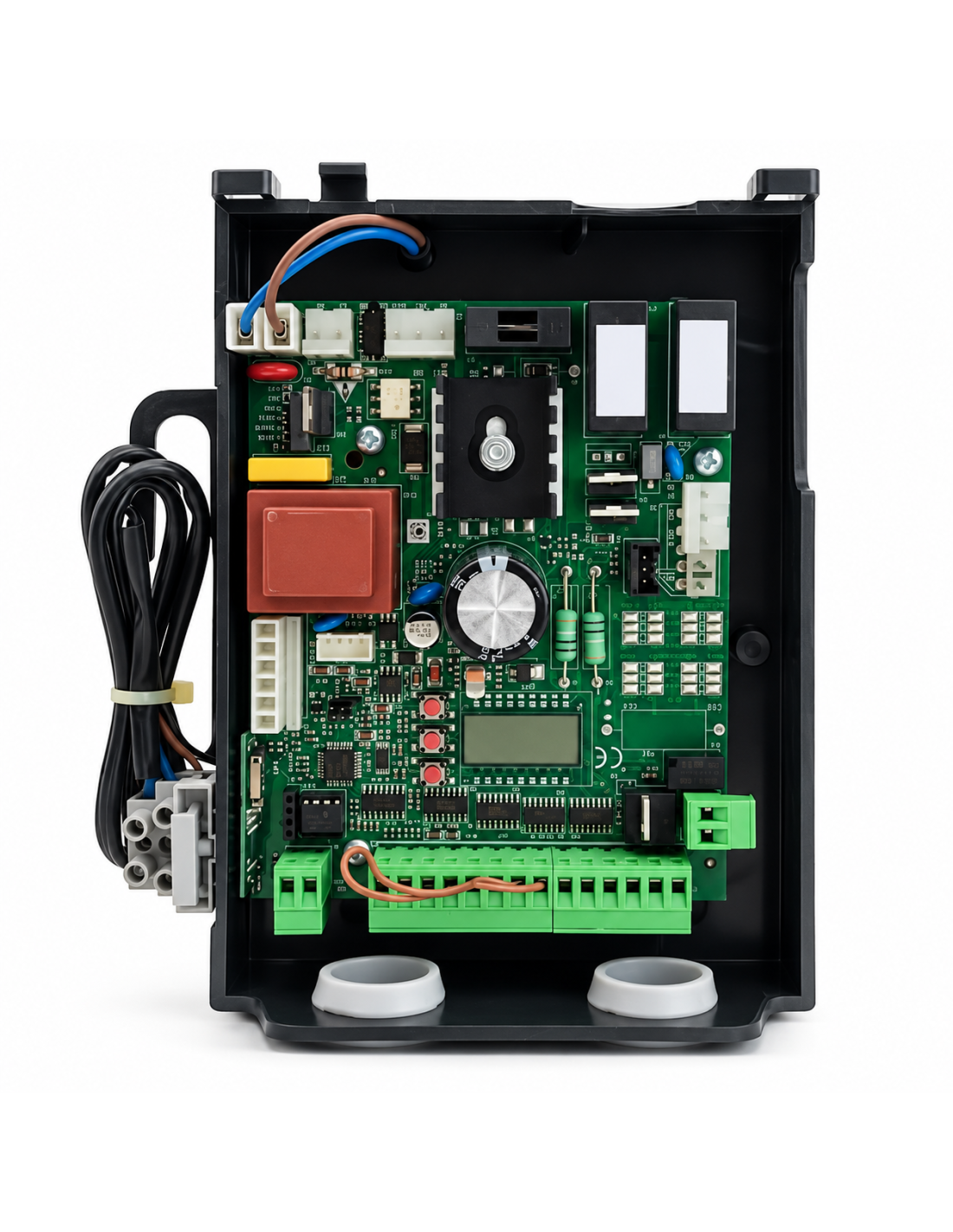

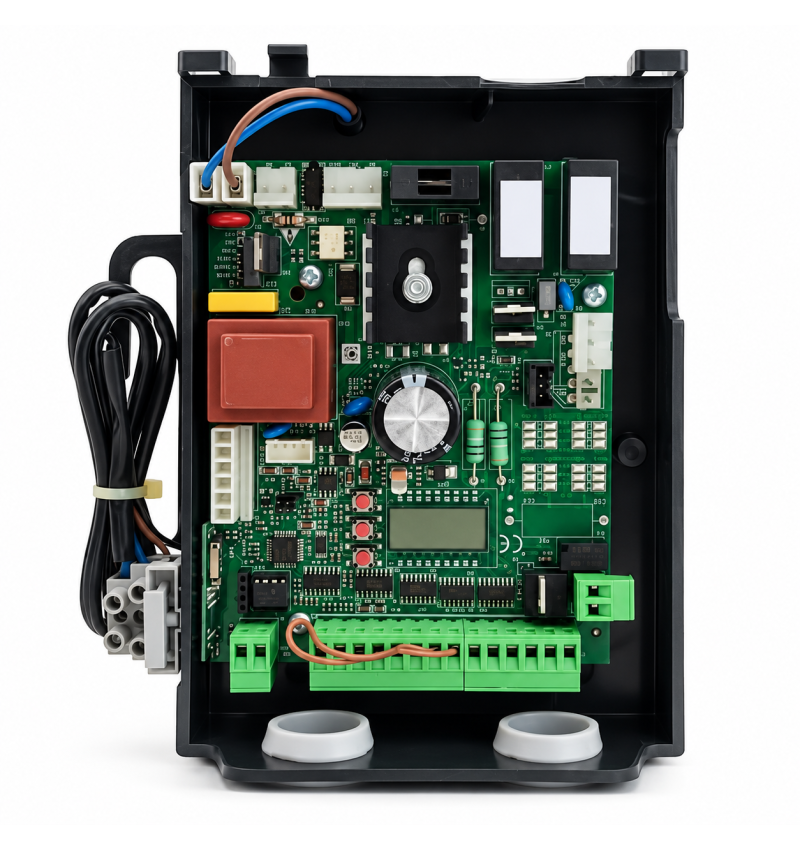

The Beninca CP.B24ESA, reference 9686693, is the electronic spare center used in the motors for sliding doors Benincà Bull424esa and Bull624esa.

It is designed to manage 1 24vDC engine and incorporates the programming functions, control of the encoder, electronic force regulation, decelerations and management of automation security devices.

The plant has integrated LCD screen to facilitate configuration and diagnosis, in addition to a radio receiver 433,92 MHz built-in with memory for up to 64 compatible transmitters.

Is especially indicated as replacement of the original plate when the electronics of the Bull42Sesa or Bull627a presents a fault and the rest of the engine is in good condition.

Compatibility

✓ Benincà Bull424esa

✓ Benincà Bull624esa

IMPORTANT: Check the version that

The reference 9686693 / CP.B24A corresponds to the models Bull424Sesa and Bull624Sesa. Should not be automatically compatible with other versions such as BULL424SE BULL624SE BULL424SW BULL624SW or other generations of the Bull range. Check the reference of the installed plate before the order.

Central for 24VDC engine

The Cp.b24esa controls a 24VDC engine.

The complete automation is connected to a network power of 230VAC 50/60 Hz, using the corresponding motor transformer to feed the electronics and the motor at low voltage.

✓ Original electronic central Benincà cp.b24esa.

✓ Replacement reference 9686693.

✓ 1 sliding Motor of 24VDC.

✓ Compatible with Bull424Sesa and Bull624Sesa.

✓ Integrated LCD screen for programming.

✓ Radio receiver 433.92 MHz integrated.

✓ Memory for 64 transmitters.

✓ Compatible with coding Arc Advanced Rolling Code.

✓ Management of encoder.

✓ Intelligent power control system STC System.

✓ Energy saving system That System.

✓ AMPERIMETRIC DETECTION FOR FUNCTION antiaplastamiento.

✓ Electronic regulation of the pair.

✓ Adjustable decelerations.

✓ Function of autostourage / autoset of parameters.

✓ Input for pedestrian opening.

✓ Step-by-step entry, STOP and security devices.

✓ Input for sensitive band N.c. or resistive 8k2.

✓ Separate entries for photocells.

✓ Two configurable auxiliary outputs.

✓ Maneuver counter and maintenance notice.

✓ Protection by password of access to programming.

The cp.b24esa directly incorporates a radio receiver of 433.92 MHz, so it is not necessary to install an independent receiving card to use compatible Benincà controls.

The internal memory allows to store up 64 transmitters.

The plant supports compatible coding systems from Benincà, including Advanced Rolling Code (ARC).

The central Cp.b24esa manages motor encoder, allowing precisely controlling the different phases of movement of the door.

Along with amperimeter detection and the STC System, electronics can control the force applied during the tour and detect possible obstacles.

Also allows you to configure the opening and closing decelerations and perform the self-adjustment of the operating parameters.

The CP.B24SE has connections for different control devices and security:

✓ Step by Step.

✓ STOP.

✓ Entry of pedestrian opening.

✓ Active photocell during opening and closing.

✓ Active photocell during closing.

✓ Entry for sensitive band N. C. or 8k2.

✓ Tickets for engine running end.

The plant has two configurable auxiliary outputs that can be used, according to programming, for functions such as:

✓ Open door indicator.

✓ Second radio channel.

✓ Service light.

✓ Zone light.

Replacement of the electronic power station

After replacing the cp.b24 that may be necessary to perform the setting parameters, travel learning, force adjustment and control memorization.

Before making any connection, the automation of the automation and the manufacturer's electrical outline must be respected.

■ 1 × benincà CP.B24SESa Ref. 9686693.
Engine, transformer, controls and other accessories not included.
