Kit Beninca Cp.b24a + transformer 9688131 for bull424esa / bull624esa

Kit Control Box Benincà CP.B24SA + Transformer for Bull424Ses / BULL624SESA

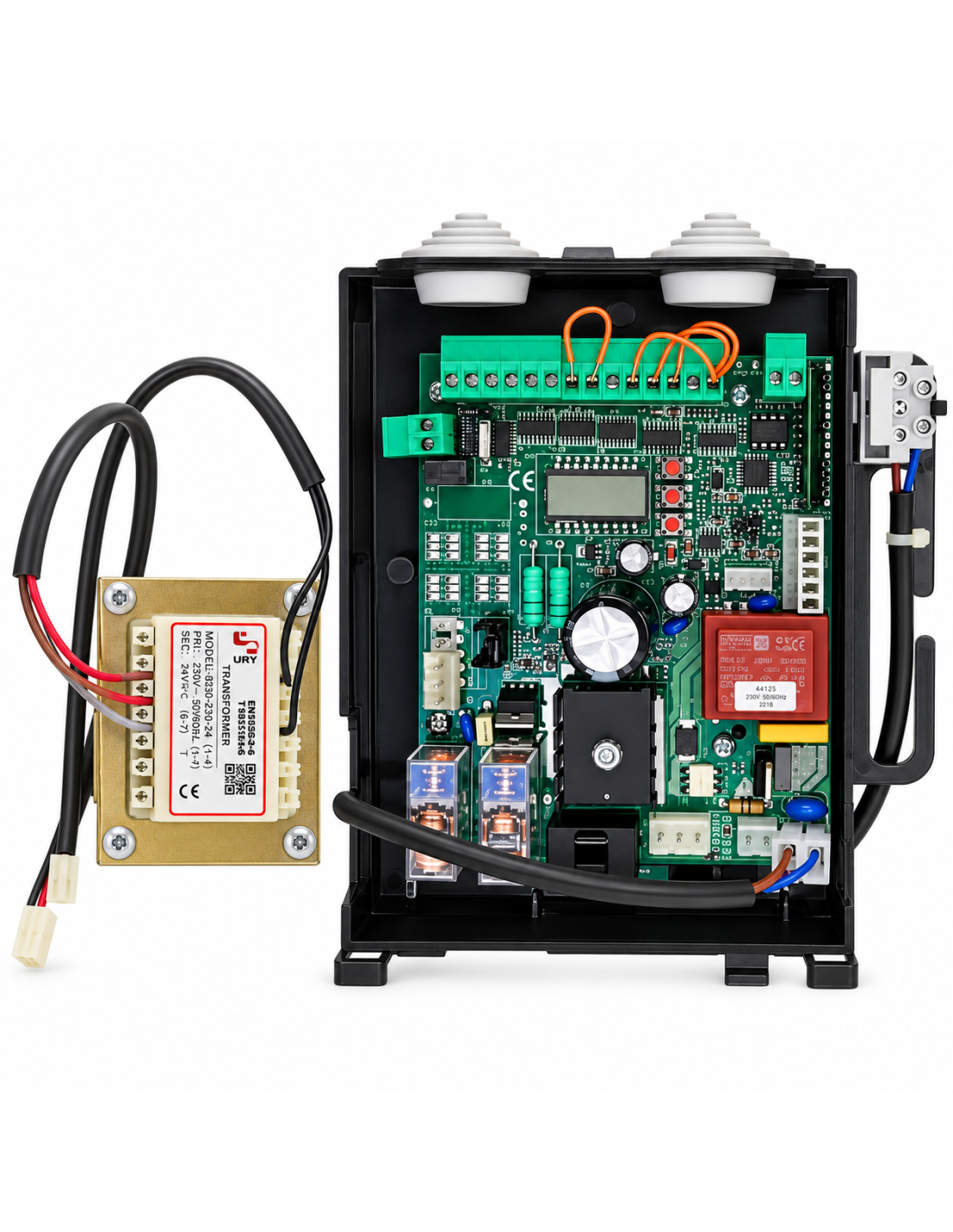

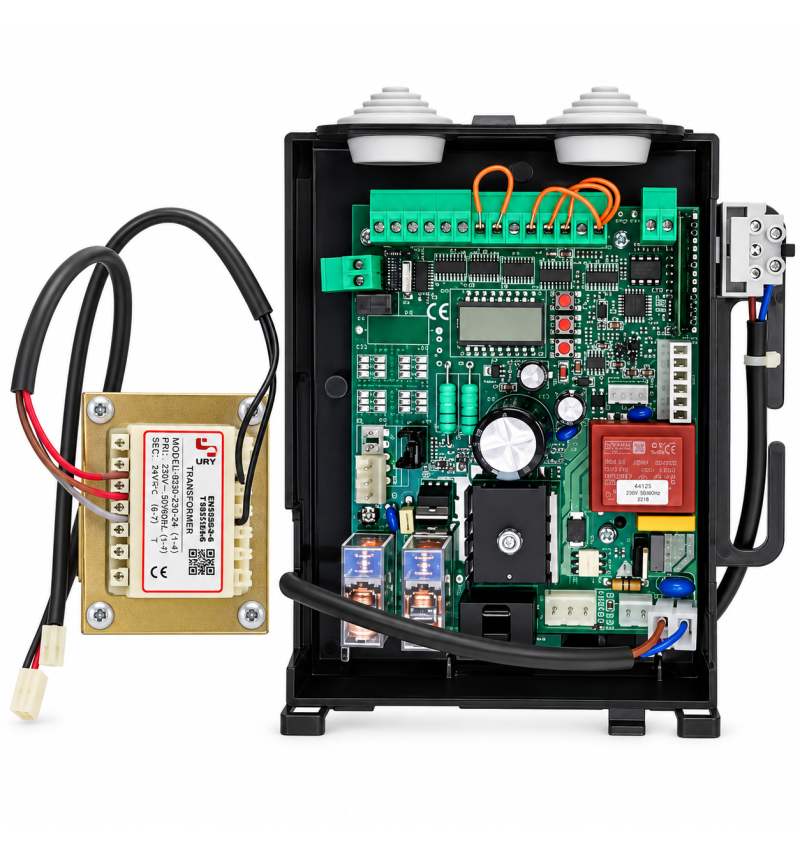

The reference Benincà 9688131 corresponds to complete spare kit formed by the electronic chart cp.b24esa and its feeding transformer, used in sliding motors Benincà Bull424esa and Bull624esa.

It is a specially indicated solution when it is needed to replace both the electronic and transformer plant from the automation, avoiding having to acquire both components separately.

The central CP.B24ESA manage the engine of 24Vdc, the end of the race, encoder, security devices and the different opening and closing functions of the automatism.

Incorporate radio receiver of 433.92 MHz and programming screen to perform the main operating settings of the door.

This product is supplied as original replacement kit Benincà and includes the electronic central and transformer.

Difference between references 9688131 and 9686693

9688131: includes central CP.B24SESA + Transformer.

9686693: it corresponds only to the electronic plate cp.b24esa, without transformer.

This set is intended for sliding motors:

✓ Benincà Bull424esa

✓ Benincà Bull624esa

Important: Check the engine version

Before placing the order, check that the installed motor corresponds to the version Bull424Sesa or Bull624Sesa.

It should not be considered automatically compatible with other versions of the Bull range as Bull424SE, Bull624SE, Bull424SW, Bull624SW or Bull Turbo, as they can use different power plants and feeding systems.

✓ Original replacement Benincà.

✓ Reference 9688131.

✓ Includes electronic chart cp.b24esa + transformer.

✓ For sliding motors Bull424Sesa and Bull624Sesa.

✓ Management of 1 24vDC engine.

✓ Feeding the installation from Network 230VAC 50/60 Hz.

✓ Integrated screen for programming and diagnosis.

✓ Radio receiver 433,92 MHz built-in.

✓ Memory for 64 transmitters.

✓ Management of the encoder of automatism.

✓ Security system antiaplastamiento.

✓ Electronic force regulation.

✓ Management of ralentizaciones in opening and closing.

✓ Function of self-learning / autoset.

✓ Entry for pedestrian opening.

✓ Tickets for photocells and security devices.

✓ Input for sensitive band N.c. or resistive 8k2.

✓ Indicated for full repair or replacement of the electronic power supply and control system.

Unlike the reference 9686693, this set 9688131 incorporates the transformer used to properly feed the electronics and the low voltage motor of the automatism.

This converts reference 9688131 into a particularly useful solution when the fault affects both the electronic center as the feeding system.

The central CP.B24SEA incorporates radio receiver of 433.92 MHz, so you do not need an additional receiving card to work with compatible Benincà transmitters.

After replacing the plant will be necessary memorize the controls to be used, unless a compatible memory is transferred following the procedure set by the manufacturer.

The CP.B24SESA allows you to manage the main control devices and safety of automation:

✓ Safety photocells.

✓ Stop entry.

✓ Pedestrian opening.

✓ Step by step entry.

✓ Sensitive band N. C. or resisted 8k2.

✓ Engine career endings.

✓ Encoder.

✓ Anti-explashing safety by electronic control of the engine operation.

After replacing the box

The new central may require the realization of a new travel learning and operating parameters.

It will also be necessary to check the configuration of photocells, end of race, encoder, strength, slowdown and other securities.

The installation and connection must be made with the automatism disconnected from the network and following the electrical scheme corresponding to Bull424Sesa / BULL624SESA.

This product does not include the engine

The reference 9688131 corresponds exclusively to set of electronic power station + transformer. It does not include a gearmotor, housing, pinion, race end, or other mechanical components of automation.

■ 1 × electronic Central Benincà cp.b24esa.

■ 1 × feeding transformer for Bull424SA / BULL624SESA.
